Template for 1590B/125B guitar pedal assembly
Print Profile(1)
Description

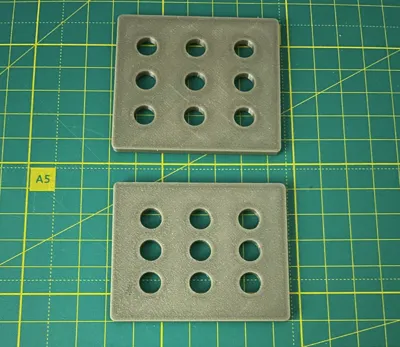

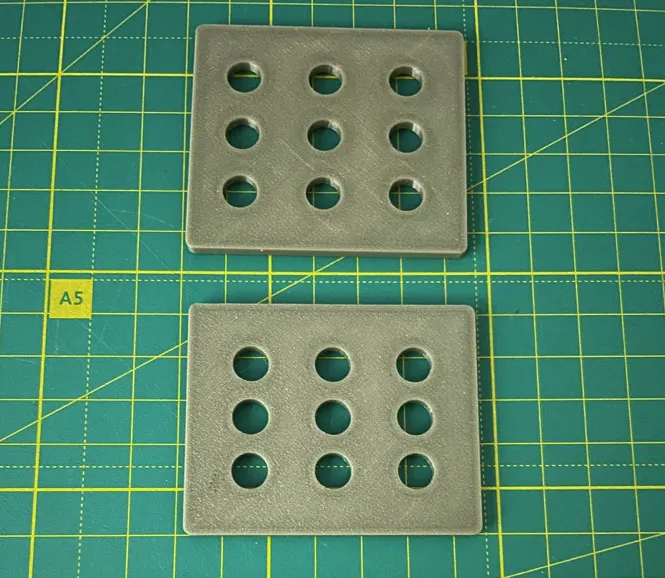

Template for DIY guitar pedal assembly in 1590B enclosure.

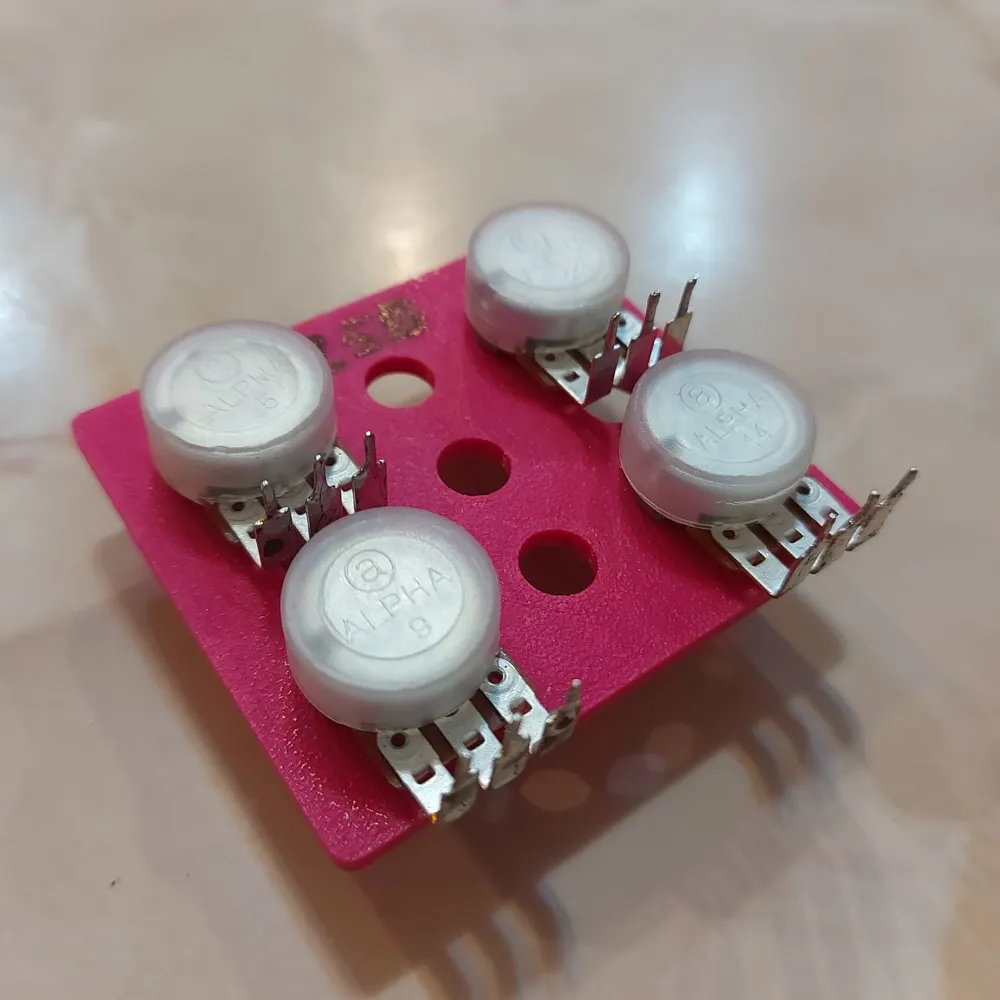

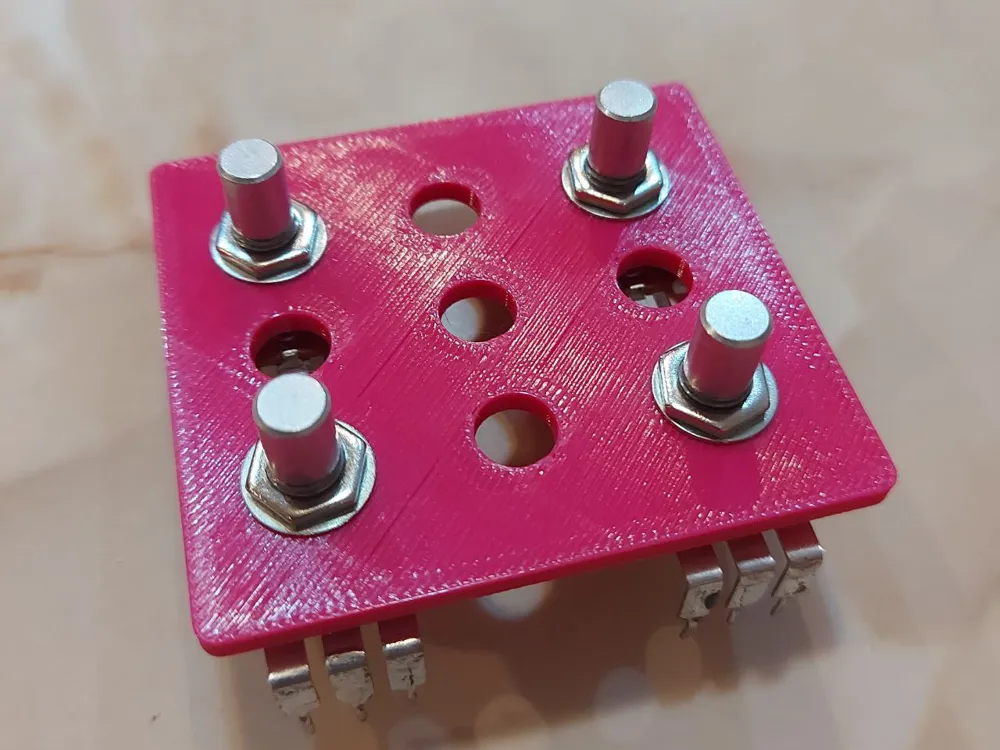

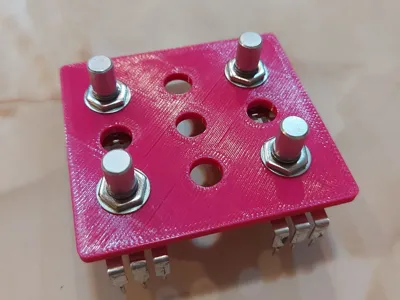

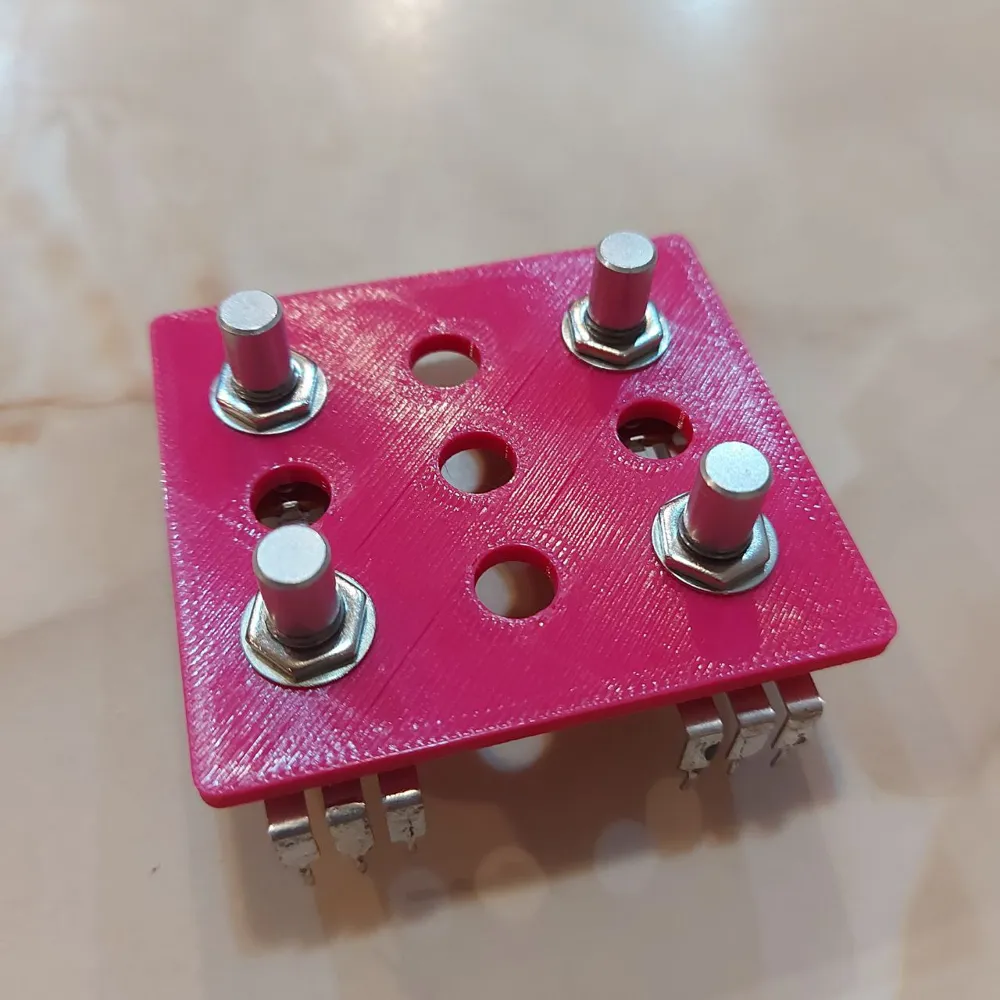

Designed to ensure correct potentiometer and switch placement and simplify soldering outside the enclosure.

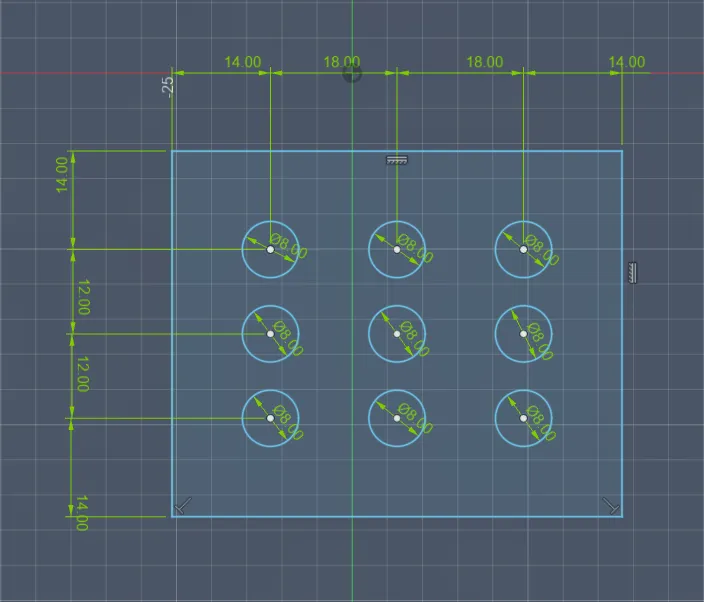

3x3 grid of 8mm holes, dX = 18mm, dY = 12mm (see attachment). Compatible with most 1590B designs shared by https://www.instagram.com/south_obolon_fx

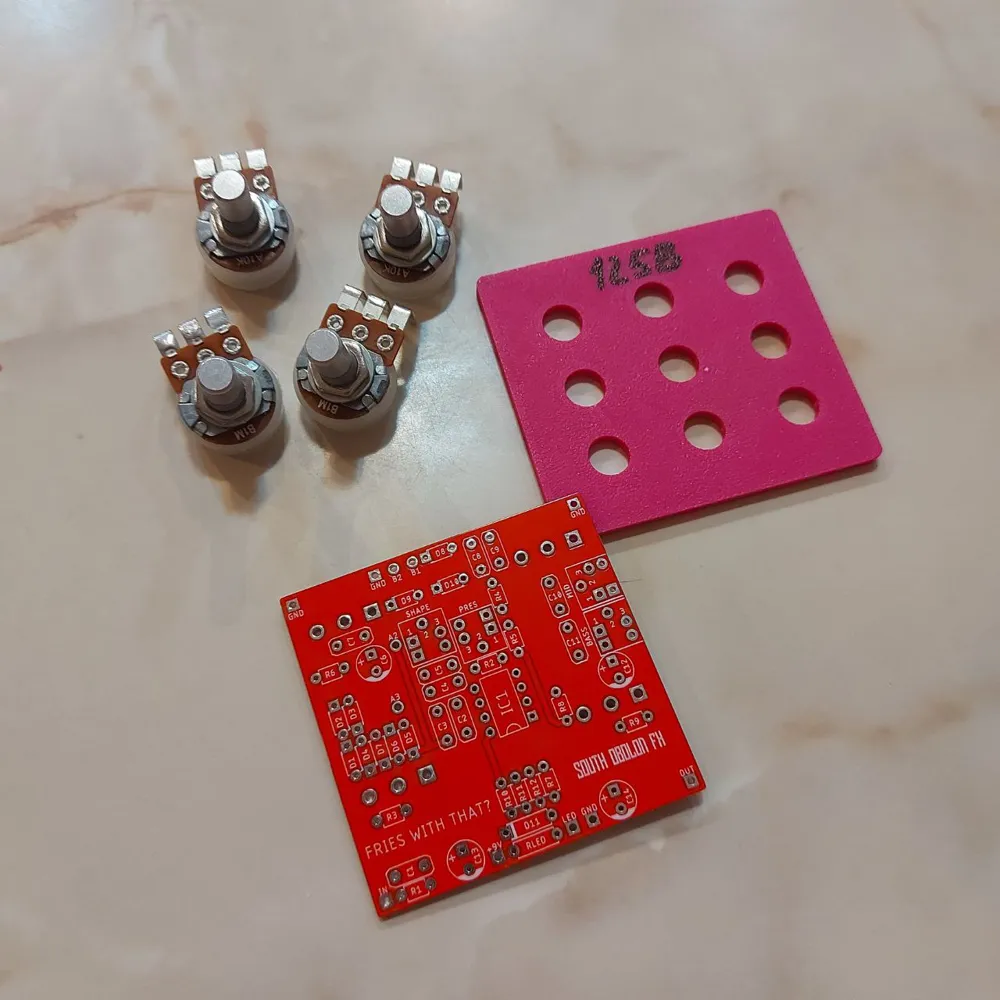

Template for DIY guitar pedal assembly in 125B enclosure.
Designed to ensure correct potentiometer and switch placement and simplify soldering outside the enclosure.

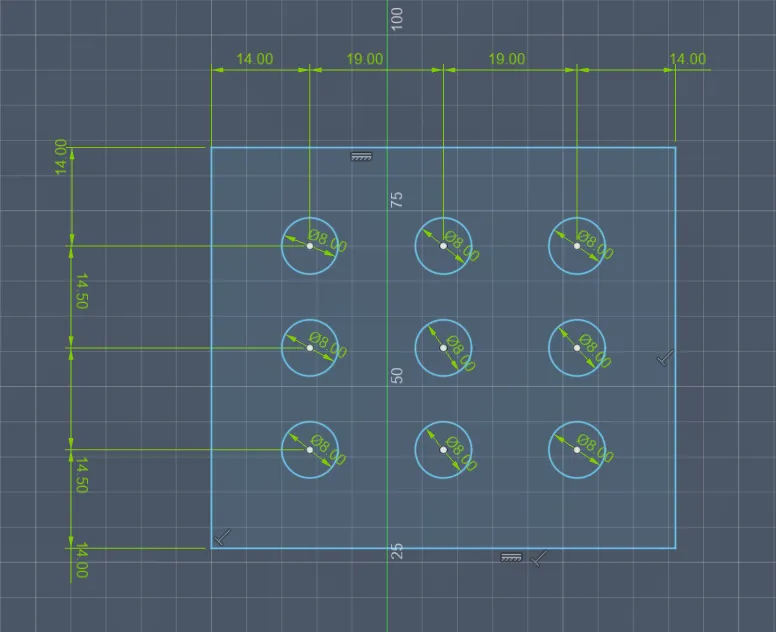

3x3 grid of 8mm holes, dX = 19mm, dY = 14.5mm (see attachment). Compatible with most 125B designs shared by https://www.instagram.com/south_obolon_fx
Library of pedal projects with all files needed to build a pedal at home: Gerber files to order PCBs from a factory, toner transfer image for etching at home (when applicable), drill templates and build documents.
These projects are free for personal or commercial use for those who are willing to support Ukraine (more info available in build docs or by contacting @south_obolon_fx).
