Honda EU3000IS Oil Service Drain Tool Kit
Print Profile(3)
Description
Honda EU3000IS Oil Service Tools EU3ODF/ EU30DFS and EU3FF
C59 Power Equipment Works — Precision Tools, Accessories, and Parts, All at Your Fingertips.
Own a EU3000 and do your oil change yourself? I know how messy it can be.. after doing it once, I designed this!

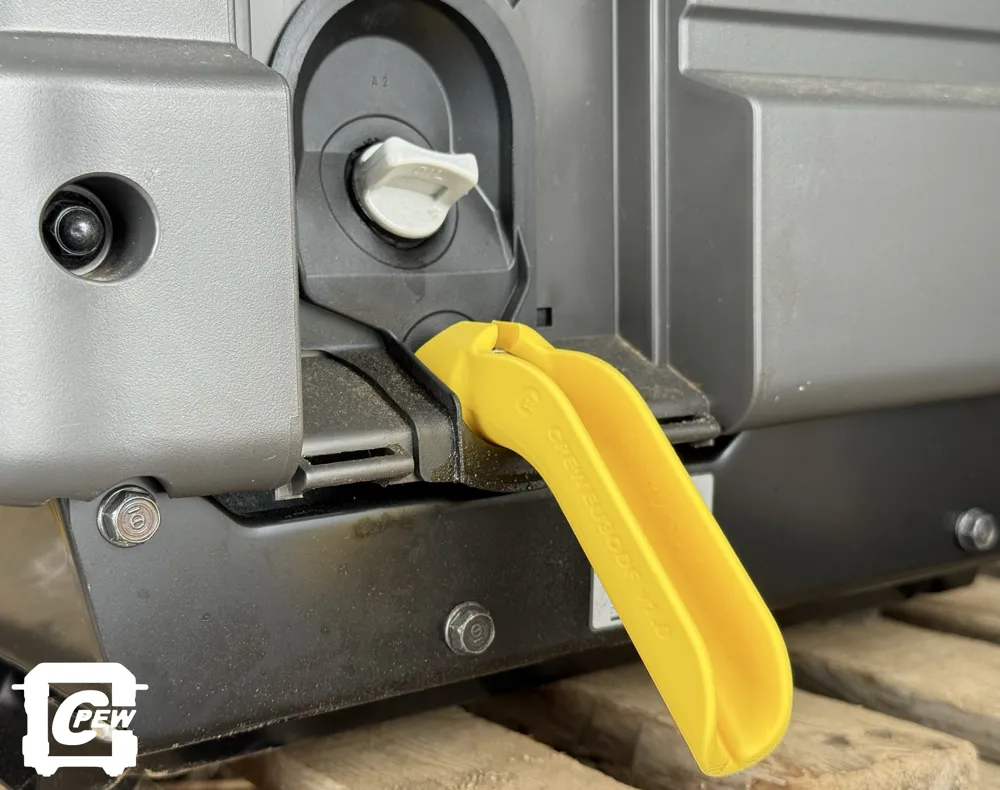

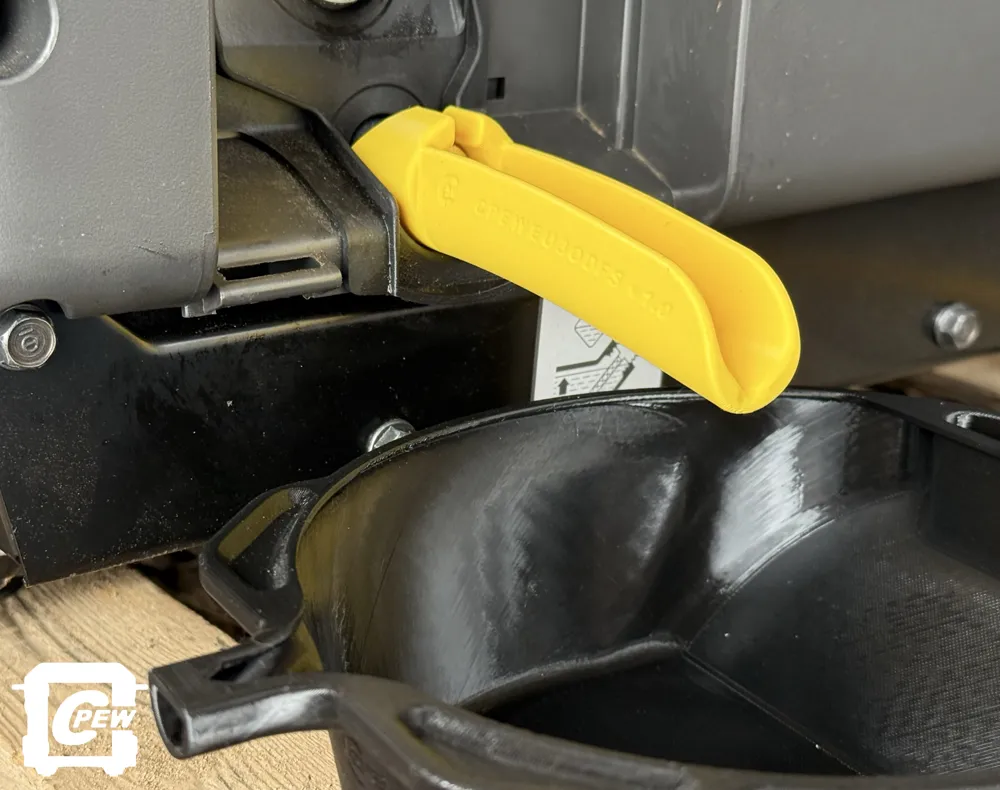

A simple adapter that slides and seals around the drain hole, directing the oil straight into your waste oil container.
If this version doesn’t fully meet your needs, there are other variants and/ or accessories to help you get the job done coming up.

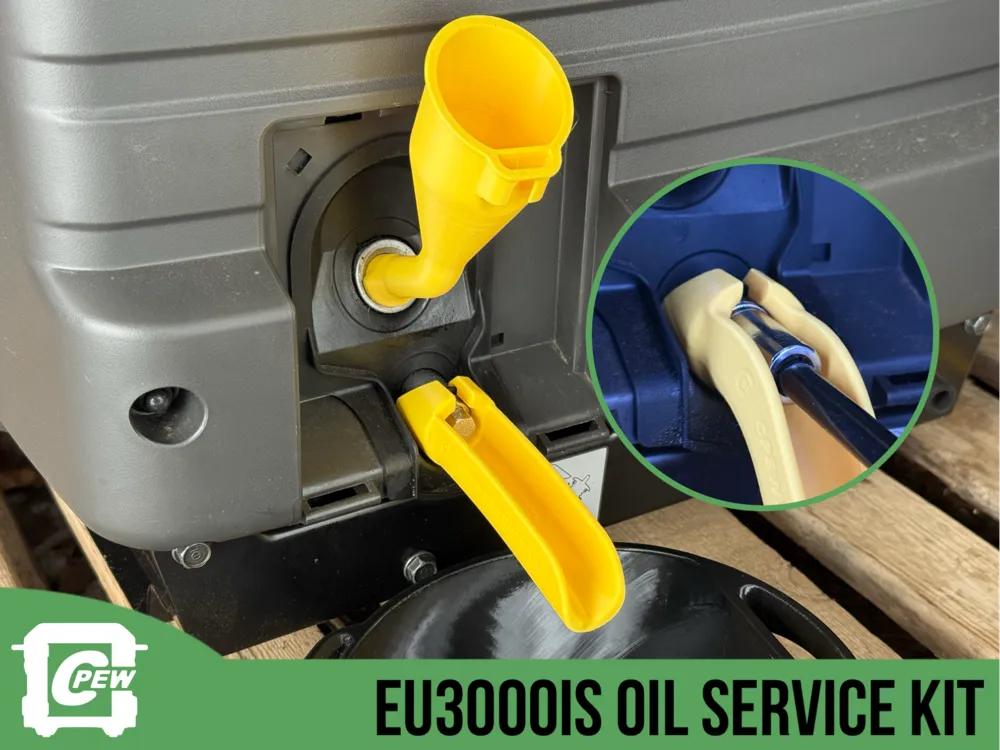

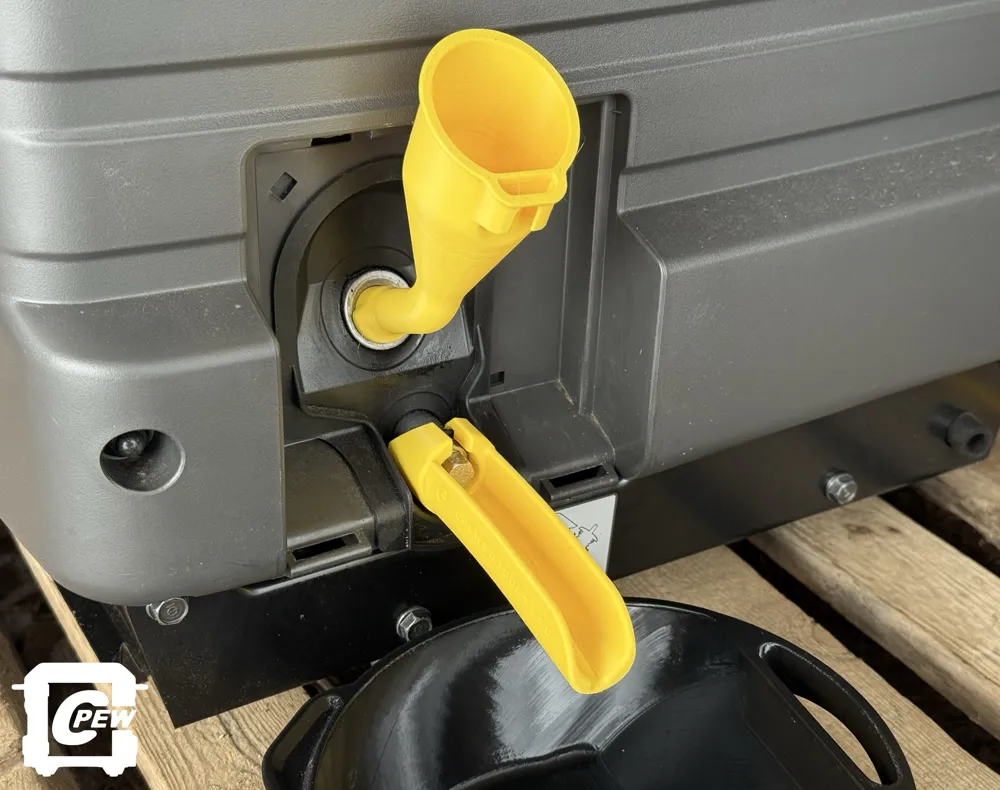

Drain Adapter & Fill Funnel

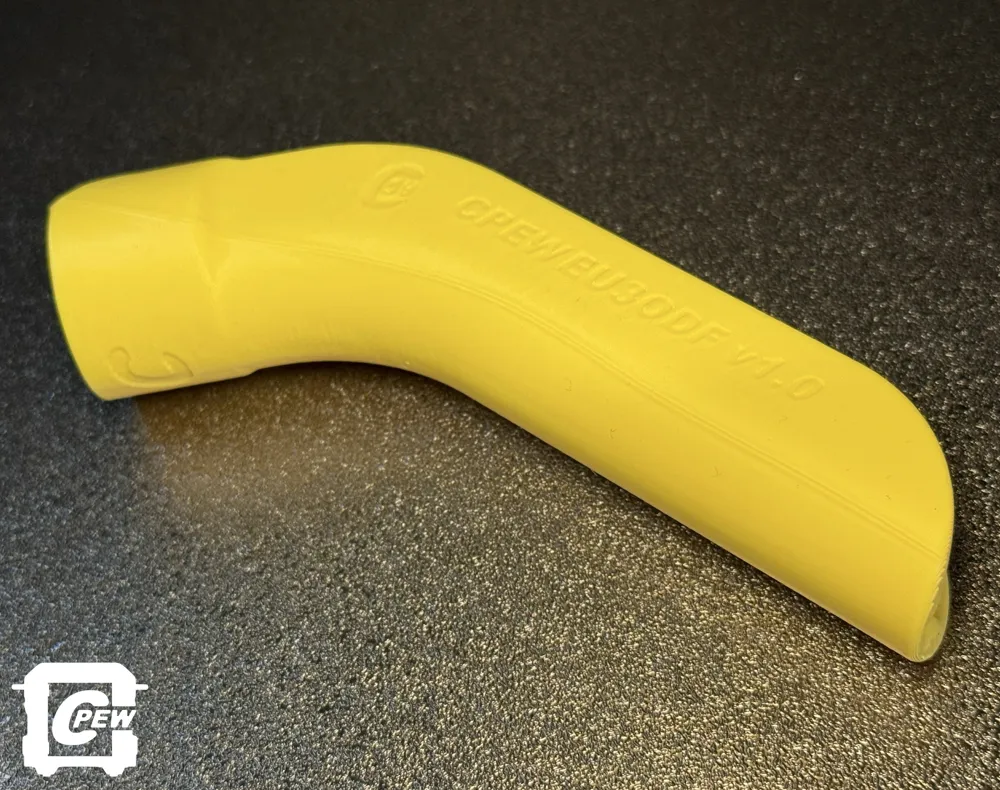

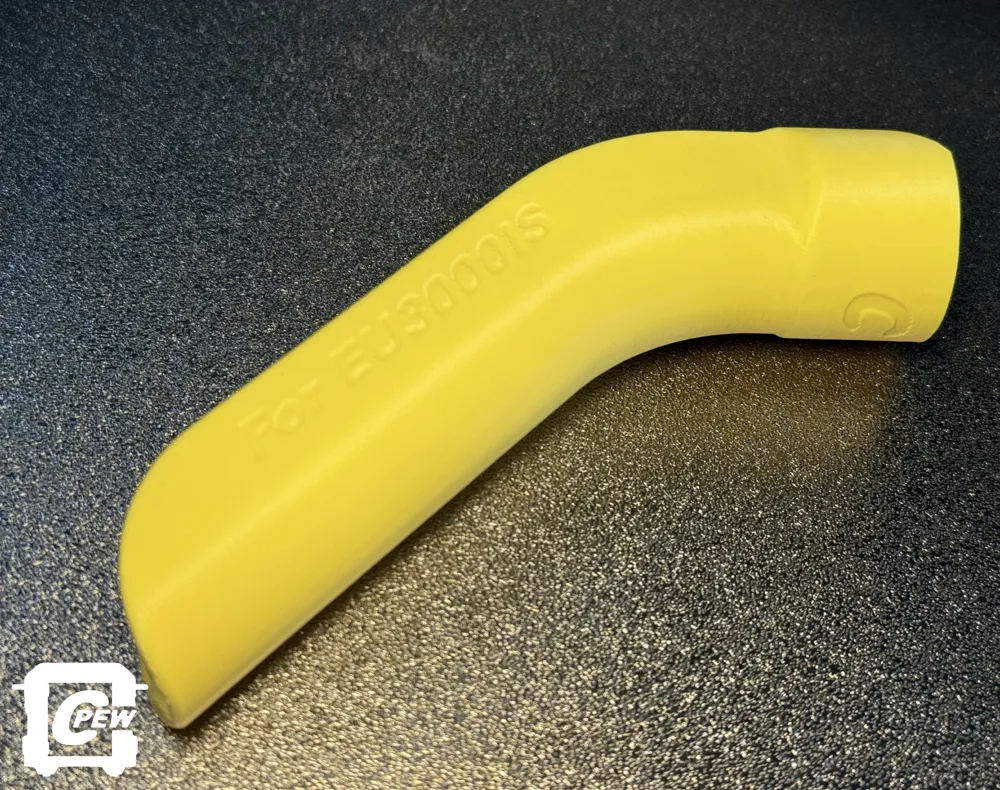

EU3ODF – Drain Adapter

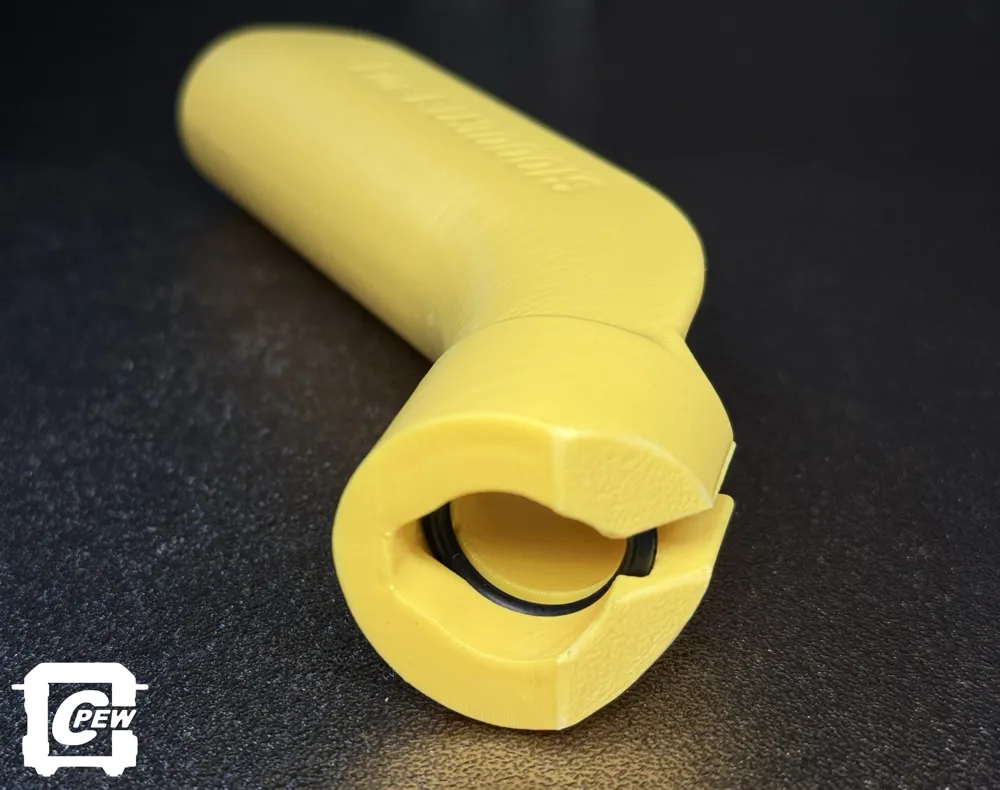

- Uses a #115 O-ring
- Angled for easy jug drain
- Slides over the drain plug
- Remove the drain plug using a socket with an extension
EU3ODFS – Drain Adapter
- Uses a #115 O-ring
- Straight for higher ground clearance, especially for pan
- Slides over the drain plug
- Remove the drain plug using a socket with an extension

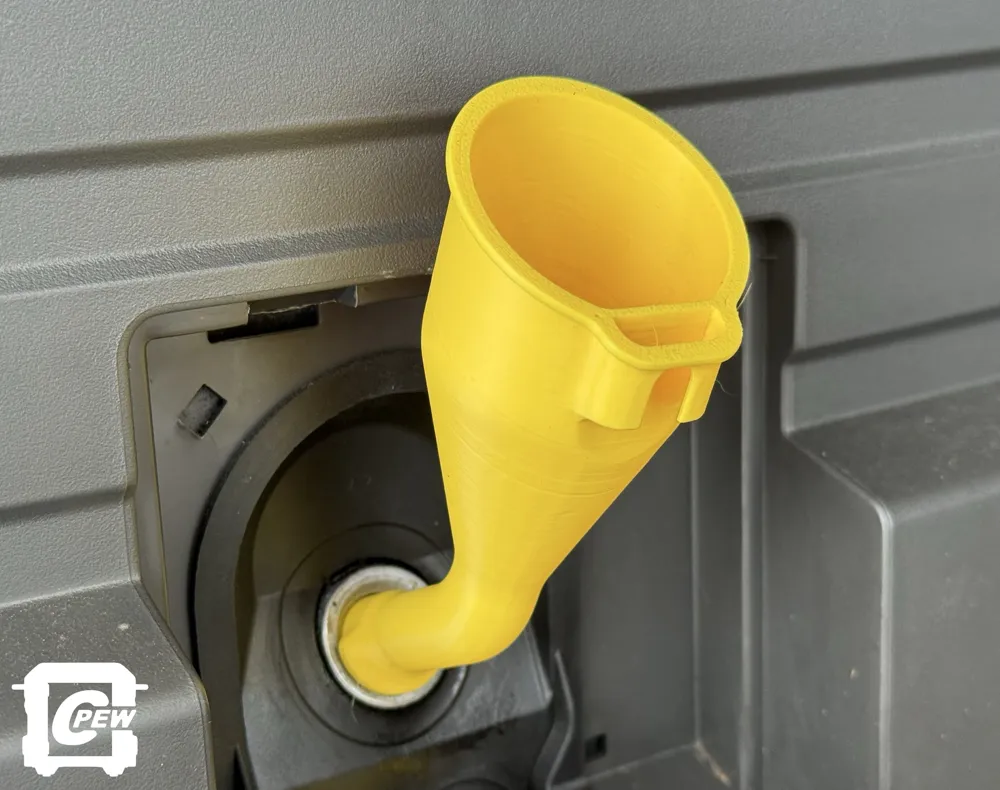

EU3FF – Fill Funnel
- Specifically designed for the EU3000IS generator
- Also compatible with other fill ports measuring 0.65 in
- Angled design with a secure fit for easy, mess-free filling
Integrated anchor point for convenient storage (cabinet, wall, etc.)
Need an oil pan to complete the process?
- Consider the MINI TUB, specially designed for oil drains around 750 ml.
C59 Power Equipment Works - For those moment.
Upgrade your maintenance game with 3D printing!
v1.0 Print Specifications (EU3ODF)
Wash the print bed with dish soap, rinse under running water and dry it with a microfiber cloth, and it will practically print on its own.
Material: PETG for sun, durability and chemical resistance, but do you research based on your purpose!
Printer Settings:
- Profile: Standard
- Layer Height: 0.20 mm
- Material used: PETG
- Mode: CERTIFIED LUDICROUS
- Infill: 20% Gyroid
- Walls: 4
- Bottom Layers: 3
- Top Layers: 5
Printing Details:
- Supports: Not Required
- Print Time: 1h57m
- Filament Usage: 0.82 oz
- Estimated Cost: ~$1.16 (based on a $26 PETG spool)
