small Shelly 4-button box (with and without battery)

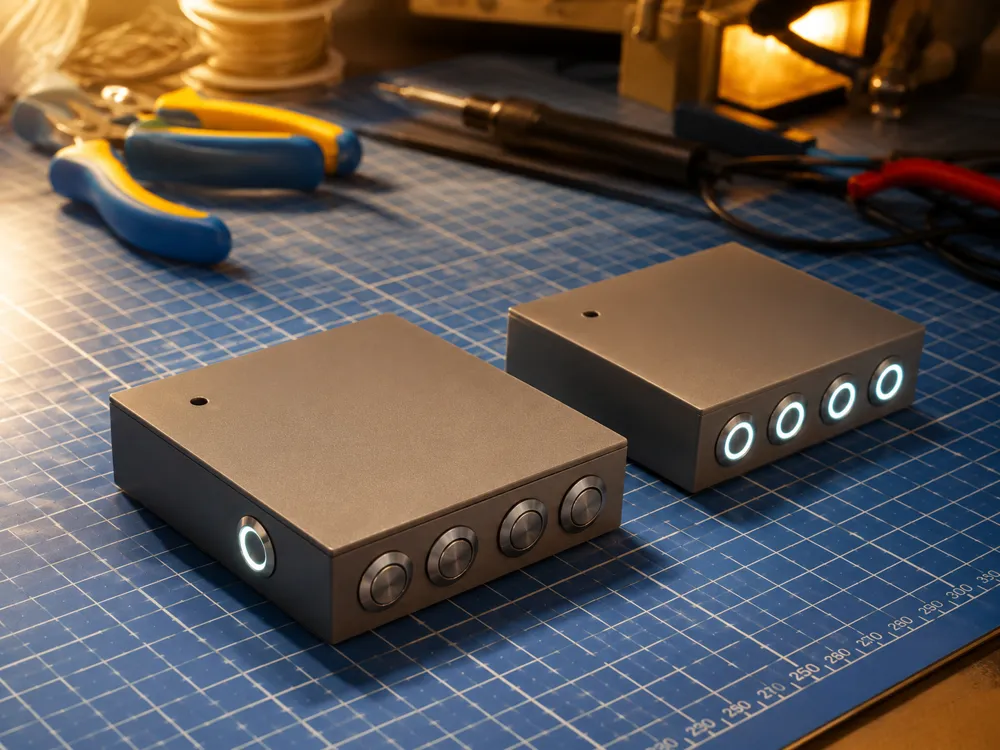

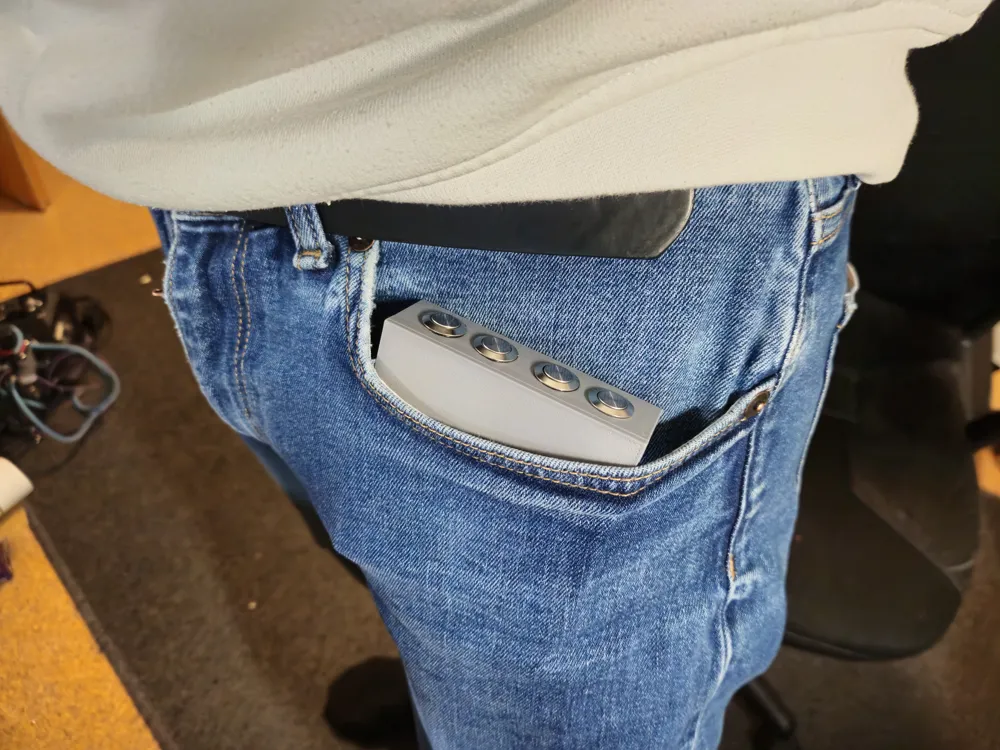

Here are two variations of my 'Shelly 4-gang button box' (z-wave), in a 'pocket-sized format'

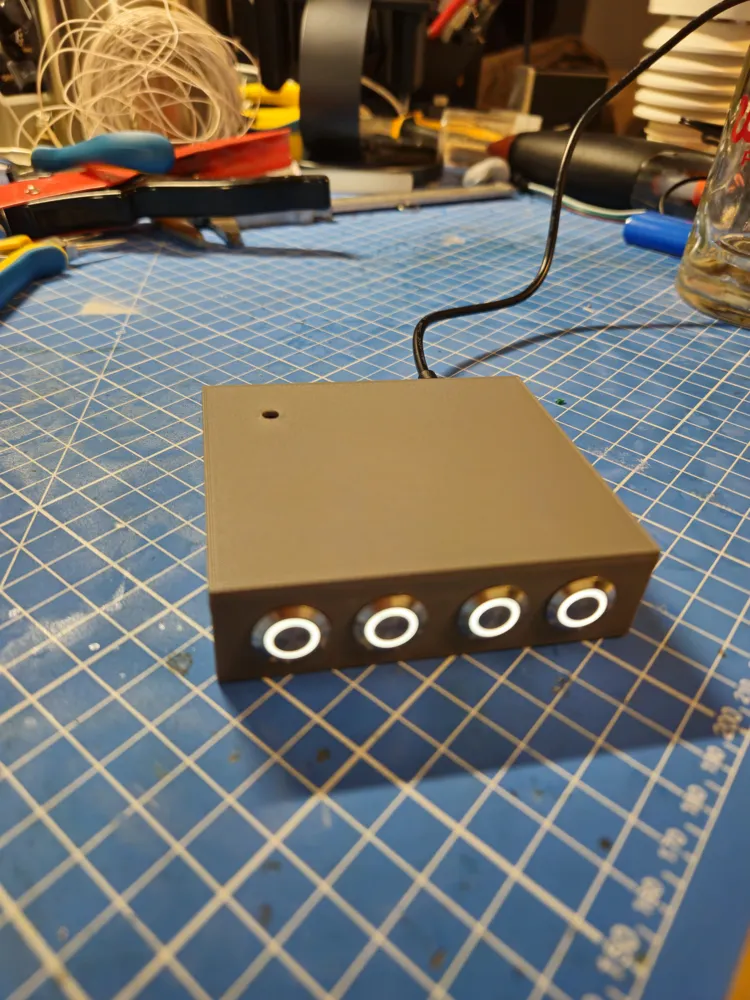

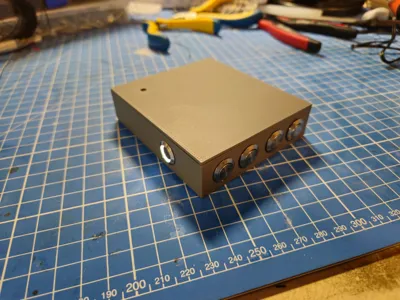

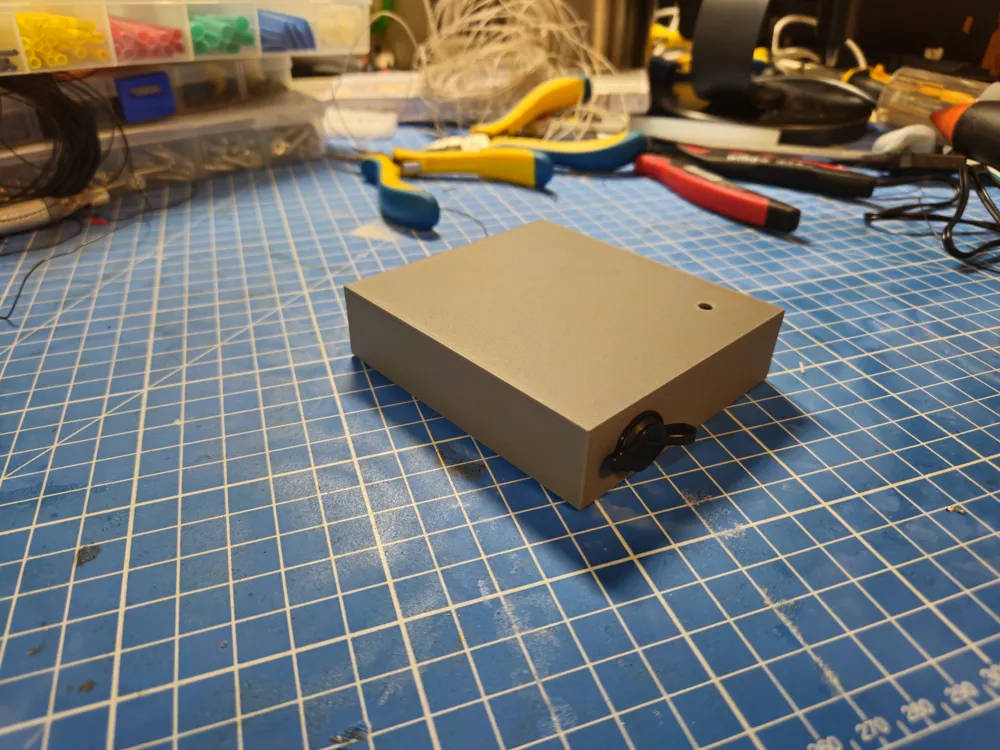

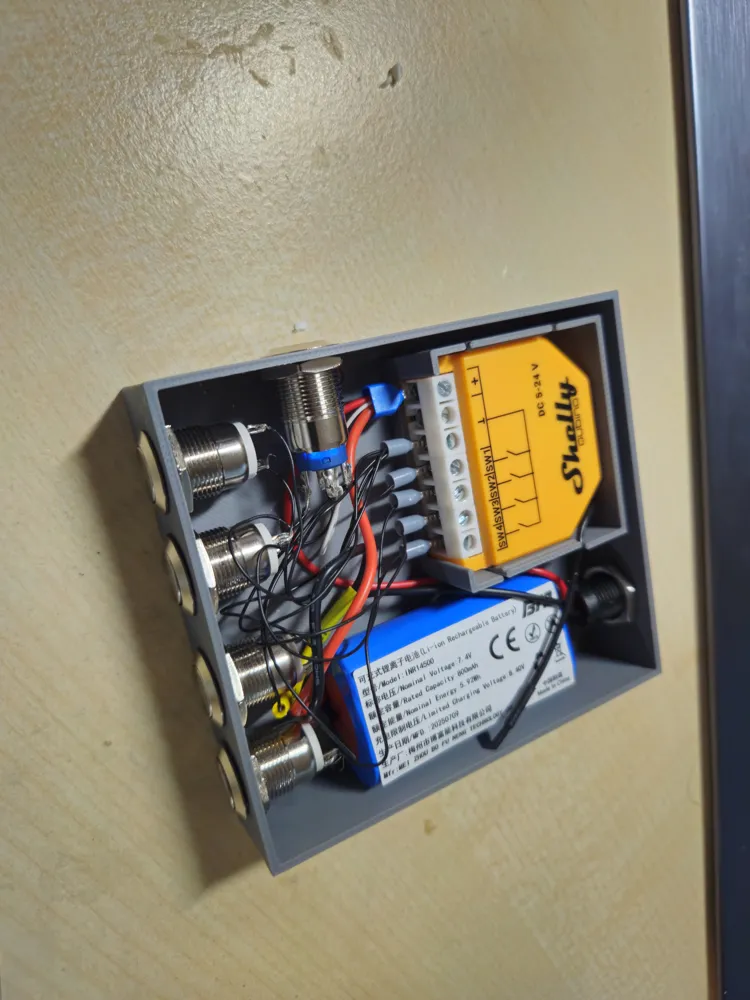

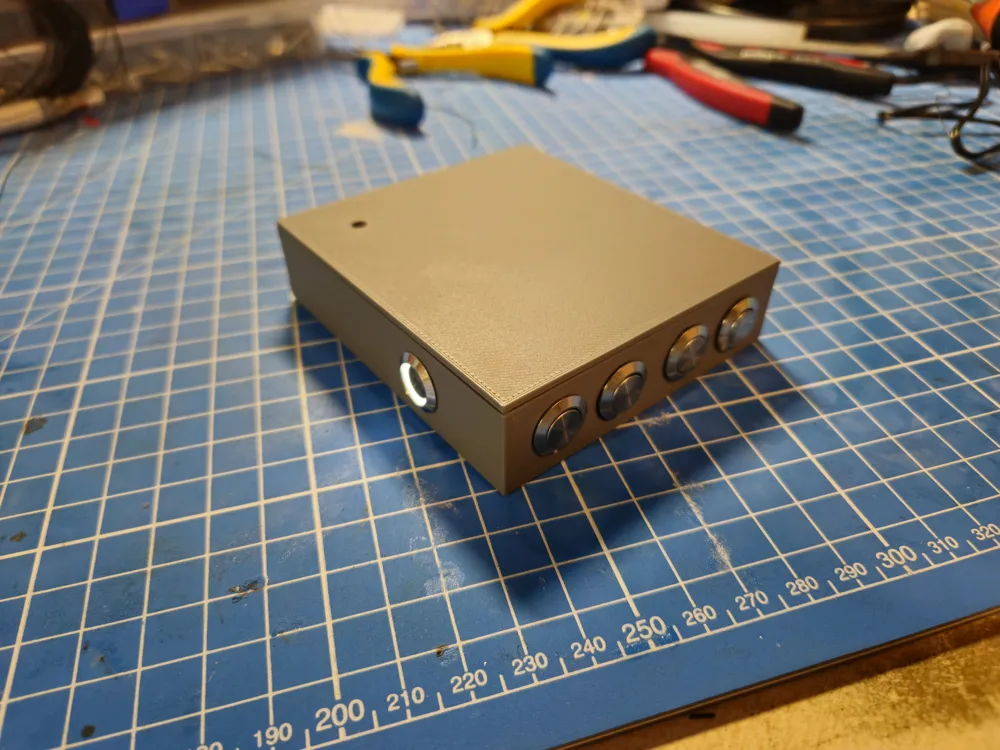

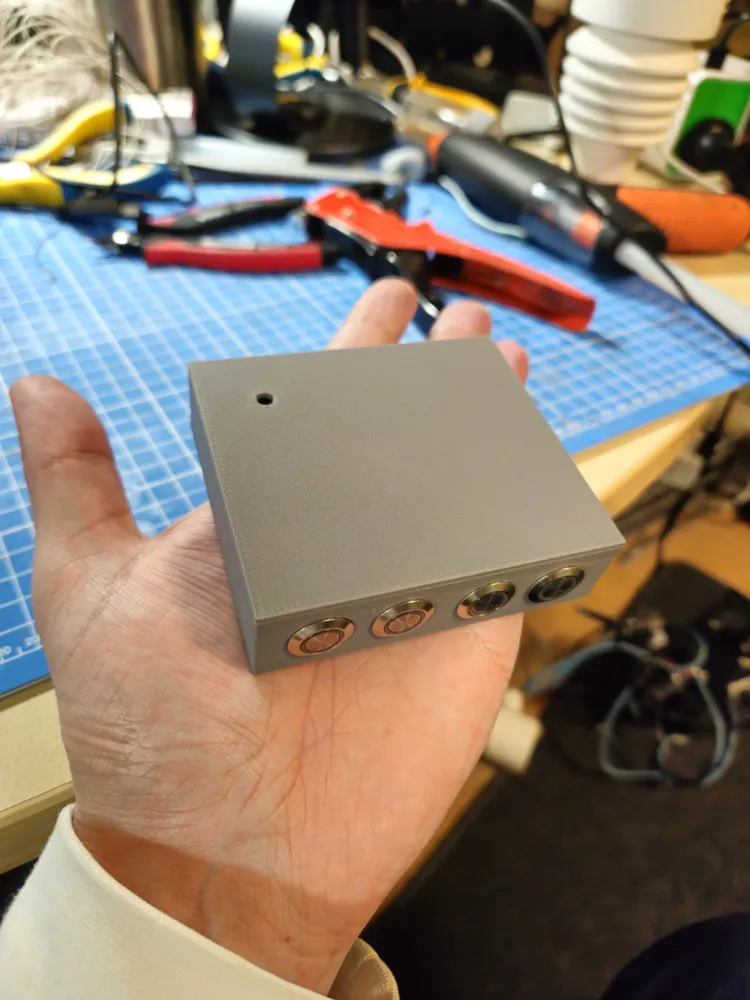

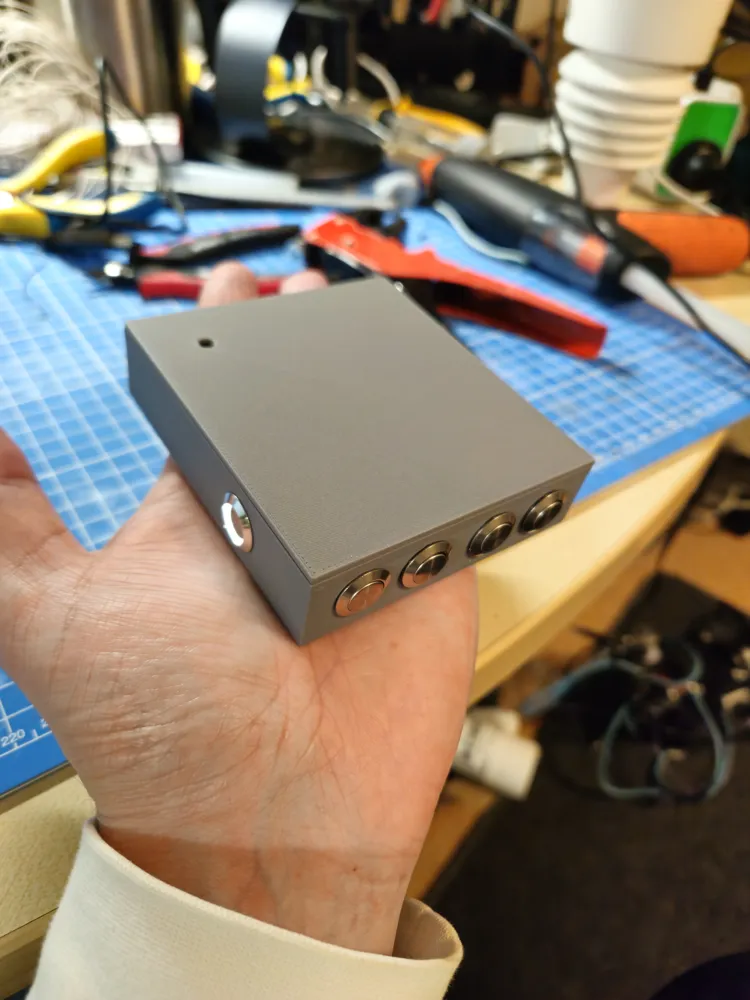

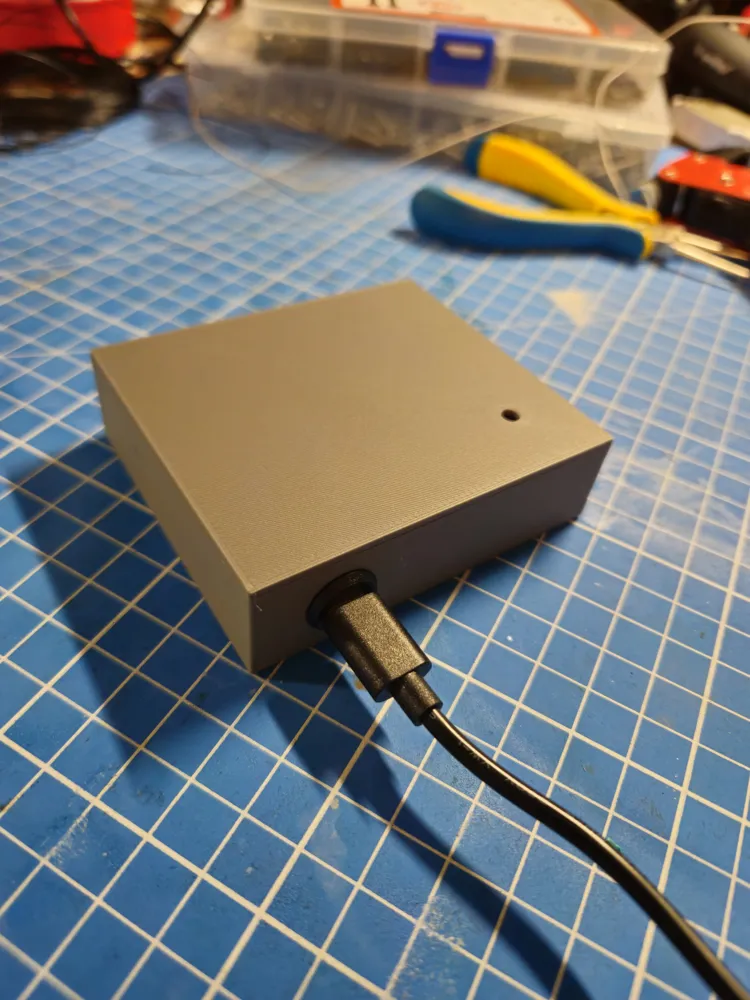

The smaller box is powered via its USB-C port and must therefore remain permanently connected to the mains to function. The larger box is battery-powered. The USB-C port is used exclusively for charging the battery. I used the CyberBrick battery and replaced the connectors with USB-C plugs. The battery lasts approximately 16 hours in my version with the LED switch

Z-Wave has a range of up to 1.6 km in Europe and up to 2 km in the USA

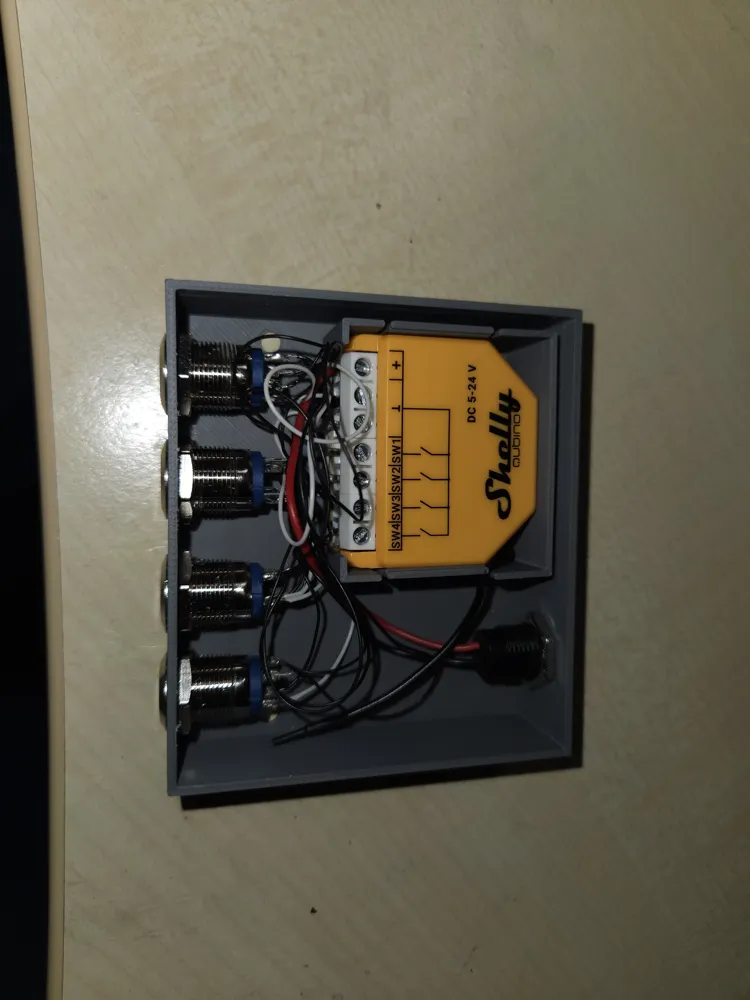

The Shelly is a 'Wave i4 DC' and simply 'clips in'

All buttons are 12 mm in diameter. You can, of course, decide for yourself if and where to use buttons/switches with LEDs

The lid is simply pressed in and can optionally be secured with a few dots of adhesive

My used components:

• Shelly: https://www.shelly.com/de/products/shelly-wave-i4-dc?_pos=2&_sid=16c2f8e3f&_ss=r
• USB-C socket: https://www.amazon.de/RUNCCI-YUN-wasserdichte-Typ-C-Buchse%EF%BC%8CUSB-C-Buchse-Panelmontage-mit-Muttern-Sicherungsplatte/dp/B0CDBZZQBZ/ref=sr_1_6?__mk_de_DE=%C3%85M%C3%85%C5%BD%C3%95%C3%91&crid=1ZOK8ES5ZU9F1&dib=eyJ2IjoiMSJ9.k0NMsIVykZZw_rmgw-8opRNjm8LN8n1PVSHb9lIYie328N6EplwnKQCSA0uNXe-36YCBLkQ4yj_c90hxm4UIErEEg1AV-iossvYzr11pTO7T3V24VYop0_iuPDXvdLfUIpy8Yn6c7l6kH1m0uQ_r27DGNNlBLLKrmn89YQMwGnajivzPgRkj_QzizTJr4vHXHTU99jn-YD9hkJjZPMEkUwoiq0p8Cc8Ffi9PpRaUkm4.mLiYvTV1Mfto0cNc-lKN0kLIJEl2anUMlpO12dVeO-g&dib_tag=se&keywords=USB+c+Buchse&qid=1769261163&sprefix=usb+c+buchse%2Caps%2C160&sr=8-6
• Button/Switch: https://de.aliexpress.com/item/4001291695467.html?spm=a2g0o.order_detail.order_detail_item.3.7a386368yL3Pql&gatewayAdapt=glo2deu
• Battery: https://eu.store.bambulab.com/de/products/all-in-one-fast-charging-kit-for-cyberbrick

I am happy to answer any questions

I would be delighted to see a comment with a photo of your print
