H2 Series PTFE Buffer Support
Print Profile(1)
Description

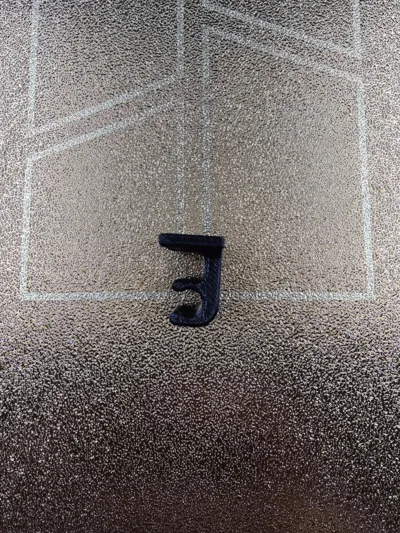

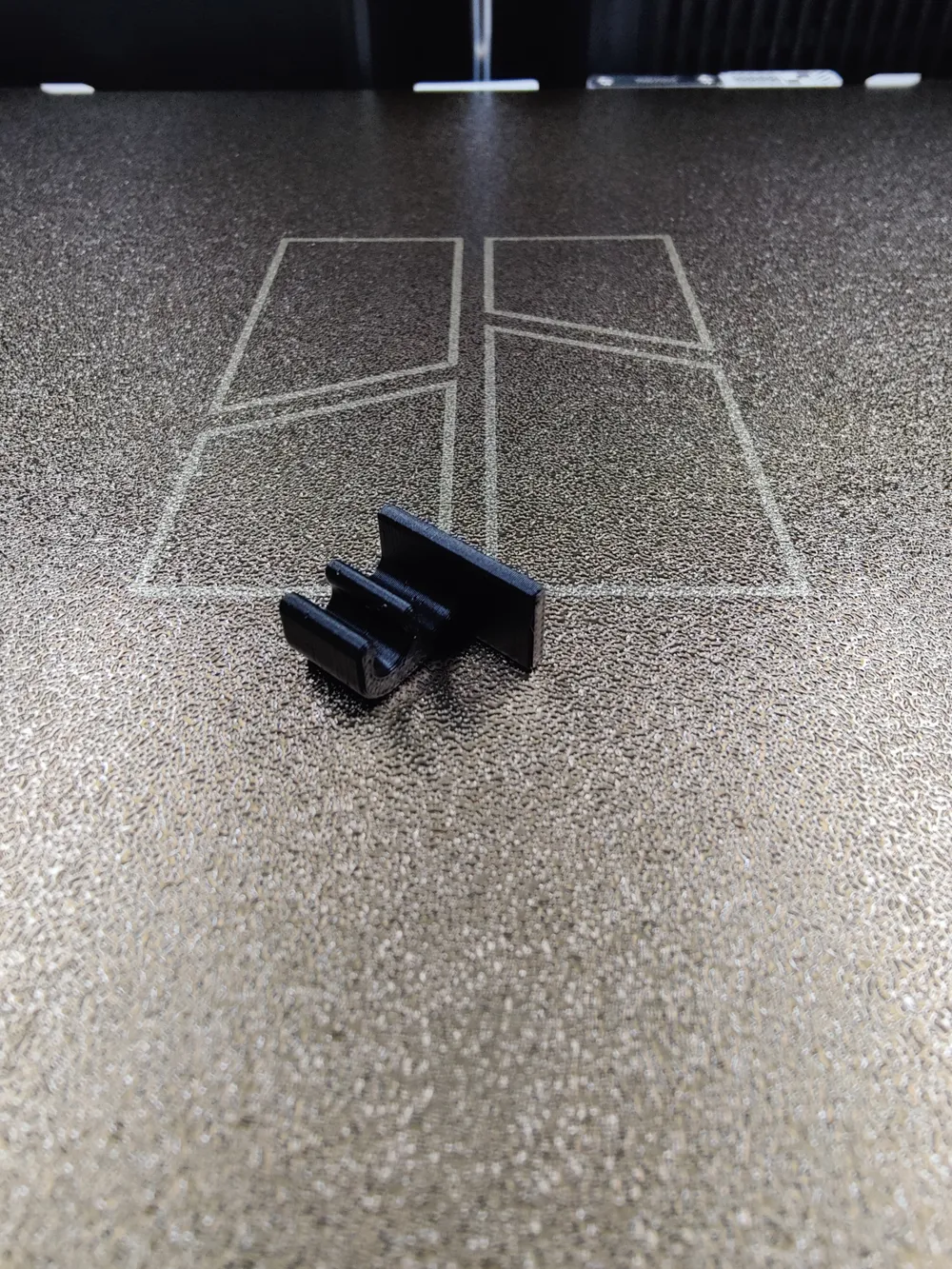

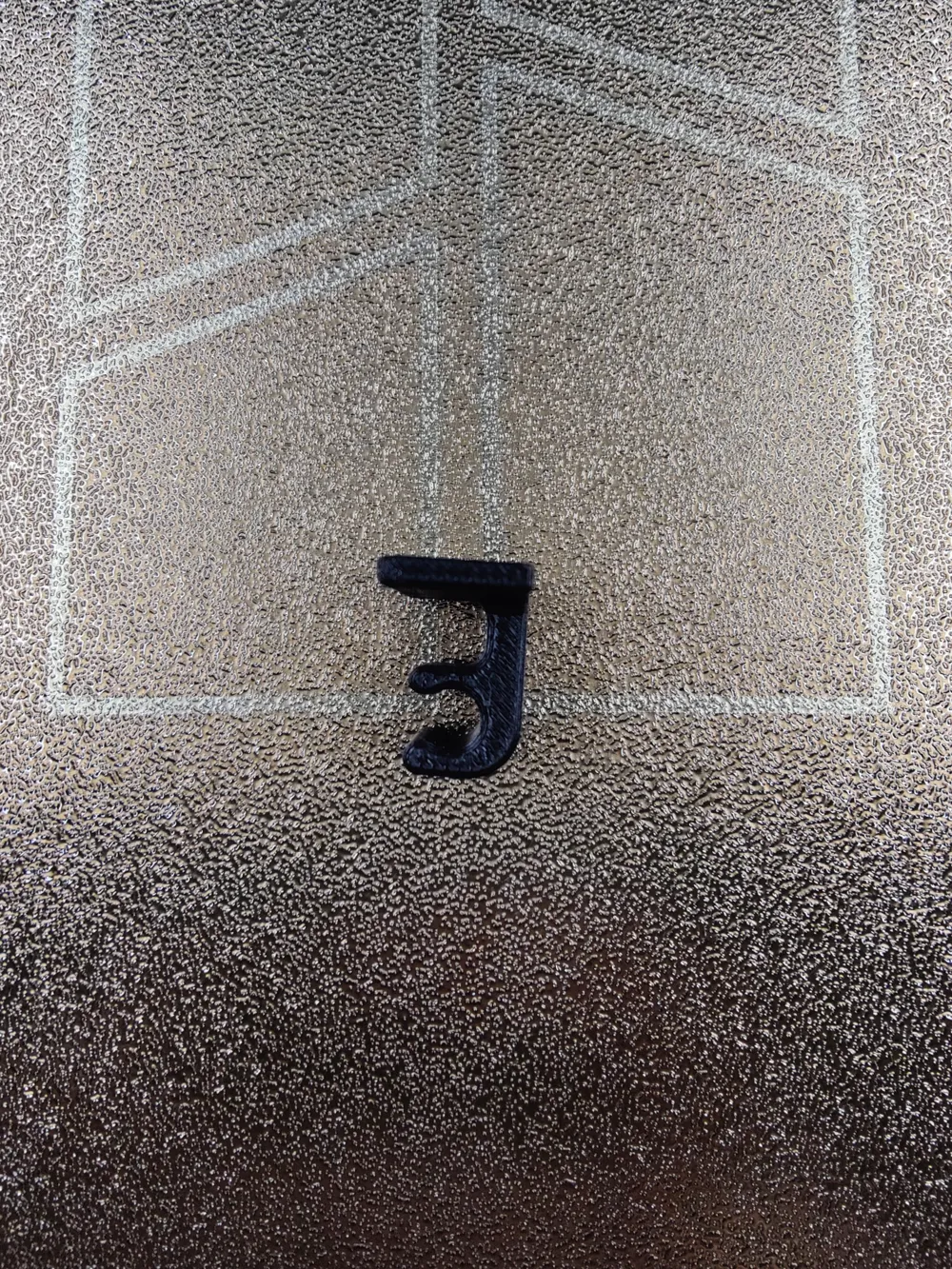

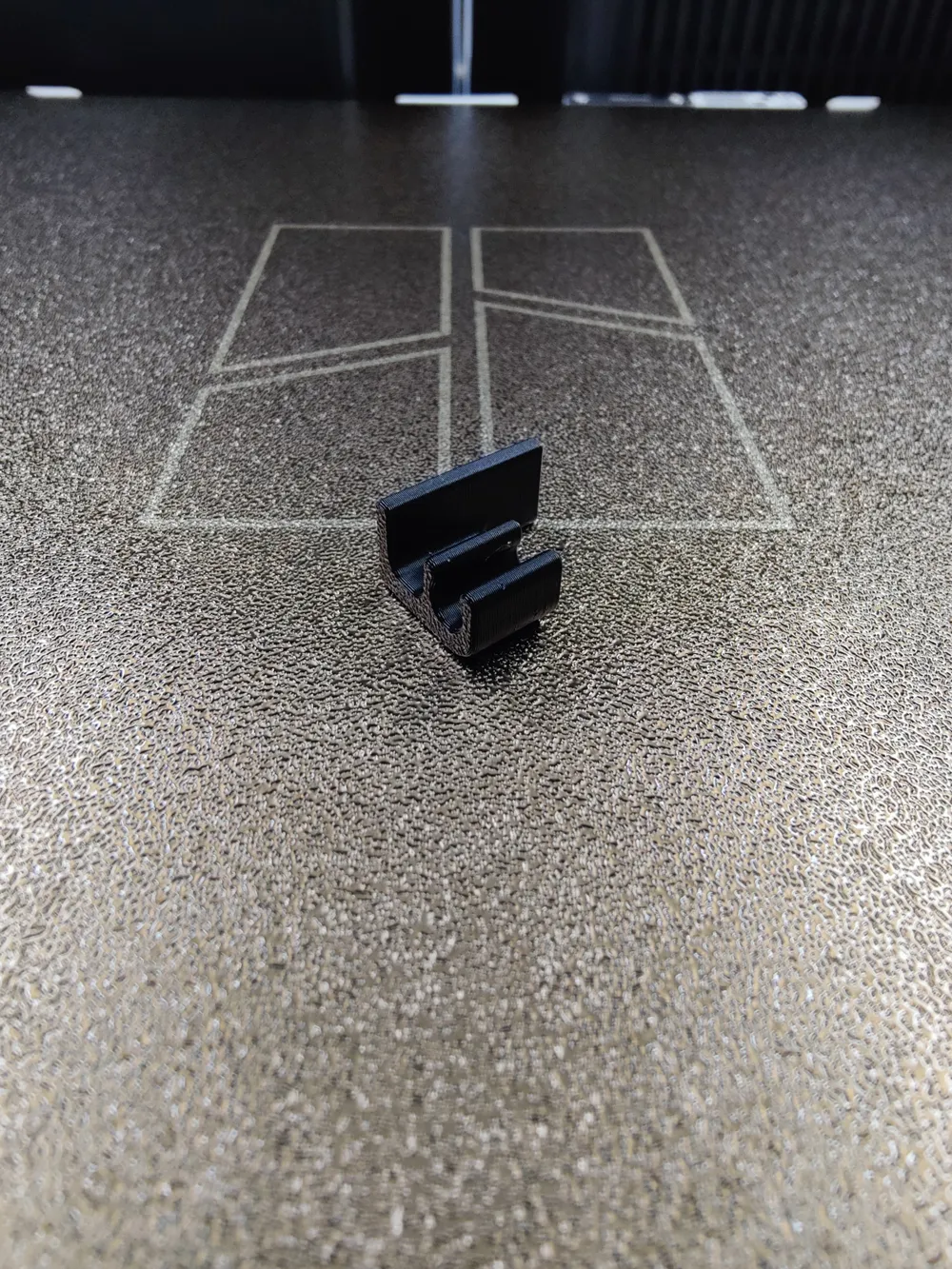

H2 Series PTFE Buffer Support Clip
A small, lightweight clip designed to guide the PTFE tube coming from the buffer on H2 Series printers.
This support helps eliminate abnormal noise that can occur when printing large or long-duration objects by keeping the PTFE tube properly aligned.
No disassembly required — the clip installs without removing the PTFE tube from the buffer.
Installation:

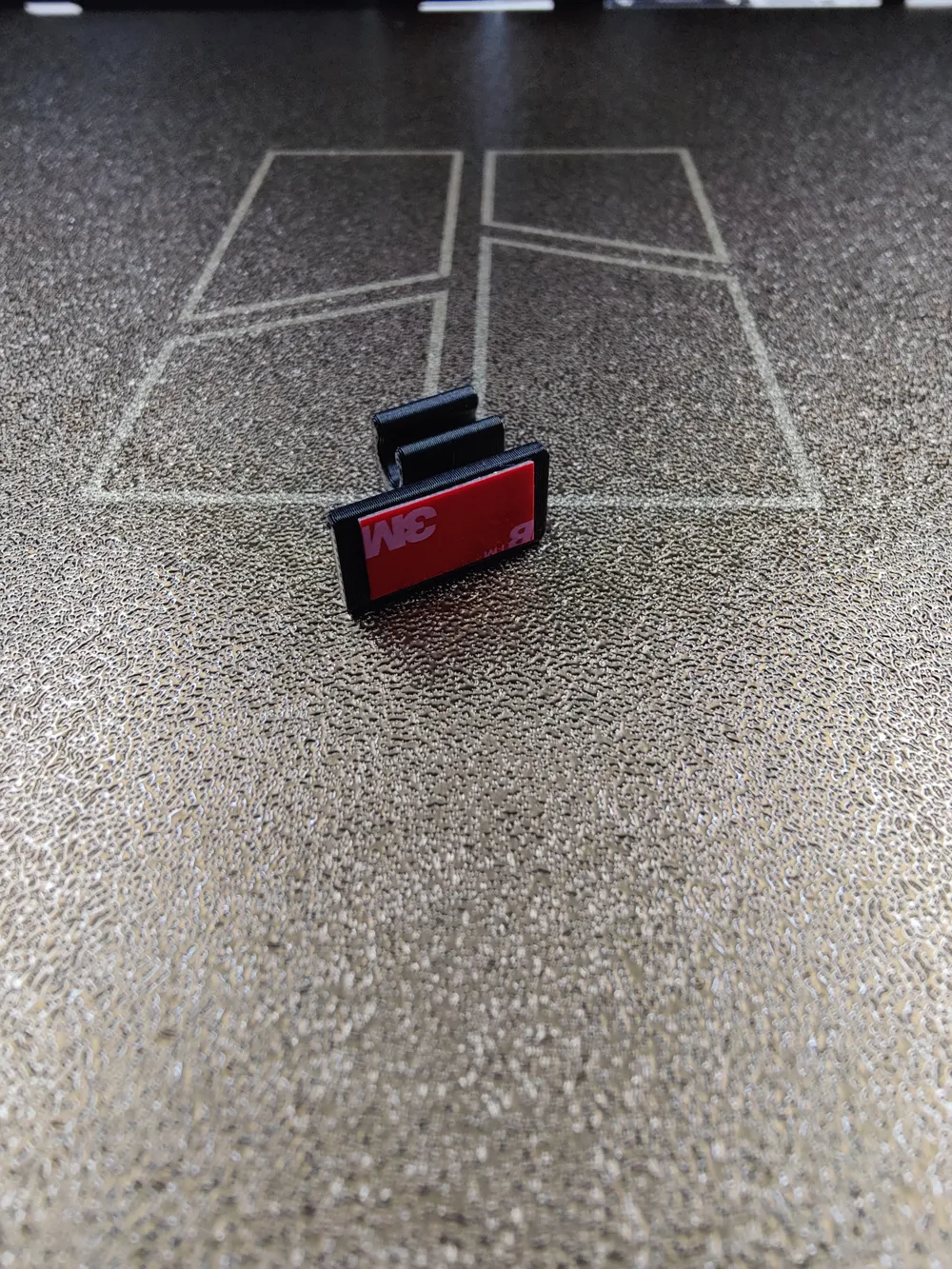

- Apply double-sided tape to the clip
- Attach the clip onto the PTFE tube

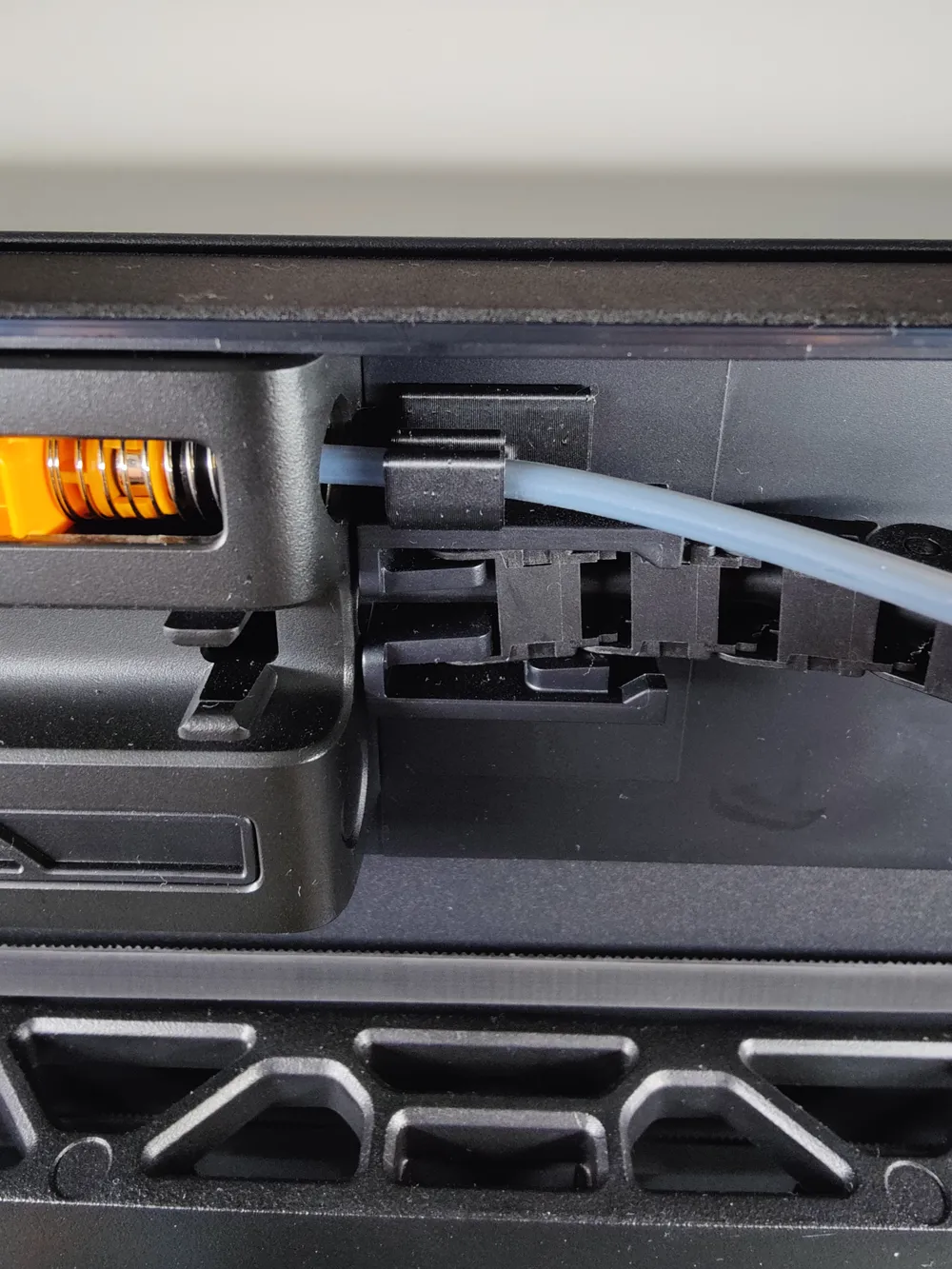

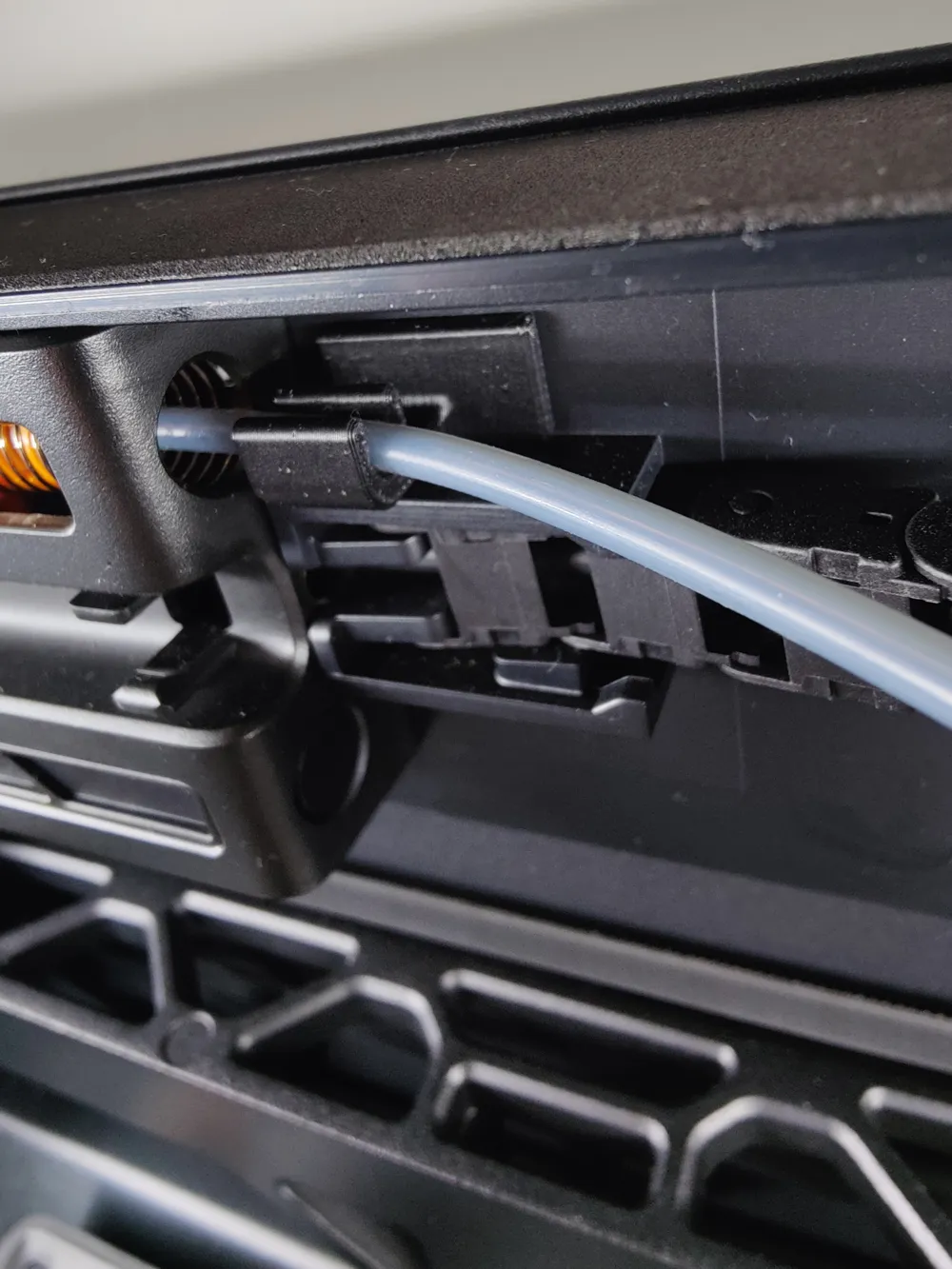

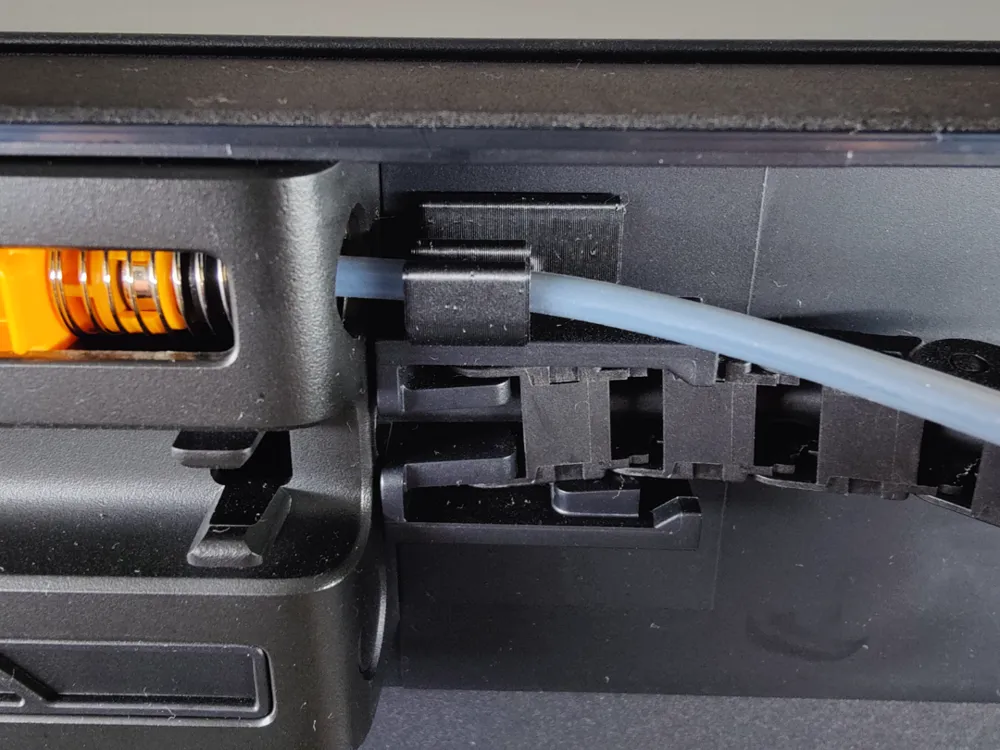

- Stick it in place near the buffer
Print Info:
- Print time: ~20 minutes
- Filament usage: ~1.5 g
- No supports required
Material Recommendation:
This part is installed inside the printer, so high-temperature materials are recommended.
Tested and working well in PETG.
Simple, fast to print, and effective at reducing unwanted PTFE tube noise.
