Shrimp (fish) tank feeder

okmiro
Household>Pets
IP Report

Print Profile(2)

All
A1
P2S
P1S
H2D
X1
X1E
X1 Carbon
H2S
P1P
H2D Pro
A1 mini
H2C
X2D
A2L
Feeder - 0.2mm layer, 2 walls, 15% infill
Feeder - 0.2mm layer, 2 walls, 15% infill
Designer
1.8 h
1 plate
5.0(7)
Pipe extension 5, 10 and 15cm
Pipe extension 5, 10 and 15cm
Designer
1.6 h
1 plate
5.0(5)
Open in Bambu Studio
Boost
74
261
12
4
183
123
Released

Description

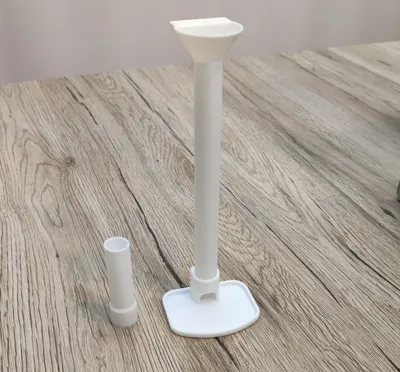

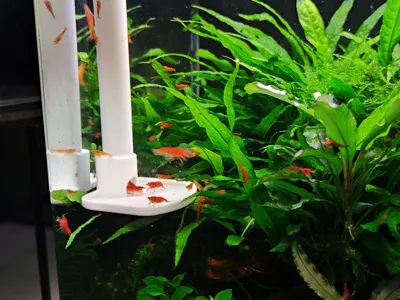

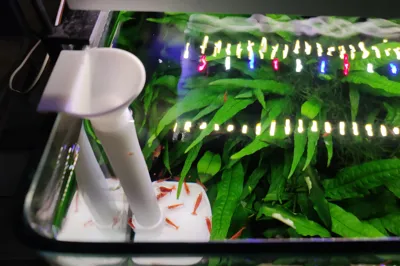

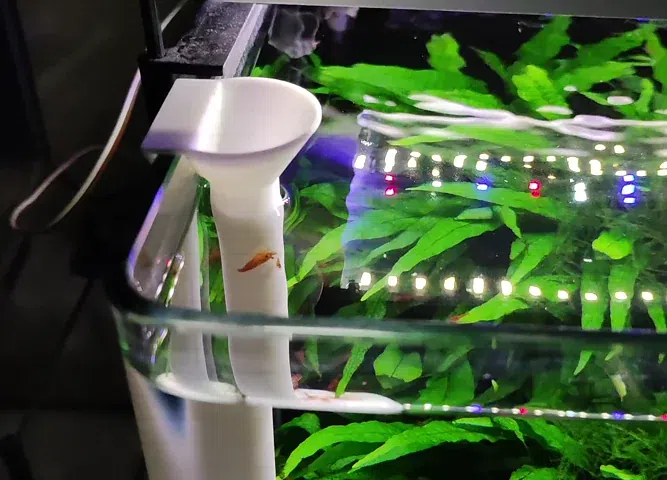

I modeled and use this hanging feeder with an integrated hopper for shrimp or fish for my DENERLE NANO CUBE 20l aquarium.
It is a simple print without support!

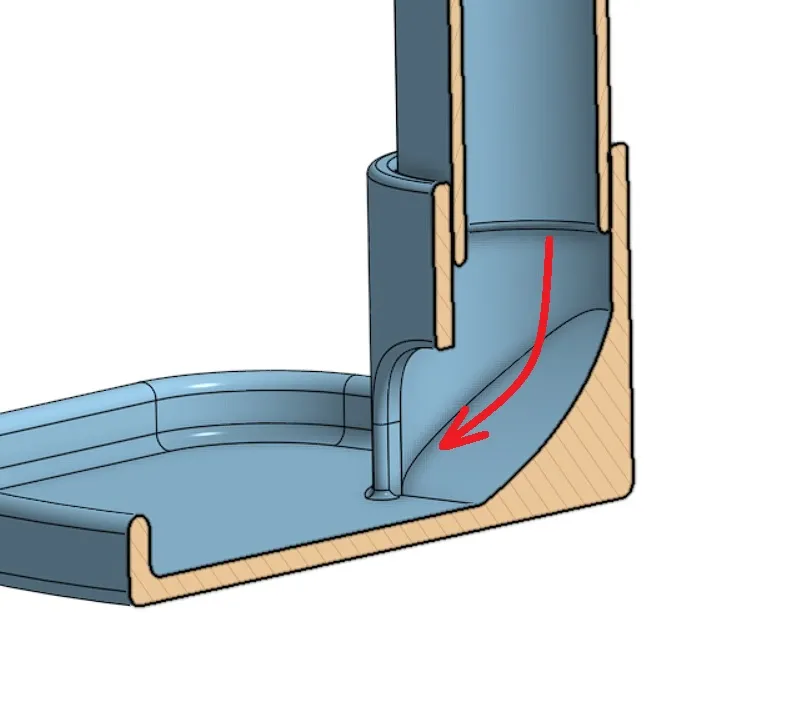

The design is improved with a "slider" for food so that it does not remain in the tube.

This is a feeder with a flat rectangular surface, but I also have a second option - Feeder corner.

Fits all aquariums with a glass thickness of up to 5mm.

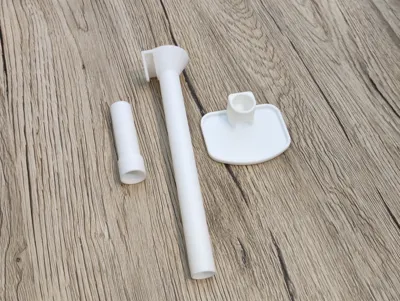

A tube extension of 5, 10 or 15cm is also included.
When printing, keep the print bed perfectly clean, as the tubes are thin!



Print settings:
- 0.2mm layer
- 2 walls
- 15% infill
- support : NO
- Material: PLA

tank
aquarium
shrimp
shrimp tank
fish tank
seed
seed pipe
fish
