Base for Winwing ECAM A320
Print Profile(1)
Description

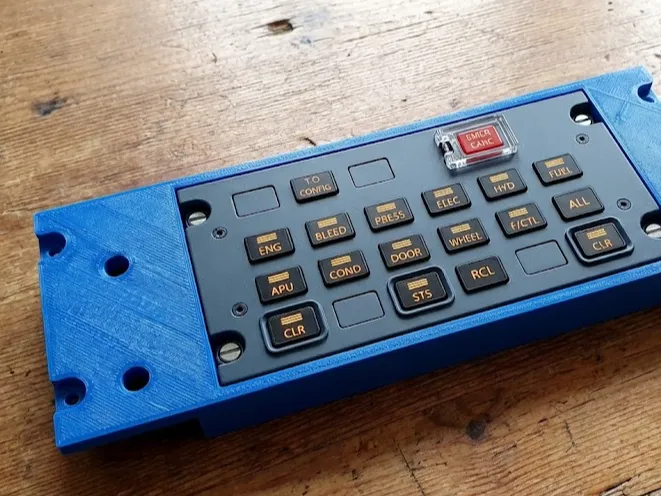

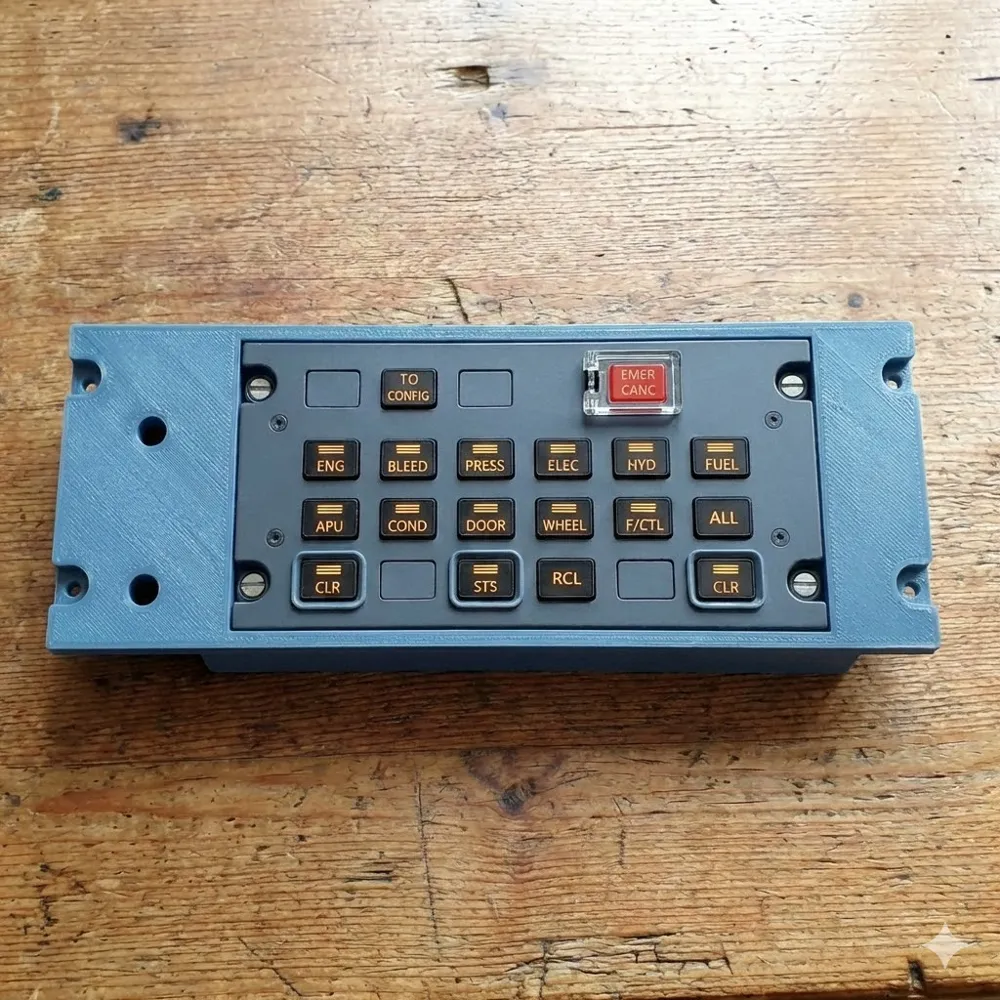

Airbus A320 ECAM Base – WinWing Sim (with Potentiometer Support)
This 3D model is a custom base designed to mount an ECAM display for the Airbus A320, compatible with WinWing simulator setups. The base includes dedicated mounting points for potentiometers, allowing integration of rotary knobs for brightness, contrast, or custom simulator functions.
The design focuses on rigidity, precise alignment, and easy assembly, making it ideal for home cockpit builders and flight simulation enthusiasts.
Features
- Designed specifically for A320 ECAM layout
- Compatible with WinWing ECAM displays
- Integrated potentiometer holders (standard panel-mount pots)
- Clean front face for a realistic cockpit look
- Rear access for easy wiring and maintenance
- Optimized for FDM 3D printing
Printing Recommendations
- Material: PLA+ or PETG
- Layer height: 0.2 mm
- Infill: 20–30%
- Supports: Not required (depending on orientation)

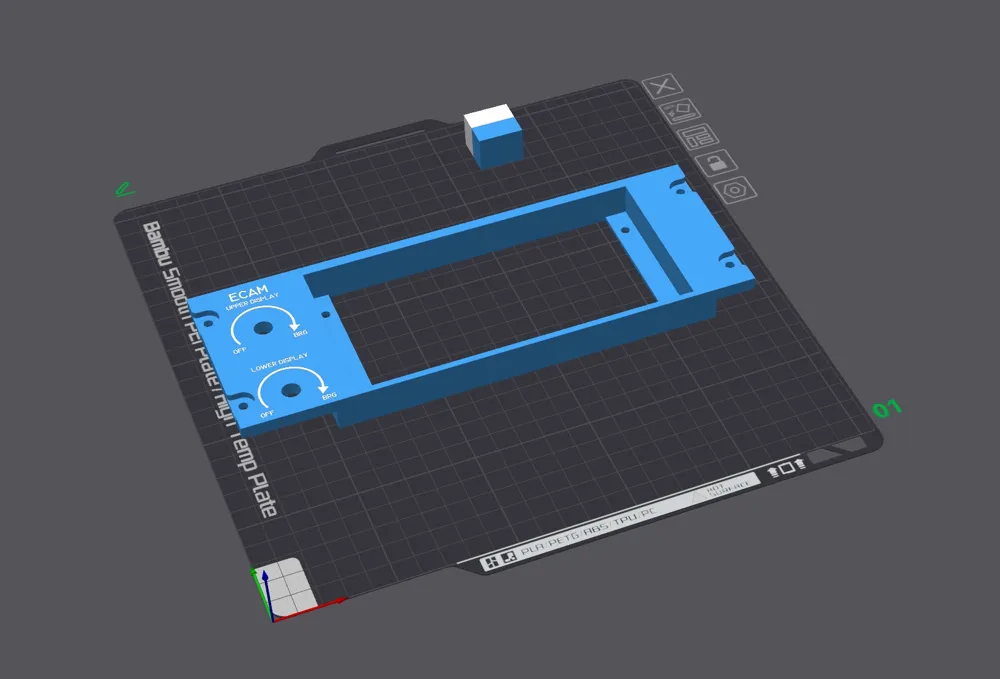

- Print orientation: Flat on the back for best surface finish
Notes
- ECAM screen, potentiometers, and electronics not included
- Minor sanding or tolerance adjustment may be required depending on printer calibration
Perfect for builders looking to expand their A320 home cockpit with a functional and realistic ECAM control base.
⭐ If you like this model, please consider giving it a like and rating it.
Your feedback helps support future designs and improvements. Thank you!
