Ramen noodle dispenser
Print Profile(12)
Description

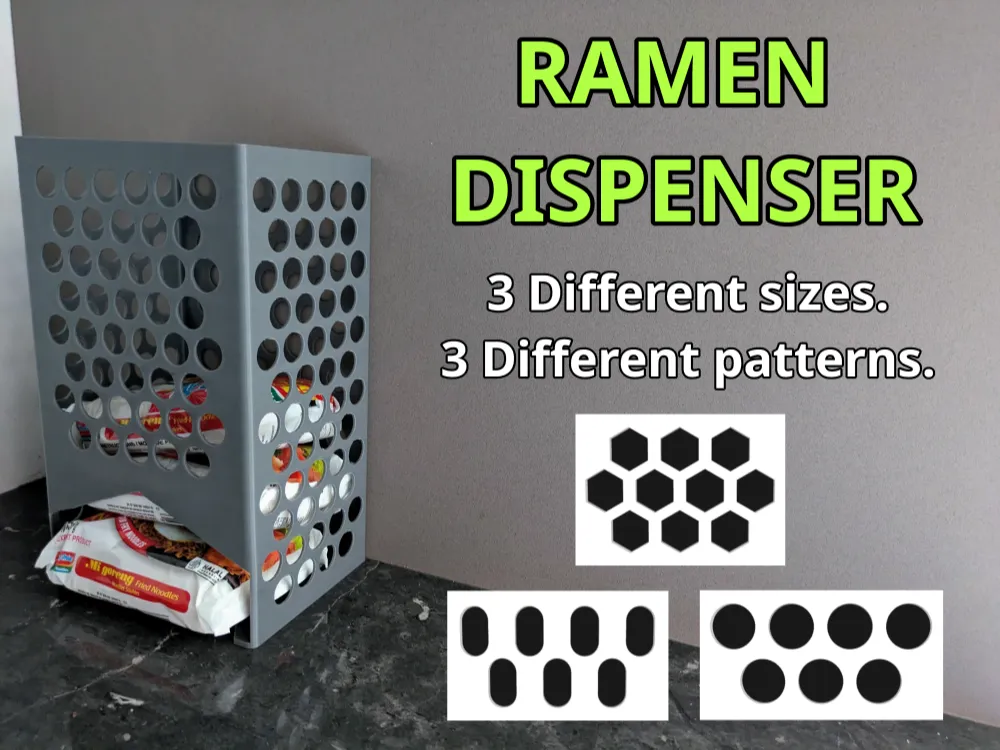

Universal Ramen Dispenser 🍜

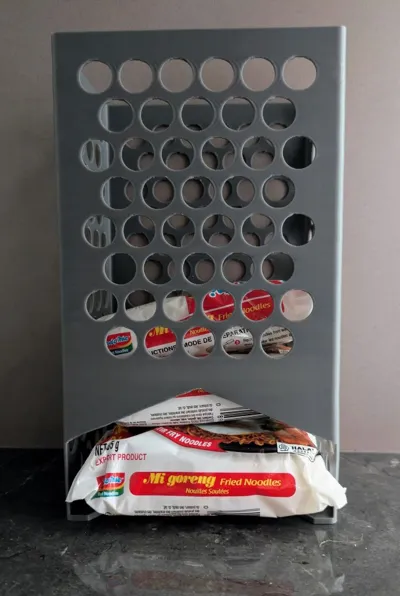

Tired of ramen packets cluttering up your pantry shelves? I designed this gravity dispenser to keep them organized and easy to grab. You just stack them in the top and pull one out from the bottom.
It works for everything from standard Indomie/Maruchan packs to the thicker Korean Shin Ramyun or Buldak noodles.
I've uploaded profiles for:
- Standard (Nissin, Knorr, Maruchan) = 140mm wide x 100mm depth x 250mm height
- Korean (Nongshim, Buldak) = 155mm wide x 110mm depth x 250mm height
- Large (Costco, Mama Jumbo) = 180mm wide x 130 depth x 250mm height
If you have weirdly shaped packets, just click the Customize and make your own model to your exact dimensions.
Why print this?
- No Supports Needed: I designed the front opening with a 35° "roof" angle so it prints clean without wasting filament on supports.
- Sturdy: Even with the patterns, the walls are thick enough to hold a full stack without flexing.

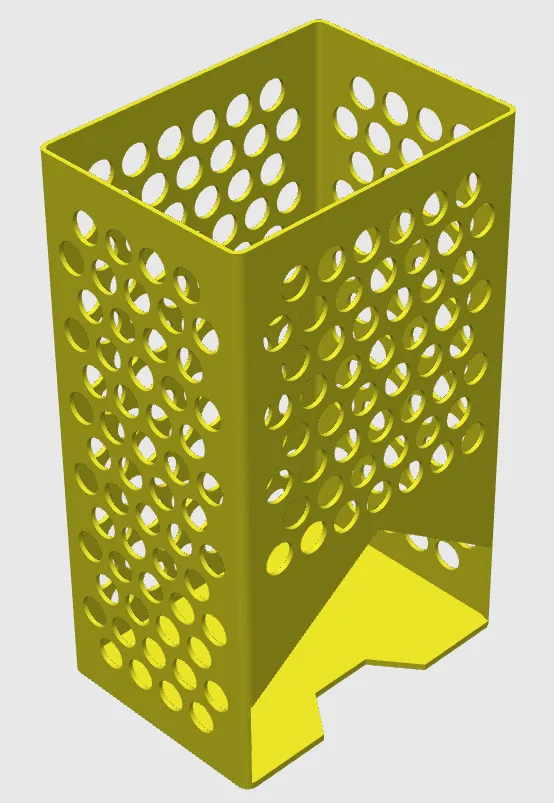

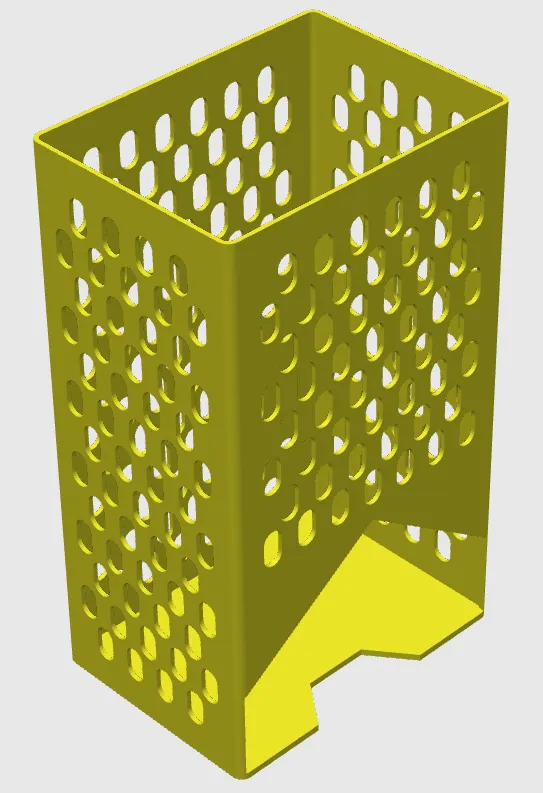

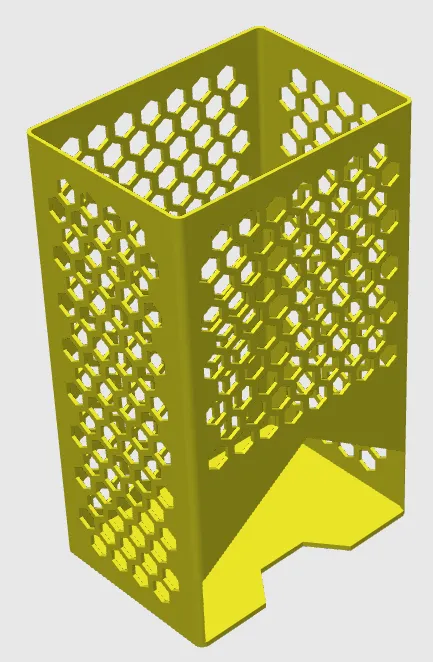

- Customizable: You can choose your wall pattern (Hexagons, Circles, Capsules, or Solid)
 Hexagon |  Capsule |  Circles |
Print Settings I use:
- Walls: 2 walls
- Infill: 15% Gyroid.
- Brim: Yes, keep the 10mm outer brim. Since it's tall and narrow, you don't want it getting knocked over near the end of the print!
