Raspberry Pi Quick-Lab (No Studs)
Need a quick & compact raspberry pi lab?

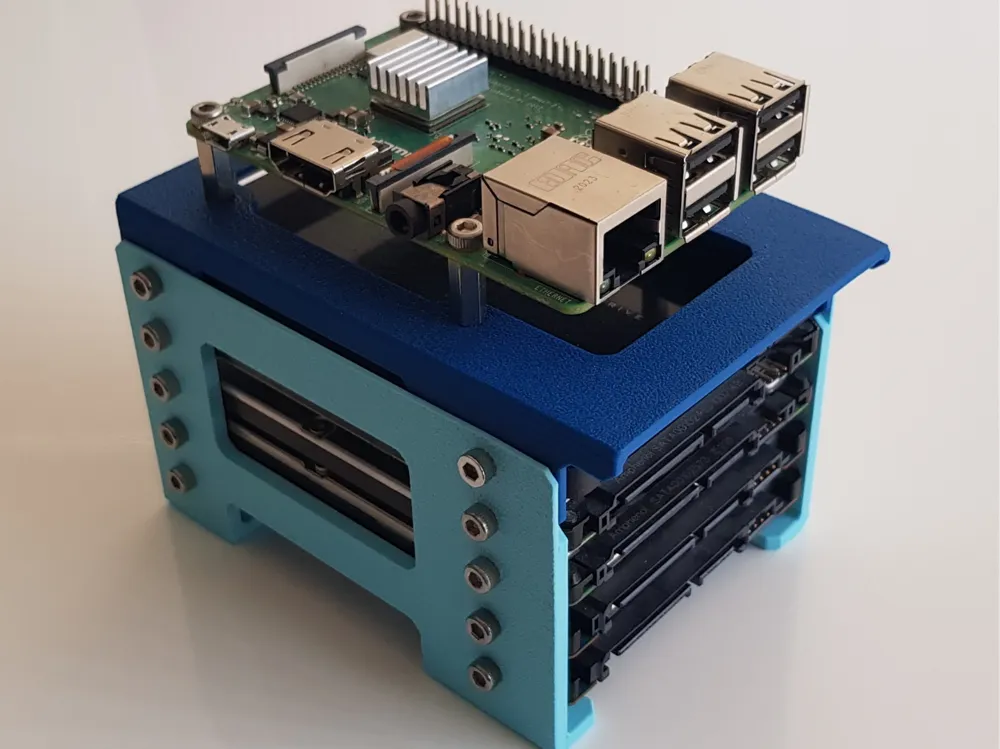

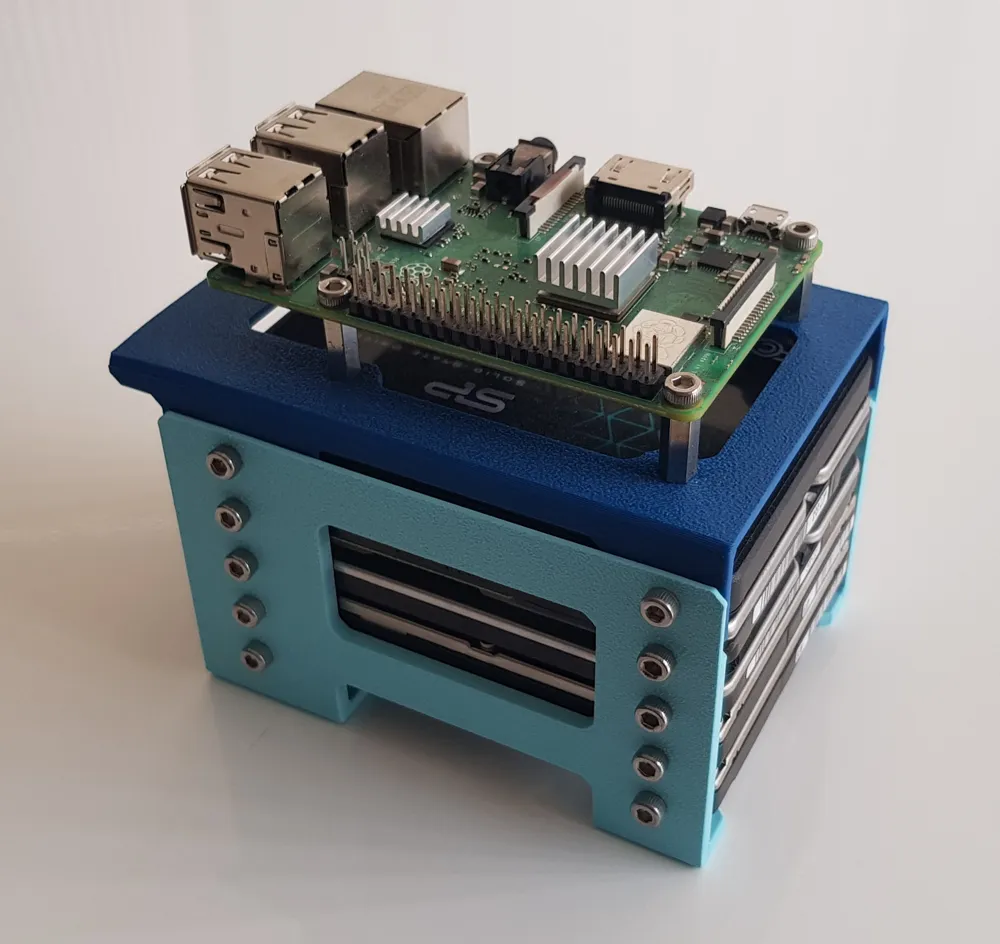

(Included 2 images of the threaded version for reference)
2 Variants:
- Raspberry PI + 1 x SSD/HDD

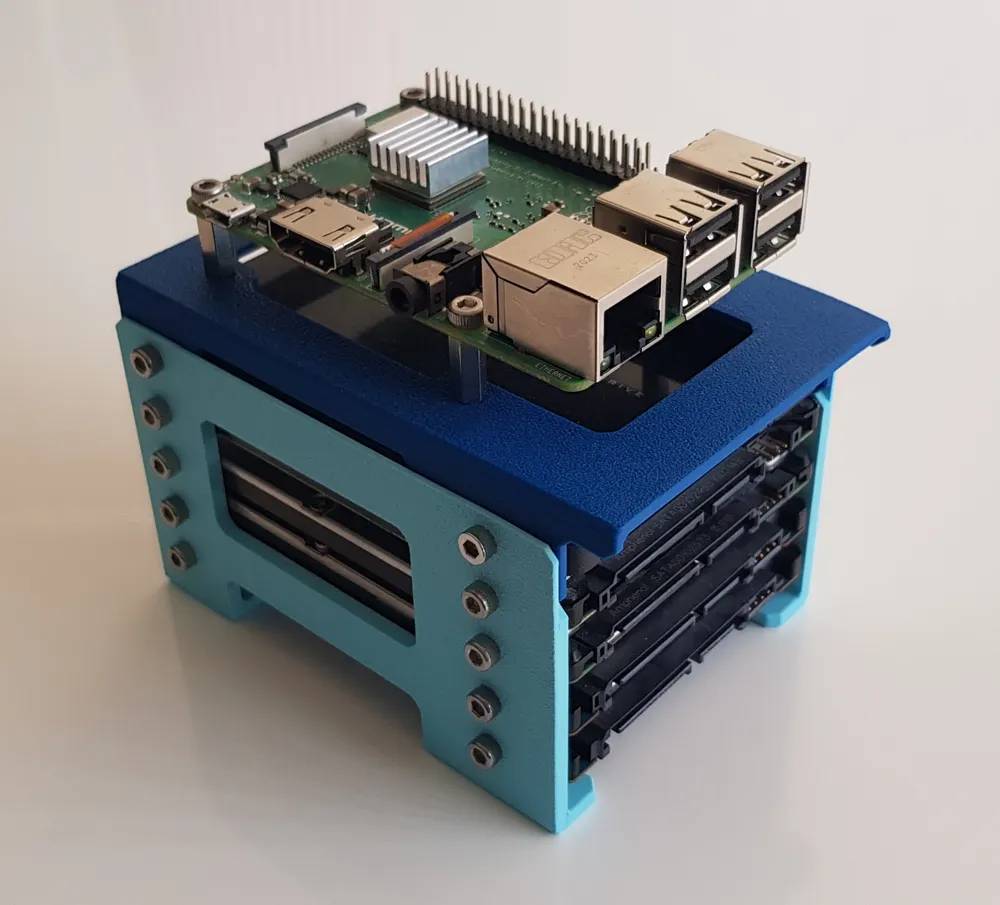

- Raspberry PI + Up to 5 x SSD/HDD
Variant 1 Requires:

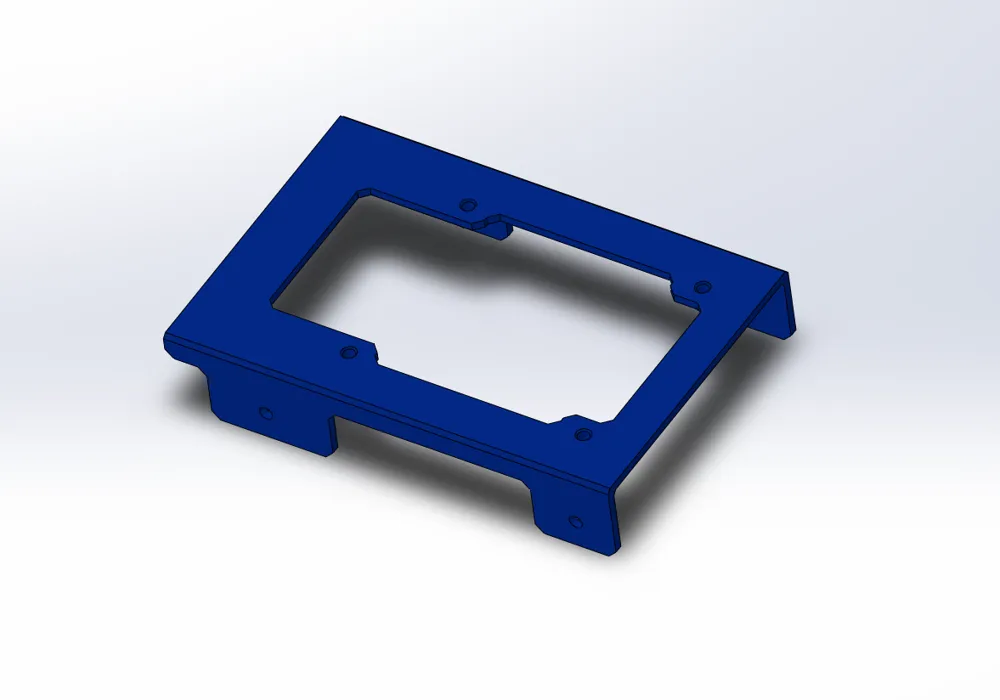

- PI & 1 x SSD (no threaded risers) (printed part)
- Raspberry Pi (2B, 3B/+, 4B, 5)
- 2.5in SSD/HDD
- 4 x M3x8mm Socket Head Cap Screws (for PI)
- 4 x M3x6mm Socket Head Cap Screws (for 2.5 SSD/HDD)
Variant 2 Requires:
- Variant 1 components

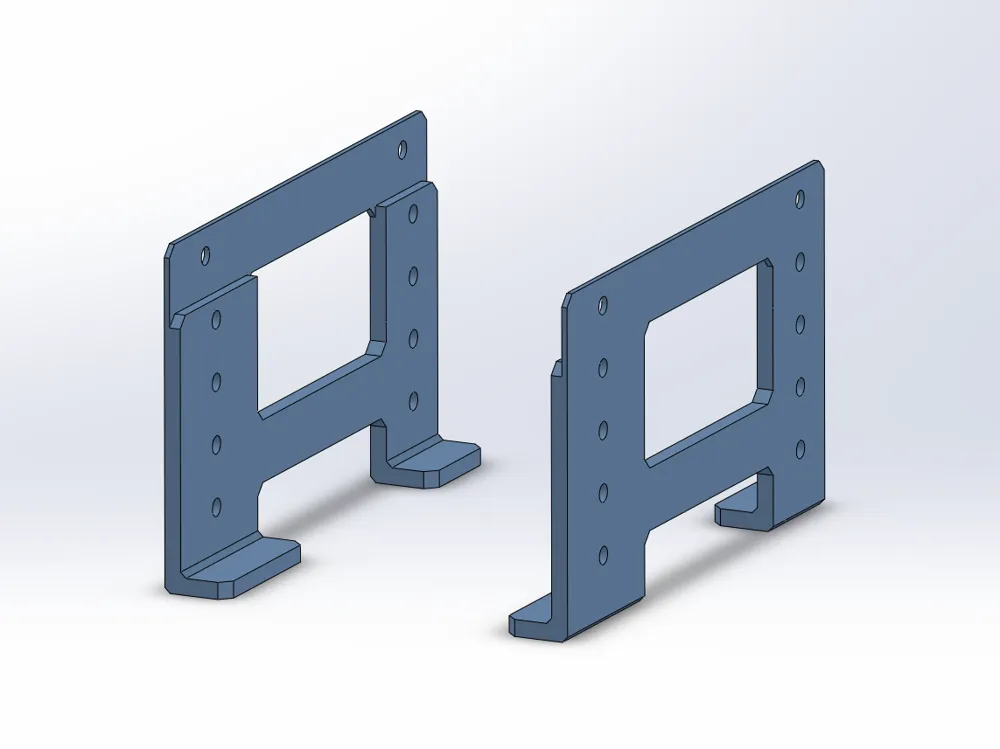

- 4 x SSD (printed parts)
- 4 x M3x6mm Socket Head Cap Screws (for each 2.5 SSD/HDD)
Assembly:

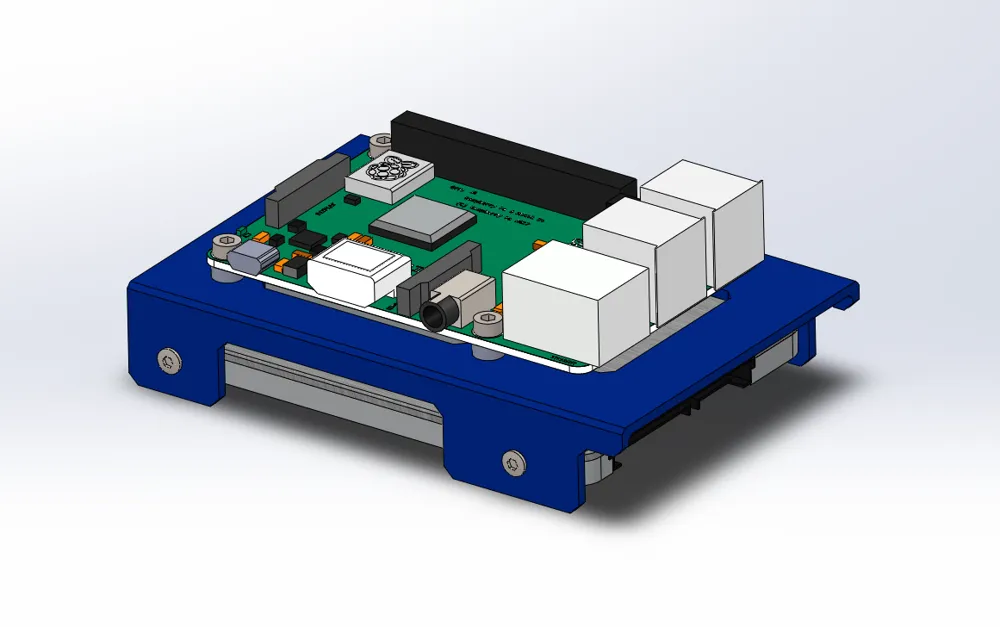

- Align 4 x stands under Pi and mount Pi to "PI & SSD" part using 4 x M3x8 Socket Head Cap Screws as shown in images
- Mount SSD/HDDs as shown in images
