ElectronShepherd To HDMI Enclosure for XboxClassic
Print Profile(1)
Description

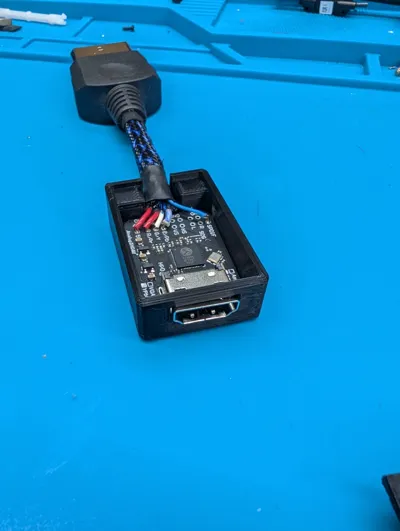

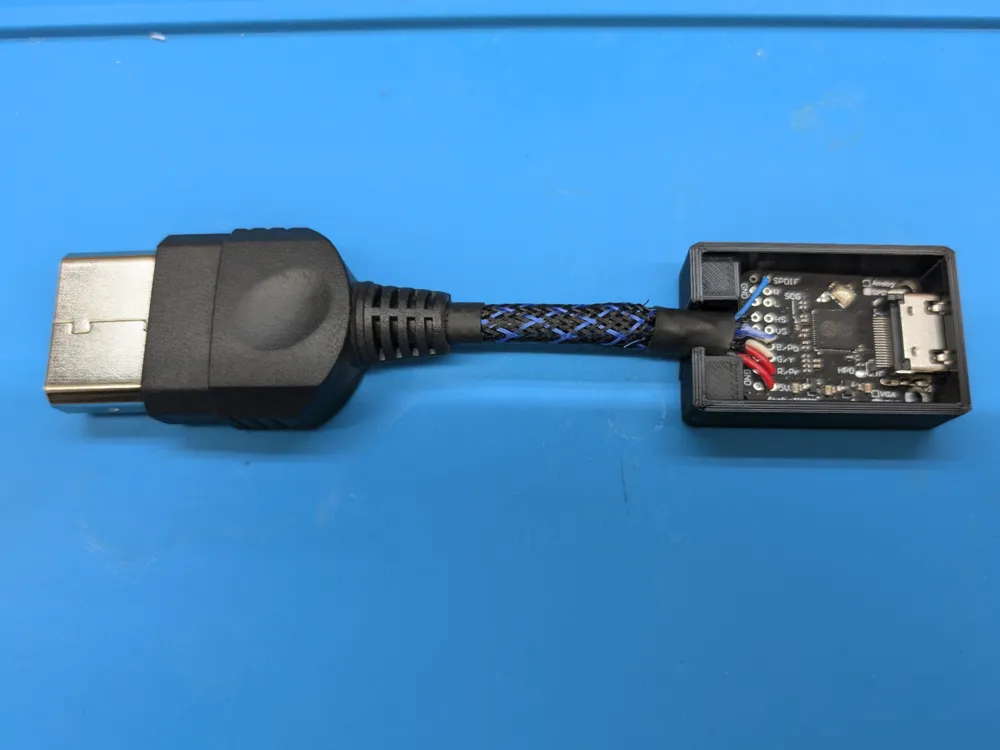

With this enclosure, you can mount the ElectronAnalog (Electron Shepherd) HDMI adapter externally to the original Xbox simply by connecting it to a video cable.
You can mount the original Xbox connector or a compatible one obtained from AliExpress and the analog-HDMI connector from Electron Shepherd https://electron-shepherd.com/collections/all/products/electronanalog or its clone.
The lid is designed to fit perfectly, but you can use glue or drill a small hole and use a screw to hold it in place.
During testing, I managed to mount it by connecting only the ground (-) of the power supply, but to get an optimal signal without interference, I recommend connecting all contacts and choosing a shielded cable for the video.
I remixed this model to make it available on Bambu Handy and print it directly from my phone.
Thanks to BliteKnight for making the original model available
Boost Me (for free)
Are you a retro console enthusiast like me and want to safeguard your collection using 3D printed tools for their care and maintenance? Do you appreciate my sharing work? Then support me by downloading my project, with a nice like, and especially, with a nice boost :-) THANK YOU!
