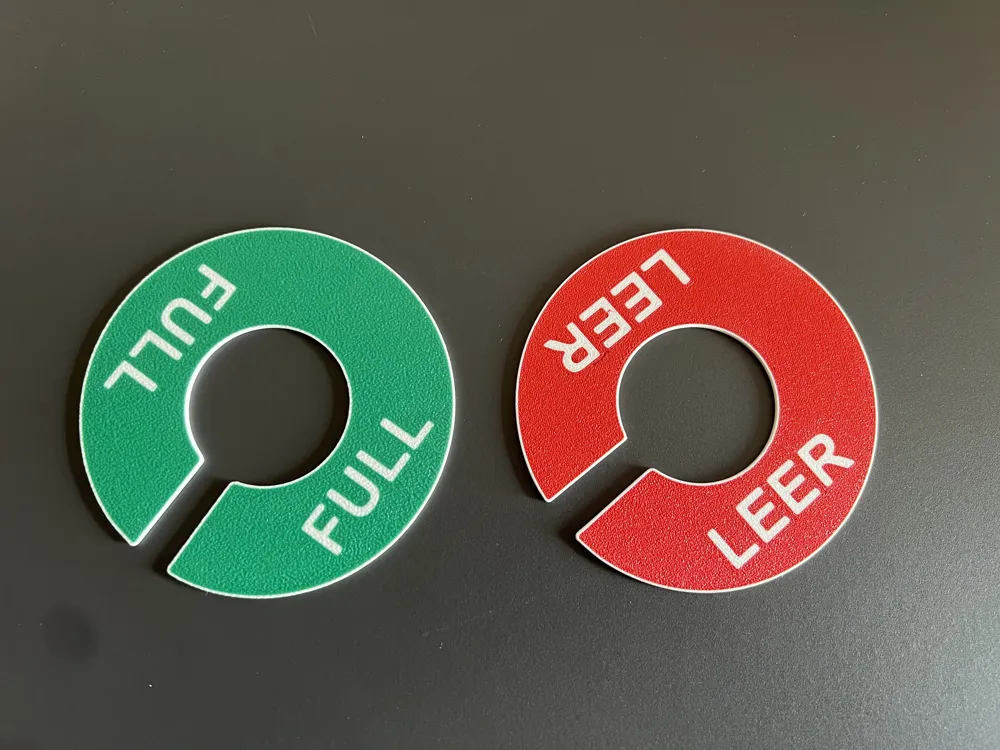

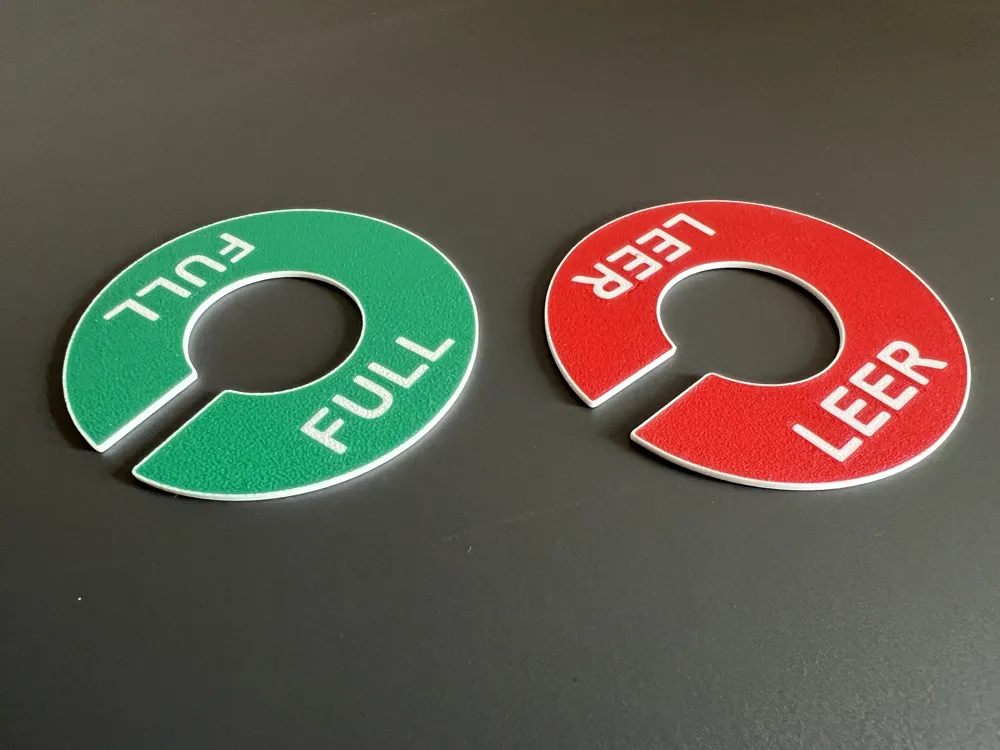

Reversible Respirator Marking Clip (FULL/EMPTY)

This reversible marking clip enables quick and easy marking of full and empty breathing air cylinders or pressure vessels – ideal for, e.g., fire departments / breathing apparatus workshops.

Side 1: FULL
Side 2: EMPTY

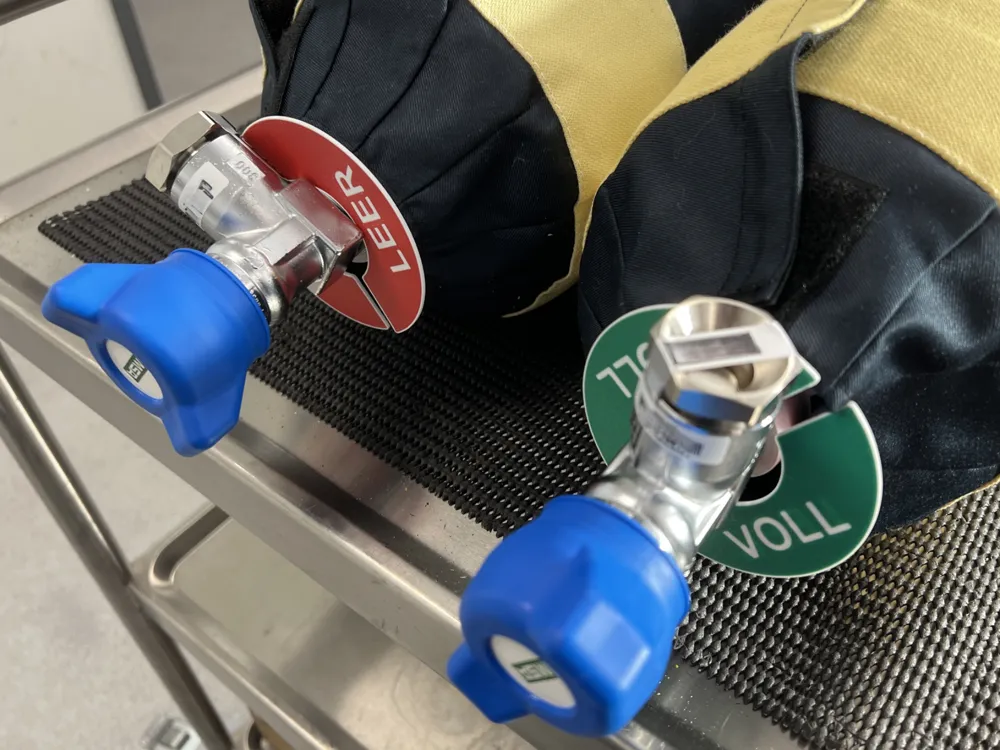

The clip is simply clamped around the bottle neck, instantly showing everyone the status of the respective breathing air cylinder.

Assembly / Use

• depending on status turn to “FULL” or “EMPTY”
• clamp clip around the bottle neck
• clear marking visible even from a distance

Print Notes

⚠️ An AMS is required for printing (multi-color print).

The design consists of:

• white core
• white border, which protects the edges of the colored areas
• colored surface + white text for very good readability and solid connection

Total thickness: 1.4 mm
(2× 0.4 mm color layer + 0.6 mm white core)

Due to the low material thickness, the clip is sufficiently flexible/bendable even when made of PLA Basic.

Dimensions

• Outer diameter: approx. 89 mm
• Inner diameter: approx. 38 mm
• Total thickness: 1.4 mm

Practical Test / Material Recommendation

I had the clips (made of PLA Basic) tested in two large breathing apparatus workshops for an extended period.
Even with PLA Basic, no significant signs of wear were observed with proper use.

✅ PLA Basic works well
✅ PETG is recommended if the clip is frequently twisted/bent (more durable)

Matching Accessories

You can also find a matching table dispenser on my profile to store and quickly retrieve the clips in an organized manner.

📌 The clip is also available with a German and English labeling variant.

Lastly:

Commercial use of any of my designs is strictly prohibited**. All of my designs are exclusively available on my profile on Makerworld.
If you come across my designs on other platforms, please let me know so I can take appropriate action.
From the beginning, I’ve relied on the honesty of users in order to offer all my content for free.

Regards, Niklas
