Medion 50063192 Drive Gear
Print Profile(1)
Description

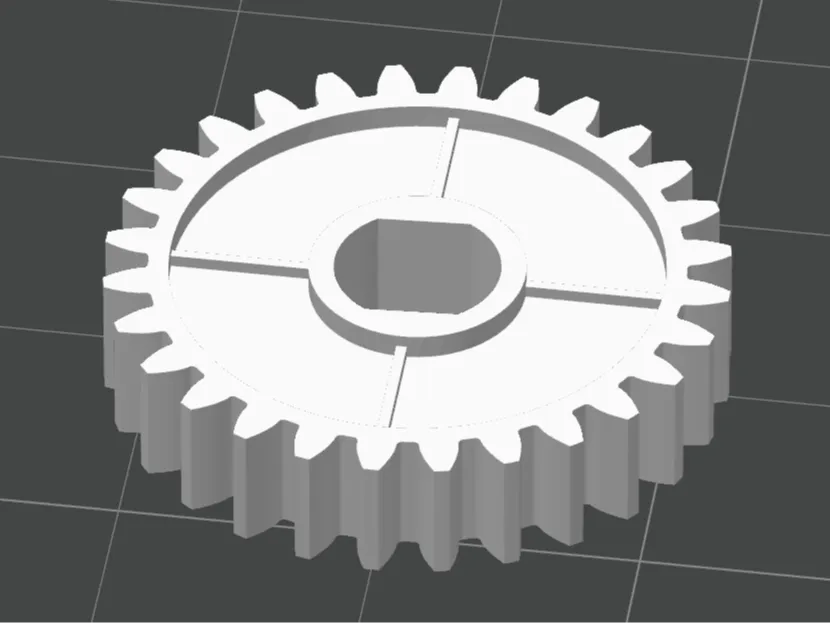

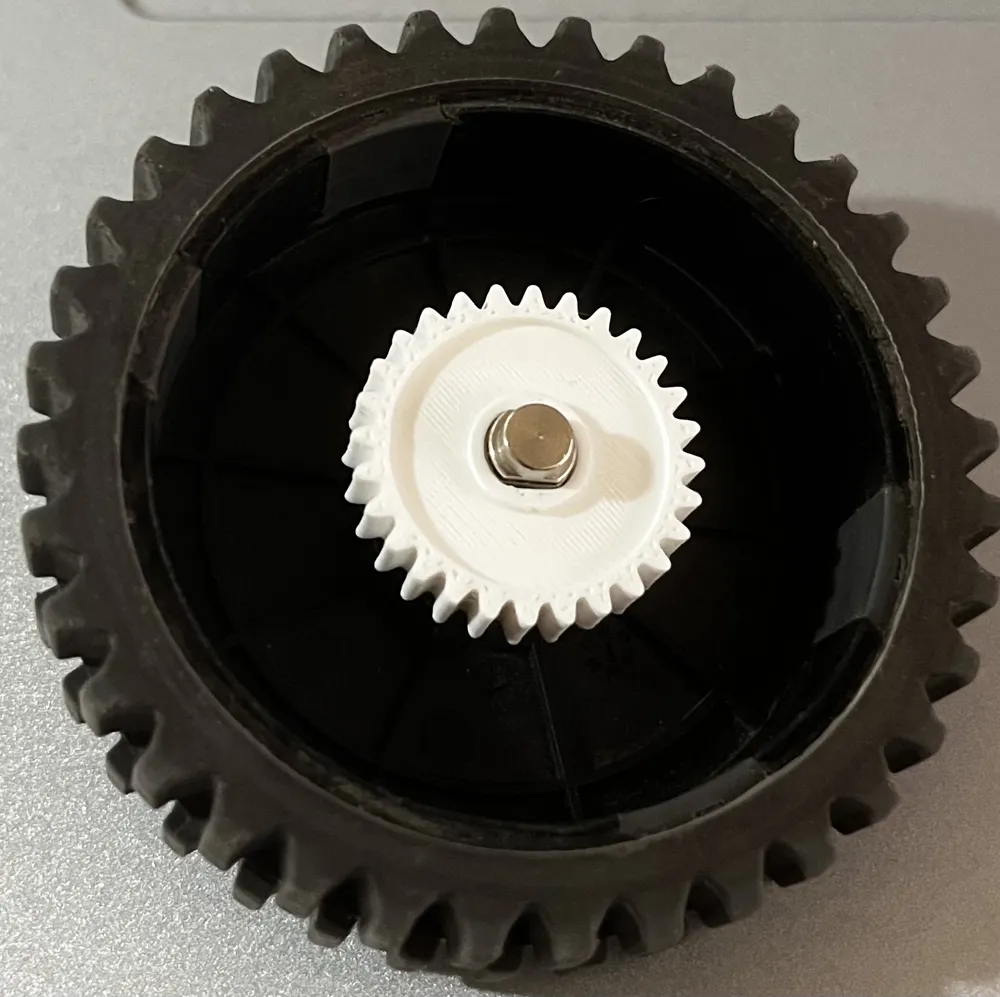

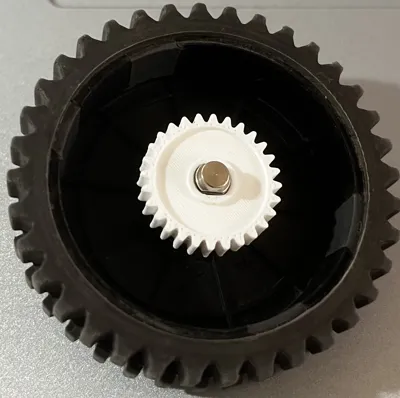

After cat hair broke the drive gear of my Medion robot vacuum, I reverse-engineered it in Fusion 360. I don't know why the bracing is no longer present after slicing, but it works without it too. I printed it in PLA+ with 75% infill and activated supports.
The gear fits the specified model only if the following parameters are used for scaling: X:24mm, Y:24mm, Z:5mm
Please make sure that the checkbox for “uniform scaling” is unchecked when scaling.
Happy printing
