Description

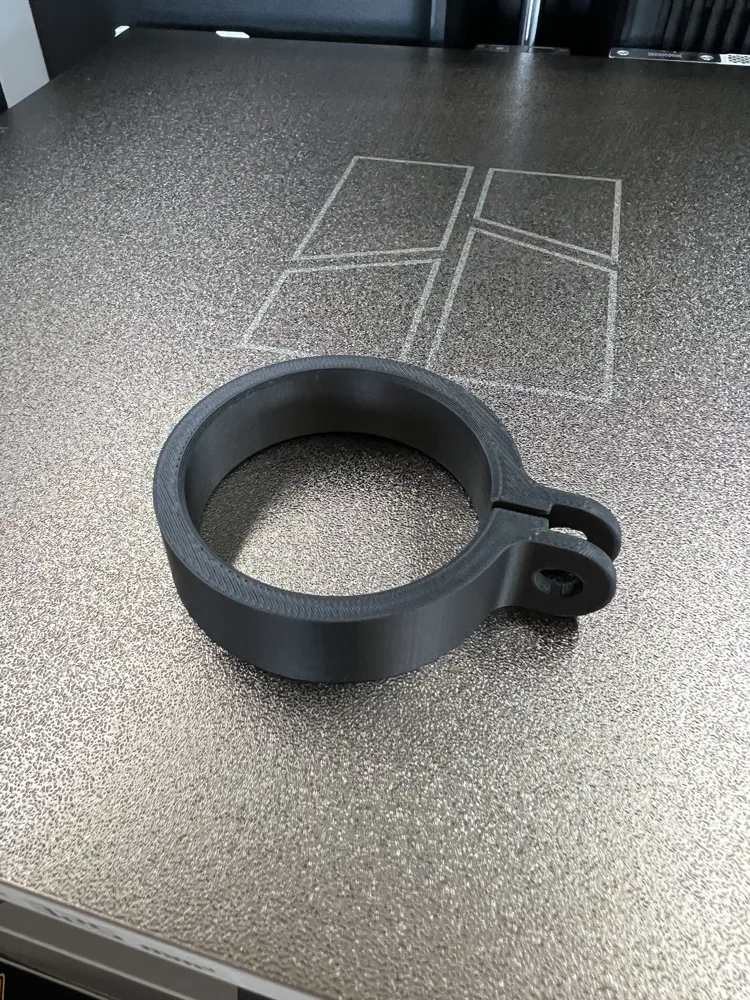

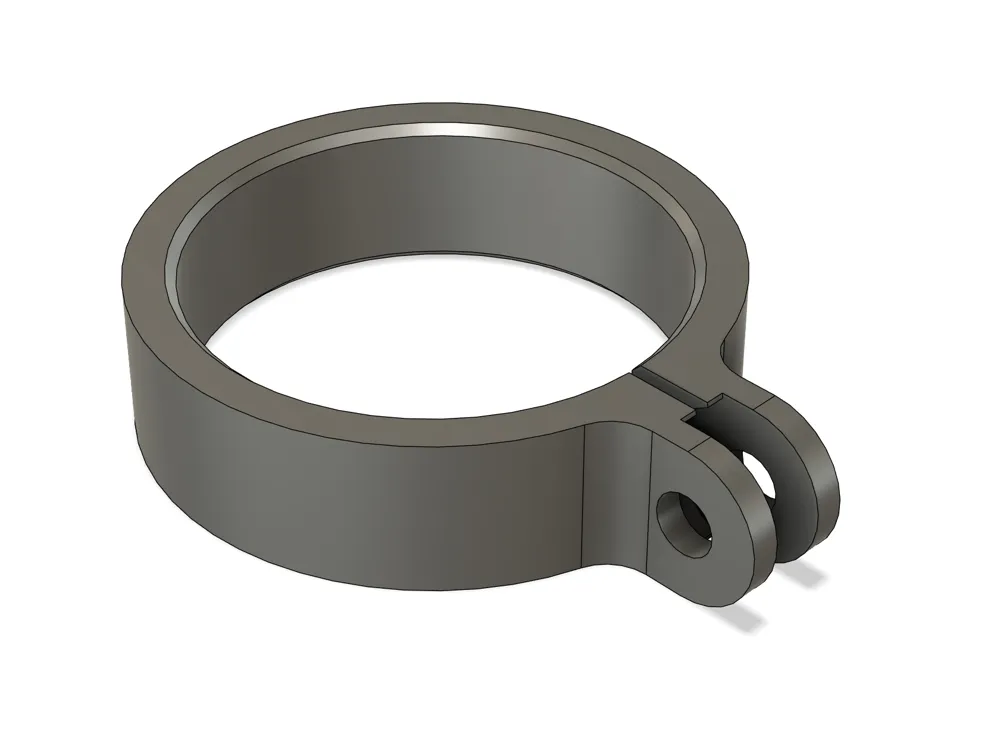

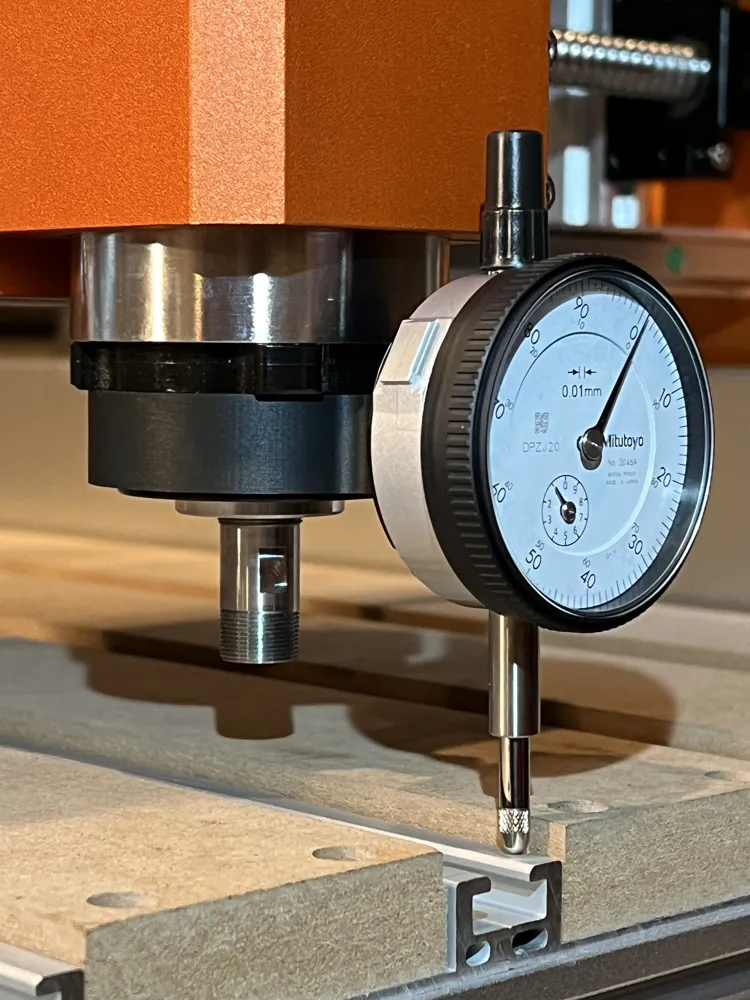

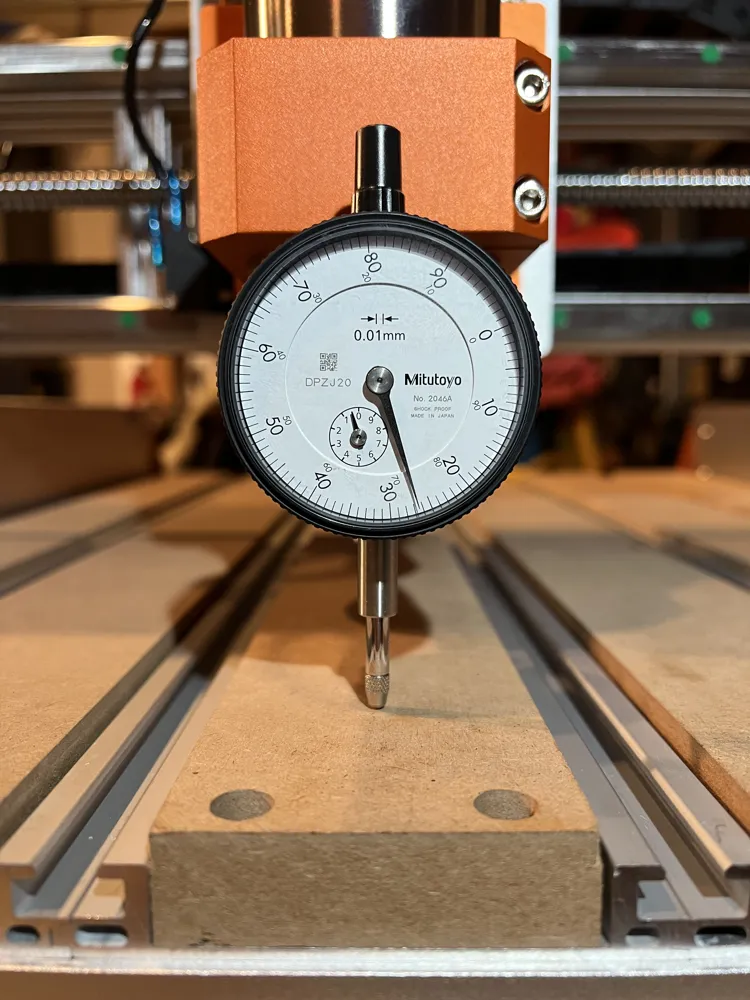

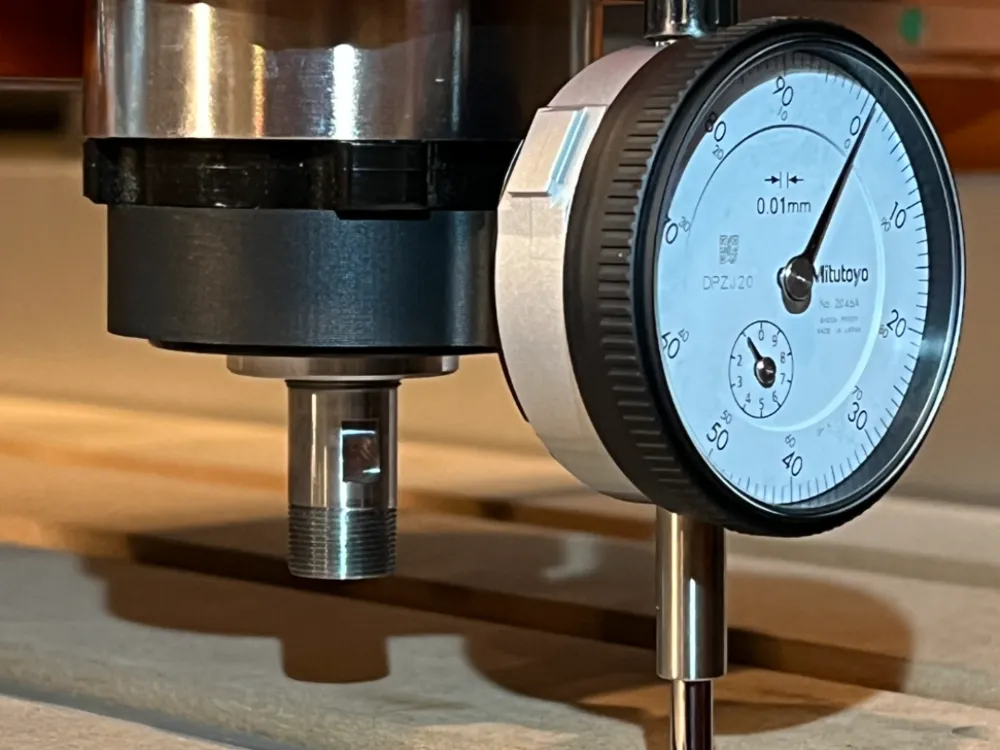

Quick clamp to attach Mitutoyo 2416A style dial indicator to the lower portion of a 65mm Foxalien 1.5kw VFD spindle. Just add bolt and nut and tighten around the lower portion of the spindle. Then measure away. Clamp inside diameter is 48.56mm which was the lower diameter on the 65mm 1.5kw spindle.
