M2.5 - M10 Countersunk Screws All Sorts of Lengths
Print Profile(1)
Description
Boost Me (for free)

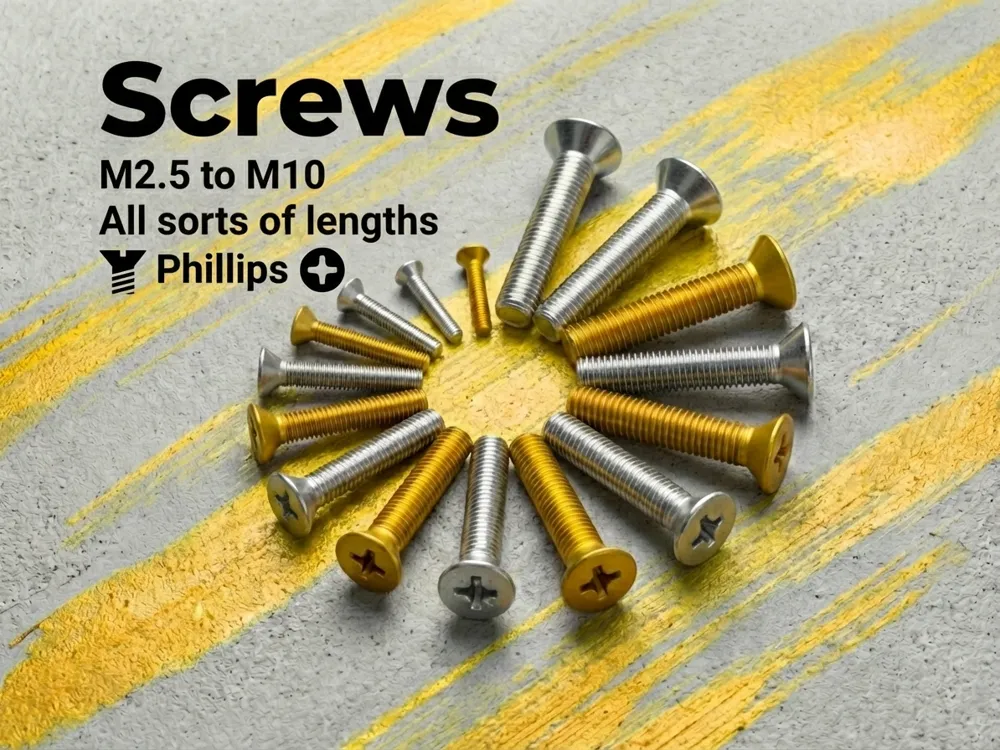

📐 ISO 724 Phillips Countersunk Screw Collection 🔩
⭐ Hit Like and stash this in your collection – your future self will thank you! ❤️
Need a screw that sits flush with your surface? This massive collection features Phillips Flat Head (Countersunk) screws built to ISO 724 standards. Whether it's a tiny M2.5 or a beefy M10, these are ready to drop into your assembly!
📏 Available Sizes
- Diameters: M2.5, M3, M4, M5, M6, M8, M10
- Lengths: 10mm through 120mm (includes 10, 16, 20, 30, 40, 50, 60, 70, 80, 90, 100, 110, & 120mm!)
✨ Key Features
- Head Style: Countersunk / Flat Head (sits flush!) 🟦
- Drive Type: Phillips (+) ➕
- Thread Type: Coarse ISO 🧵
- Design: Precision-modeled in OpenSCAD using the BOSL2 library.
🖨️ MakerWorld Print Settings 🛠️
For screws that actually work and don't snap, use these optimized settings:
| Setting | Recommended Value | Why? |
|---|---|---|
| Layer Height | 0.10mm - 0.12mm | Maximizes thread detail and shear strength. |
| Infill Density | 40% - 60% | Ensures the screw is durable under torque. |
| Infill Pattern | Gyroid | Best multidirectional strength. |
| Flow Ratio / Extrusion | 0.93 | Prevents "fat" threads; ensures a smooth fit. |
| Outer Wall Speed | < 100 mm/s | Helps maintain precision on fine thread peaks. |
| Supports | On Build Plate Only | Use 30° threshold for easy removal. |
🧪 Material Recommendations
- PETG: 🥇 Best balance! Less brittle than PLA, easier than ABS.
- PLA+ / Tough: Great for light-duty, high-detail threads.
- Nylon/ABS: Maximum strength (requires an enclosure!).
🔗 The Hardware Store is Open!
Looking for something else? My collection is constantly growing:
- 🔩 Torx & Hex Drive Screws
- 🚫 Headless Grub Screws
- 📂 Nuts & Easy-Grip Nut Caps
Check my profile for the full growing hardware library!

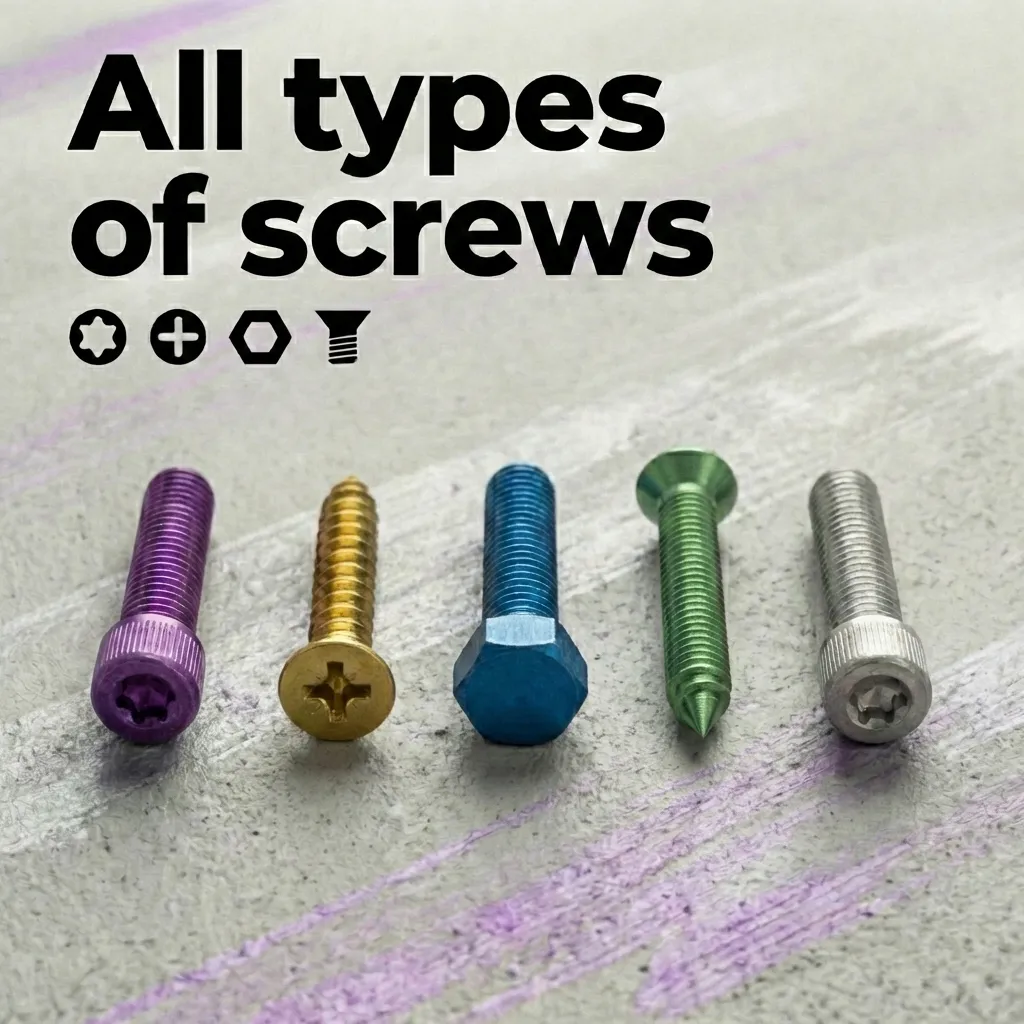

- Or click this image here!
🙌 Show Off Your Build!
I love seeing these screws in the wild!
- 📸 Post a Make: Upload your photos and show us what you're building!
- 💬 Feedback: Your comments help me improve the library.
- 🚀 Follow: Stay tuned for more hardware releases!
Happy building! 🛠️✨
