ECOTI/JERRY C5/CE5 NVG PVS14 Iris adapter Remixed

This model is a remix of 0xdb1b’s original design for the ECOTI / JERRY C5 / CE5 NVG PVS-14 iris adapter.

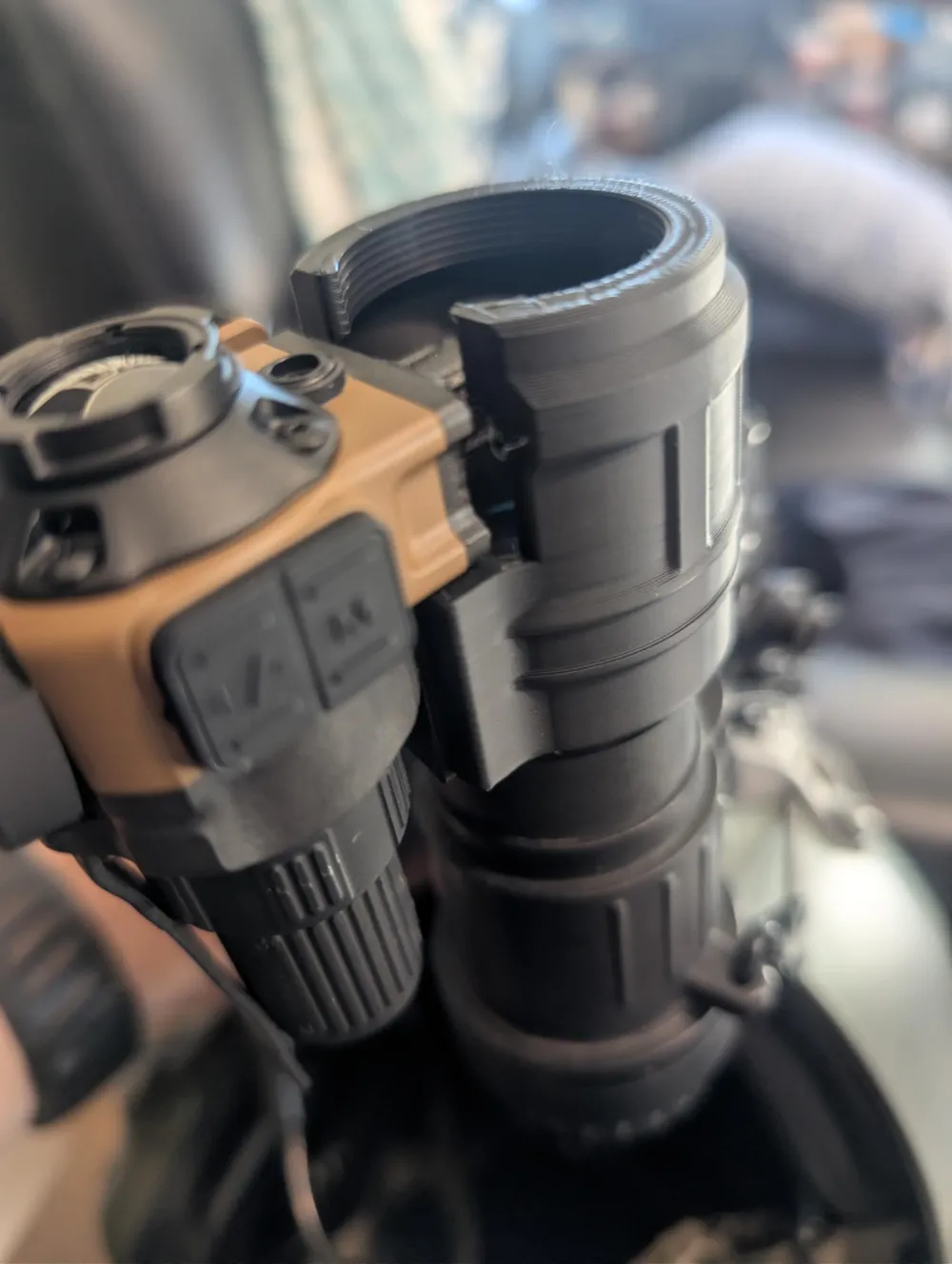

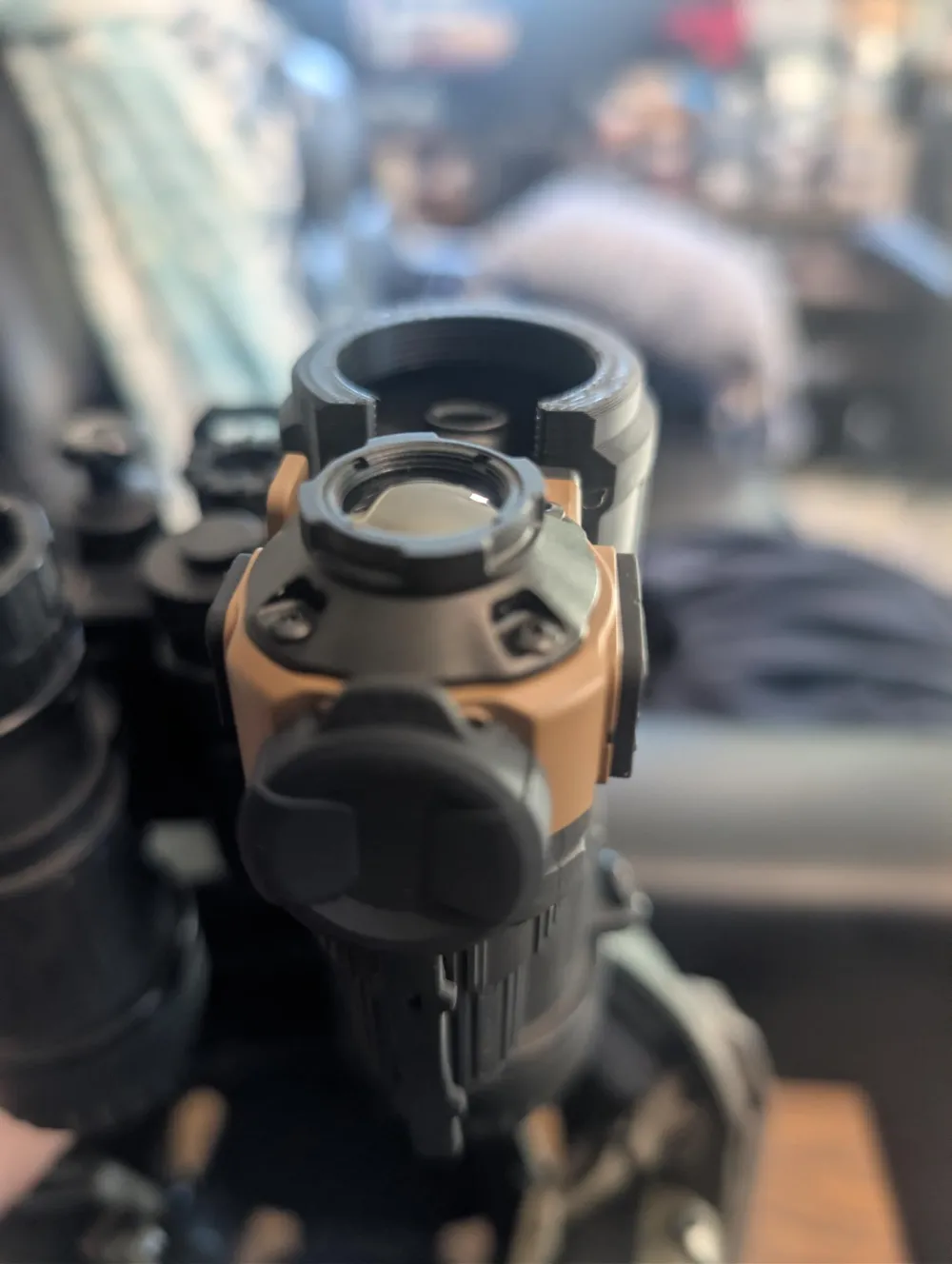

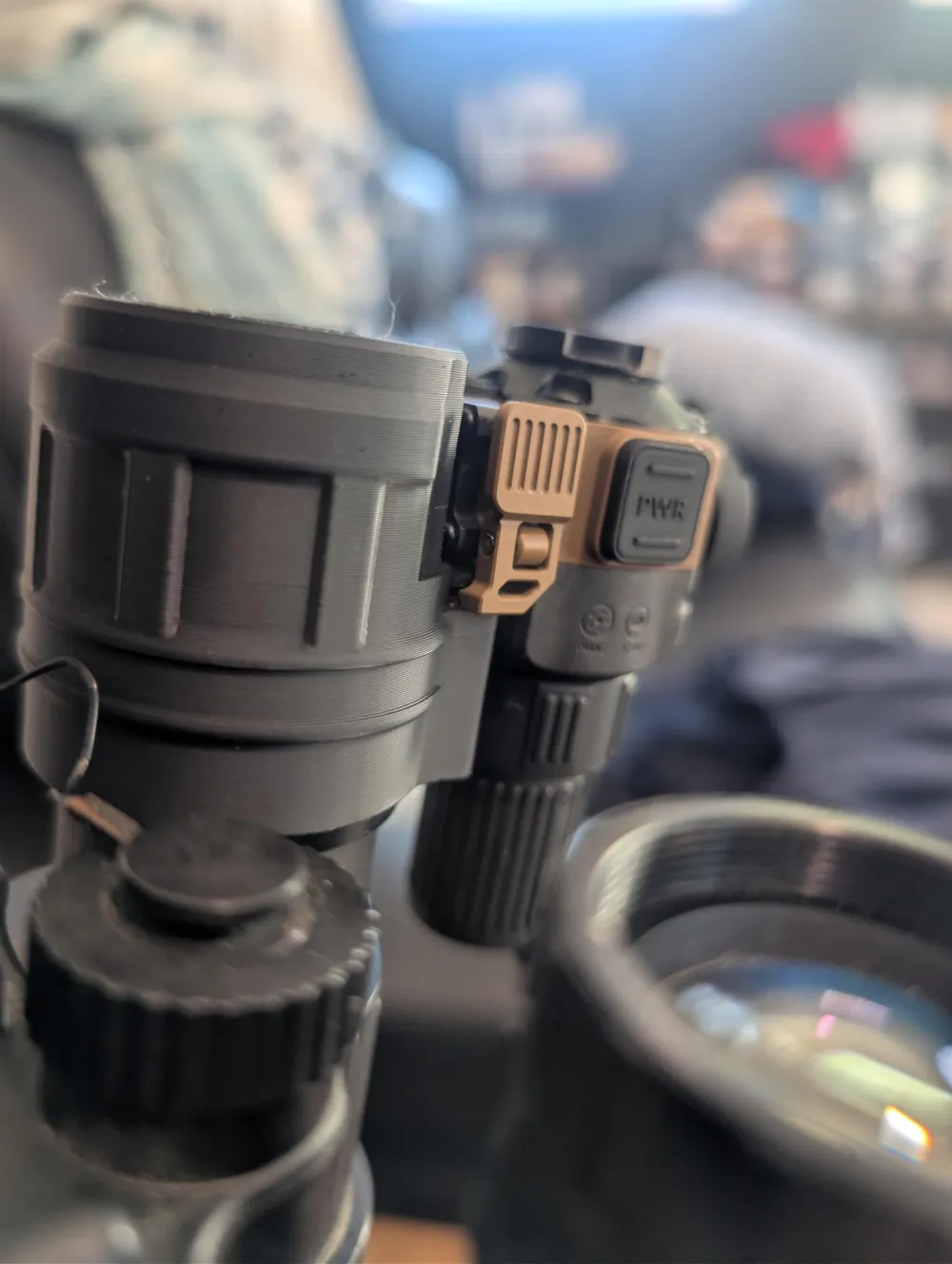

The adapter features a tool-less, friction-fit installation that seats securely and snugly. It supports the use of an iris, sacrificial lenses, rubber caps, and similar accessories. Compared to the original mount ring, this version is more stable and exhibits significantly less wobble.

The model has been rebuilt and tuned for improved fitment, with reinforced geometry for added strength, and modified to support the JERRY C Pro clip-on while maintaining compatibility with previous models. It is also designed to accommodate the required spacing for Cold Harbour Supply’s JerryC Pro Enhanced Focusing Defender (Lens & Device Protector).

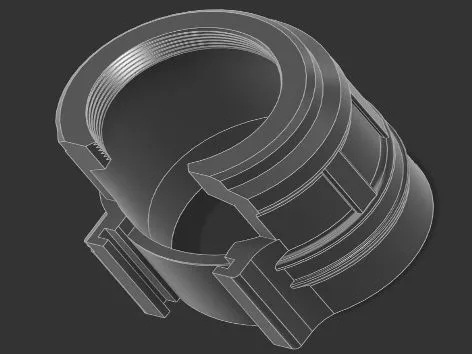

Additionally, the adapter includes M30×1.0 mm threads, allowing the iris to screw in securely and reliably.
