Description
Inspired by Everlanders Battery Sled, I modeled this Starlink Mini Battery Bank in Fusion 360 that can be printed quickly and assembled easily with minimal electronic experience for under $20 without the batteries. Soldering Required.

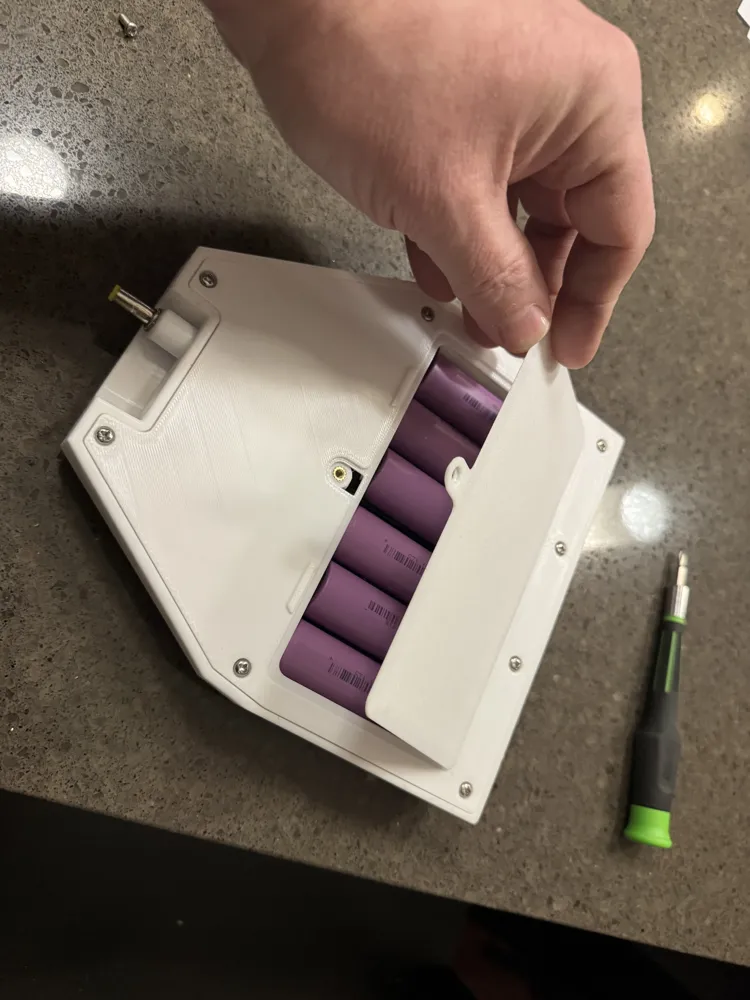

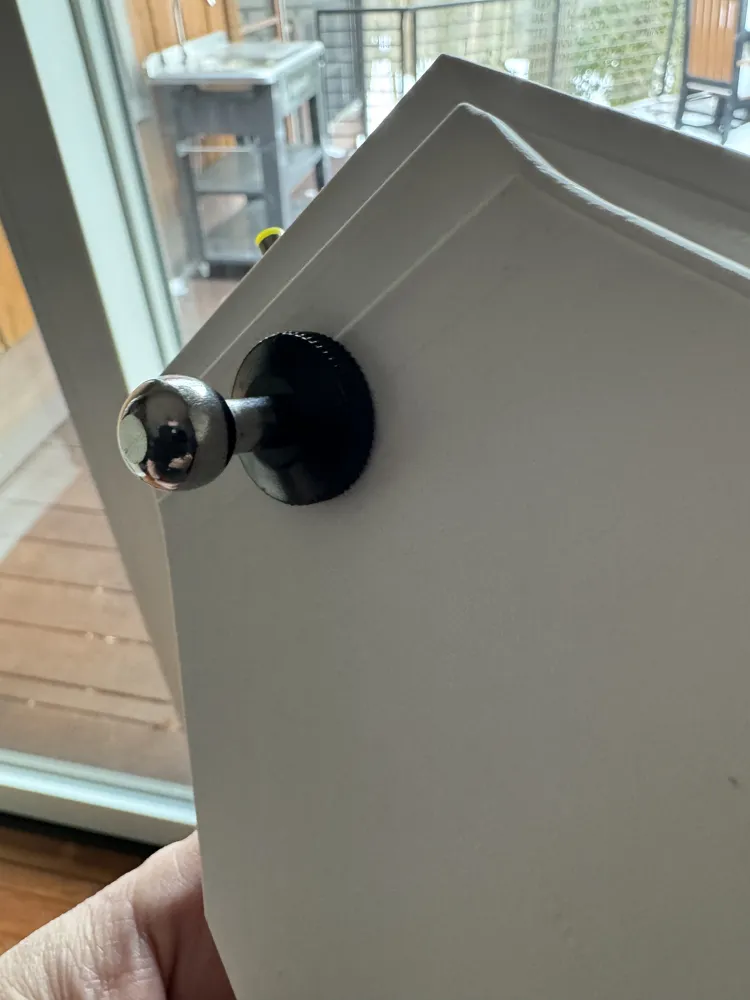

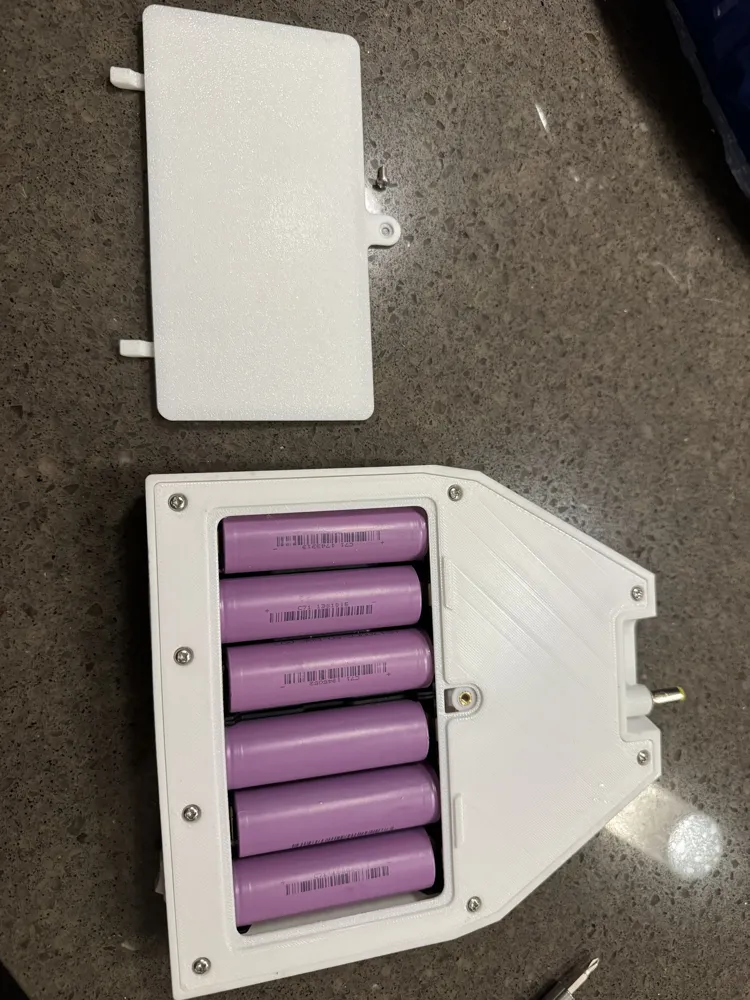

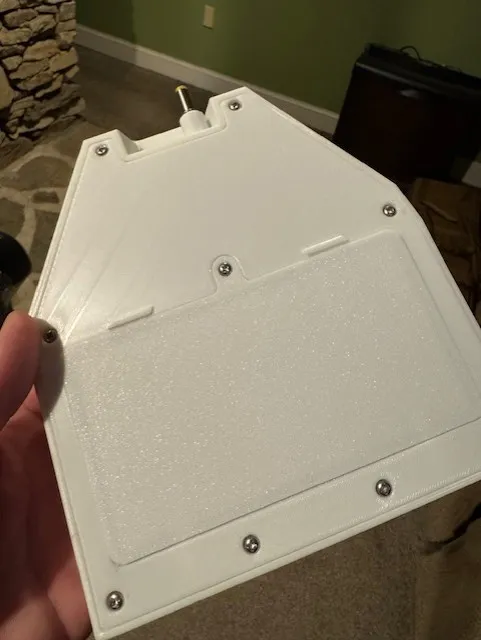

I loved the sleek small design of Everlanders 18650 Battery Sled for Starlink Mini but wanted to have the batteries covered with a lid and still easily accessible for fast battery changeouts. This design gives you the ability to carry 6 extra cells to change out without having to carry another full battery setup and chargers in the field while hunting and hiking. I wanted extra run time and a tripod mount that that was not on Everlanders awesome design. I still carry his since it is smaller and lighter than this version. Visit his YouTube channel it has great content!

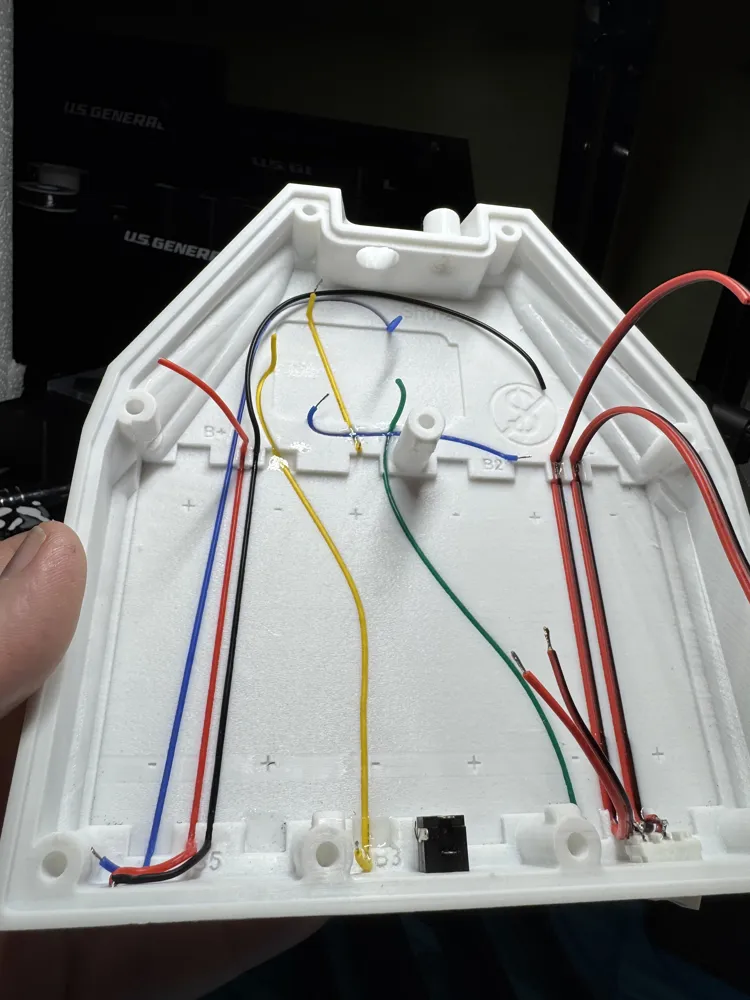

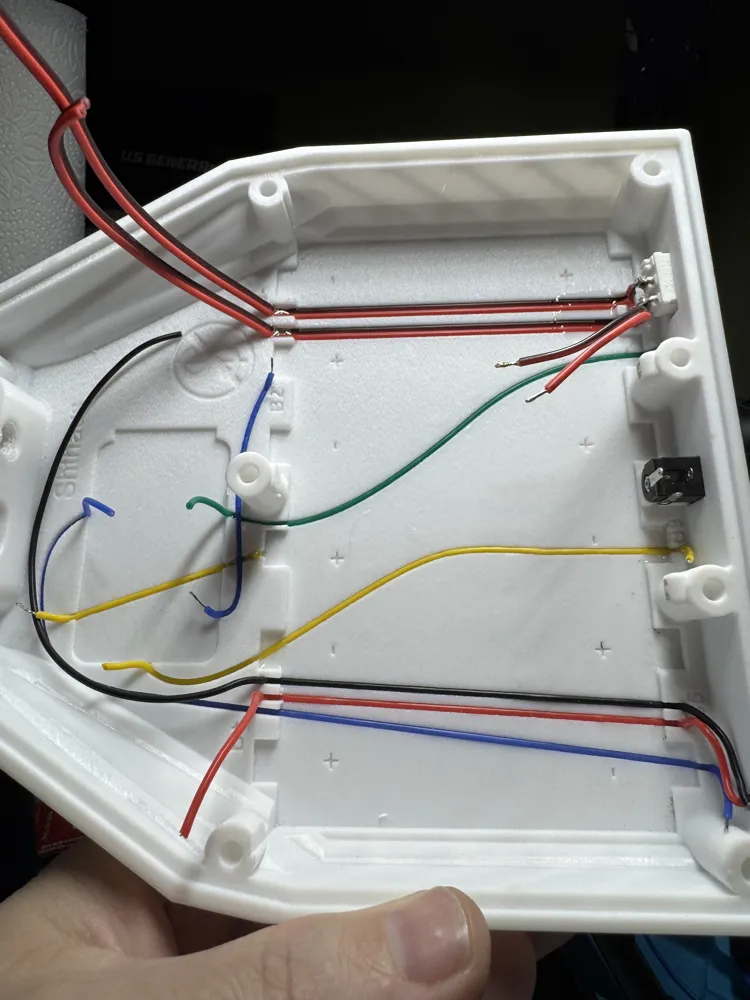

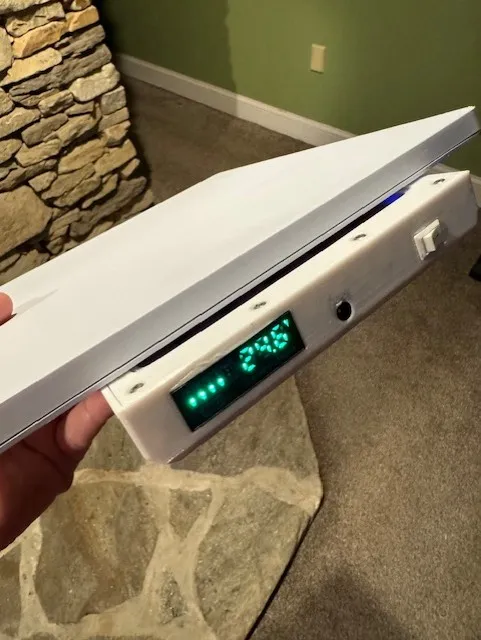

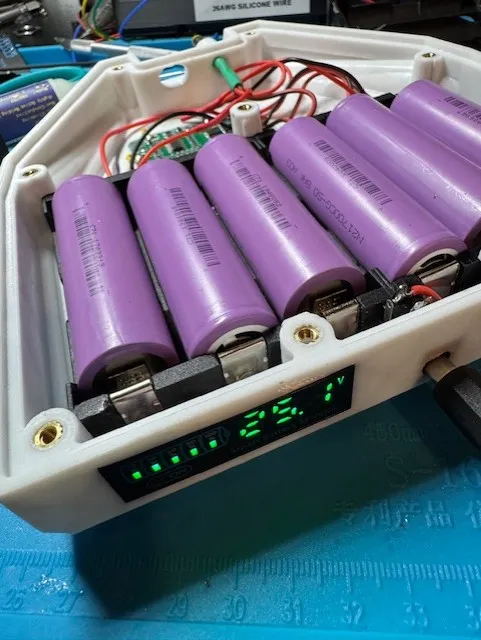

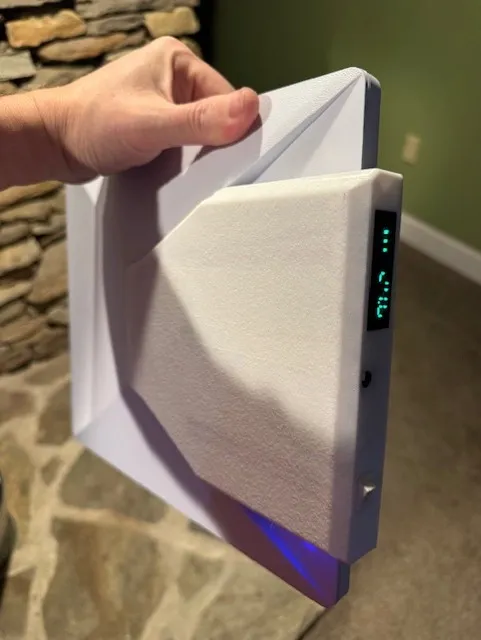

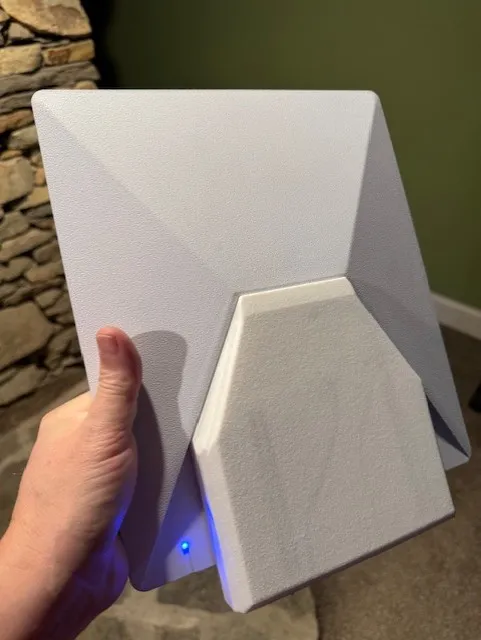

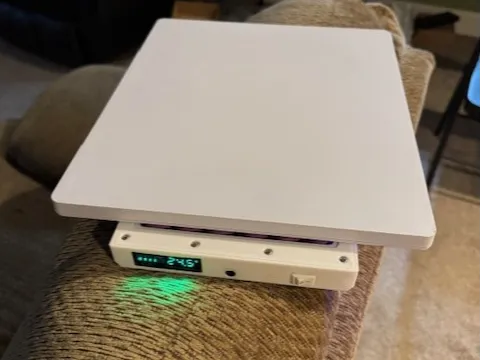

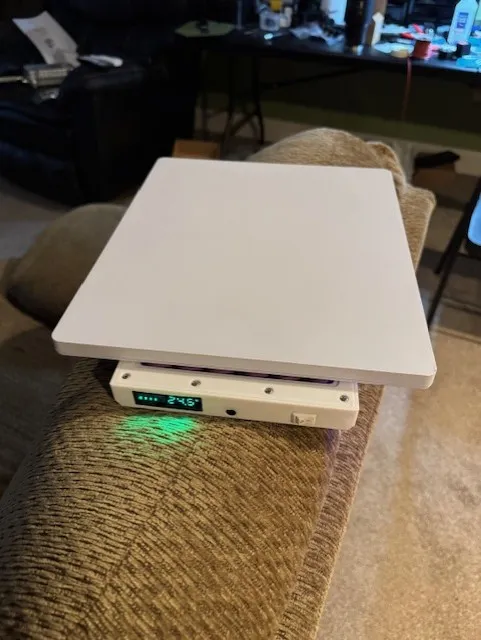

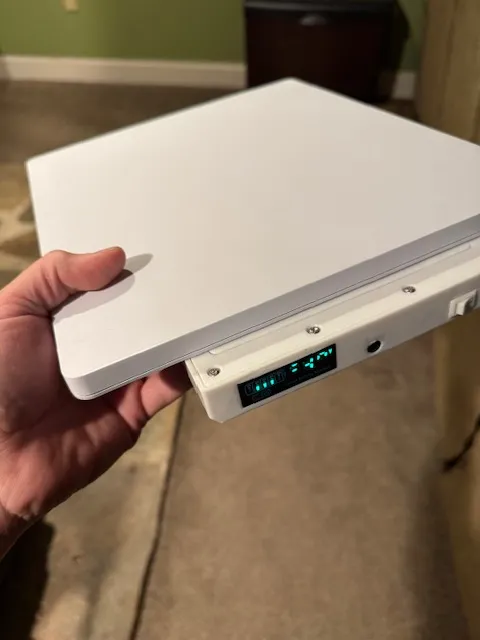

For extra run time I designed this with 6 21700 5000 mAh cells in series doubling the run time over the standard 18650 batteries. I also added a power meter with a battery graph, so it was easier to see the battery level. For protection of the Mini I also opted a 7amp Fast Blow Pico Resistance Fuse for the small footprint over an automotive fuse. All wire locations are noted on the enclosure and have channels that you tuck the wires into, so you know what where they go on the BMS. My 3MF file has an integrated break away support printed at 45 degrees to print with minimal supports. I also have a fuzzy skin option that makes the finish close to the Starlink Mini pebbled finish. I printed in ASA and PETG. PETG seems to be the best option verified through my testing.
This was my most advanced Fusion design so far from a rookie that only learned Fusion by watching YouTube. Designed a lot of Meshtastic nodes in the recent months.
Enjoy the battery bank!
Boost Me (for free)
Please Boost Me. This model cost $75 in filament to test prints and size the models. A boot only give you 60 cents to put towards a gift card so I need some serious boosts to recoup. I hope this saves you some money and is something you can use on you next adventure!
.
Assembly video is on YouTube.
Parts List:
DC7-40V Battery Level Indicator 12V 24V 36V 48V Acid/Lipo Lithium Battery Capacity Board Voltage Battery Charging Tester
https://www.aliexpress.com/item/3256809322511002.html
6s 12A Active Balanced BMS (Battery Management System)
https://www.aliexpress.com/item/3256808371263301.html
21700 3 Cell Battery Holder
https://www.aliexpress.com/item/3256803017768895.html
Small Rocker Switch Kcd11 10x15mm White
https://www.aliexpress.com/item/3256808591861621.html
5.5mm x 2.1 mm DC Make Power Plug
https://www.aliexpress.com/item/2251832805818762.html
5.5mm x 2.1 Dc Power Jack
M3 x 4mm Heat Inserts
3.6v 5000mAh BAK N21700CG-50 2170 Lithium Ion Cells
New 3.6v 5000mAh BAK N21700CG-50 2170 Lithium Ion Cells – Battery Hookup

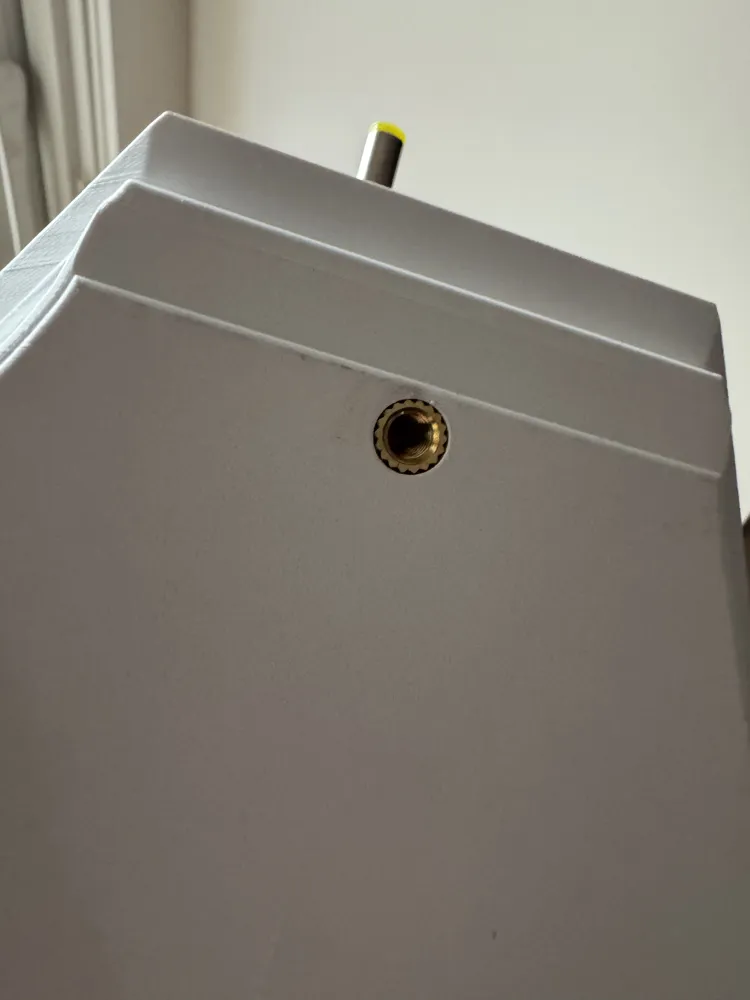

¼ 20 Tripod Mount Heat Insert
26 AWG Silicone Wire
22 AWG Silicone 2 Wire red Black
Axial Lead Fuse 7amp
Super Glue to glue wire in tracks Optional (Purchase anywhere)
UV Resin to secure wires
Battery Charger
Shrink Tube
