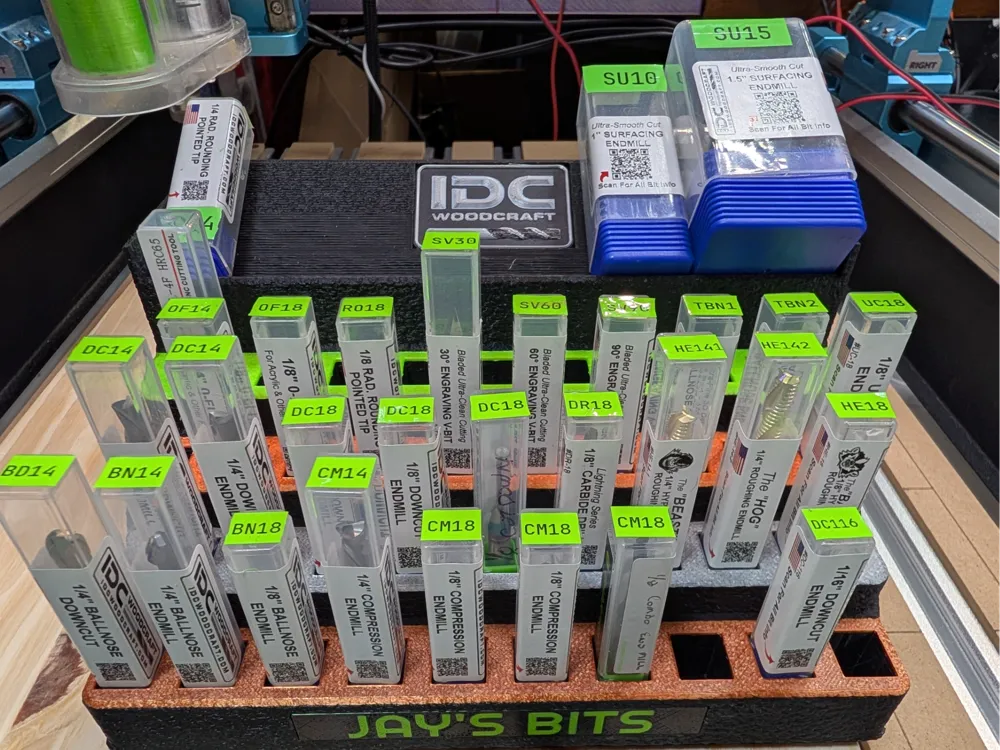

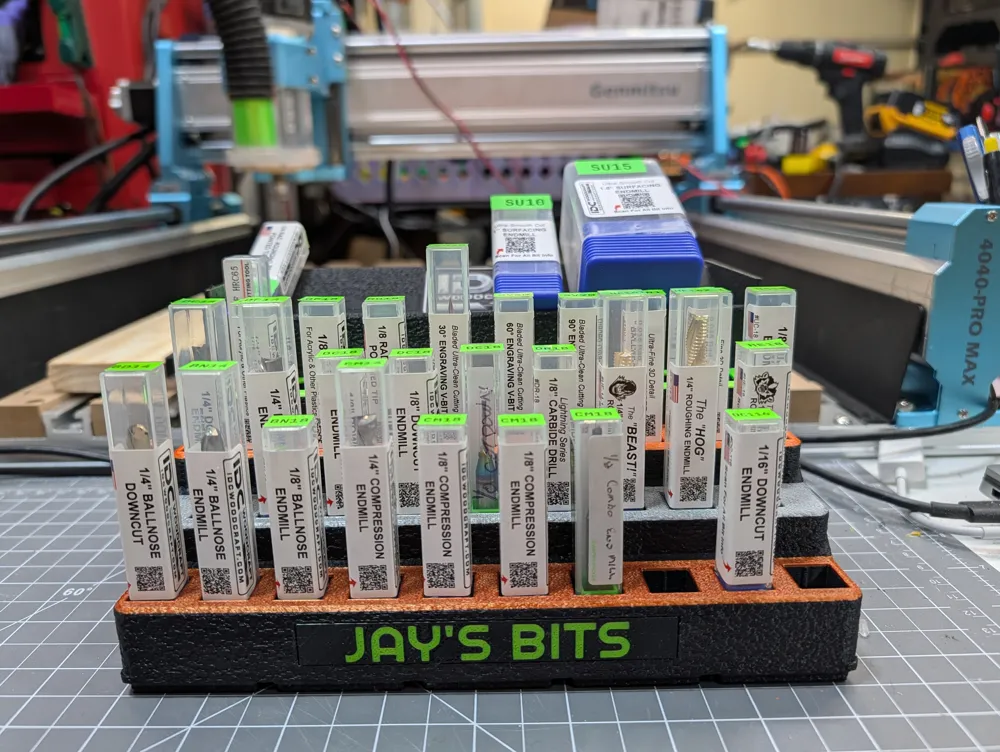

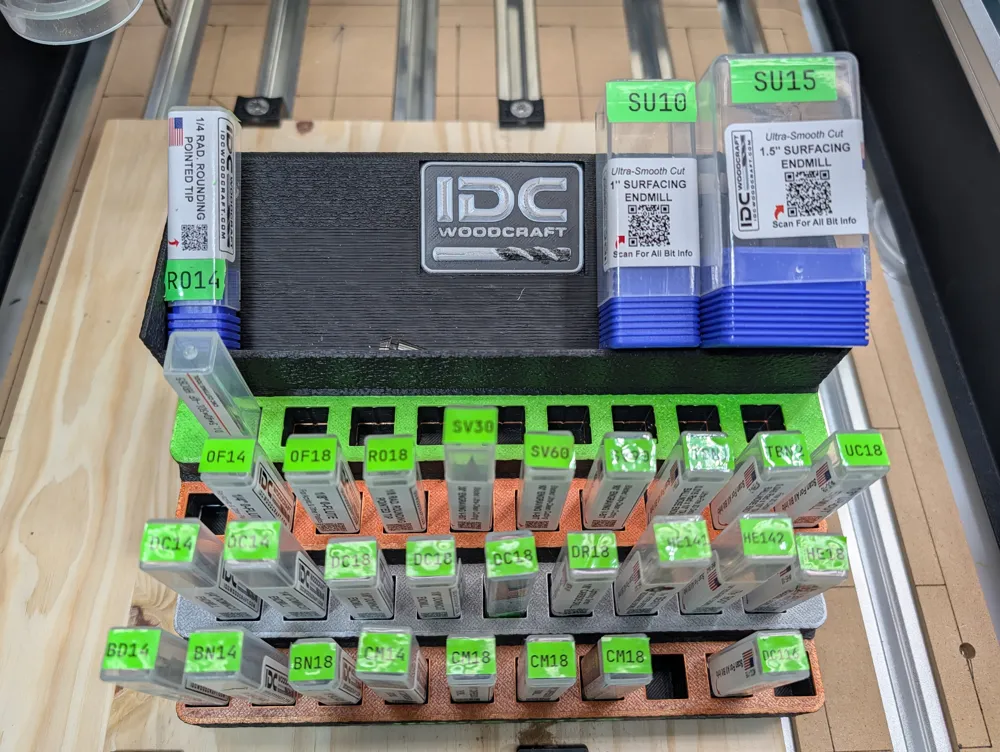

IDC Woodcraft Bit Organizer

CNC Bit Organizer, designed specifically for IDC Woodcraft bits, but should work for others.

Files:

       Organizer, 2 versions, with and without Gridifinity base.

Name plate

IDC Woodcraft logo plate

Printing:

                Print organizer at 0.24 layer height, 5% infill

                Colors (optional):

Gridifinity version change color at:

                26.70-28.70 -0 .16 layer height, 15 % infill, Hilbert Curve top layer

                40.50-42.50-0 .16 layer height, 15 % infill, Hilbert Curve top layer

                53.70-55.70- 0.16 layer height, 15 % infill, Hilbert Curve top layer

                67.50-69.50-0 .16 layer height, 15 % infill, Hilbert Curve top layer

No Gridifinity version change color at:

                20.70-22.70-0 .16 layer height, 15 % infill, Hilbert Curve top layer

                34.50-36.50- 0.16 layer height, 15 % infill, Hilbert Curve top layer

                47.70-49.70-0 .16 layer height, 15 % infill, Hilbert Curve top layer

                61.50-63.50- 0.16 layer height, 15 % infill, Hilbert Curve top layer

Name Plate:

                Edit the text.

                                0.12 layer height, 15% infill, Hilbert Curve top layer

                IDC Woodcraft Logo Plate:

                                Black color 0 to 0.6, 0.24 layer height, 15% infill

                                Silver color starting at 0.60 height, 0.08 layer height, 6 wall loops,  90% infill

                                                Paint bit flutes black with fine brush
