Ikea Skadis Self Tapping T-Nut for M3 Screws

Self tapping T-Nut that is stronger than versions with hex nuts or heat-set inserts

I designed this T-Nut after a few designs that used M2 nuts or heat-set inserts failed. On a part this small, there is not enough material to securely use an additional nut. The M2 screw are also less common and the small size doesn't provide enough bite.

Problems this design solves:

• I wanted to utilize the popular M3 screws (M3 x 16mm Screw)

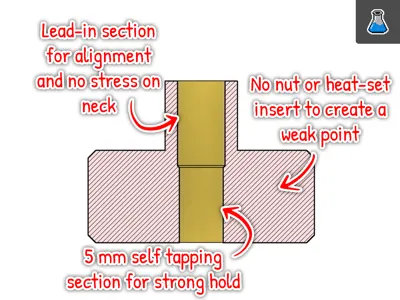

• The non-threaded neck allows the screw to align perfectly before the threads bite.
• By only threading the beefy base of the nut, the narrow neck stays solid, serving its primary purpose: keeping the nut perfectly aligned in the open or closed position.
• Designed to be tapped directly by your M3 screw for a rock-solid, custom fit. I found that when trying to use a nut or heat-set insert, there was not enough material to secure the hardware.

Support Me!

Features

• Fileted Edges: 1mm fileted edges allow smooth installation and less material hanging.

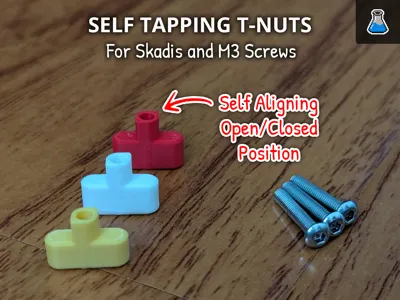

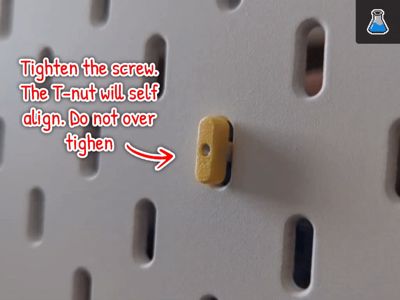

• Self-Aligning: The T-Nut self aligns when installing and remove so no back access is required.

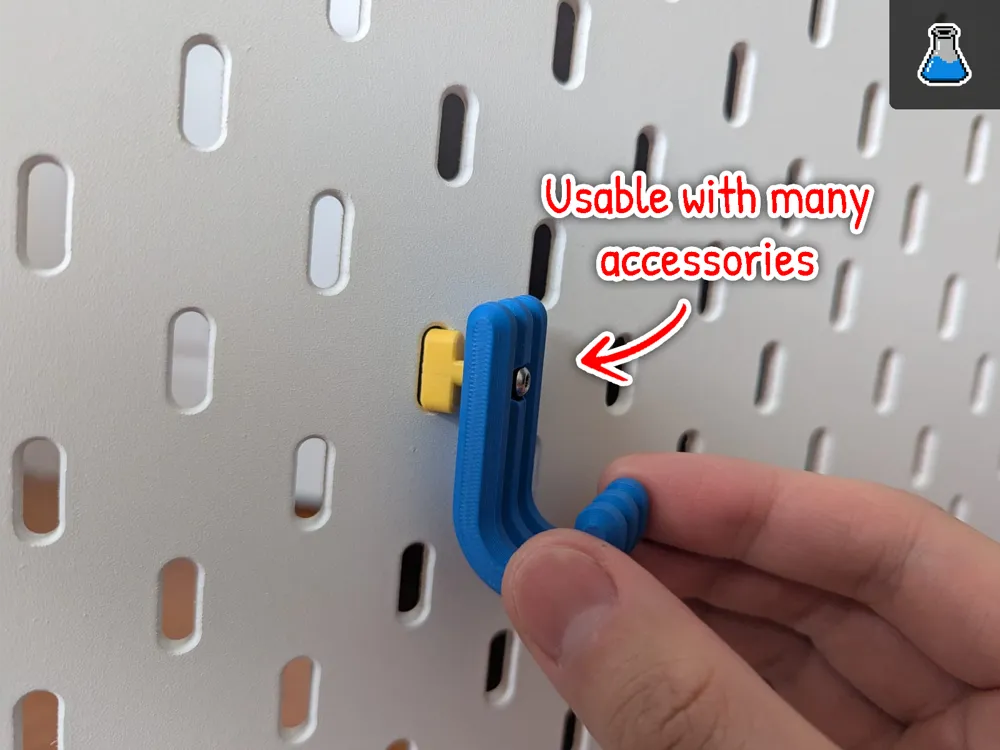

• Popular M3 Screw: Designed for M3 screw which are the most popular on Maker World and within 3d printing.

Specifications

• Compatibility: Ikea Skadis or clones on Maker World
• Required Hardware: M3 x 16mm Screw
• Filament Type: Tested in PLA. Should work well with anything.
• Filament Usage: less than 0.5 gram

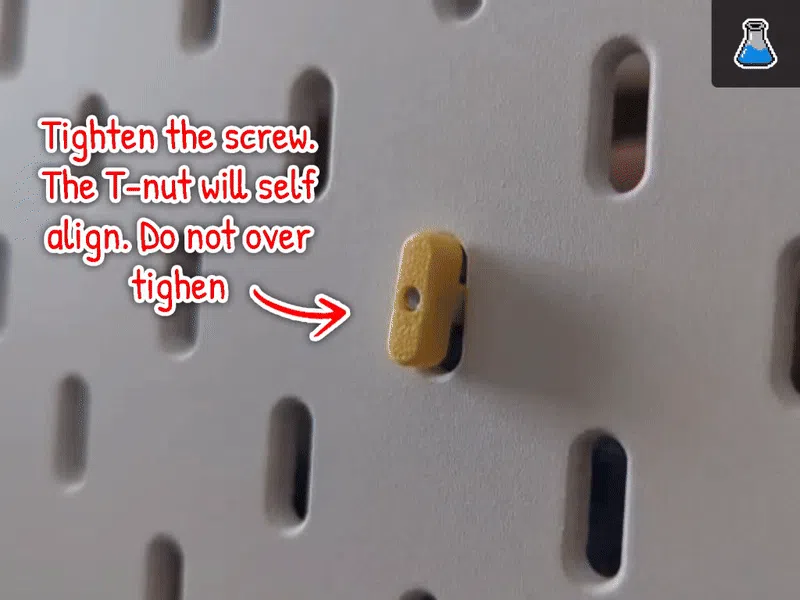

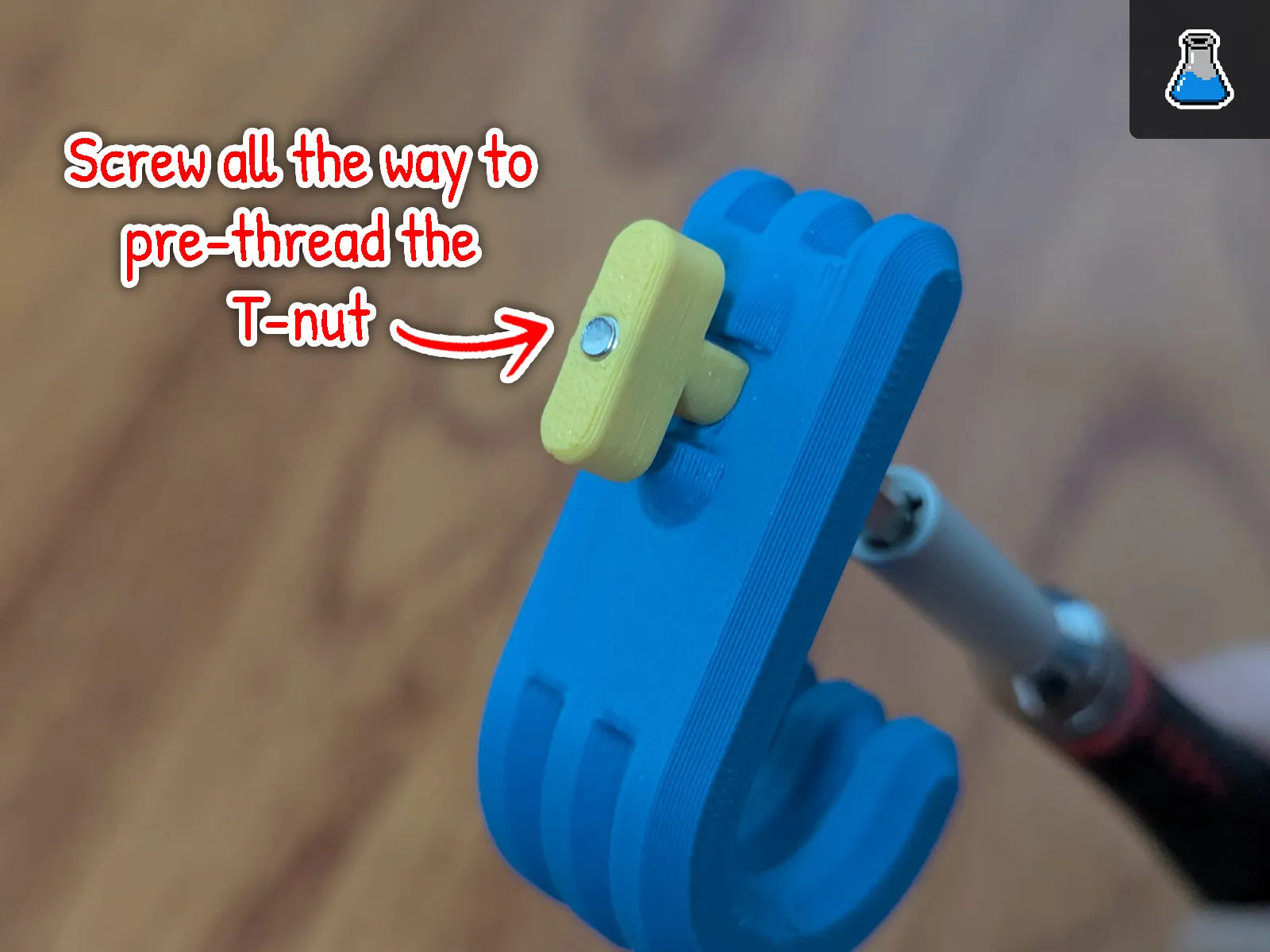

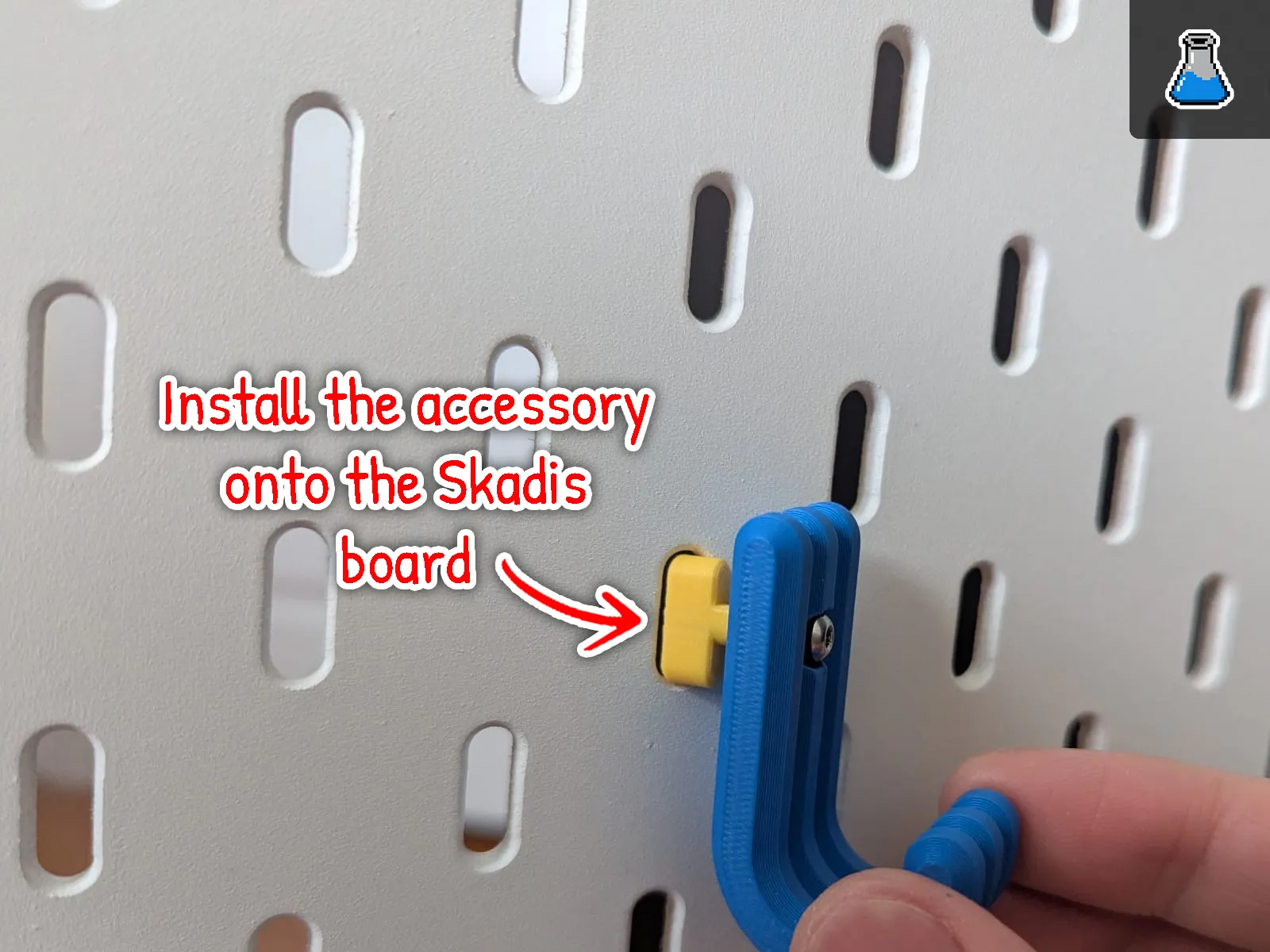

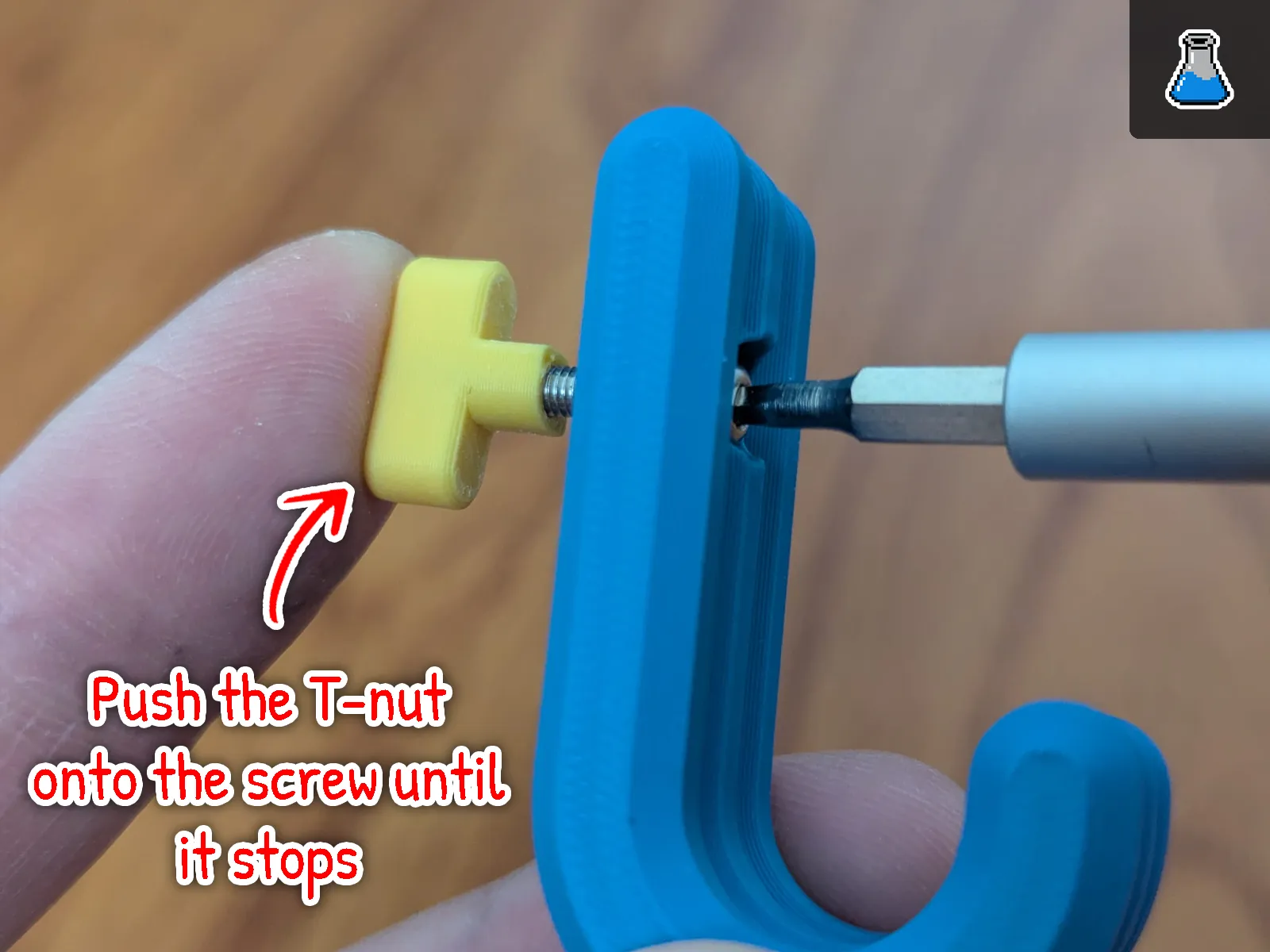

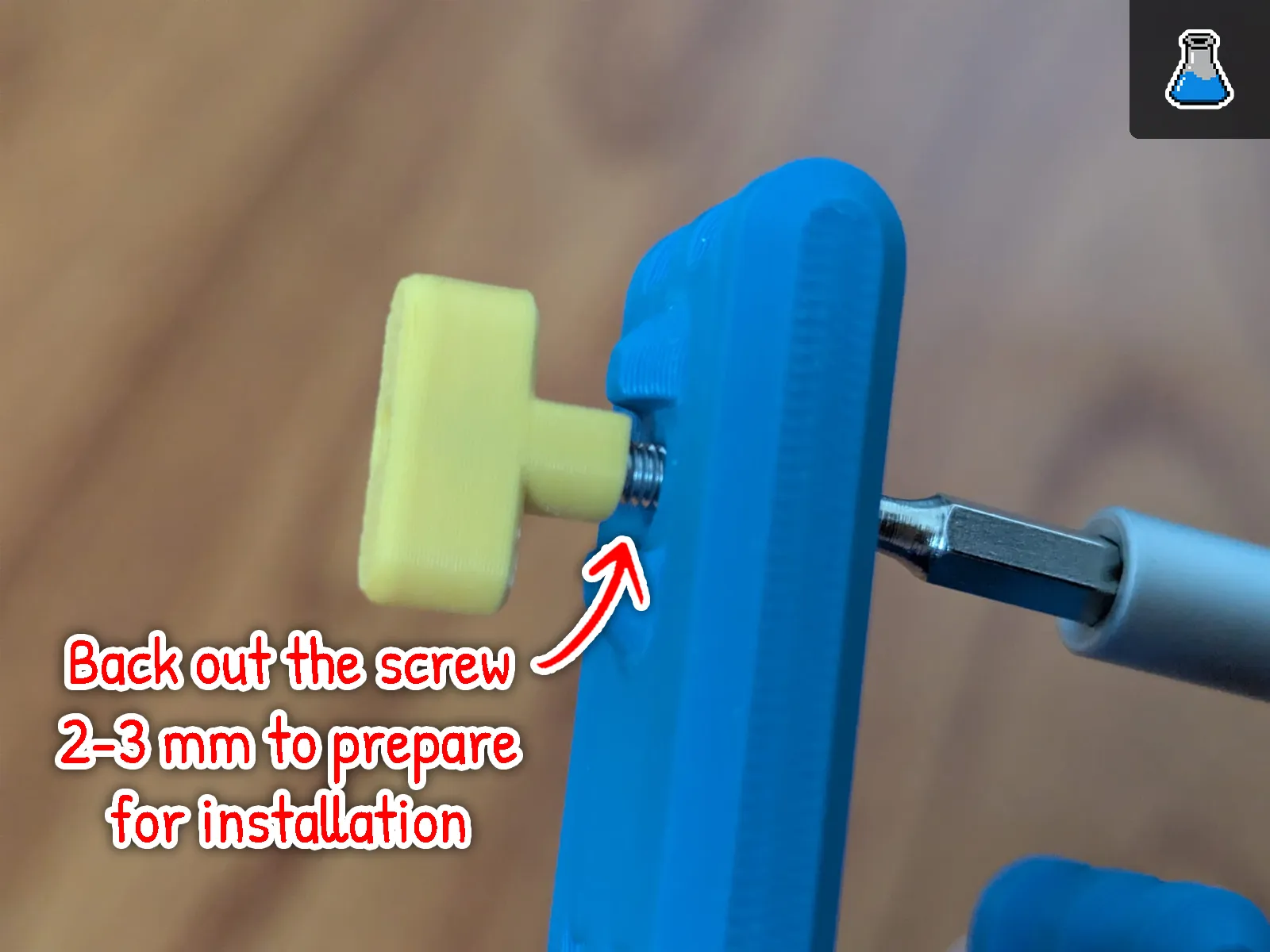

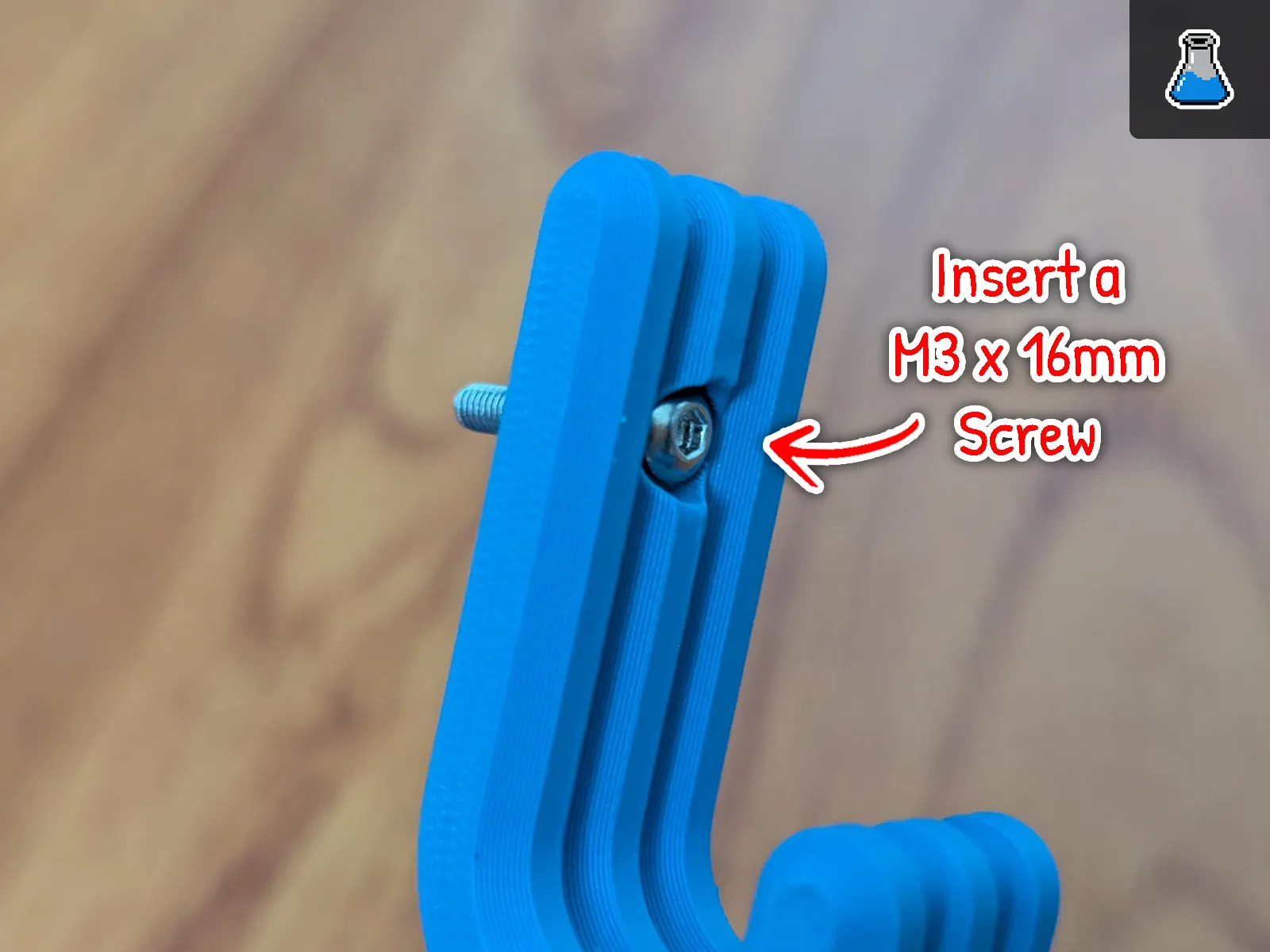

Assembly Guide

Credits / Licensing

• Design by PixelFanLabs – With a curious mind, integrity, and your hands in the soil, you can create anything.
• License –  All Rights Reserved
  • Personal Use Only: You may print this for your own use.
  • No Redistribution: Do not re-upload or distribute these digital files on any other platform.
  • No Derivatives: Modification of this design—including the removal of the engraved PixelFanLabs signature—is strictly prohibited.
