Description

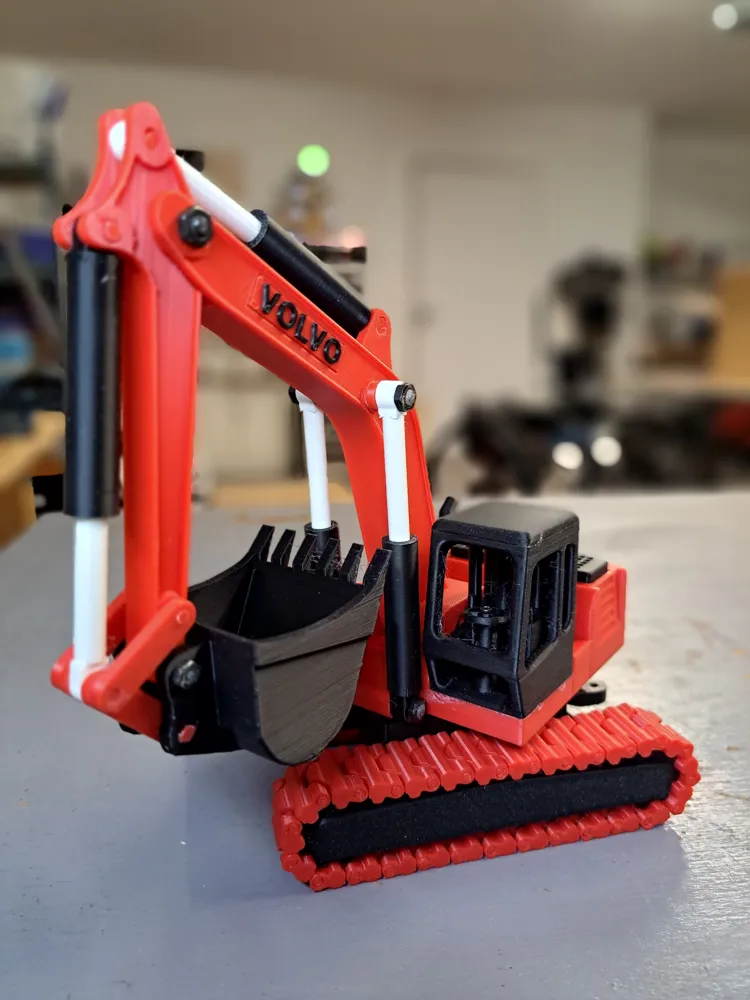

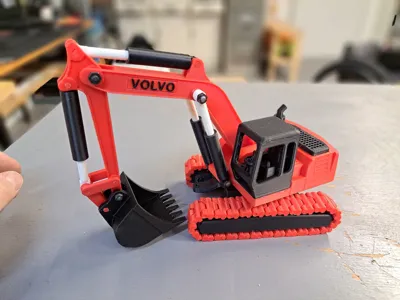

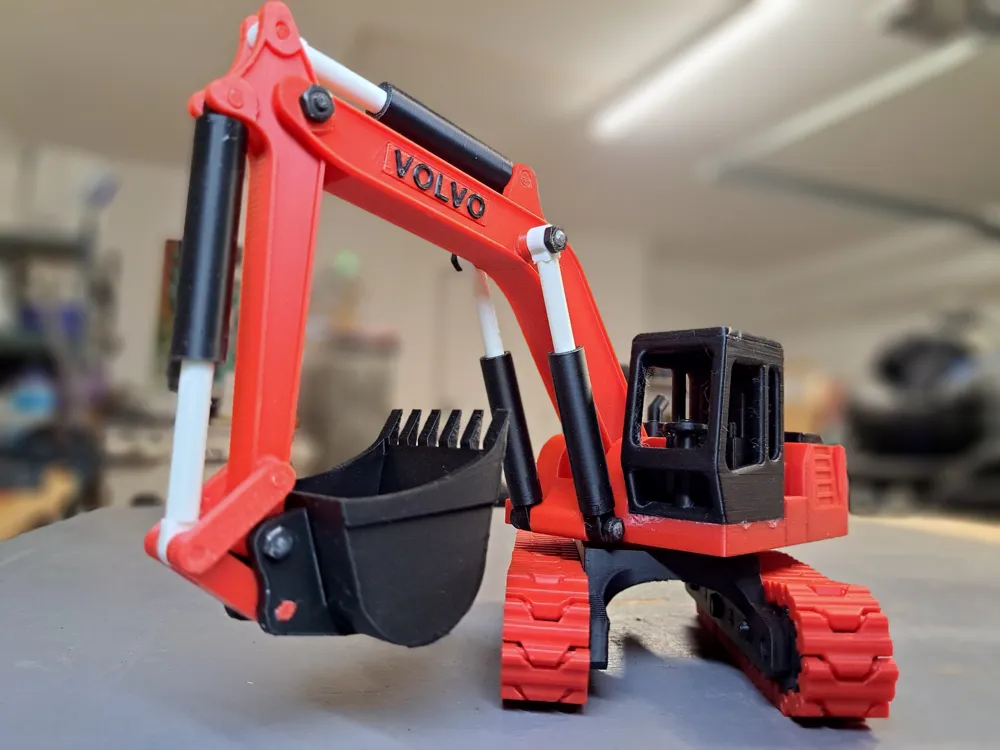

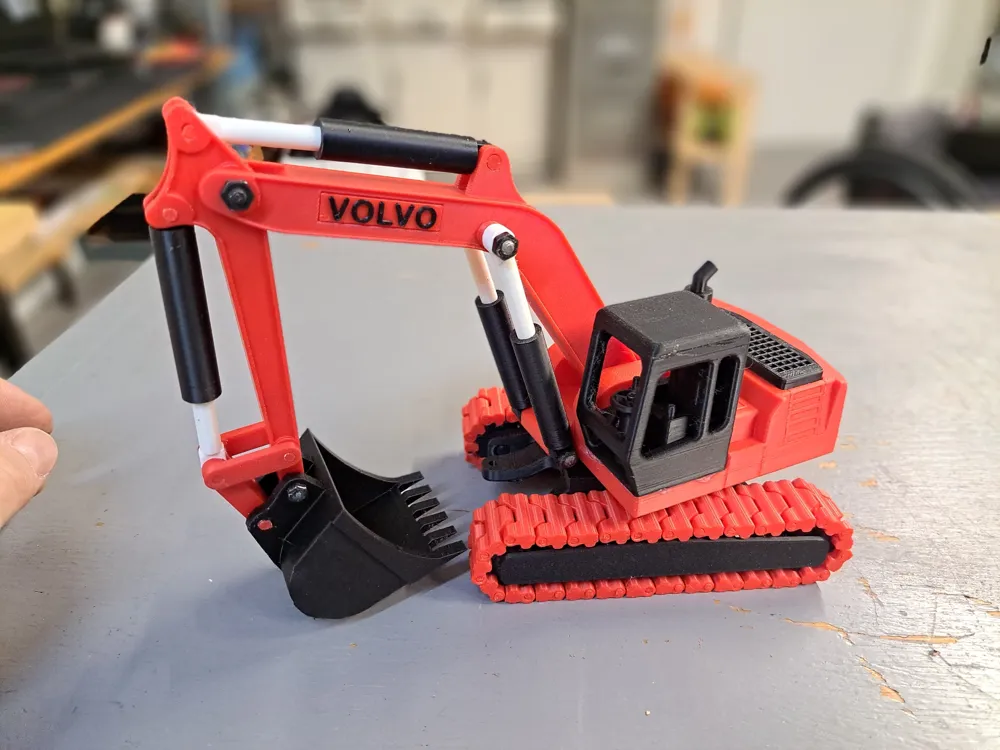

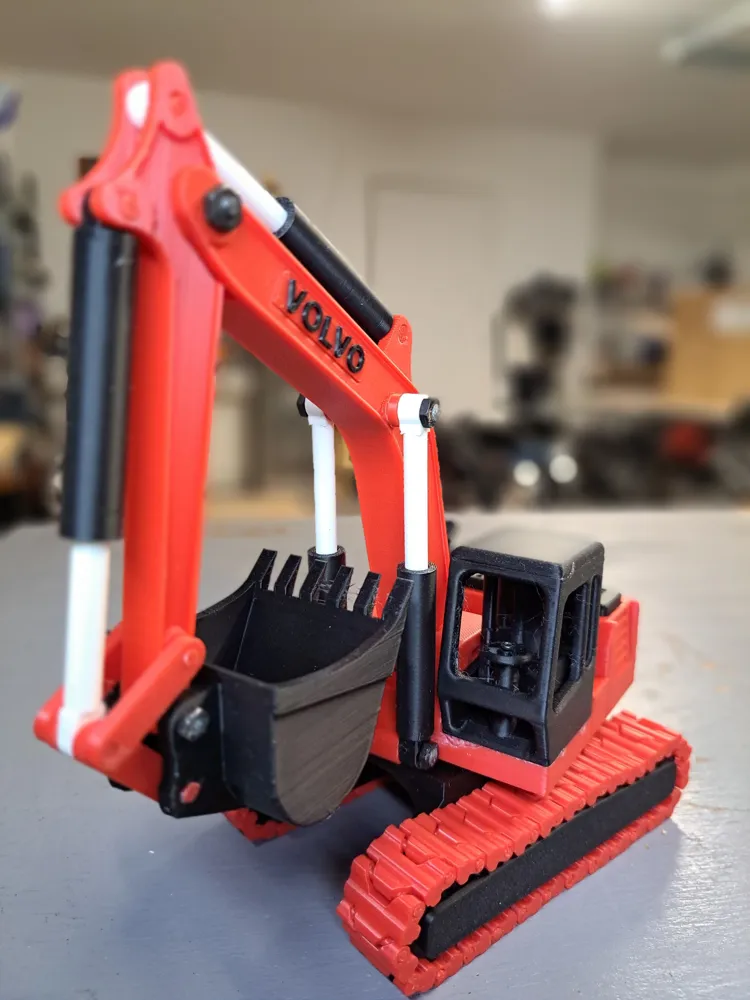

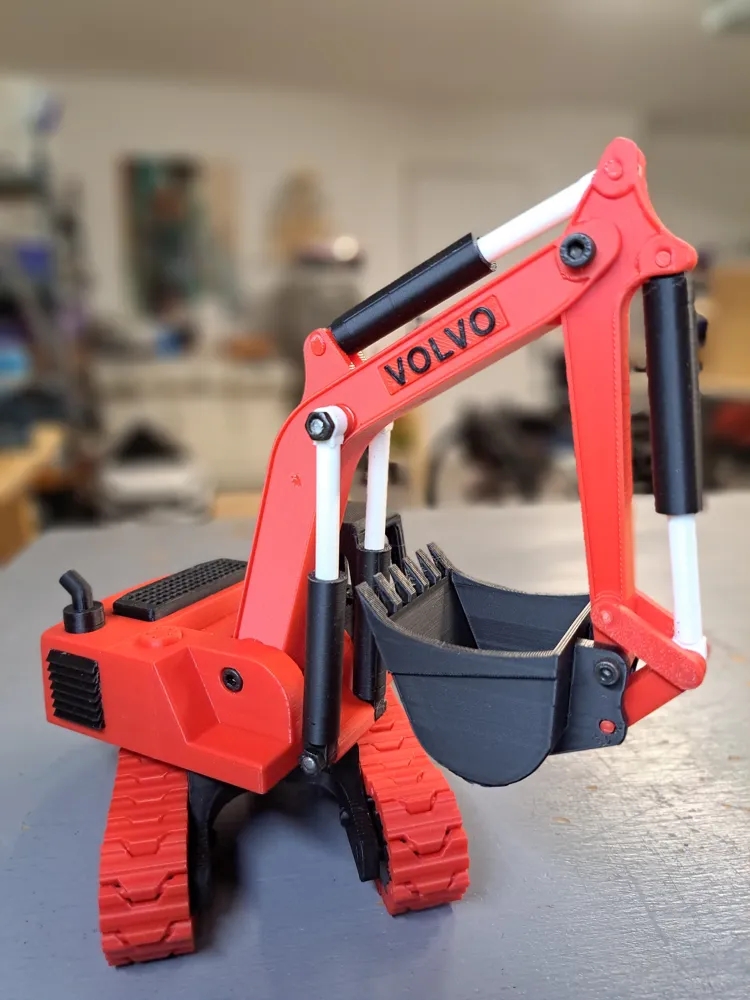

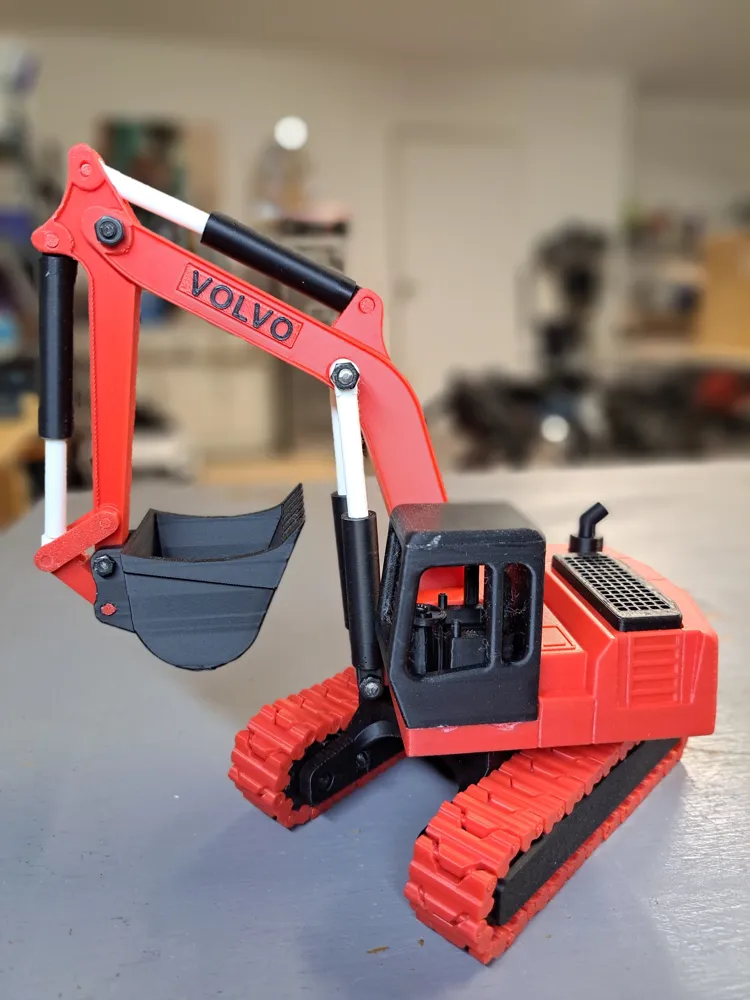

manual tracked excavator

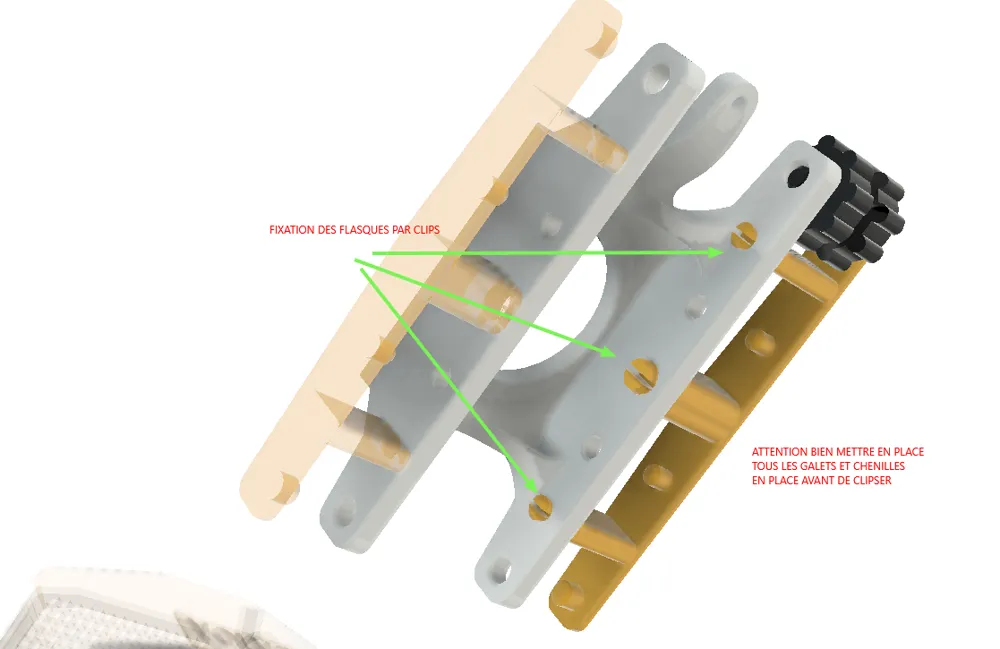

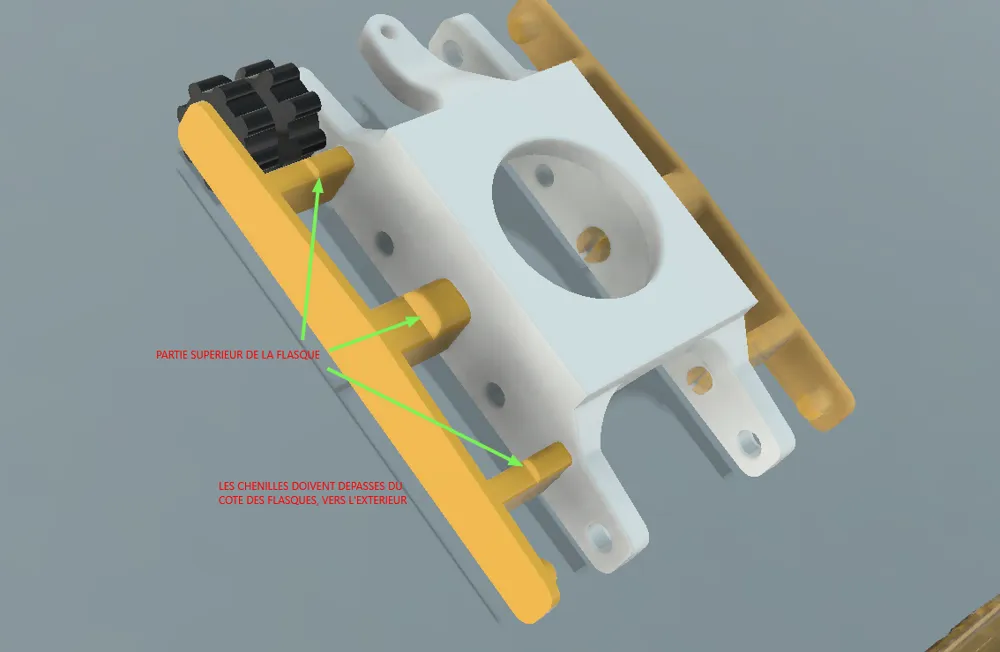

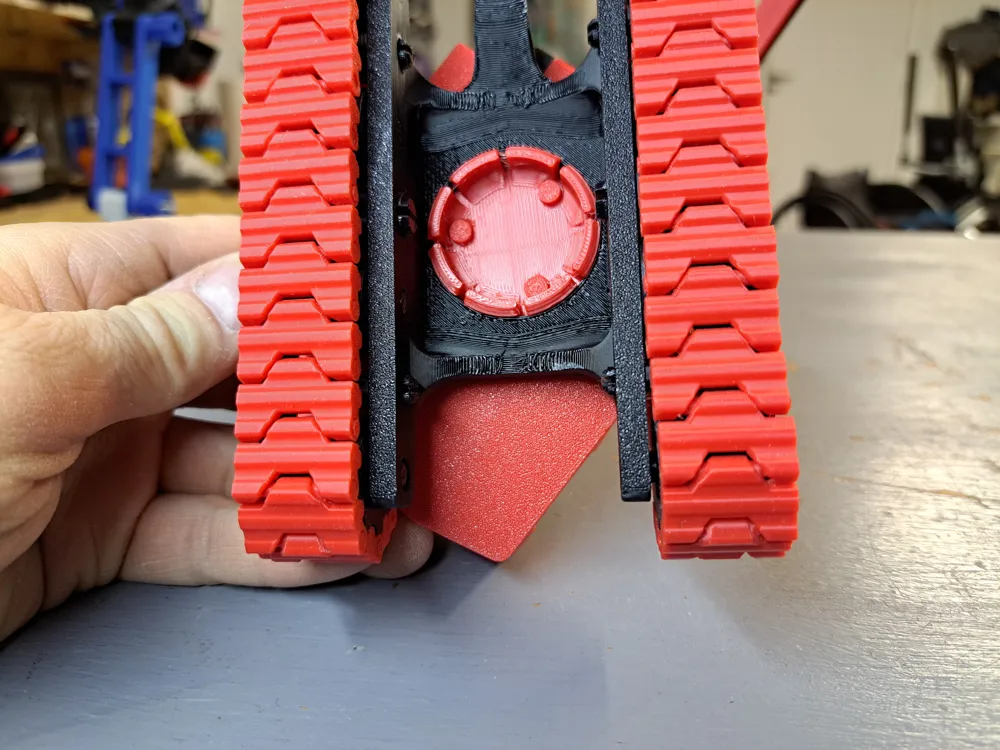

-→ new version N°3 for the bearing-free chassis, fully printable, without bearings, without metal shafts or screws!
possible WITHOUT AMS (just for the Volvo logo, pause before the last 4 layers to change filament color)
very easily printable in PLA, guaranteed success with a Bambu Lab printer!!!
print 3mf files directly from MakerWorld and everything is already set!
this is the new version without bearings or shafts at the lower chassis level, for the other version with bearings here is the link:
https://makerworld.com/fr/models/2270324-pelleteuse-excavator-caterpilar-chenille#profileId-2474690
/////////////////////////////////////////////////
required materials:
- 2 M3x25mm screws for arm1 / arm2 and arm 2 / bucket + nuts

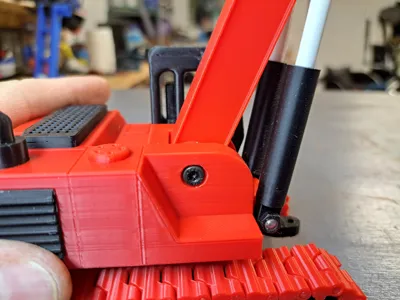

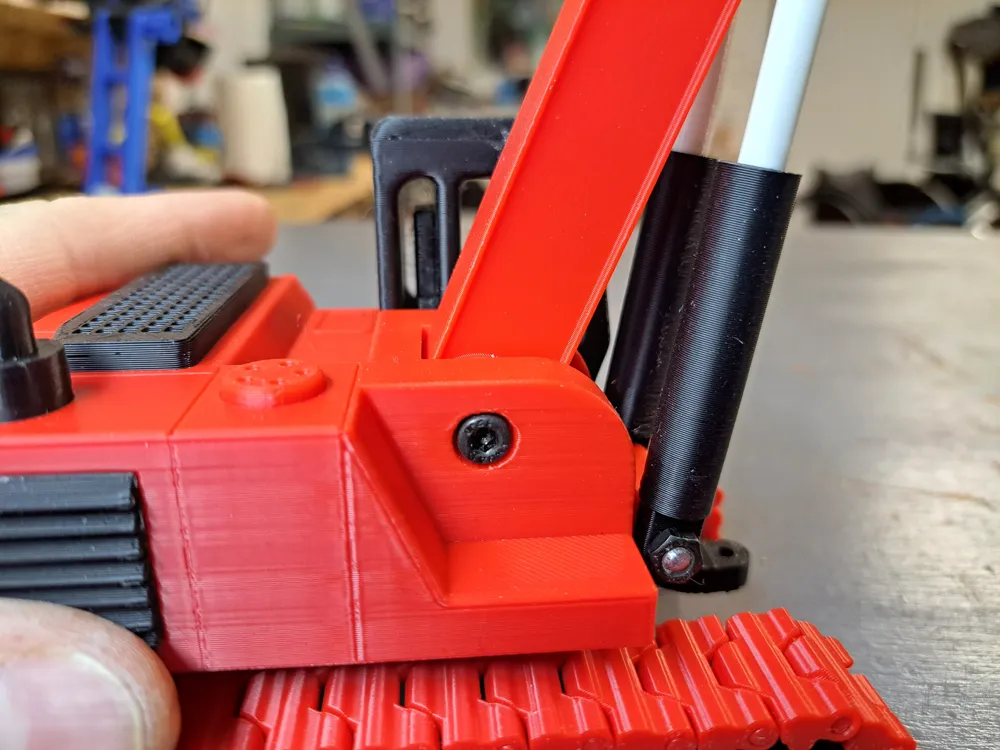

- 1 M4x30mm screw for chassis axle / arm 1 + nut
optional: if you want to replace the 3D printed shafts and screws for arms
- 2 M4x40mm screws for cylinders 1 + nuts (if you don't want to use the two 3D printed M4x38mm screws)
- 2 M3x15mm screws for arm 2 / cylinder 2 and arm 2 / bucket cylinder
- 1 M4x15mm screw for cylinder 2 / arm 1
- 4 M3x20mm screws for bucket and bucket linkages
you will need some plastic cyano glue (activator if you're in a hurry ;) )
