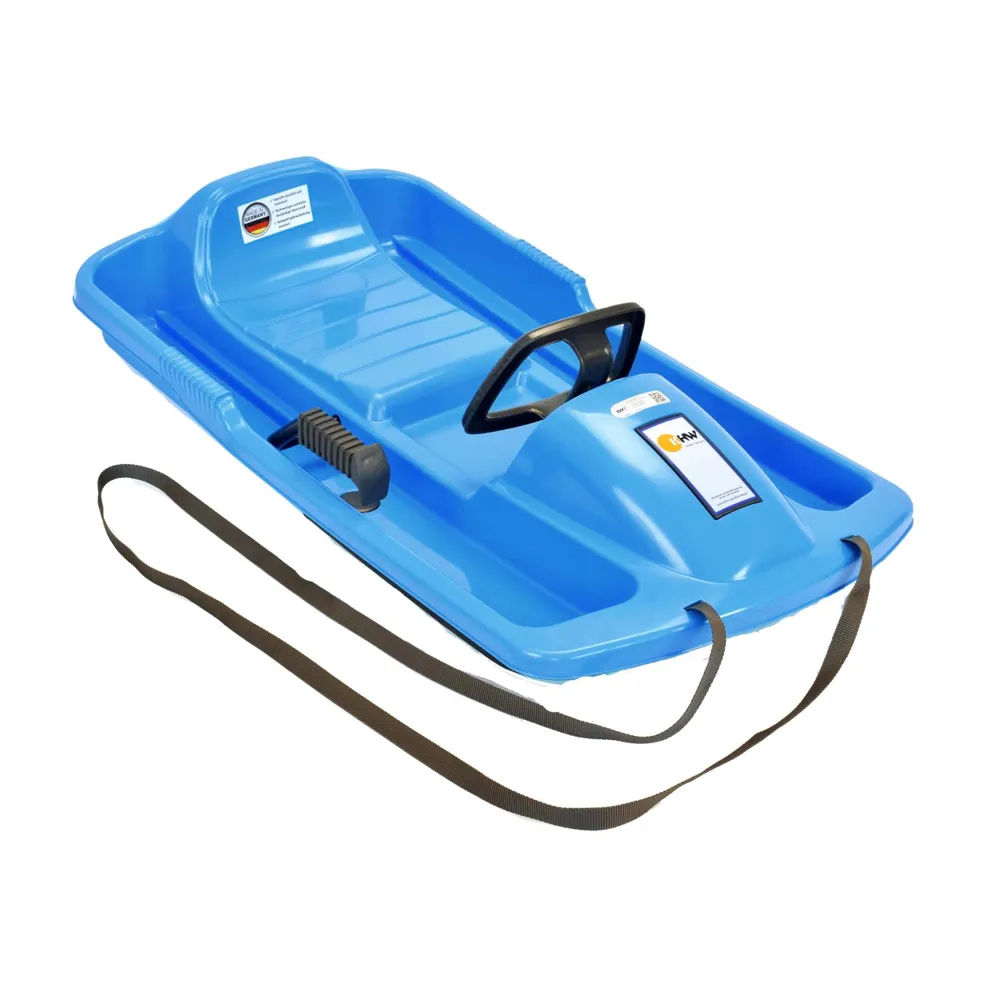

With steering sleds like the model shown, the connecting clips that connect the steering runner to the sled itself seem to break frequently. I took an original part as a template and rebuilt it so that the appropriate spare part can be printed and the sled can continue to be used :)

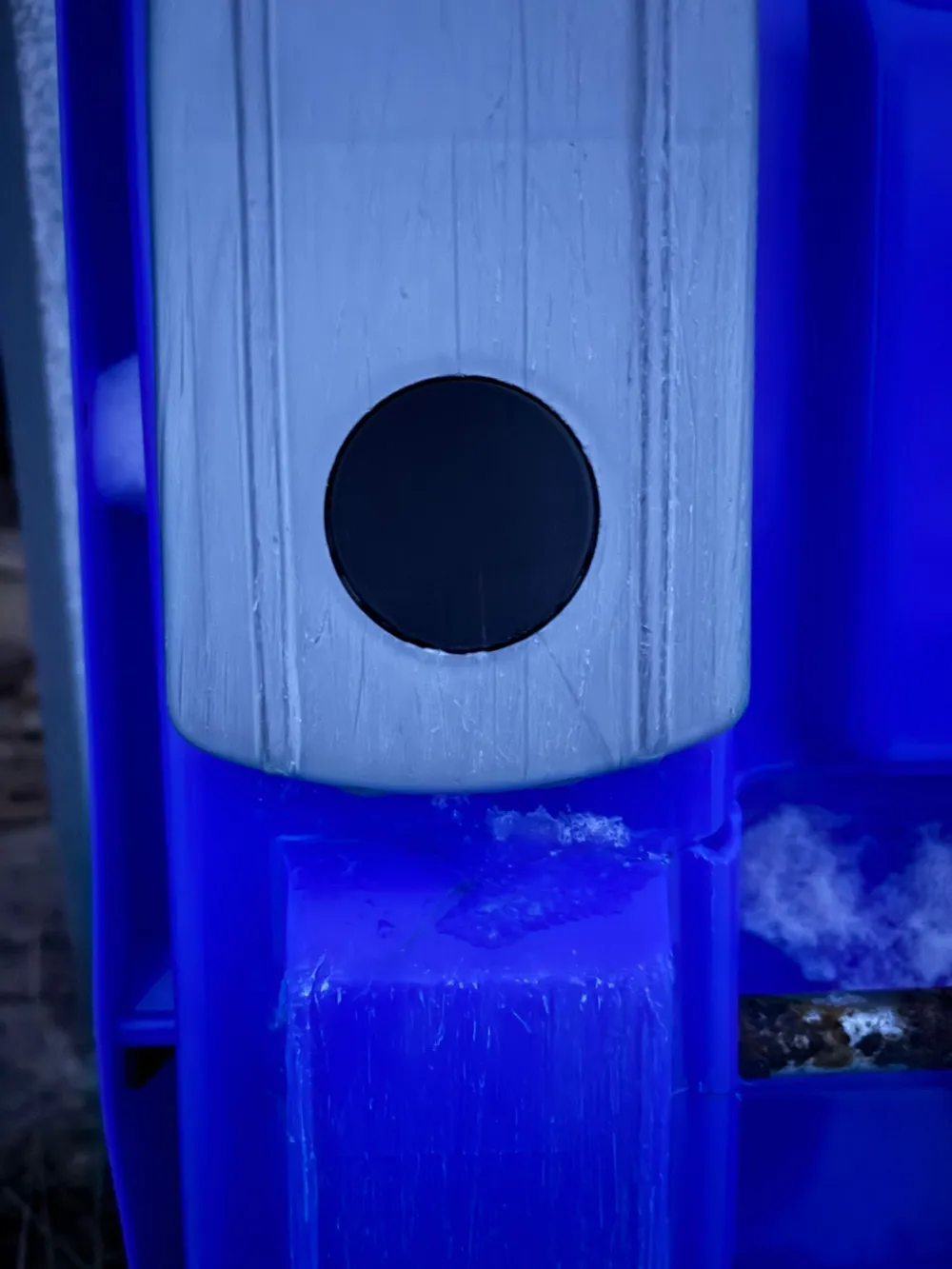

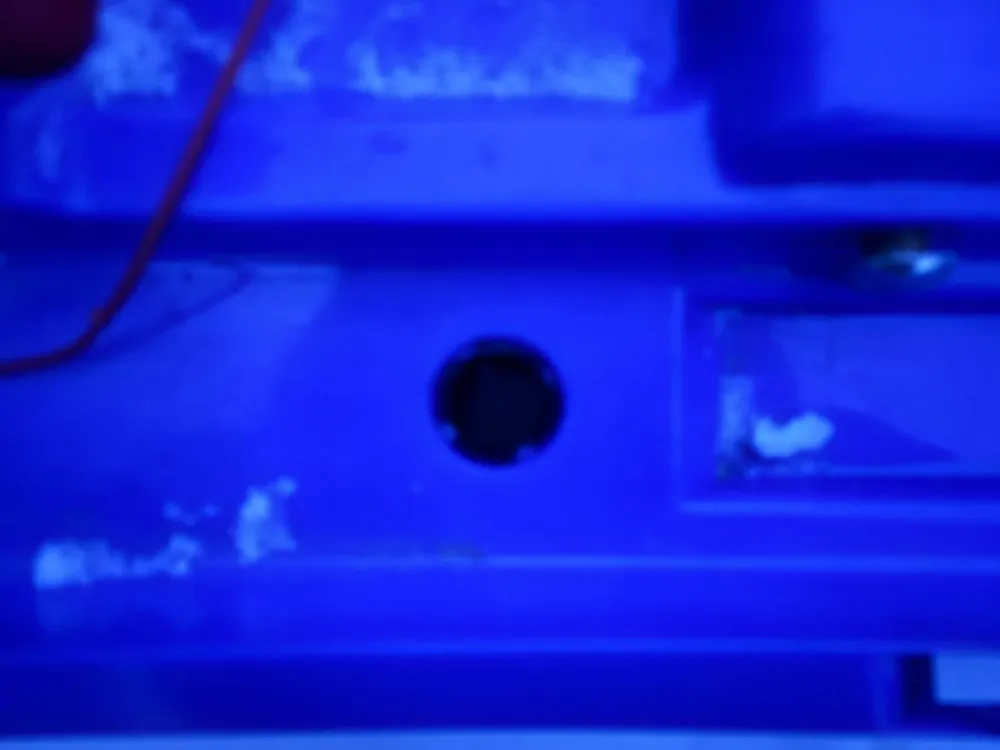

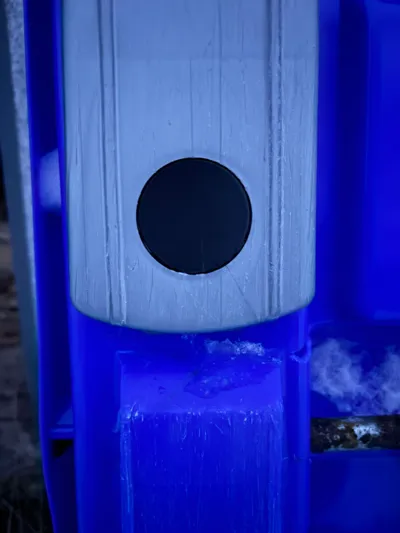

The part is simply clipped through the runner.

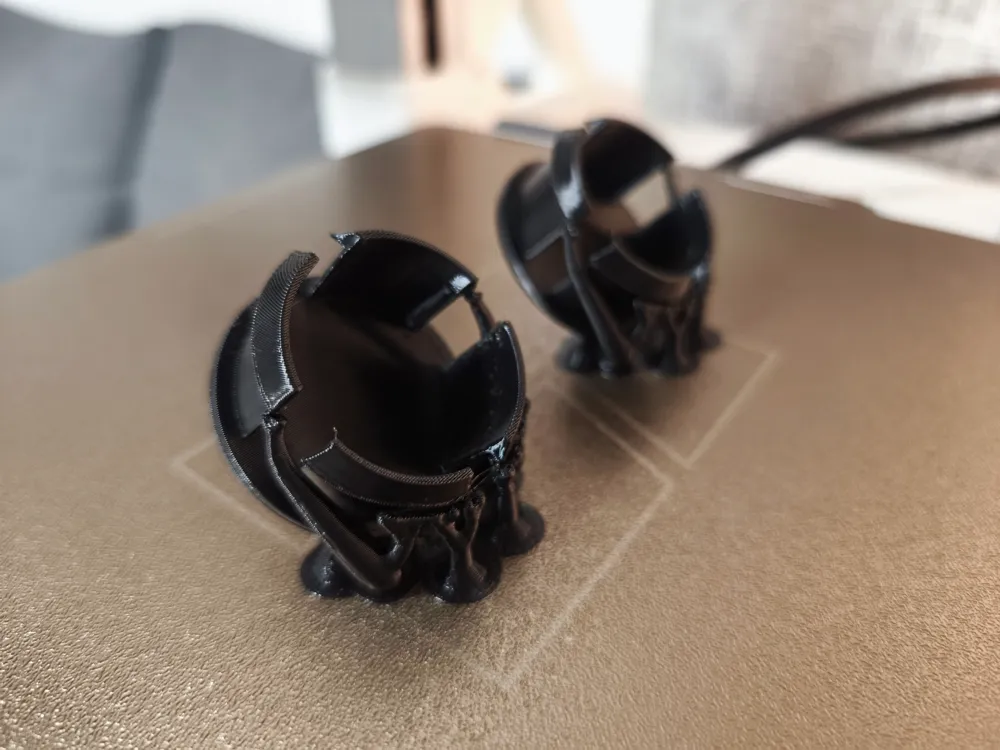

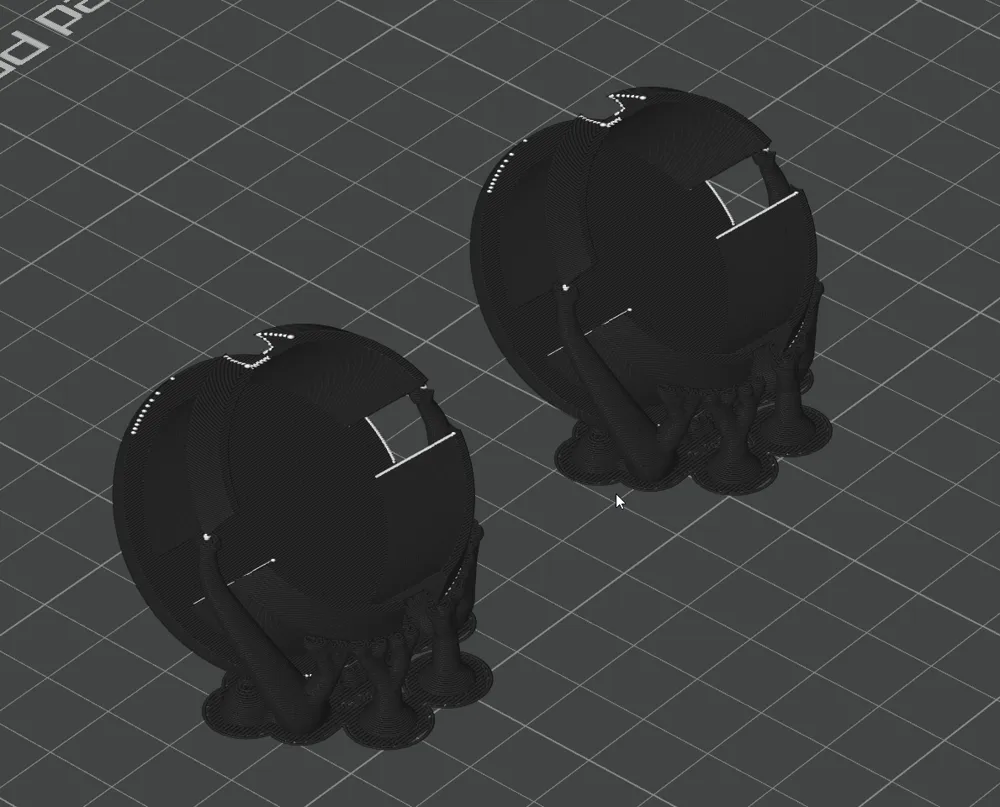

I recommend printing in at least PETG, as the part is exposed to some stress and, of course, cold temperatures. I printed the part with a 45-degree orientation (with support for that) to avoid creating a predetermined breaking point at the clip transition. Printing with ABS would probably be even better, but I haven't been able to test that personally.


It is also advisable to print several parts at once, so you always have a spare part ready (possibly even with you when out and about).
