Snapmaker U1 - Tapo C120 Camera Mount (3g / 32m)

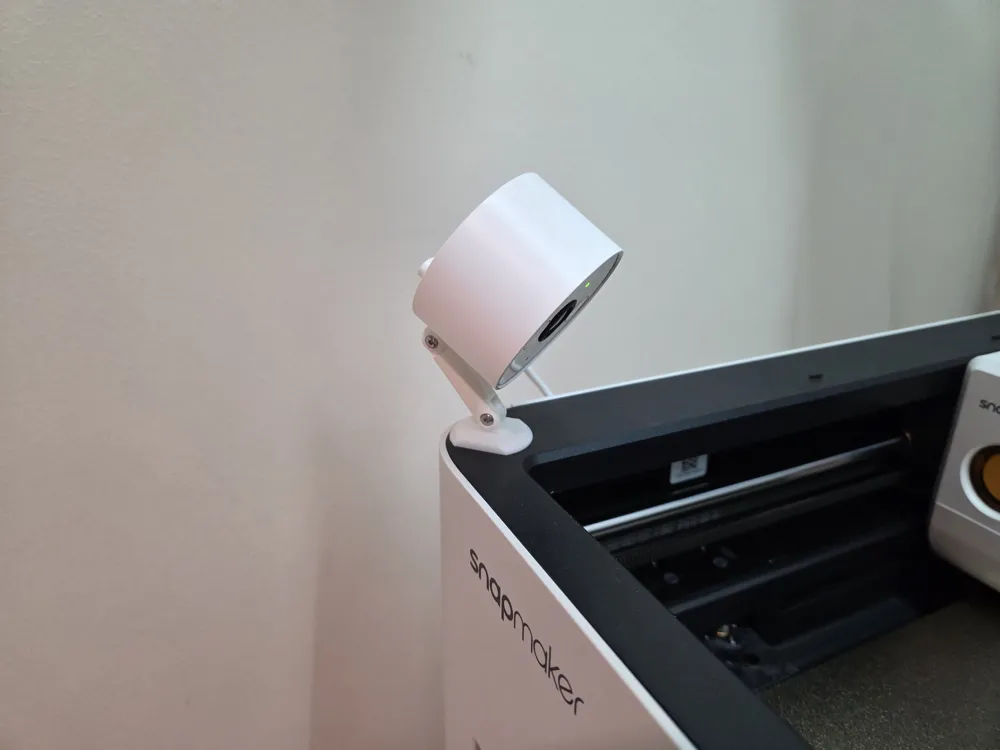

This is a custom-designed camera mount for the Snapmaker U1, compatible with the TP-Link Tapo C120. It features an ultralight design (~3g) that prints in just 32 minutes. The mount is designed to hold the camera securely while keeping the printer setup clean and minimal.

Hardware Required

• Screwdriver: Torx T6 (Required to remove the original camera base).
• Original Screw: Reuse the T6 screw from the camera base.

Installation Guide

1. Use a T6 Torx screwdriver to remove the screw from the Tapo C120's original round base.
2. Detach the weighted base (it is not needed).
3. Use the same T6 screw to attach the camera directly to this printed mount.
4. Insert the mount into the hole on top of the Snapmaker U1.

Print Settings

• Material: PLA / PETG
• Infill: 15%
• Supports: Required (Tree supports recommended for best results)
