Description

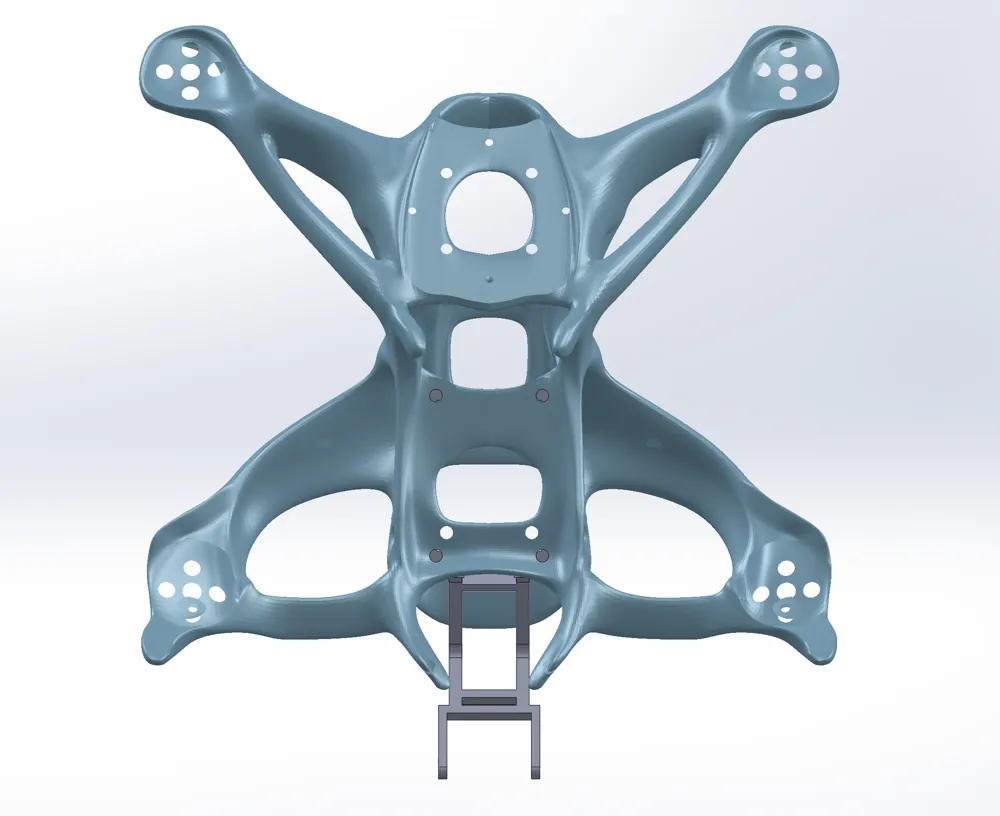

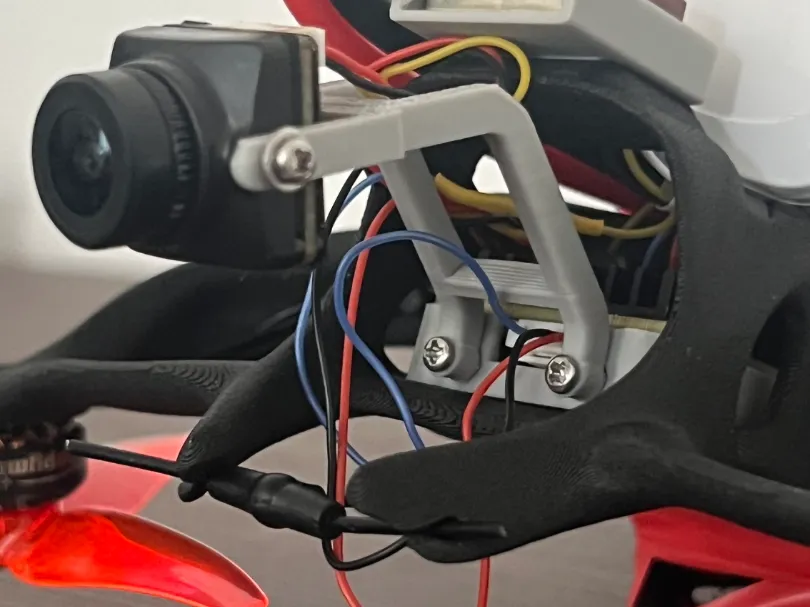

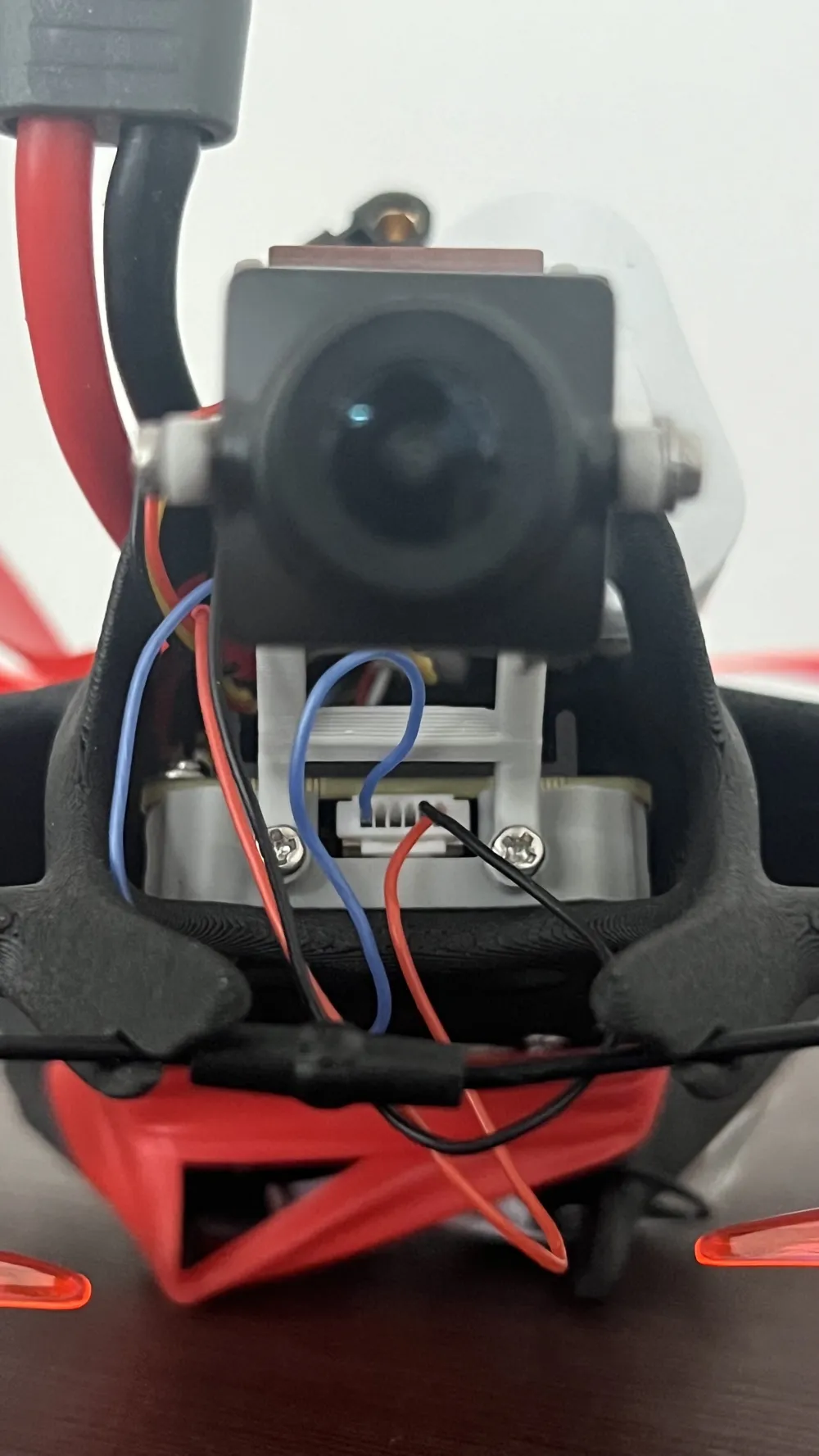

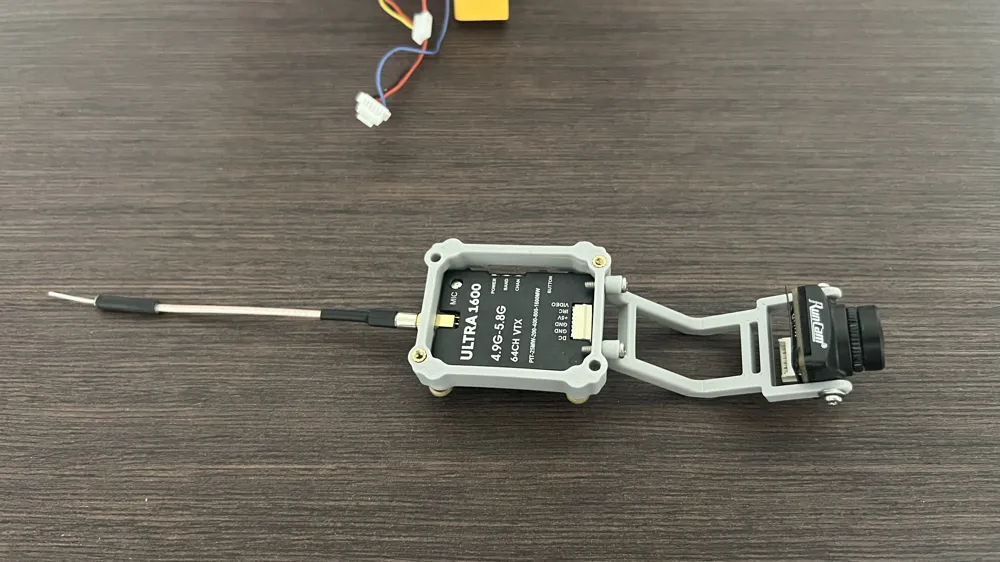

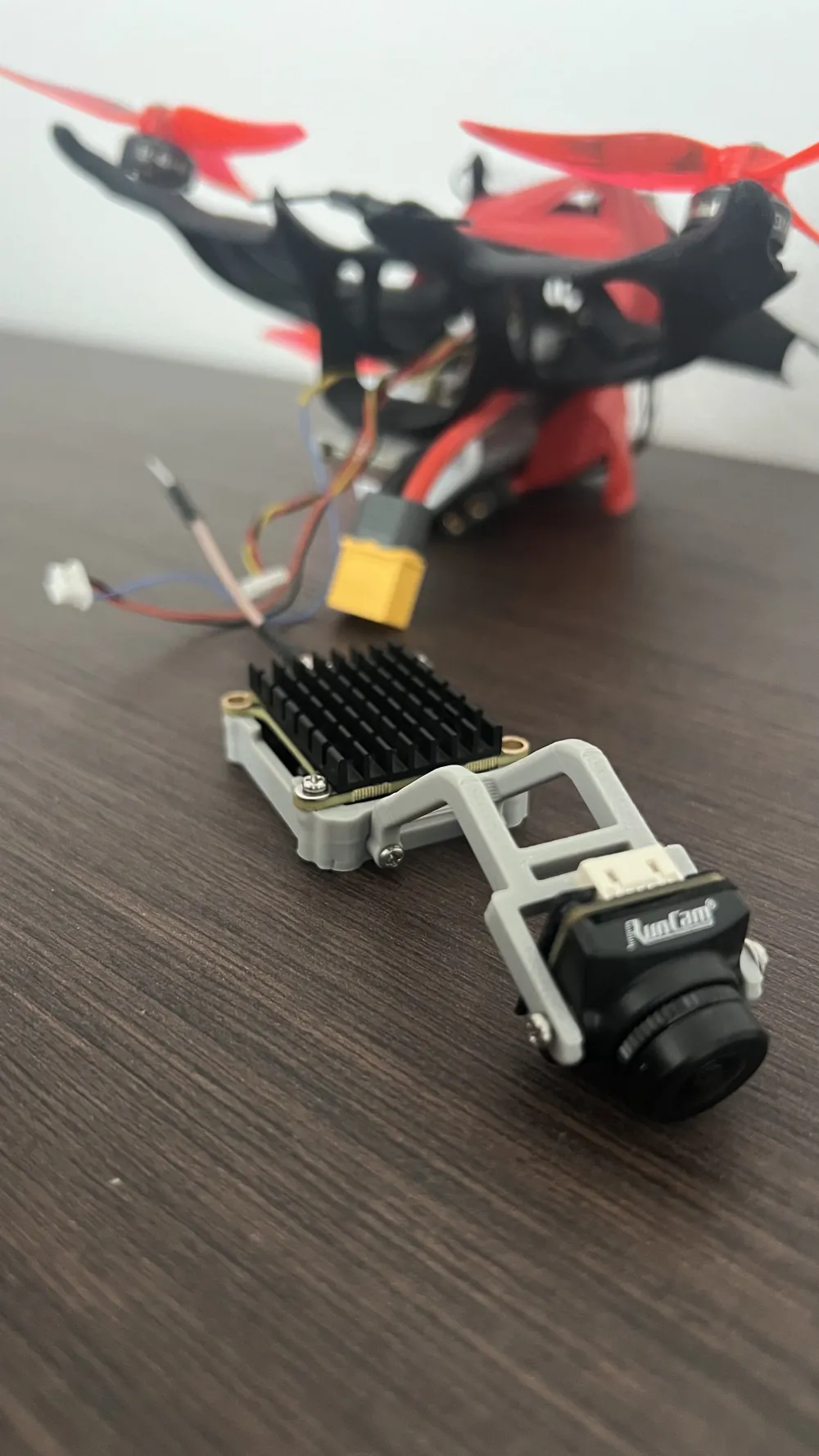

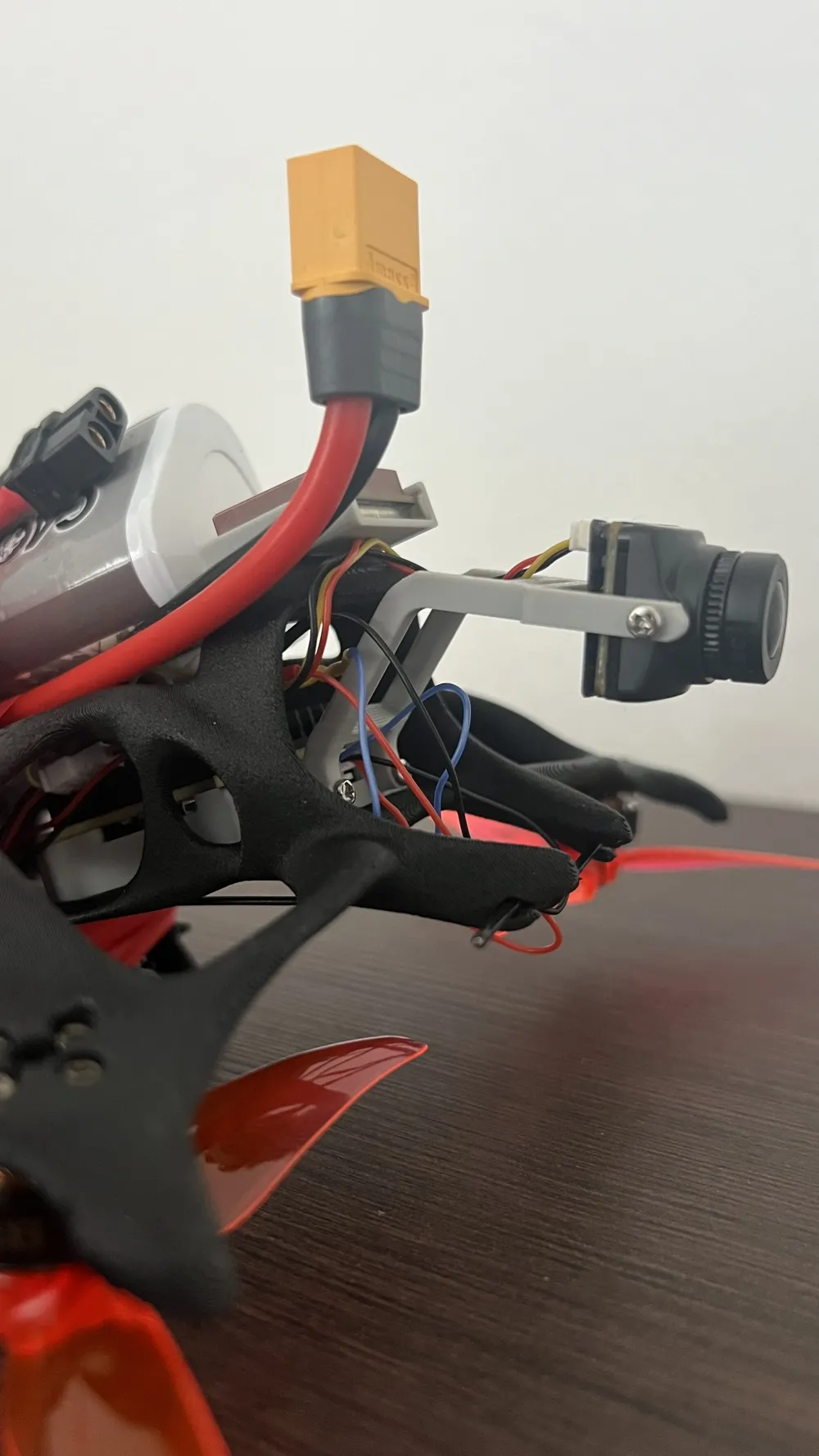

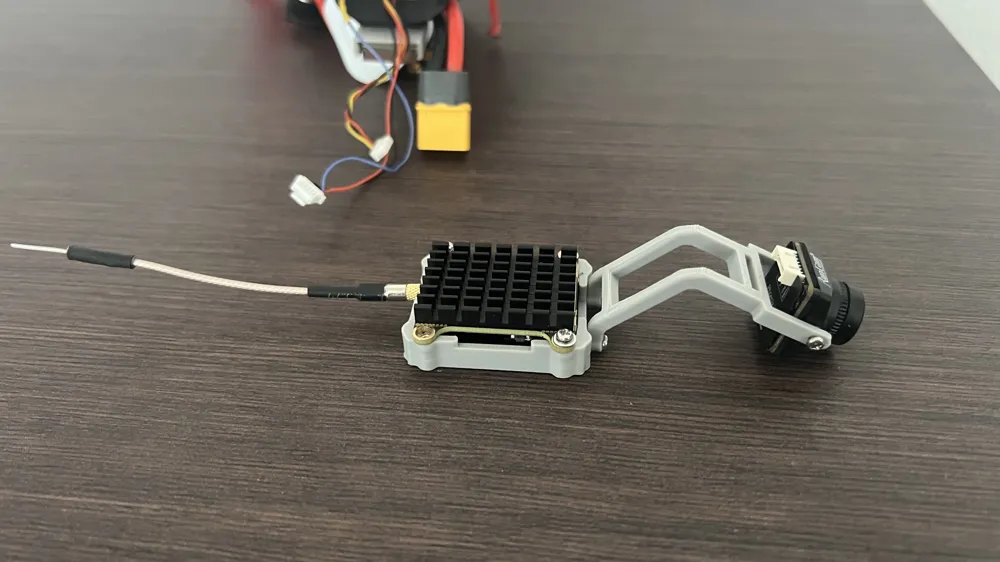

This model includes an adapter for 30.5x30.5mm VTX adapter for Aether 4 model quadcopter. Originally designed and tested for UltraVTX 1600 and Runcam Phoenix 2 SPV5.

I printed it with PLA Tough+ and it worked pretty well.

M2x2mm or M2x3mm threaded inserts needed.

Not an expert in threaded inserts here. The holes of the frame are 3.0mm. I inserted M2x2 and M2x3 threads in and they were pretty fine. The threaded insert set that I am using has a 3.2mm diameter for M2.

Please share your comments to improve this model.

Thanks!
