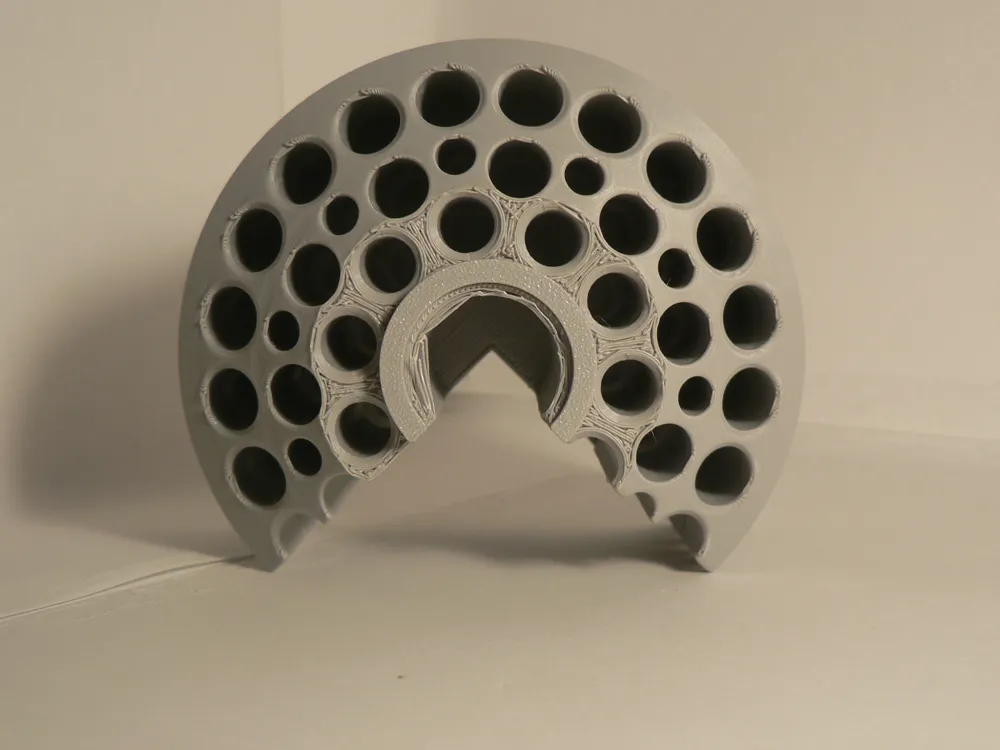

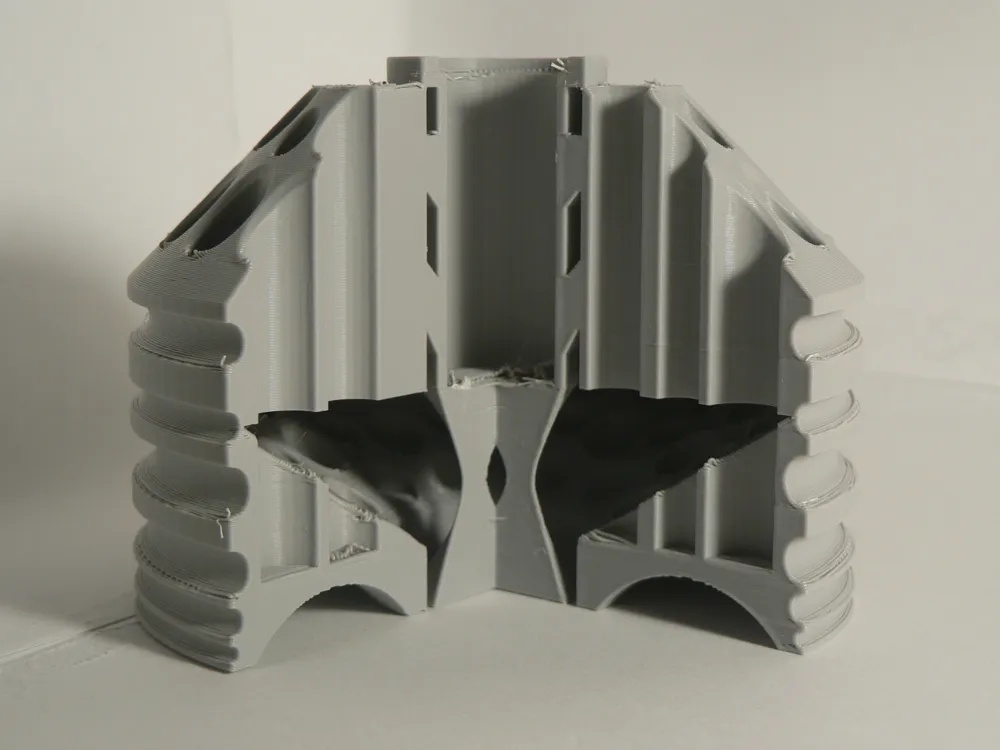

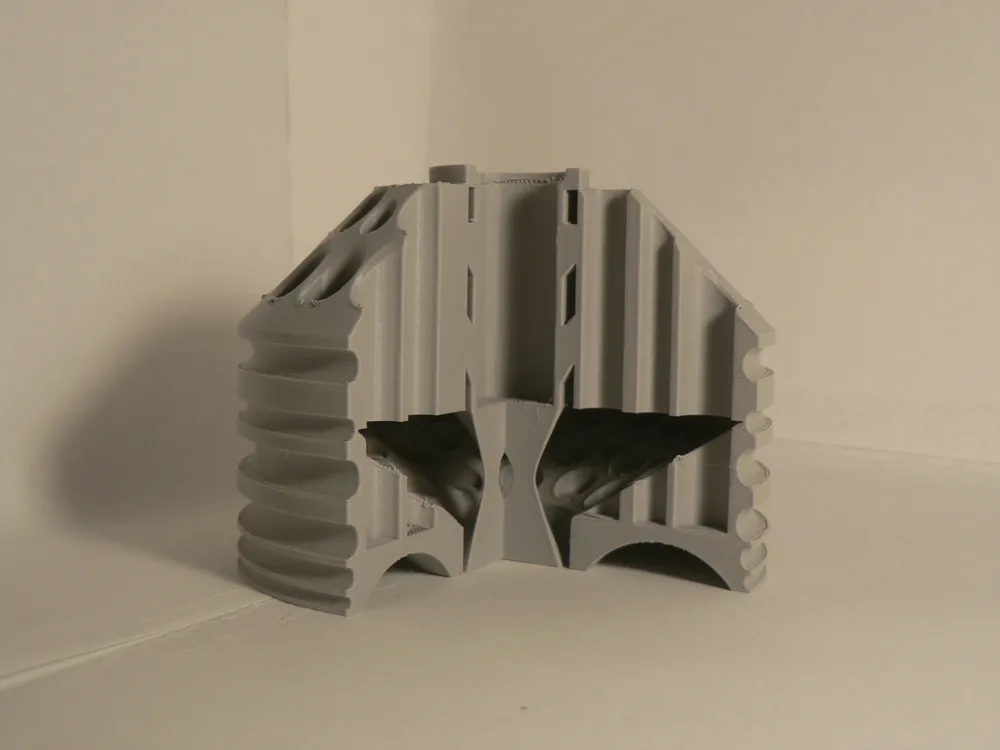

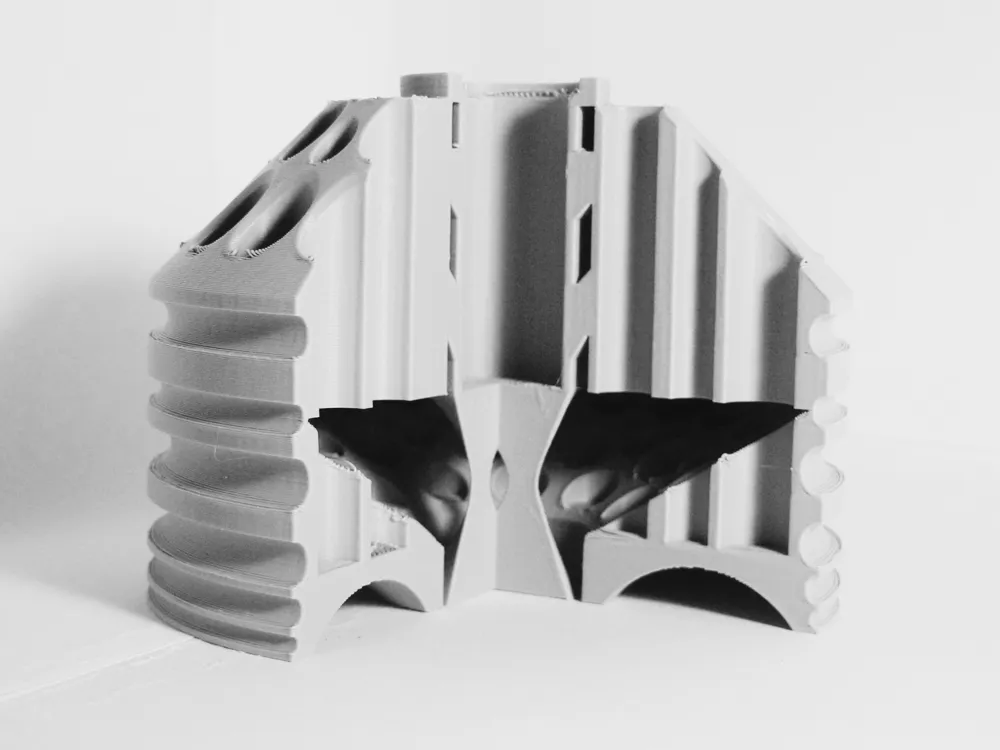

Fuel-01 Experimental Injector Concept

Fuel-01 is an experimental rocket injector concept model created for display, education, and design exploration.
It explores propulsion-inspired geometry, internal flow paths, symmetry, and structural form in a compact, visually striking printable design.

This model is intended for visualisation, learning, and discussion, not real-world propulsion use. The internal geometry is conceptual and simplified, designed to communicate engineering ideas rather than replicate real injector performance.

Fuel-01 is a non-functional concept model.
It does not replicate or mimic all functions, features, or operational behavior of a real rocket fuel injector.

Intended Uses

Fuel-01 is designed for:

• Display models
• Educational demonstrations
• Teaching aids for flow and propulsion concepts
• Visual references for engineering geometry
• Makerspace and classroom discussion pieces
• Desk or workshop display

Print Recommendations

Recommended Orientation

• Print upside-down for best internal detail and visual symmetry
• Preserves internal geometry and structural accuracy

Supports

• Supports may be required depending on slicer and printer tuning
• Use low-density supports with support interfaces if enabled
• Tree/organic supports work well for internal overhangs

Layer Height

• 0.2 mm for general printing
• 0.16 mm or finer for high-detail display quality

Walls & Infill

• Walls: 3–4 perimeters recommended
• Infill: 15–25% (gyroid preferred)
• Higher infill gives a more solid, premium feel for display

Print Speed

• Slower speeds recommended for clean internal surfaces
• Reduced outer wall speed improves surface finish

Materials

• PLA / PLA+ – easiest and cleanest results
• PETG – tougher, more industrial look
• Matte filaments highlight geometry and reduce visible layer lines
• Looks awesome in metal

Bed Adhesion

• Brim optional but helpful
• Ensure strong first-layer adhesion for vertical accuracy

🔧 Alternative Orientation – Torture Test Mode (Advanced Users)

Fuel-01 can also be printed upright as a high-difficulty torture test for printer performance.

With minimal or no supports, this orientation stresses:

• Bridging performance
• Overhang capability
• Cooling efficiency
• Extrusion consistency
• Layer adhesion

This makes Fuel-01 an excellent benchmark model for testing machine tuning and print quality.

⚠️ This orientation is not recommended for beginners but highly rewarding for experienced users looking to push their printer.

Why This Design

Fuel-01 was created to explore:

• Flow-inspired internal geometry
• Symmetry in engineering design
• Structural reinforcement strategies
• Printability of complex internal forms
• Conceptual propulsion architecture

It is a design study, not a functional component — a visual and educational object that merges engineering aesthetics with maker-friendly fabrication.
