Type S Dash Cam to GoPro Mount Toyota Tacoma Gen 3

Print Profile(2)

All
P1S
P1P
H2D Pro
H2S
H2D
X1
X1 Carbon
A1 mini
P2S
X1E
H2C
A1
X2D
A2L

PTEG 0.4mm nozzle, 0.2mm layer, 4 walls, 50% infill
PTEG 0.4mm nozzle, 0.2mm layer, 4 walls, 50% infill
Designer
47 min
1 plate
5.0(2)

0.2mm nozzle, 0.1mm layer, 4 walls, 50% infill
0.2mm nozzle, 0.1mm layer, 4 walls, 50% infill
Designer
1.6 h
1 plate

Open in Bambu Studio
Boost
17
69
2
0
28
19
Released

Description

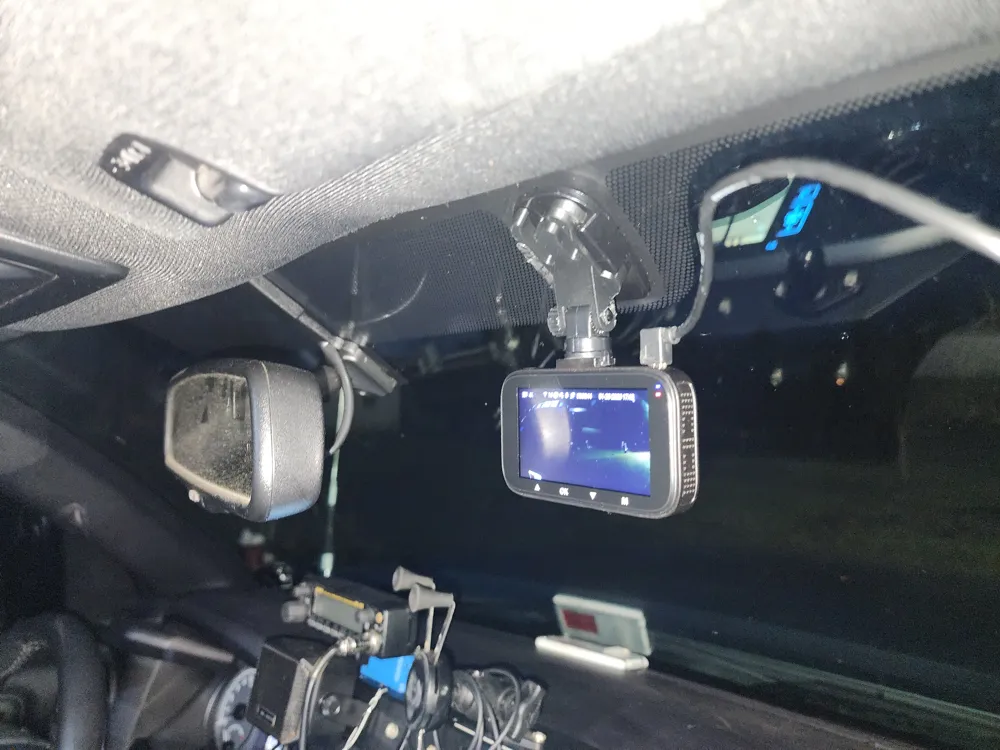

I made this mount to utilize the factory Toyota Tacoma gen 3 windshield GoPro mount for holding my Type S dashcam from Costco.

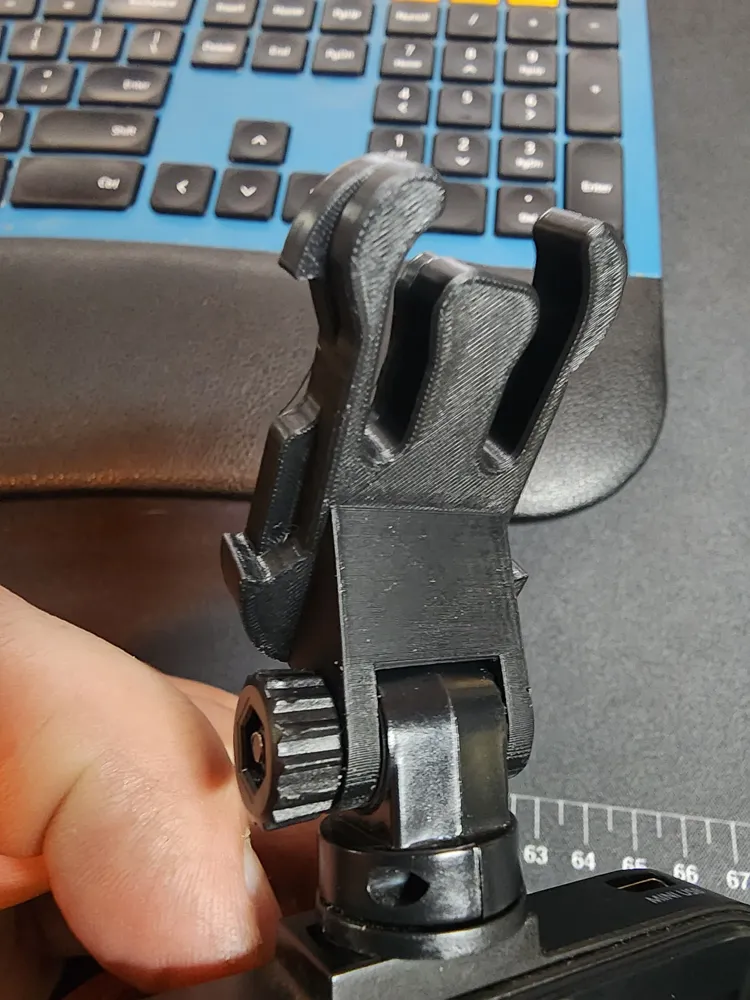

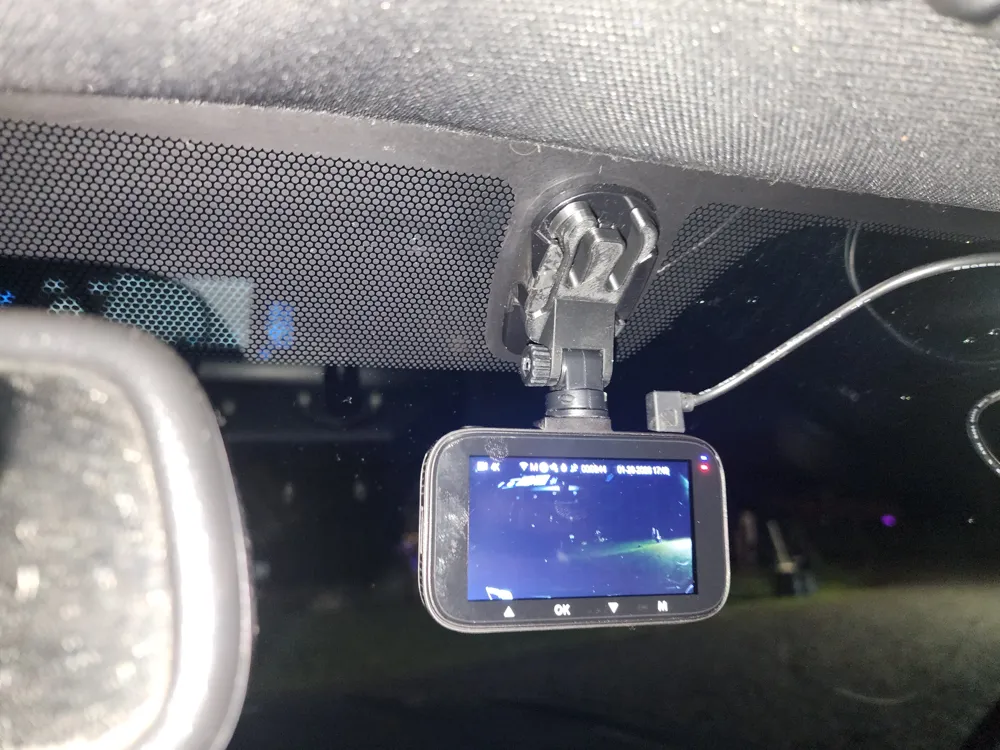

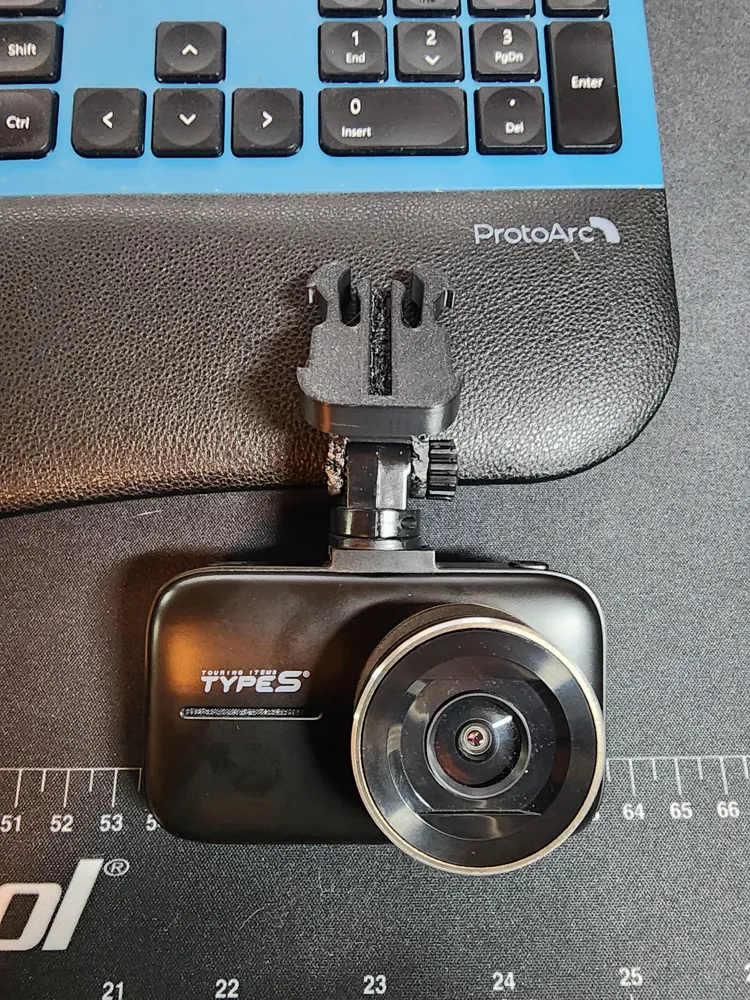

I printed my final parts in black ABS with minor quality issues at the top of the angled camera mount, that I did not see in the PLA test prints. There is likely some optimization in the print profile layer height or speeds that could help with ABS.

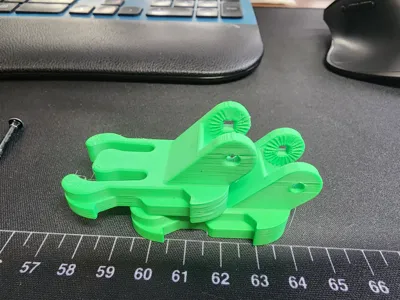

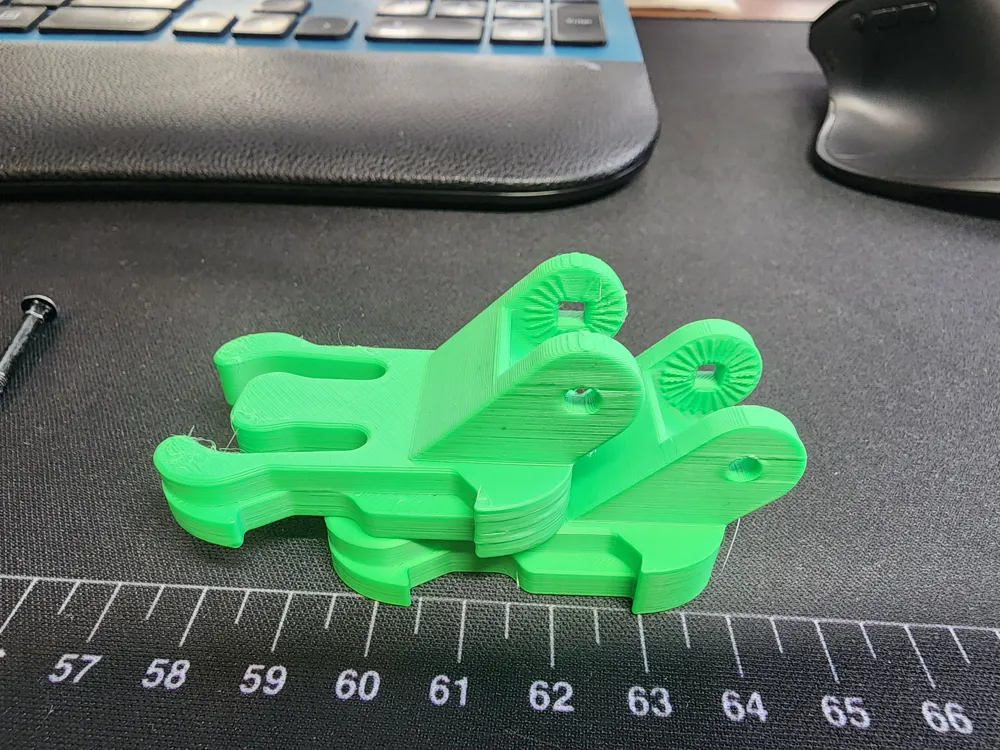

The green parts were additional test prints in PLA with the serration detail. I highly recommend printing with a 0.2mm nozzle or the serration detail will be lost with 0.4mm nozzle (see picture with two green parts stacked, top is 0.4mm nozzle, bottom is 0.2mm nozzle).

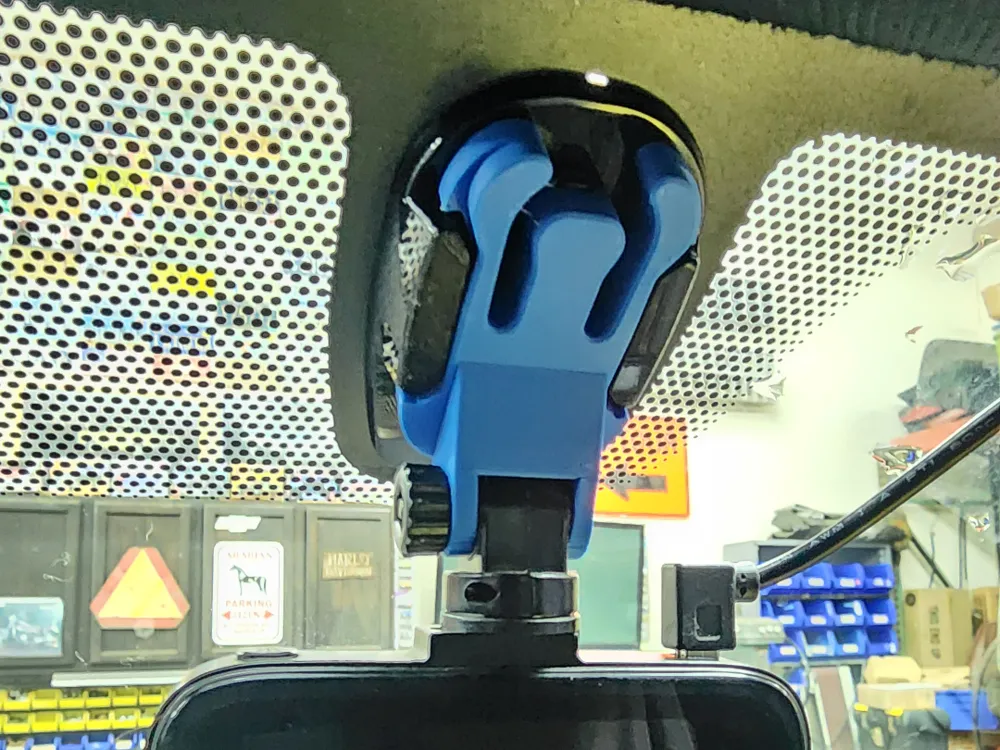

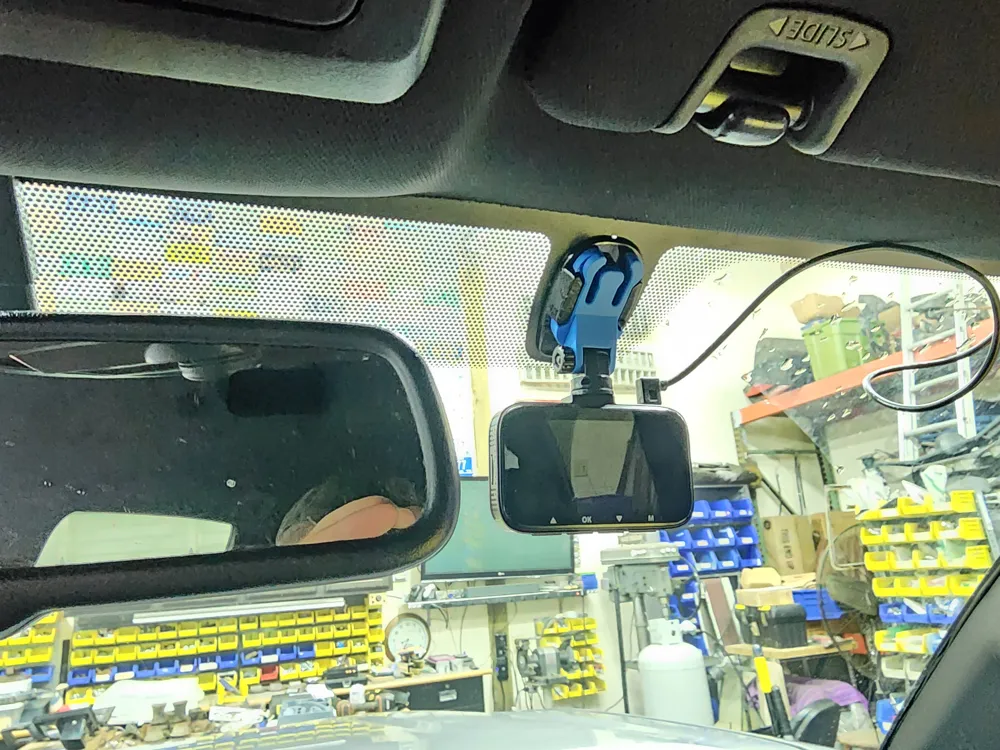

The blue parts were the original test print in PLA without the serration detail, it worked but the camera could move with vibration on the road.
