Minimalist Cabinet Edge Hook Heavy Duty & Screw-In
Print Profile(1)
Description
📢 Want to sell prints of this model or just say thanks?
To help me create more free models you can → Buy Me A Coffee
Merchant and Coffee Tiers available on my → Patreon
Overview

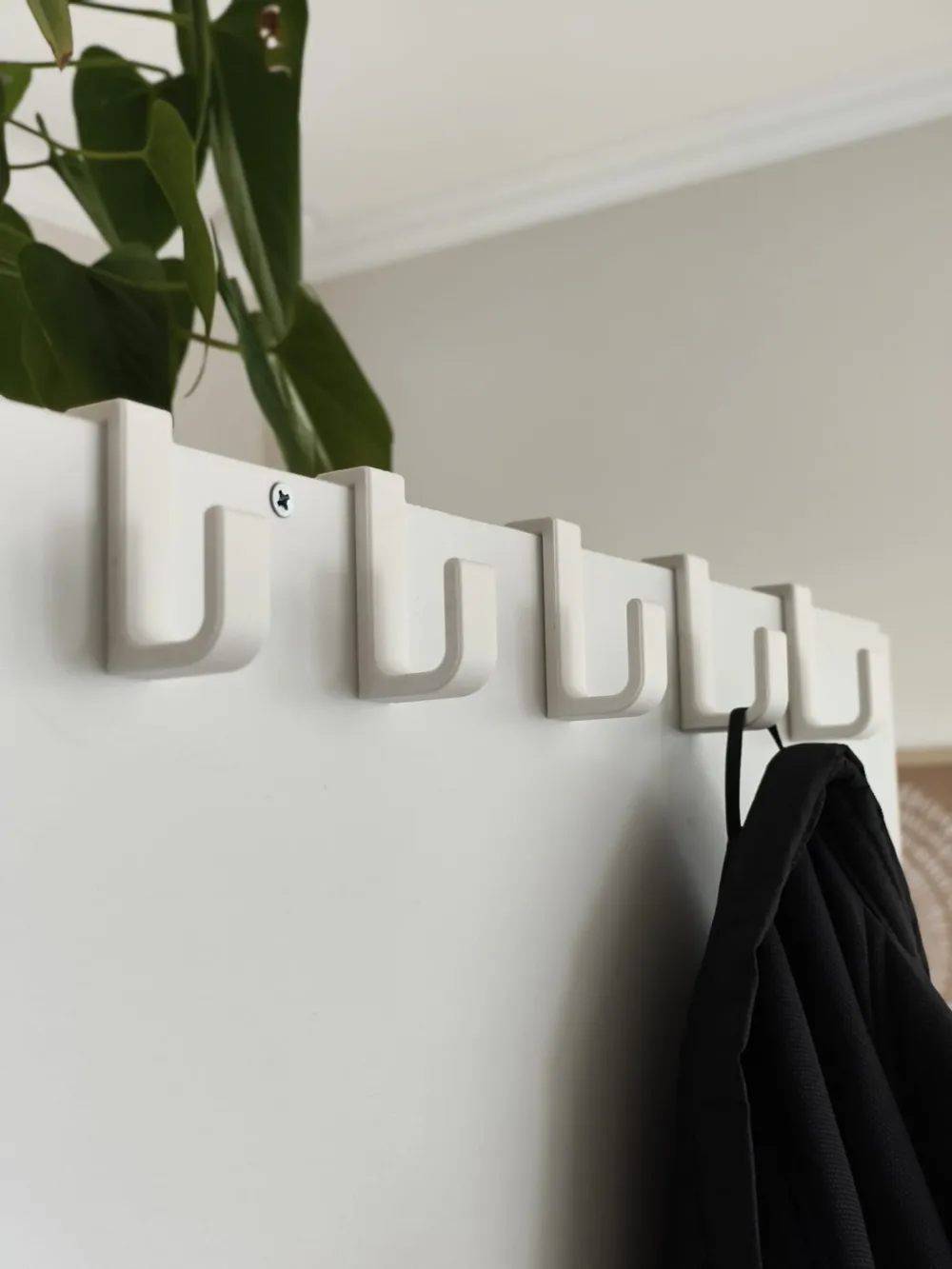

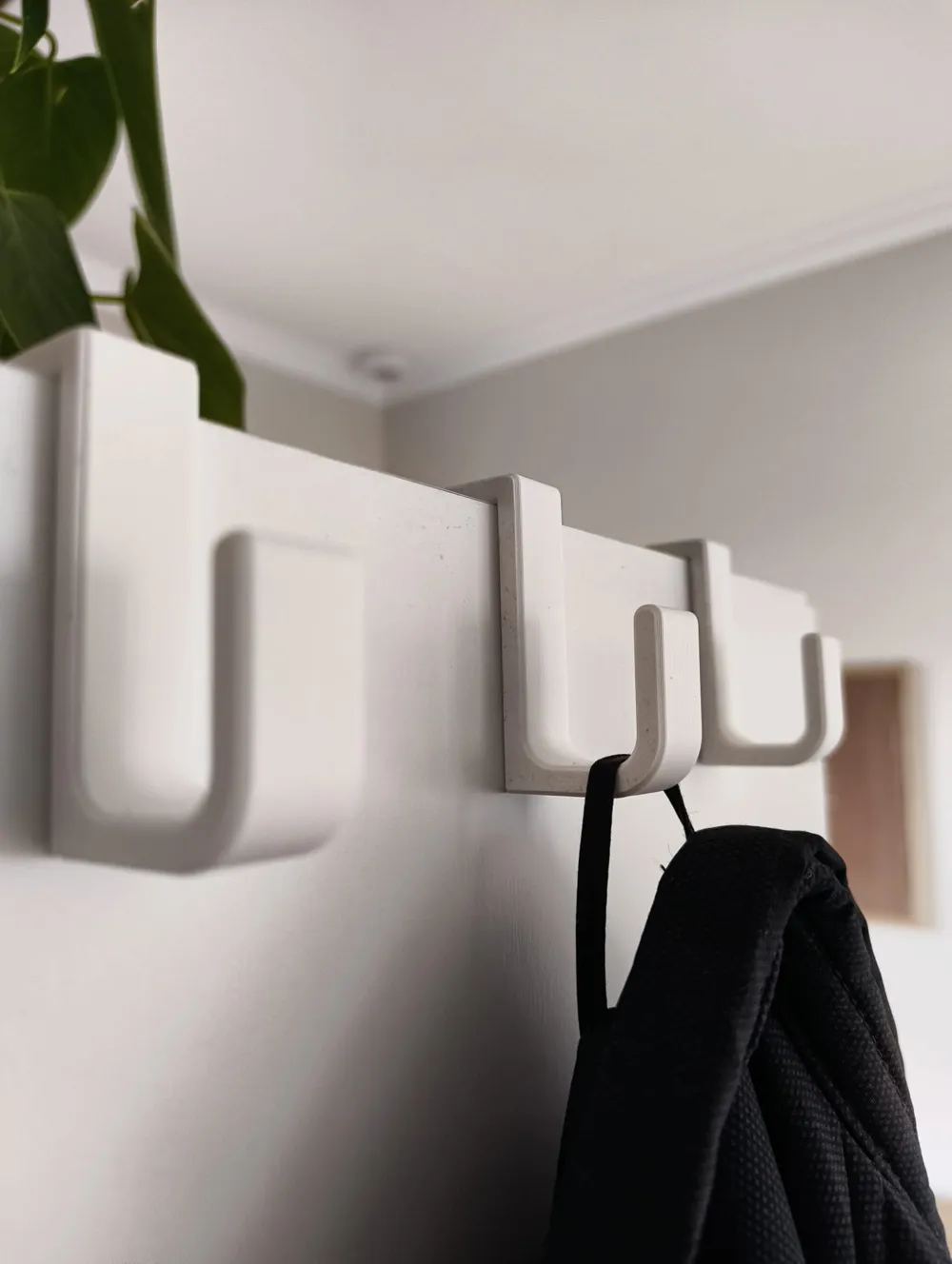

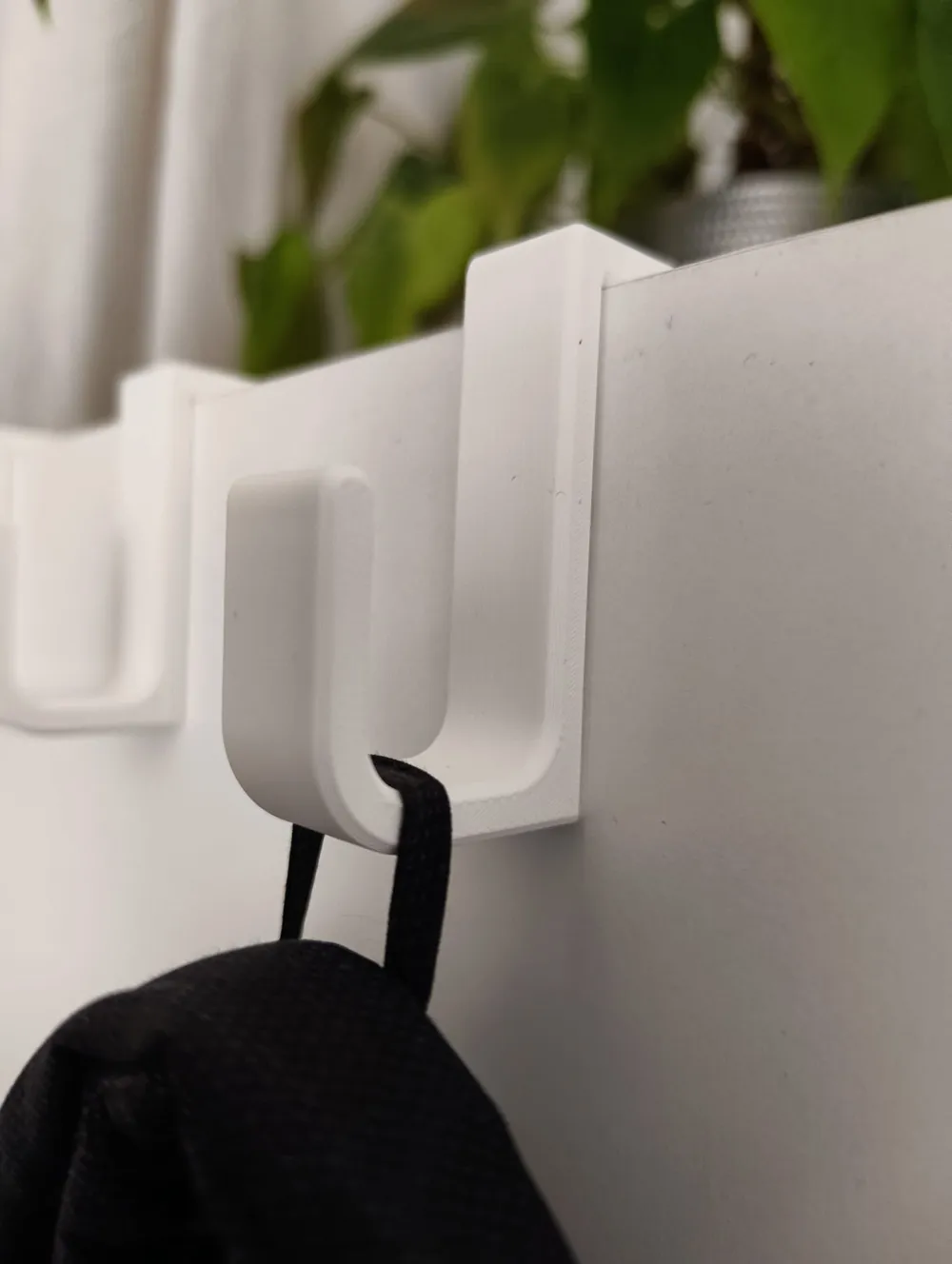

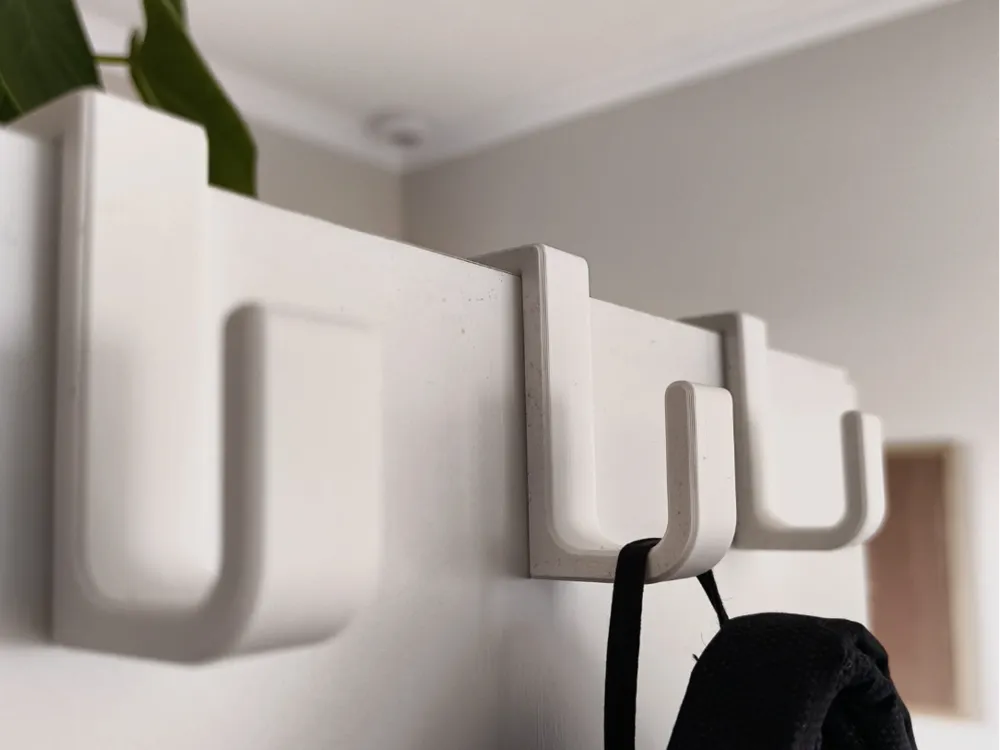

A minimalist, heavy-duty hook designed to mount securely on the top edge of your wardrobe, cabinet, or shelf. Unlike standard "over-the-door" hooks that slide around or pop off when you grab your jacket, this design features a single screw mount on top for absolute stability.
Key Features

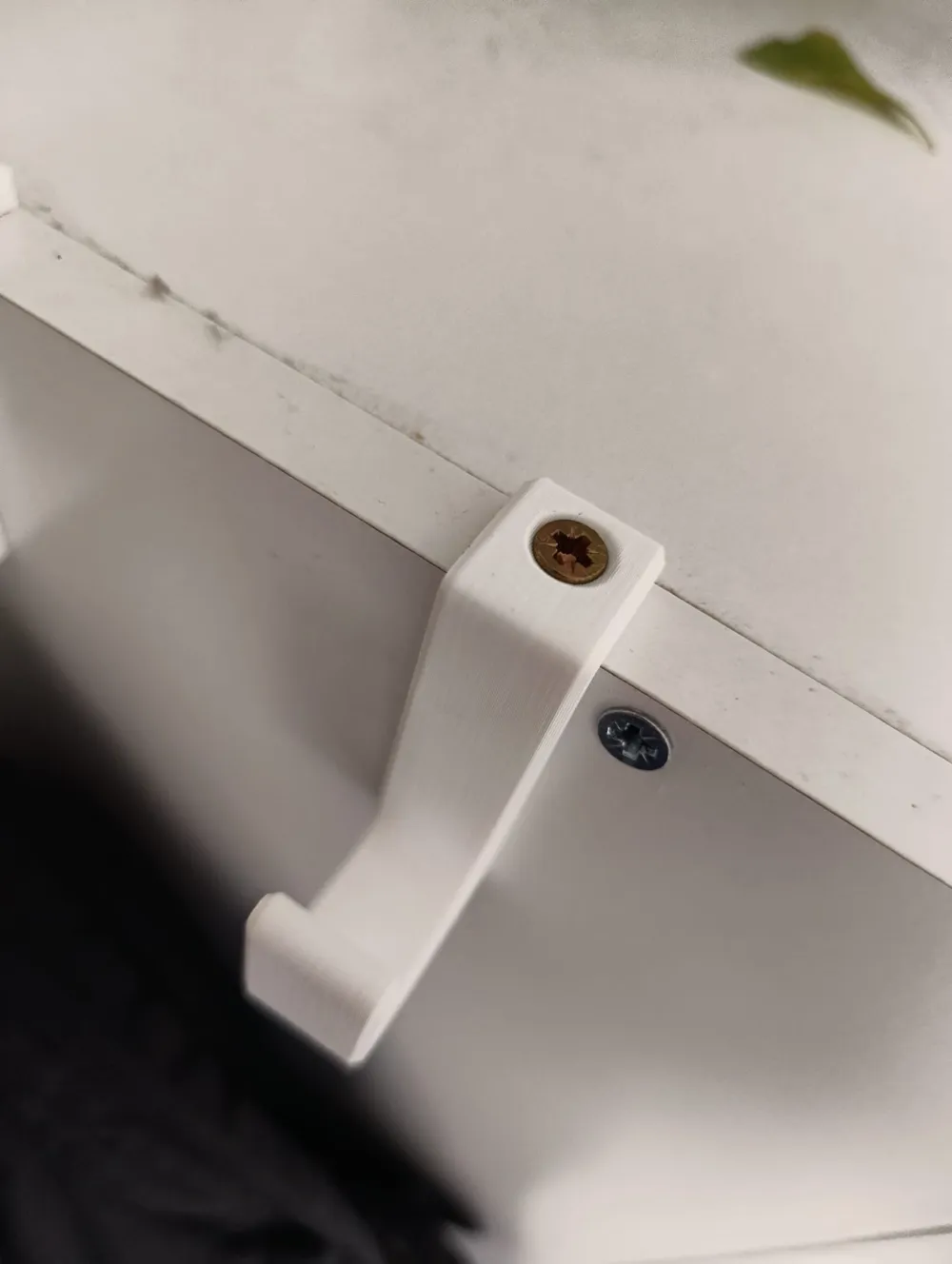

- Secure Fit: The top countersunk screw hole ensures the hook stays exactly where you put it.
- Heavy Duty: Designed to be printed on its side for maximum strength. Easily holds heavy backpacks, coats, or bags. I've tested it with 16kg kettlebell but I don't recommend going for more than 10kg.
- Minimalist Design: Clean lines that blend into white IKEA-style furniture.
- No Supports: Prints completely support-free.
Printing Settings
- Orientation: Print on its side (as positioned in the STL) for maximum strength.
- Material: PLA, PLA+, or PETG.
- Walls/Perimeters: 4+ walls (recommended for strength).
- Infill: 50% Grid or Gyroid.
Hardware Needed
- 1x Standard wood screw (flat head/countersunk).
