F/A 18 Hornet Dogfight Dynamics Seat Switch Box

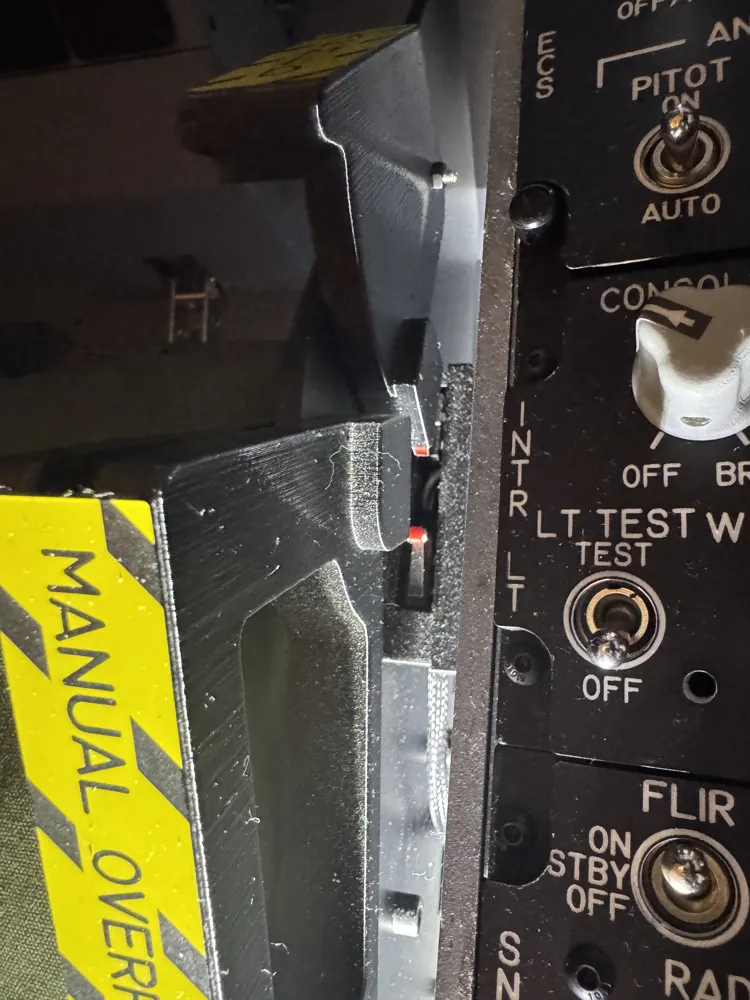

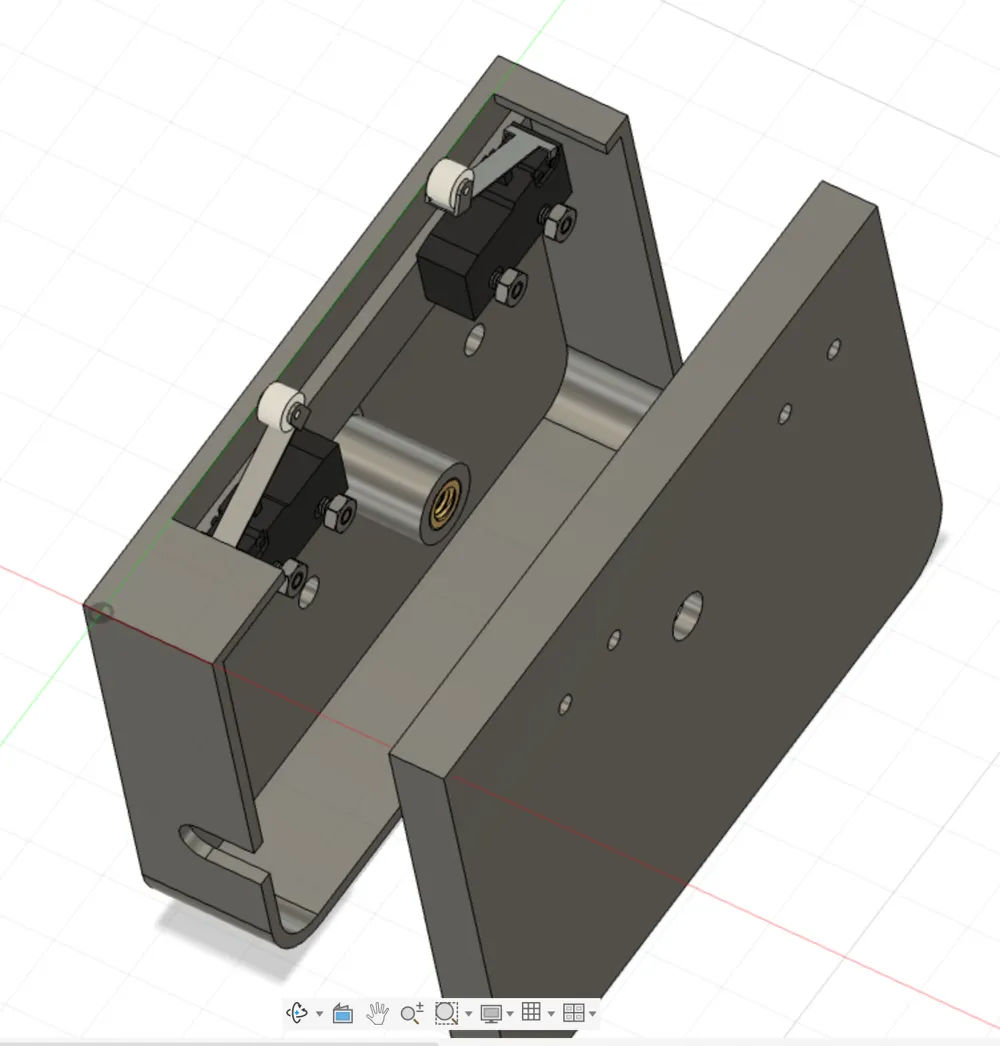

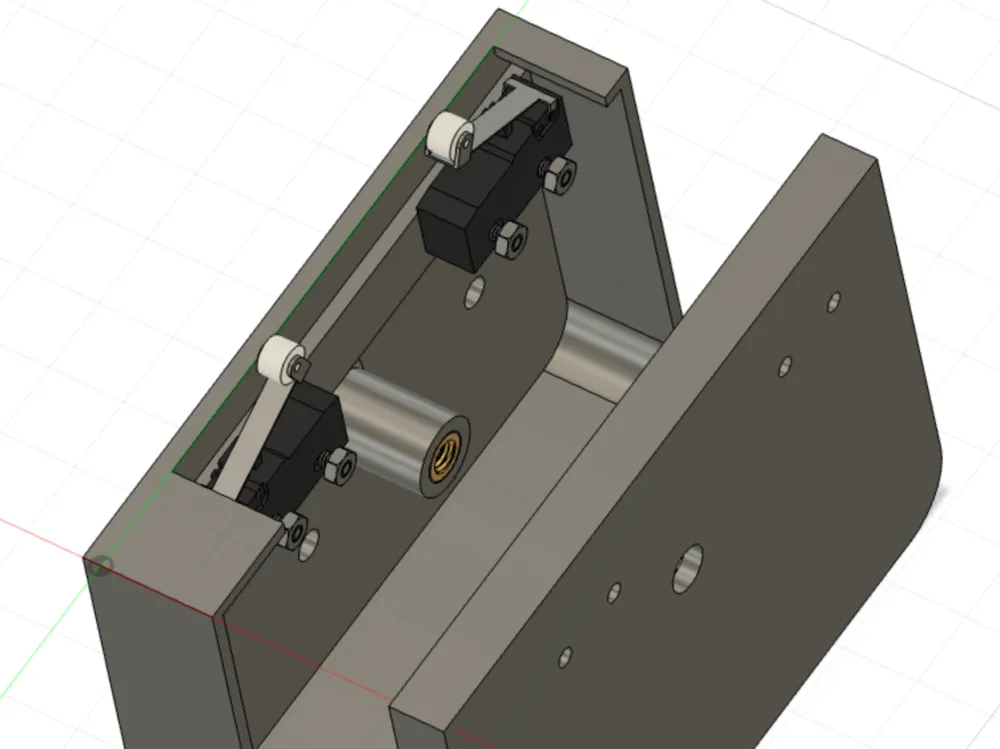

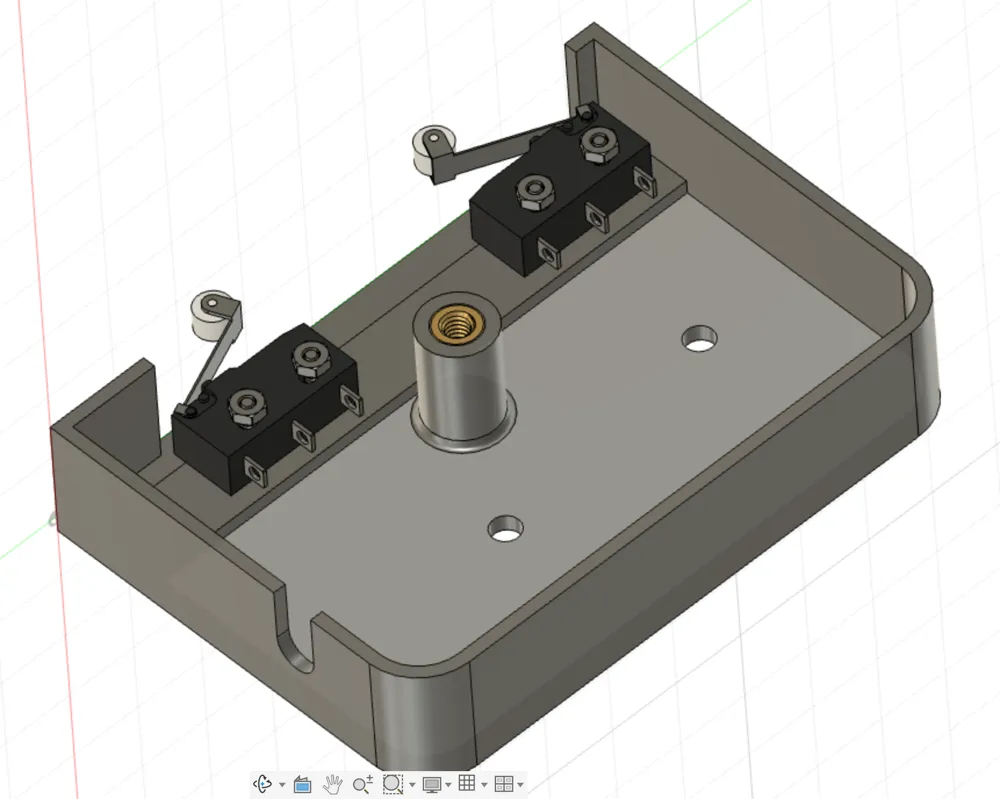

This is a switch box and cover for the Dogfight Dynamics ejection seat (https://www.dogfightdynamics.com/products/ejection-seat).
It allows you to arm/disarm the ejection seat and pull/push the override handle.


Additional materials needed
 - Two limit switches, e.g. 7658K16
 - One heat insert M4
 - One screw M4
 - Four screws M2x14 to fasten the limit switches
 - Four nuts M2
 - Cables as required


This assembly assumes that you have your Arduino or Bodnar Board running somehere else in the pit and are able to code according to your needs. This is just the provision of the switch holding assembly.
