Description

Content has been automatically translated.

Show original

Before you start reading, if you are happy with my project, remember to give it a nice like and 5 stars ⭐⭐⭐⭐⭐ to the print profile, it will help me to continue

Thank you very much

!! ATTENTION !!

I have been told that sometimes prints, especially with Textured PEI build plate, tend to stick too much. It's true

I have printed many of them for testing, and I have learned a few small tricks: besides letting the build plate cool down well, I don't clean it before printing, but rather I dirty it with my hands - the normal grease we have on our hands limits the adhesion of the cover to the build plate - then I use the Bambu Lab Bed Scraper or also this one which is lower https://makerworld.com/en/models/12703-bambu-bed-scraper#profileId-12705
The engineering build plate is more suitable for use with TPU, but it does not come with the texture effect

I have also achieved better results by lowering the build plate temperature. TPU still sticks
Let me know in the comments if it works well
Good luck with your work

I needed a cover for my wife's iPhone SE 3rd generation and realized there were no solutions for Bambu Lab's AMS TPU
The filament is quite rigid, and solutions with classic TPU don't work well because you can't insert the phone
Projects with rigid filaments have shapes that cover the phone very little, leaving areas exposed to allow it to be inserted
Then it falls, hits exactly that exposed spot, and breaks
So I studied a project compatible with AMS TPU, also to take advantage of the beautiful possibilities of multicolored prints

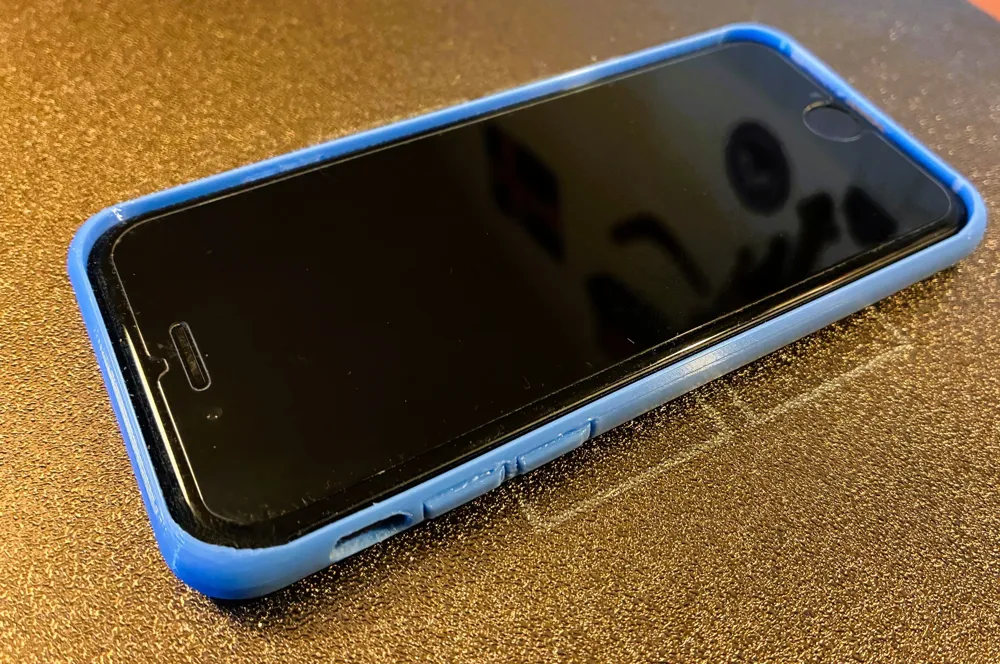

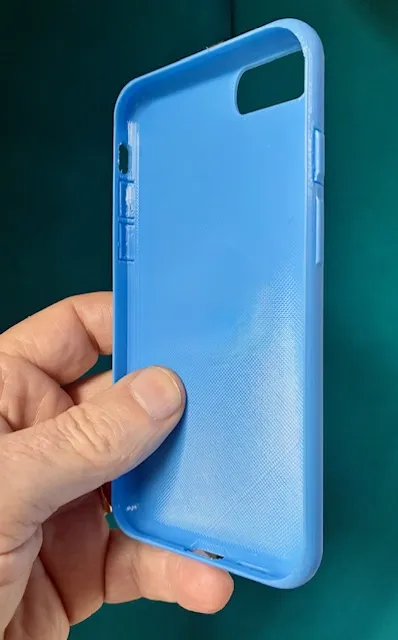

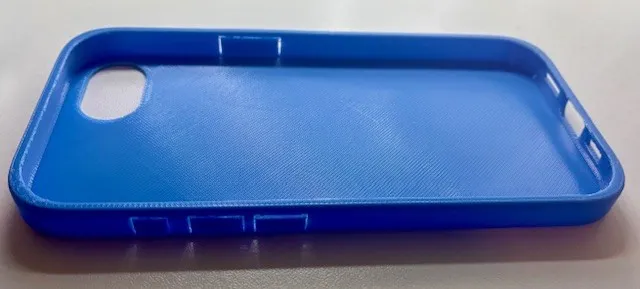

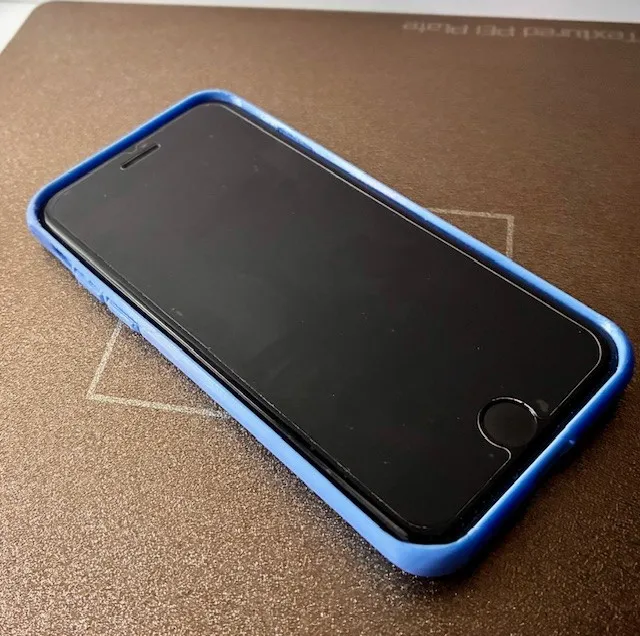

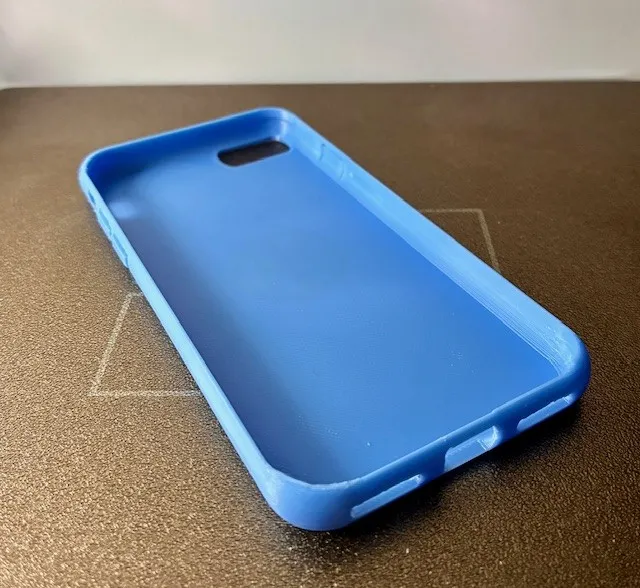

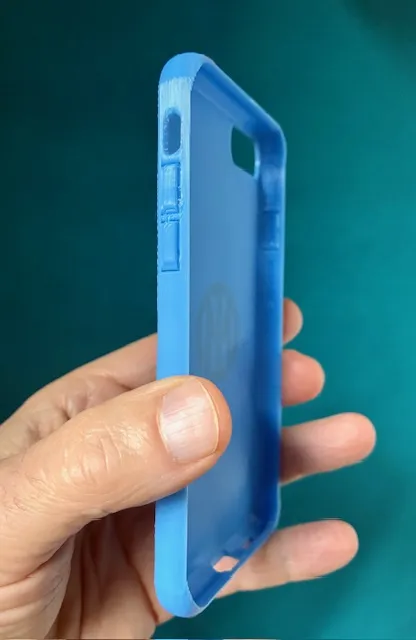

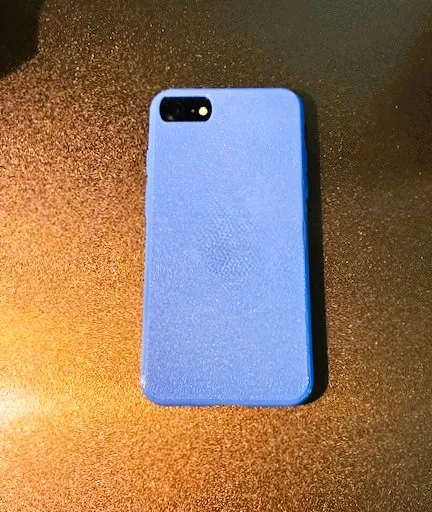

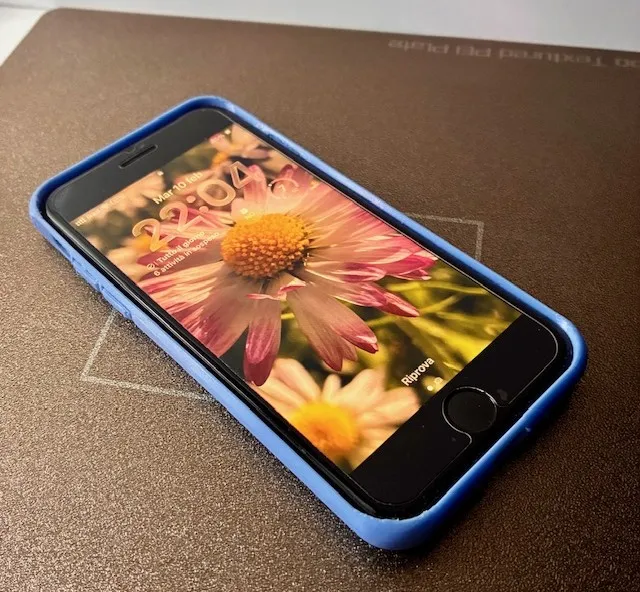

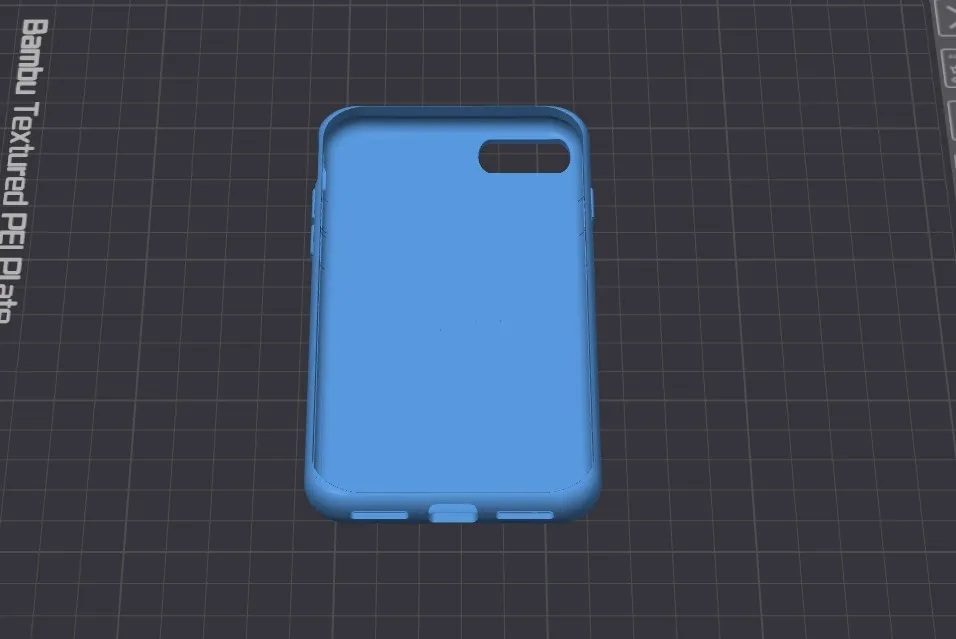

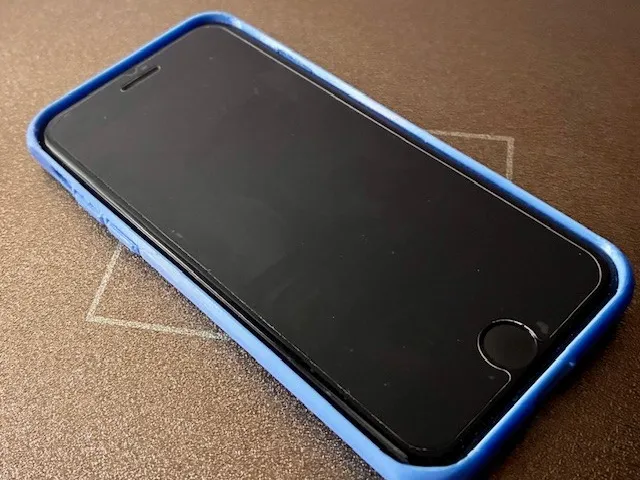

After several hours of design and as many tests, to also make the buttons maneuverable, I created the solution you see
I also provided an adequate hole for thick Lightning connectors. The previous cover I bought had too small a hole and that was a problem
I haven't tried it with PLA, if you try it please share it in the comments
I have set up minimal and easily detachable supports for a better print. But it can also be done without
I have an iPhone 16e, and seeing how this one turned out, I will soon dedicate myself to creating a cover for this phone as well
If you are interested, click "follow" on my profile and you will be notified of my new projects
If you liked the project, leave a nice like, it will help me continue
Let me know what you think in the comments and attach photos, you will help other users and earn MakerWorld points

Remember to check out my other projects too, you might find something useful

Happy printing everyone
