Fiber optic enclosure for TP-LINK SG2206
IP Report
Print Profile(1)
0.2mm layer, 2 walls, 15% infill
Designer
4 h
1 plate
Open in Bambu Studio
Boost
10
25
0
0
11
1
Released
Description
TP-Link SG2206 Fiber Splice Enclosure with DIN Rail Mount

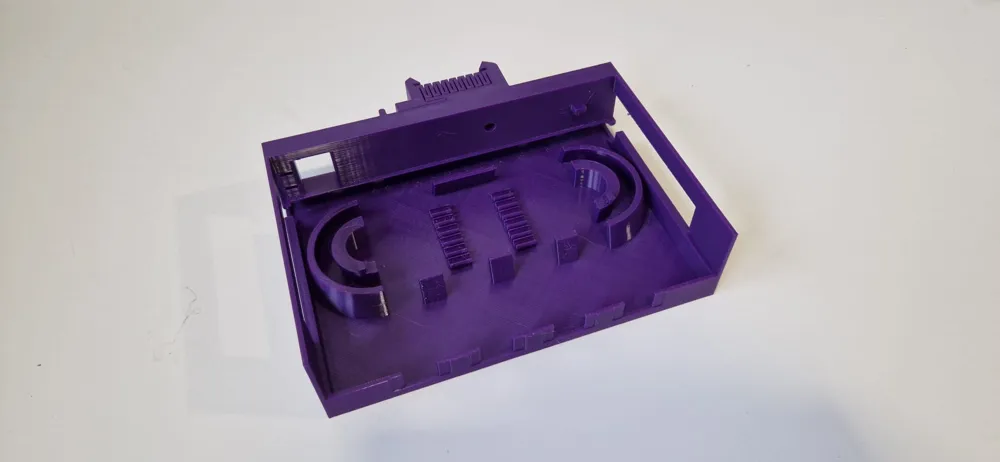

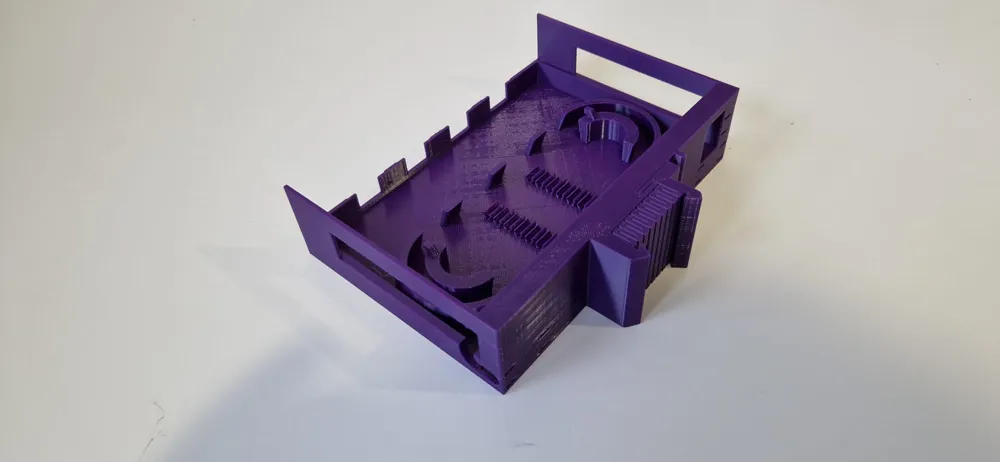

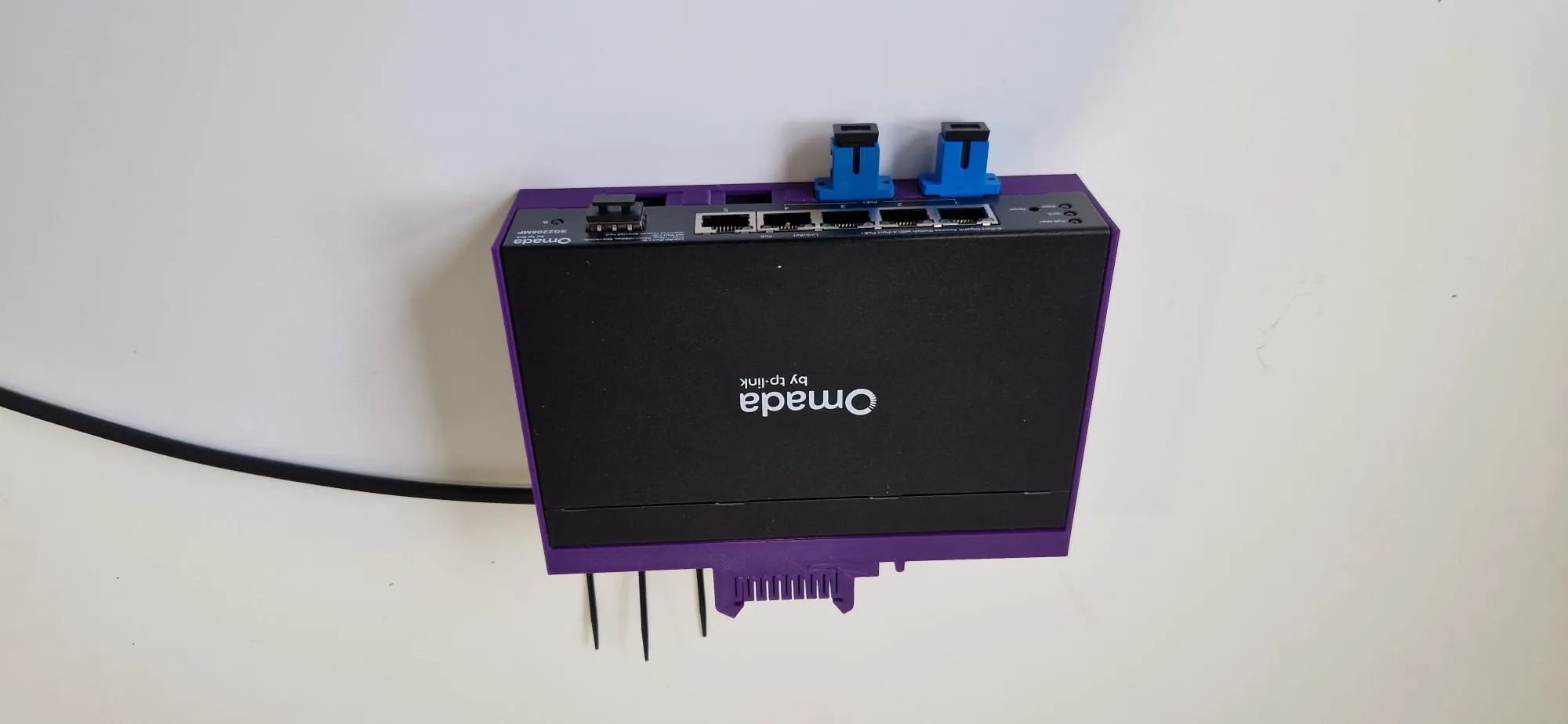

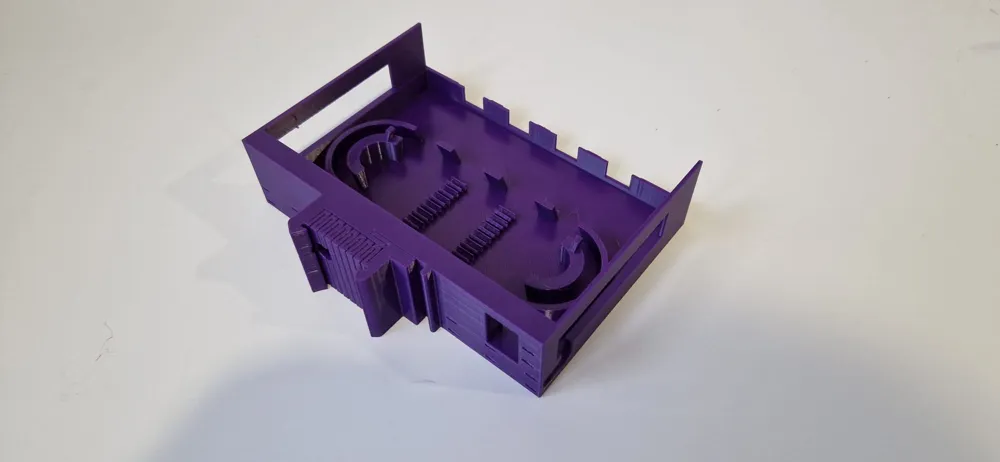

This 3D-printed enclosure is designed specifically for the TP-Link SG2206 switch and also serves as a fiber optic splice cassette.

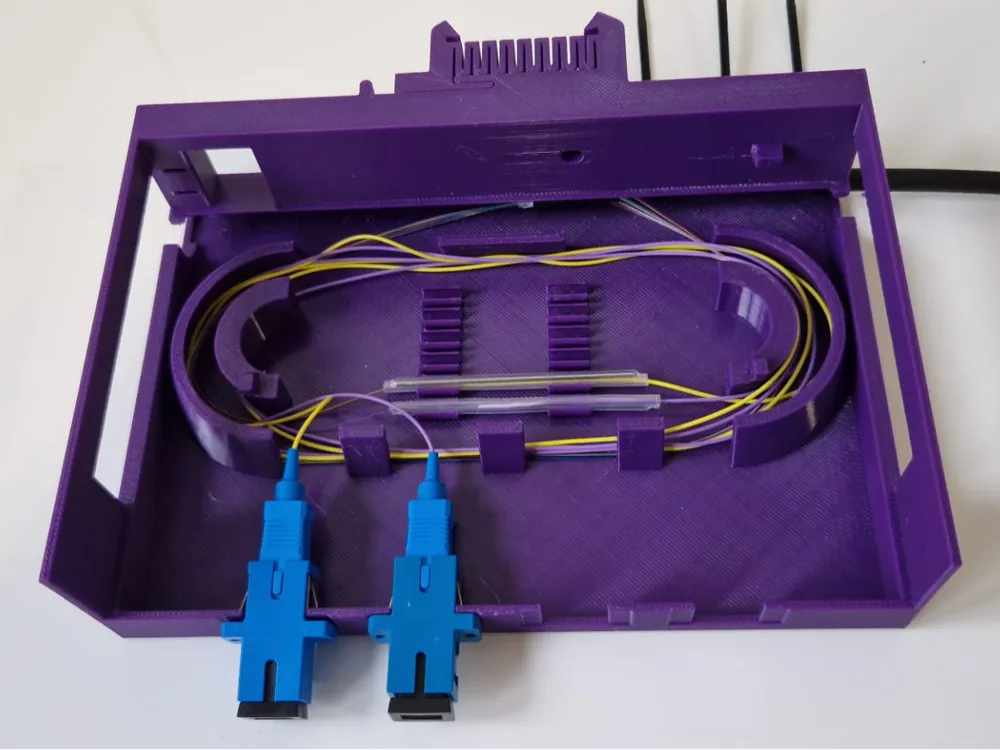

The enclosure integrates both the switch housing and fiber management in a single compact unit. It includes 4 SC adapter ports, 2 cable entry points for optical fibers, and 6 positions for splice protection sleeves, allowing clean and safe fiber termination directly next to the switch.

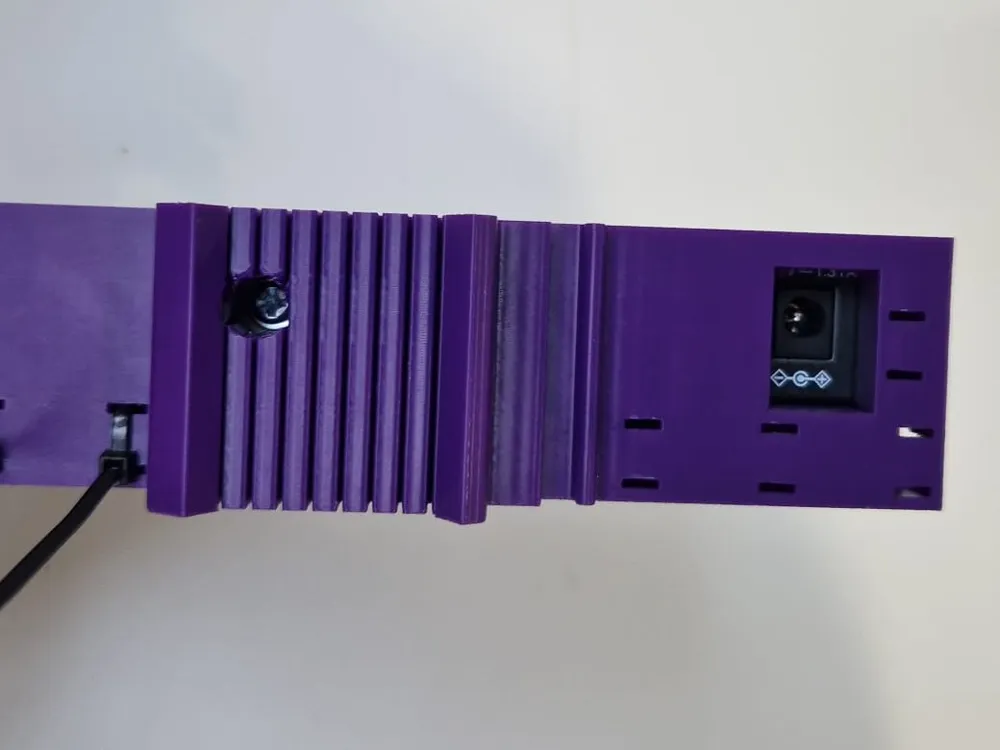

A built-in DIN rail mounting clip enables easy installation in standard electrical or network cabinets.
Features:
- Designed for TP-Link SG2206
- Integrated fiber splice cassette
- 4× SC adapter ports
- 2× fiber cable entry points
- 6× splice protector slots
- DIN rail mounting system
- Suitable for structured cabling and network cabinets
