RESONANCE

cover




Head



Middle



<h3>Print Recommendation</h3>Print with tree supports. Tree supports reduce contact points, make removal easier, and help preserve fine surface detail on long, slender features.Orientation<ul><li>Print the model vertically with the tail down and the head up to minimize seams along the length and reduce support volume.</li><li>If your printer build volume requires splitting, orient split pieces so flat mating faces sit on the bed.</li></ul>Support Settings<ul><li>Support type: Tree supports.</li></ul>Slicer and Hardware<ul><li>Nozzle: 0.4 mm or higher recommended.</li><li>Layer height: 0.20–0.24 mm depending on desired surface finish.</li></ul>Material and Adhesion<ul><li>Filament: Recommended dried PLA for ease of printing; PETG for greater toughness.</li><li>Infill: 10–20% gyroid or cubic for a good strength‑to‑weight ratio.</li><li>Walls: 2–4 perimeters depending on nozzle and layer height.</li></ul><h3>Assembly and Post Processing</h3><ul><li>Clean mating surfaces before bonding. Use cyanoacrylate (super glue) or a comparable adhesive to join the four sections.</li><li>Remove supports carefully with flush cutters, then sand contact points starting with 120–220 grit and finishing with 400–600 grit for a smooth seam.</li><li>Prime before painting to ensure even coverage; use filler primer for visible layer lines if desired.</li></ul><h3>Safety and Usage</h3>This model is a non‑functional display piece. Do not attempt to modify it into a working device or to incorporate real propulsion, guidance, or explosive components. Follow standard workshop safety when printing, sanding, and gluing.

0.2mm layer, 2 walls, 15% infill

You may create derivative works based on this object, provided that all such derivative works are published exclusively on the MakerWorld platform and include proper attribution to the original creator. You may not share, upload, host, distribute, or publish this object—or any derivative work of this object—on any other digital platform, marketplace, or distribution channel. Commercial use of this object and any derivative works is strictly prohibited. This includes, but is not limited to, selling, renting, sublicensing, or using the object in any context in which you receive monetary compensation or other financial benefits.

This user content is licensed under the MakerWorld Exclusive License.

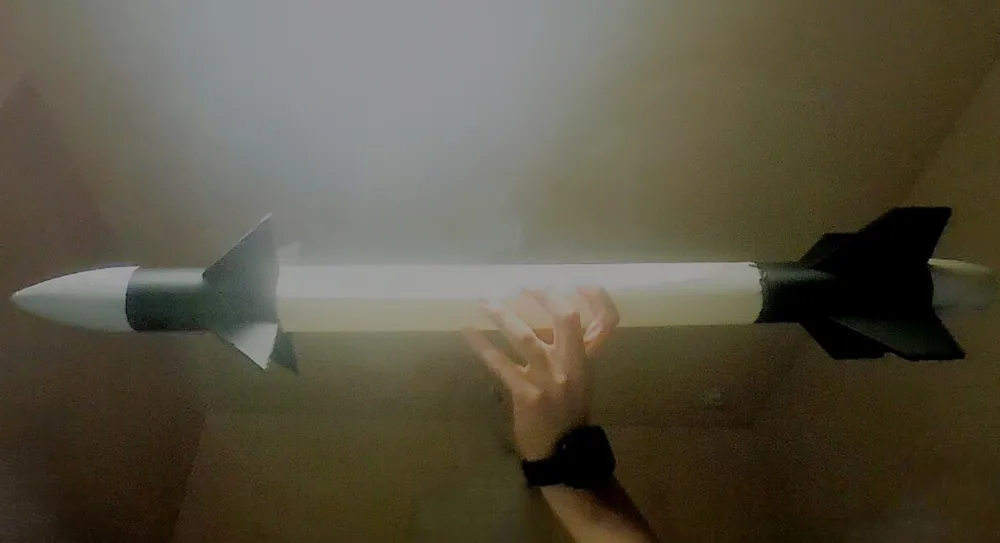

<h2>Description</h2>This is a four‑piece 3D model inspired by the general shape and proportions of a Sidewinder‑style aerospace projectile. The design emphasizes durability and clean assembly, making it suitable for display, educational use, or as a component in larger creative projects.When fully assembled, the model measures approximately 16 × 16 × 77.5 cm.<h2>Assembly Guide</h2>For optimal results, use cyanoacrylate (super glue) or a comparable adhesive. Ensure all mating surfaces are clean and dry before bonding.Assemble the components in the following order:<ol><li>Head Piece</li><li>Small Middle Piece</li><li>Large Middle Piece</li><li>End Piece</li></ol>Allow adequate curing time before handling the completed model.<h3>Safety and Usage</h3>This model is a non‑functional display piece. Do not attempt to modify it into a working device or to incorporate real propulsion, guidance, or explosive components. Follow standard workshop safety when printing, sanding, and gluing.

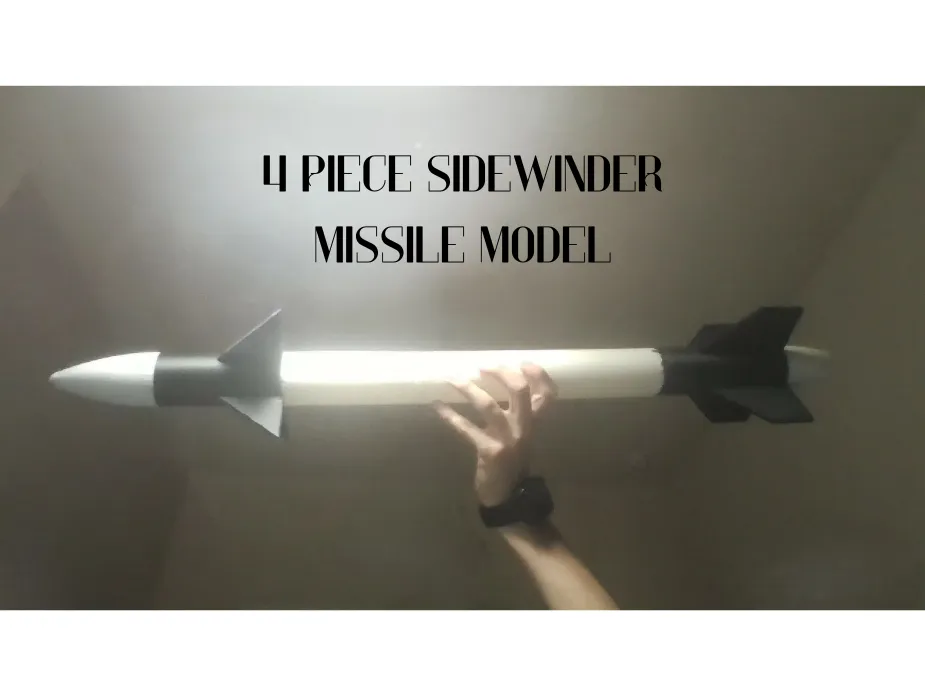

4 Piece Sidewinder Missile Model

ASIA

Print Profile(1)

Description

Description

Assembly Guide

Safety and Usage
