RM1-STYLE LASER MOUNT COMPATIBLE WITH BOSCH GCL
Print Profile(1)
Description

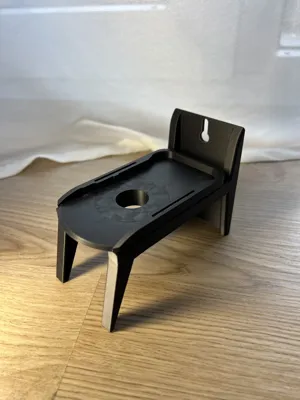

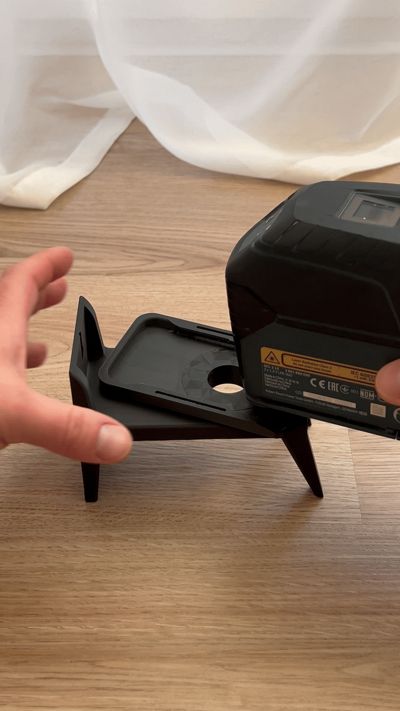

RM1-Style PRO Laser Mount is a professional-grade 3D-printable mounting system designed for demanding job site and workshop use.
This model delivers the functionality of premium commercial laser mounts while being optimized specifically for 3D printing and real-world durability.
The design is an independent original creation, inspired by the functional concept of RM1-style mounts, but fully re-engineered from scratch for strength, stability, and ease of manufacturing.
Additional Assembly Requirements
To assemble this model, you will need the following items (not included):
https://youtu.be/GQRi2NOj85Y
🔩 Fasteners
• 3× self-tapping screws with pan head — 3 × 13 mm
(CZ: Samořezné vruty do krabic s půlkulatou hlavou 3×13 mm)
🧪 Adhesives
• Strong glue for bonding printed parts
(epoxy or CA glue recommended)
🧴 Lubrication
• Plastic grease for drill bits & chisels
(e.g. Plastické mazivo na vrtáky a sekáče)
or equivalent silicone grease
or simple petroleum jelly (Vaseline)
Apply a thin layer of grease to the rotating friction surfaces to ensure smooth and controlled movement.
🧱 Anti-Slip Pads
• 4× rubber pads — 2 × 4 mm
These rubber pieces are placed on the base to prevent slipping and improve stability on smooth surfaces.
https://youtu.be/GQRi2NOj85Y
