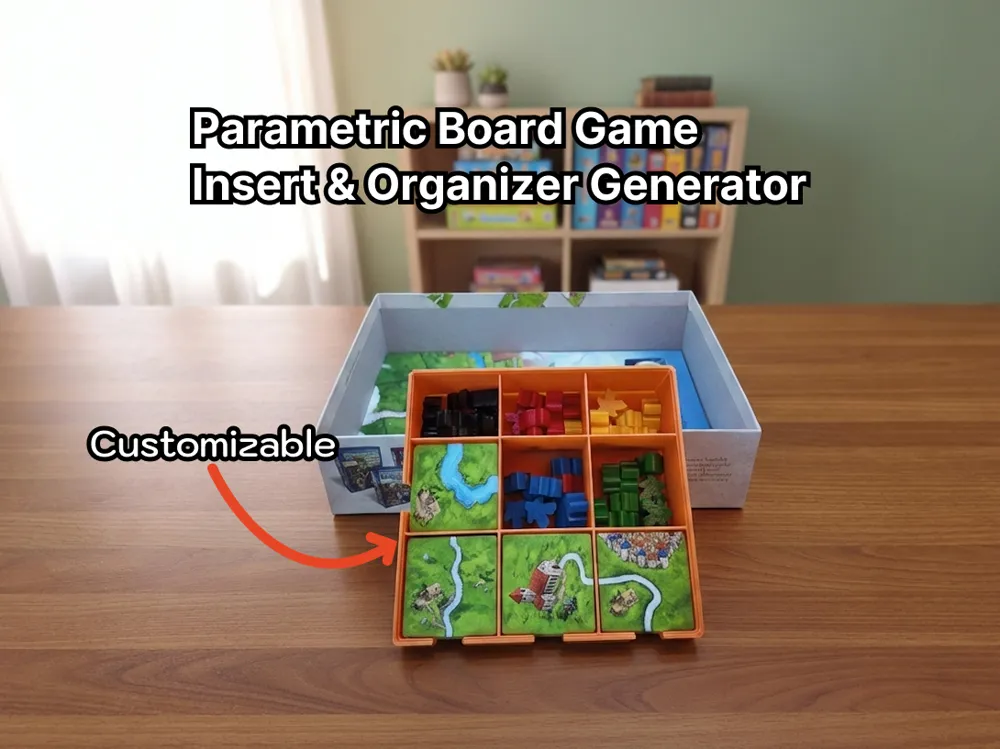

Parametric Board Game Insert & Organizer Generator
Print Profile(1)
Description
Stop struggling with messy board game boxes!
This fully parametric generator allows you to create professional-grade, custom-fit inserts and lids for any game in your collection.
Whether you need a simple token box or a complex multi-compartment organizer for games like Carcassonne, Splendor, Trudvang Legends, HeroQuest, or Boss Monster, this script handles the math for you.
🚀 Key Features
- Smart Auto-Packing: Uses a shelf-packing algorithm to automatically determine the smallest possible box size for your components.
- Fully Customizable: Define your compartments by simply entering a list of dimensions as a string.
- Print-Ready Lid: Generates a perfectly fitted lid with customizable text (embossed or engraved).
- Quality of Life Details:

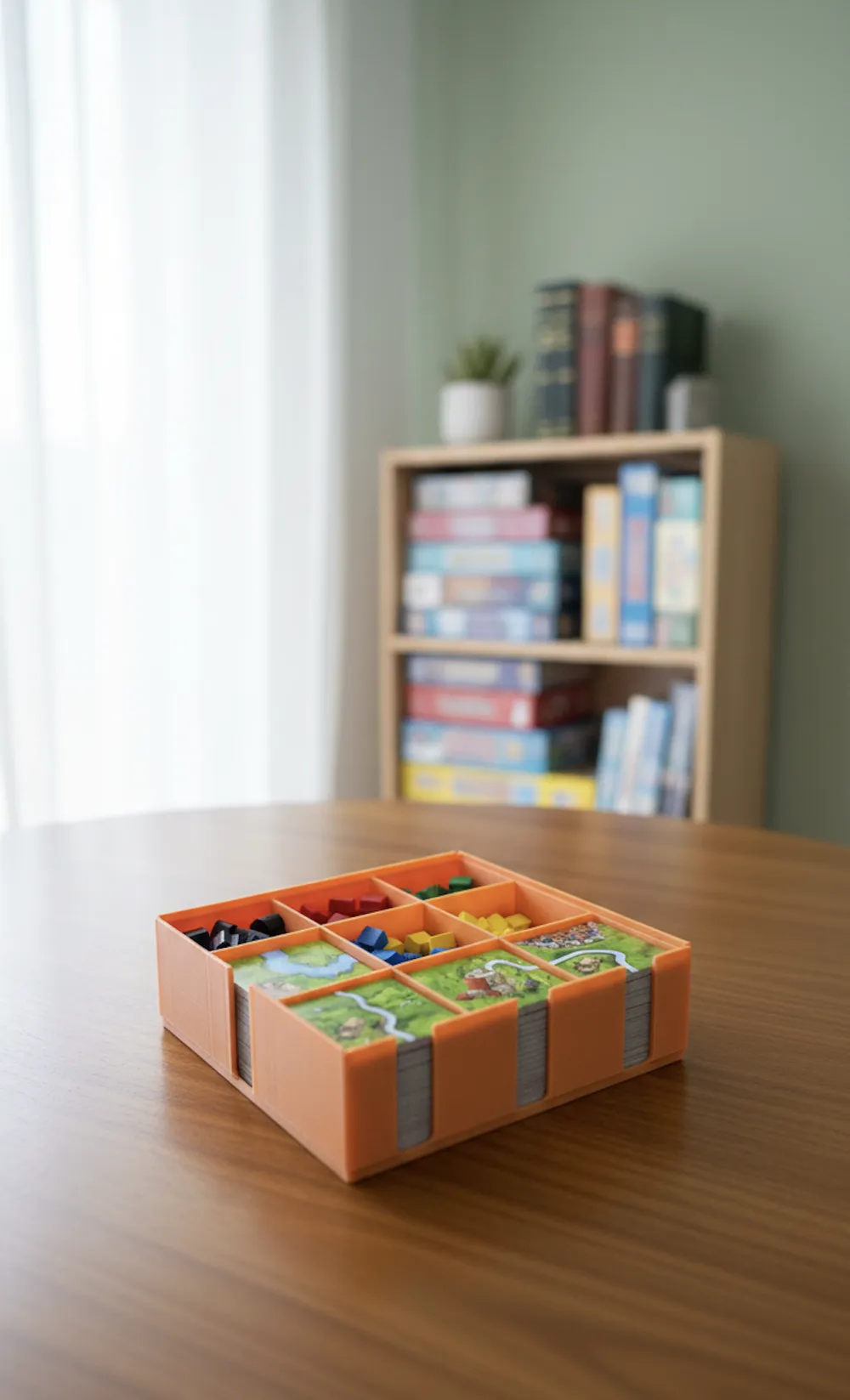

- Finger Cutouts: Easy-access side notches to help grab stacks of cards or tiles.
- Side Token Cutouts: Low-profile side openings to slide out tiles or tokens easily.
- Thumb Notch: Optional small notch to make opening the lid even easier.
- Rounded Corners: Vertical fillets for stronger structural integrity and a premium look/feel.
- Optimized for FDM: Designed to be printed without supports.
🛠 How to Use
- Measure your components: (e.g., a stack of tiles is 46x46mm).
- Enter Dimensions: Update the CompartmentDimensions string with your widths and lengths (e.g., "46, 46, 35, 46").
- Adjust Height: Set InternalDepth to match your box depth or component stack height.
- Customize: Toggle FingerCutout, EnableSideCutouts, and add your game's name to LidTextContent.
- Export: Set ShowPart to 1 for the Box and 2 for the Lid to export STLs separately (0 renders both for preview).
Technical Specs
- Default Wall Thickness: 2.4mm (outer) / 1.2mm (inner dividers).
- Material: Works great in PLA, PETG, or even TPU for a flexible fit.
- Algorithm: Shelf-packing (Sorted Descending) for maximum space efficiency.
Recommended Print Settings
- Walls: 2-3 perimeters.
- Infill: 10-15% (Grid or Gyroid).
- Bottom Layers: 3-4.
- Supports: None required.
