AR launcher pegboard wall mount (can also be mounted on a wall with expansion screws)
Print Profile(1)
Description

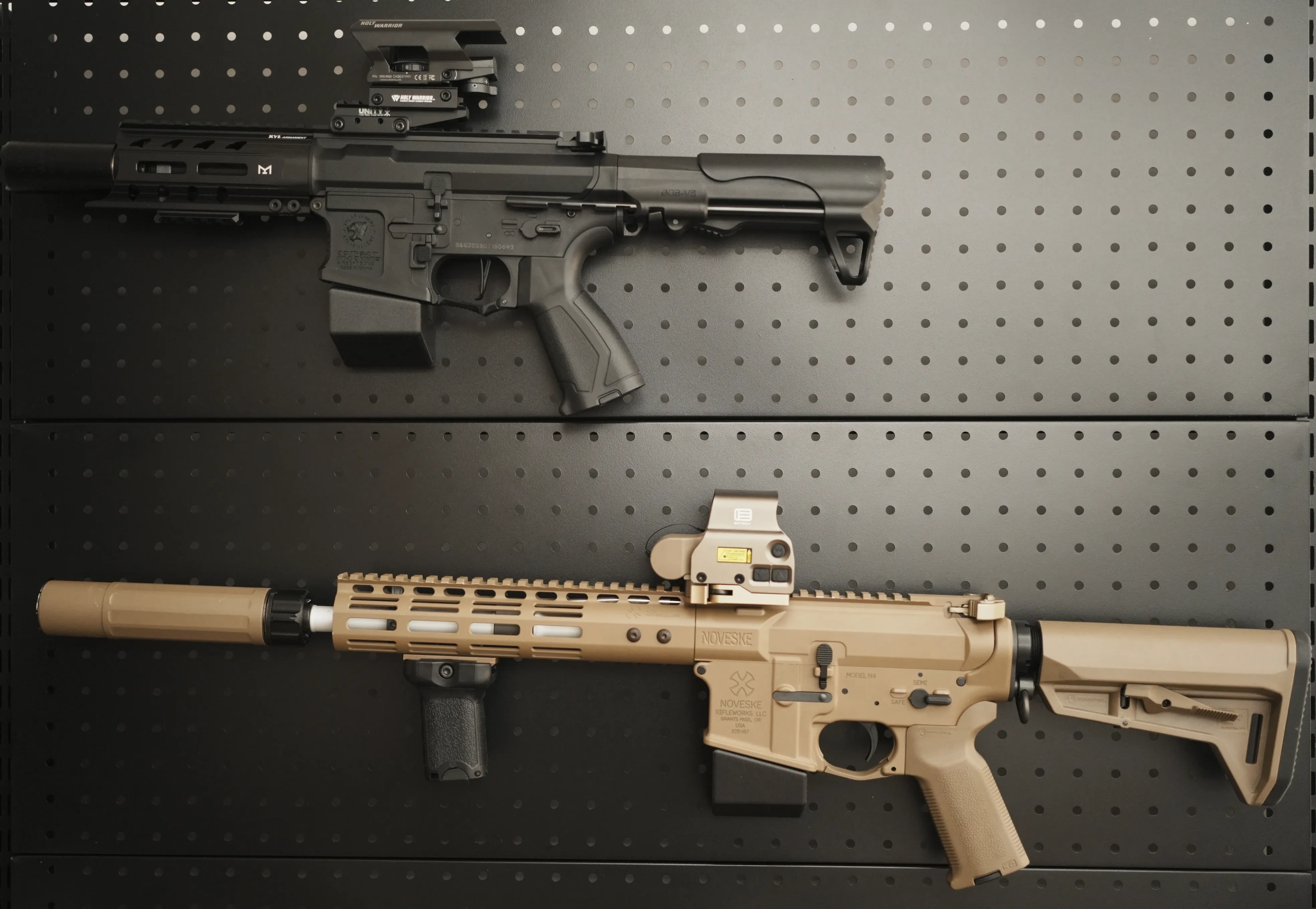

This model was created to conveniently mount launchers on the wall

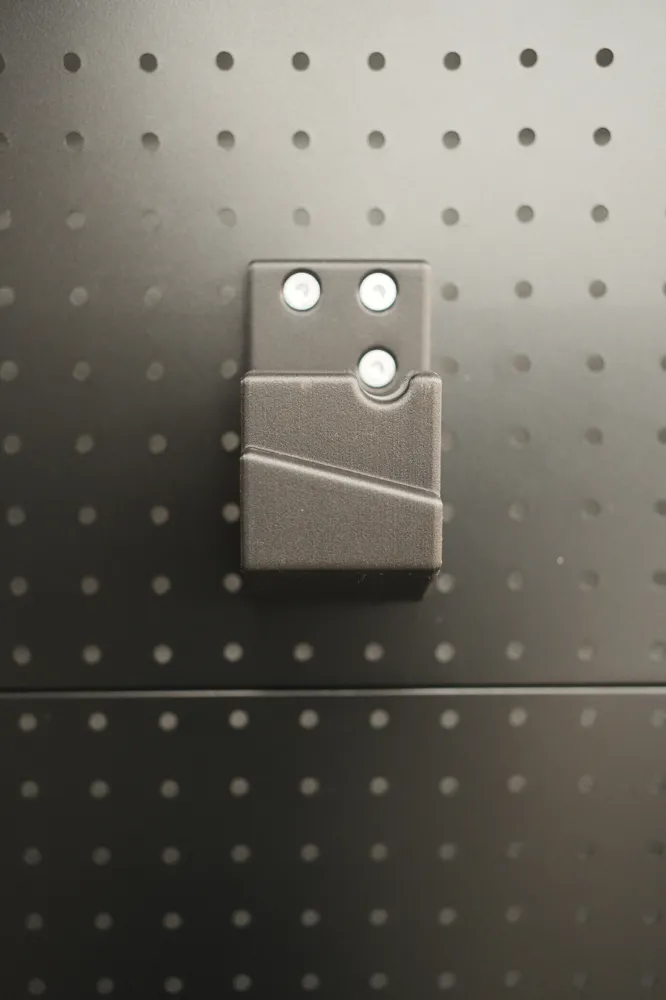

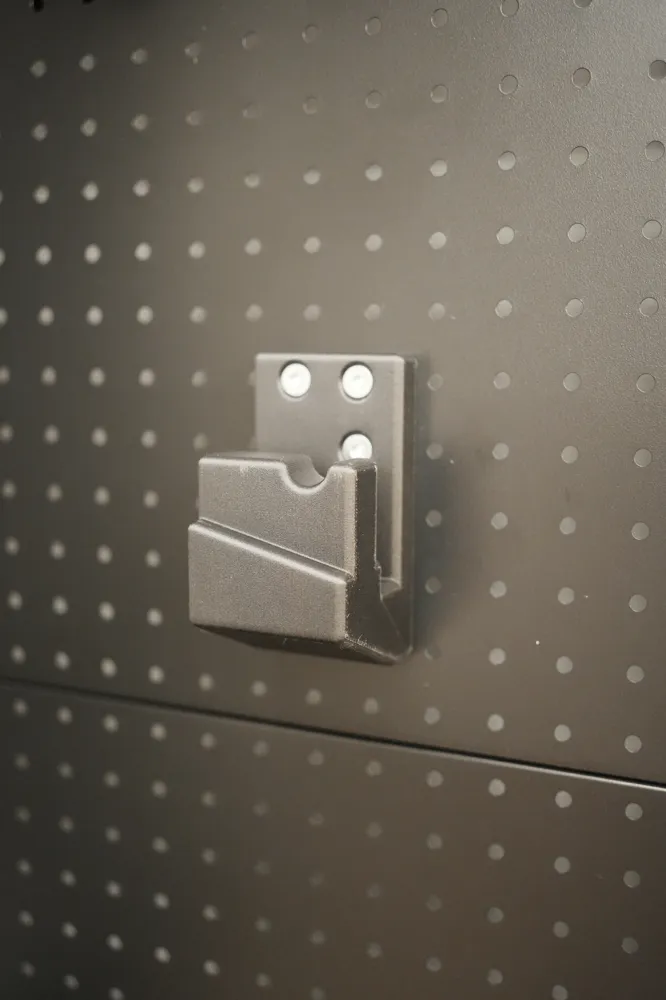

If used on a pegboard, it only supports pegboards with a hole size of 6mm and a hole spacing of 25mm
Then, 3 M6 x 20 countersunk screws and nuts are required
If choosing to wall mount or mount on a wooden board, it is also recommended to use M6 expansion screws or self-tapping screws

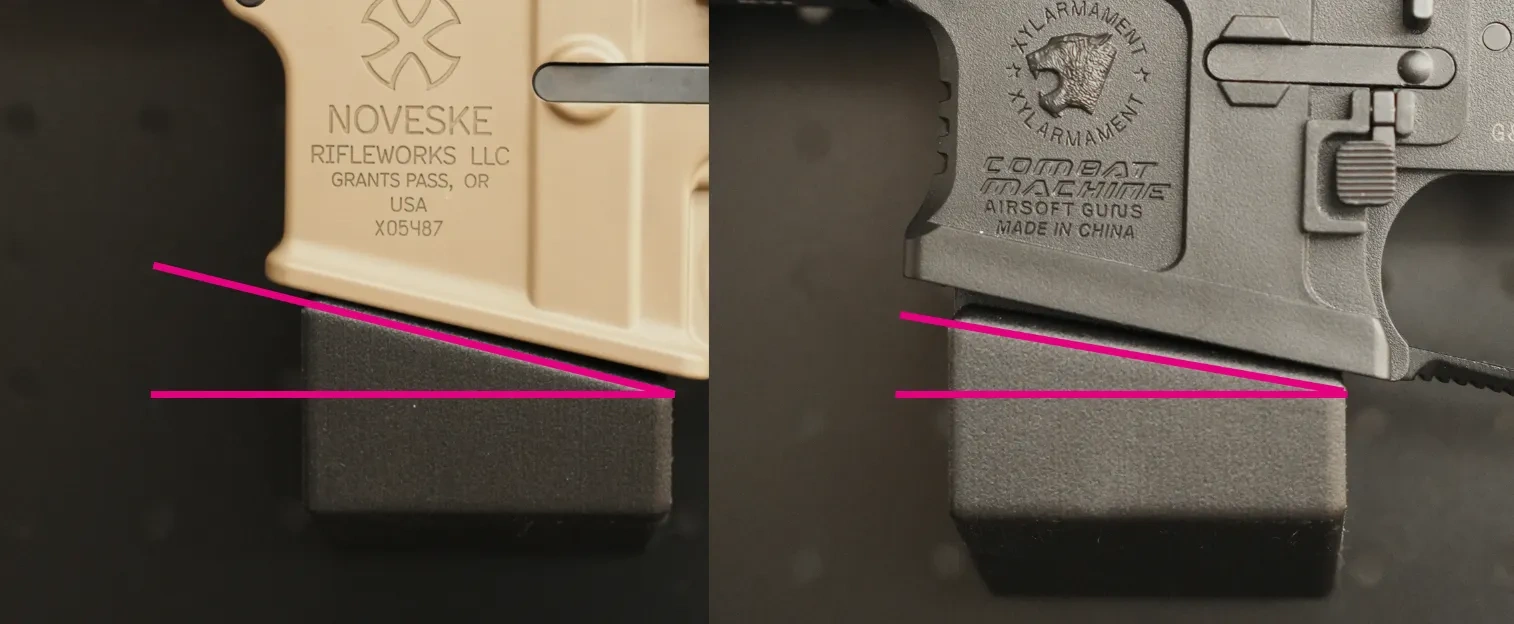

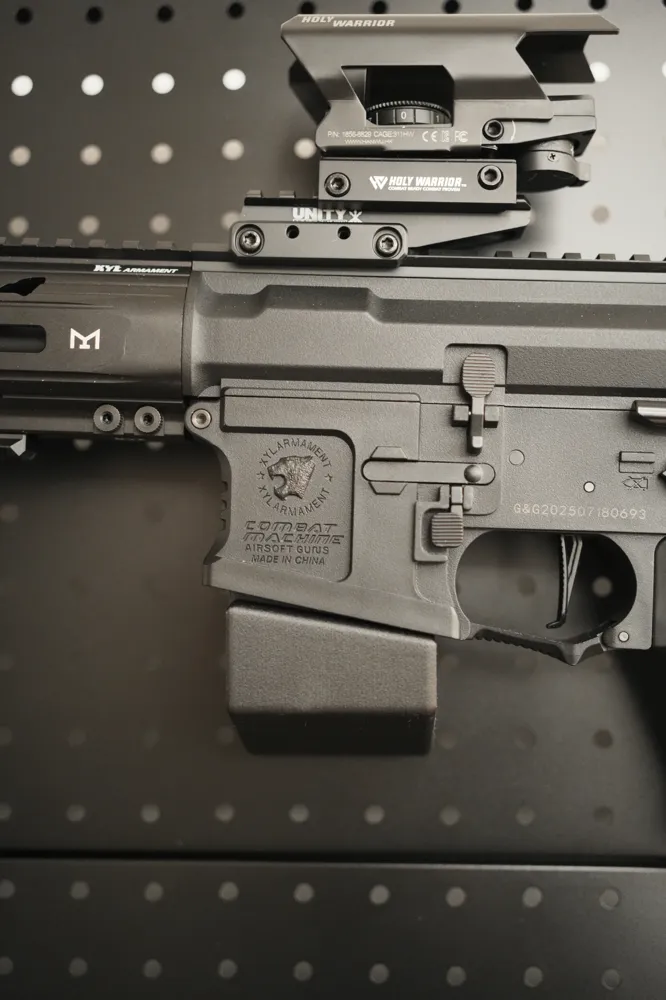

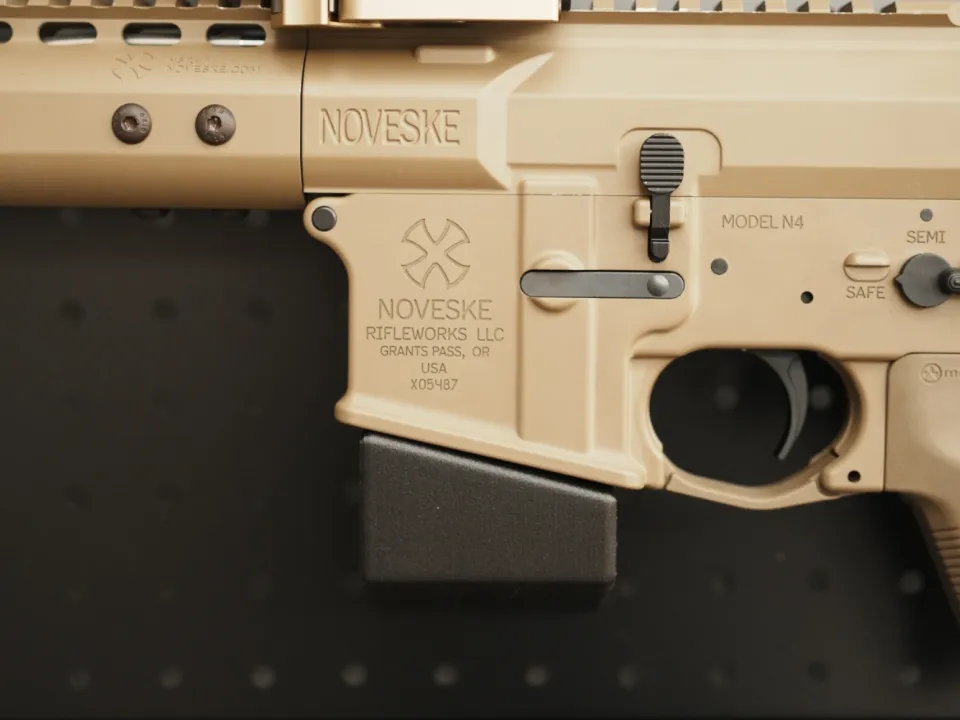

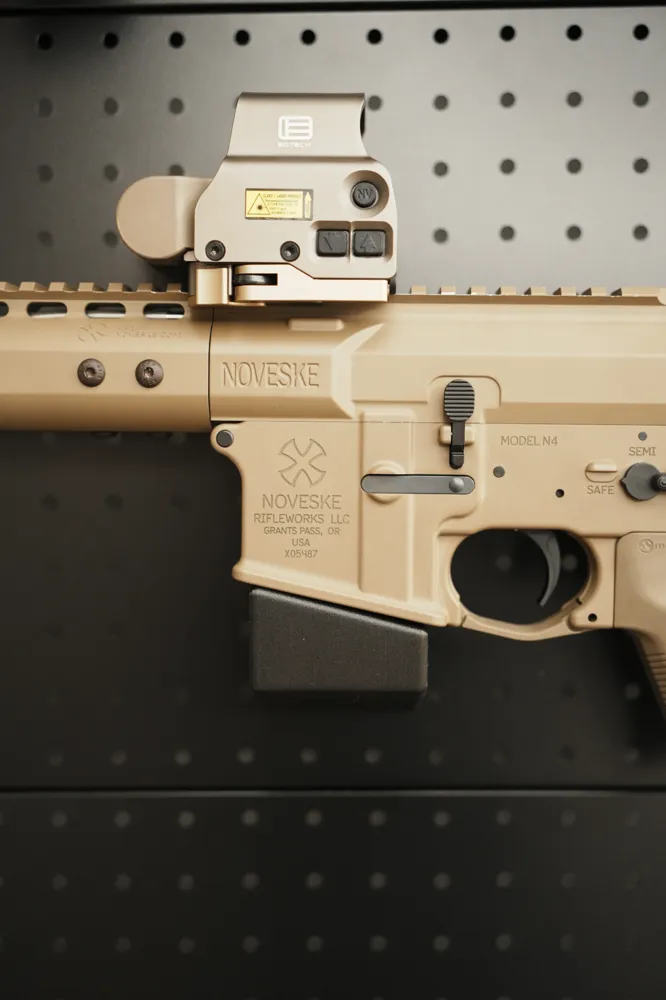

Two files are included, which I made based on my own launchers, namely the N4 and ARP556 launchers. The difference between the two is the support tilt:
(The N4 has a greater tilt than the Little Moon ARP556)
Choose the appropriate tilt to ensure the launcher remains level when placed
Must be printed with PETG or glass fiber reinforced material to ensure sufficient rigidity!!!
Do not use PLA!!!
