4-Inch Exhaust Vent Grille with Protective Mesh
Print Profile(1)
Description

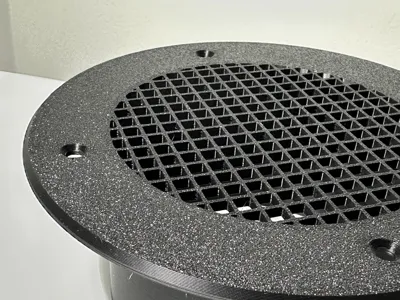

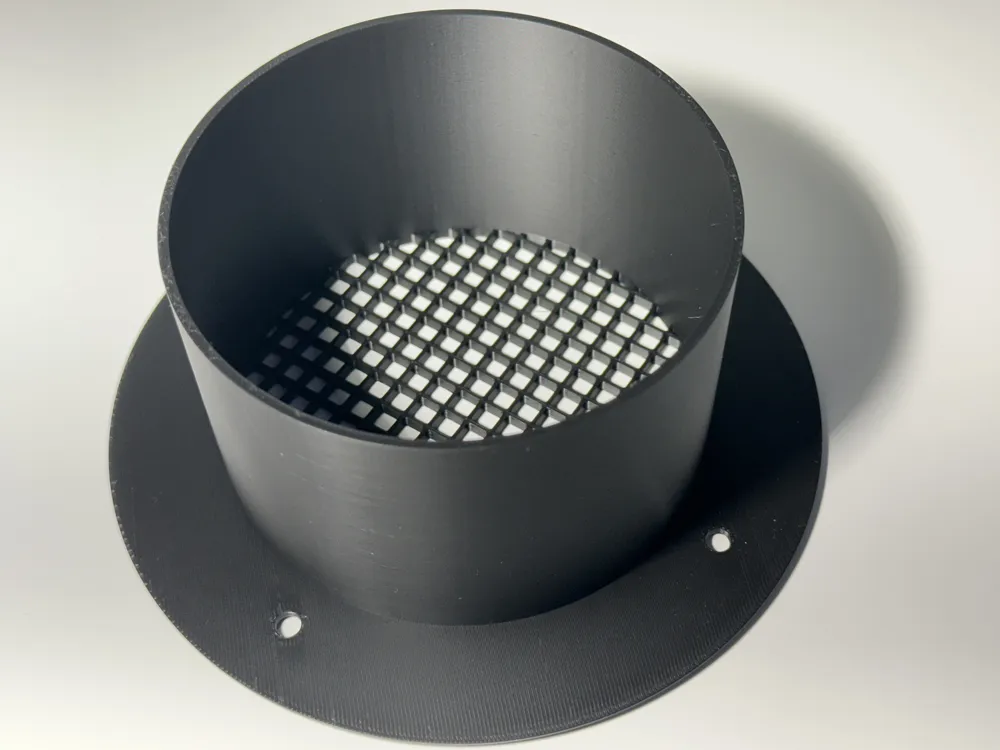

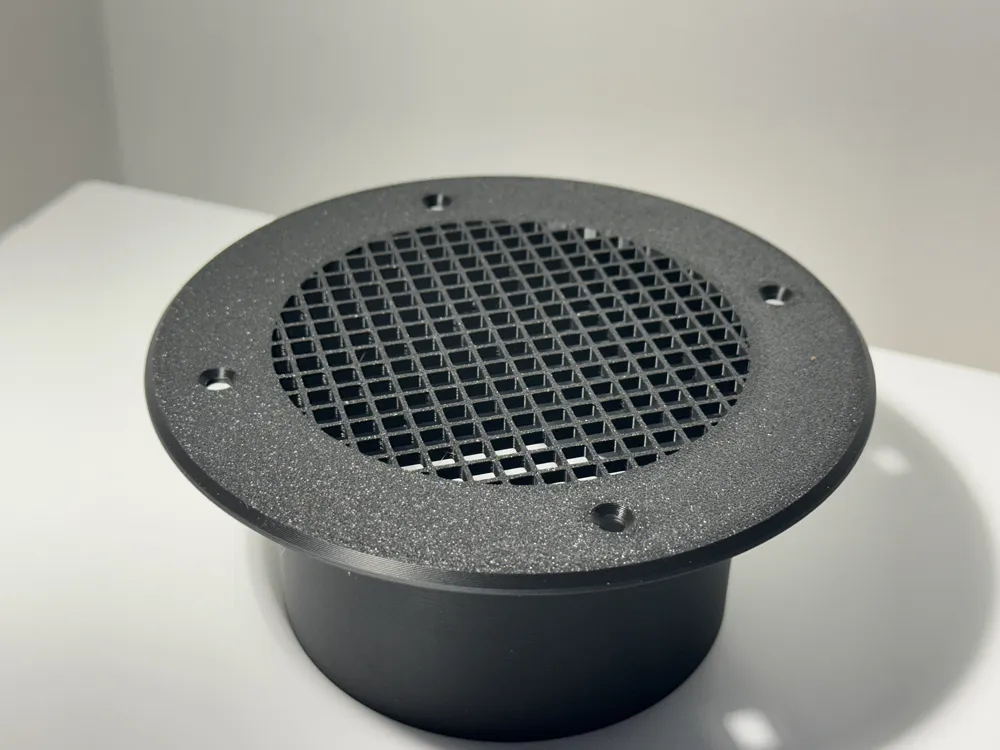

4-Inch 3D Printer Exhaust Vent Grille with Protective Mesh
This model is a 4-inch exhaust vent grille designed for ventilating air from a room or enclosure housing a 3D printer. It helps direct fumes outside while protecting the duct opening from debris, insects, and accidental contact.
The integrated protective mesh provides a good balance between airflow and safety, making it suitable for continuous exhaust applications. The flanged design allows for easy mounting to a wall, enclosure panel, or duct interface using standard screws.
Features
- Designed for 4-inch (≈100 mm) ducting
- Integrated protective mesh (5 mm hole) for safety and debris control
- Flanged mount with screw holes for secure installation
- Suitable for 3D printer rooms or enclosures
- Clean, functional design optimized for 3D printing
Recommended Use
- 3D printer room exhaust
- Enclosure fume extraction
- General-purpose air exhaust applications
Printing Notes
- Print in PETG, ABS, ASA, or another heat-resistant material if used near warm air
- No supports required
Happy printing!
