H2 AirMix Exhaust Adapter no Over-Extraction

This exhaust adapter is designed specifically for the Bambu Lab H2D / H2 Series and solves a common issue when using active fume extraction systems.

When connecting a strong external exhaust directly to the printer, the heated chamber air can be removed too aggressively. This may:

• reduce chamber temperature stability
• negatively affect ABS / ASA printing
• unnecessarily heat up the extraction system with hot air

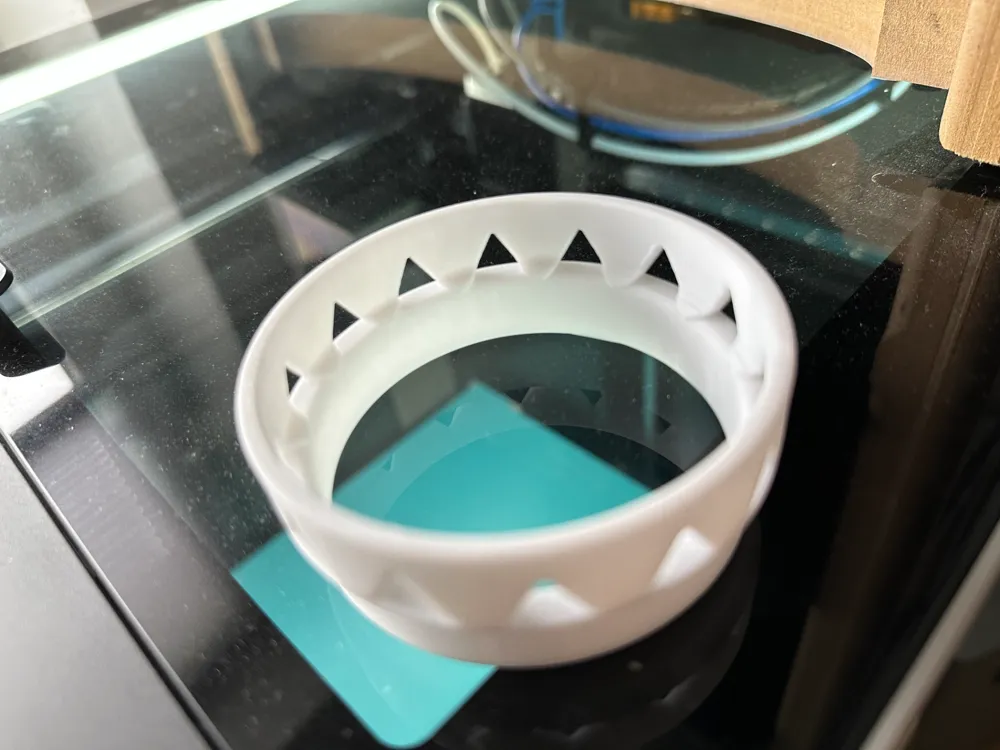

This AirMix adapter mixes fresh ambient air into the exhaust flow, reducing the suction force on the heated chamber while still maintaining effective fume extraction.

Key Benefits

• Prevents over-extraction of hot chamber air
• Helps maintain stable chamber temperature (up to ~65 °C)
• Reduces heat load on external exhaust systems

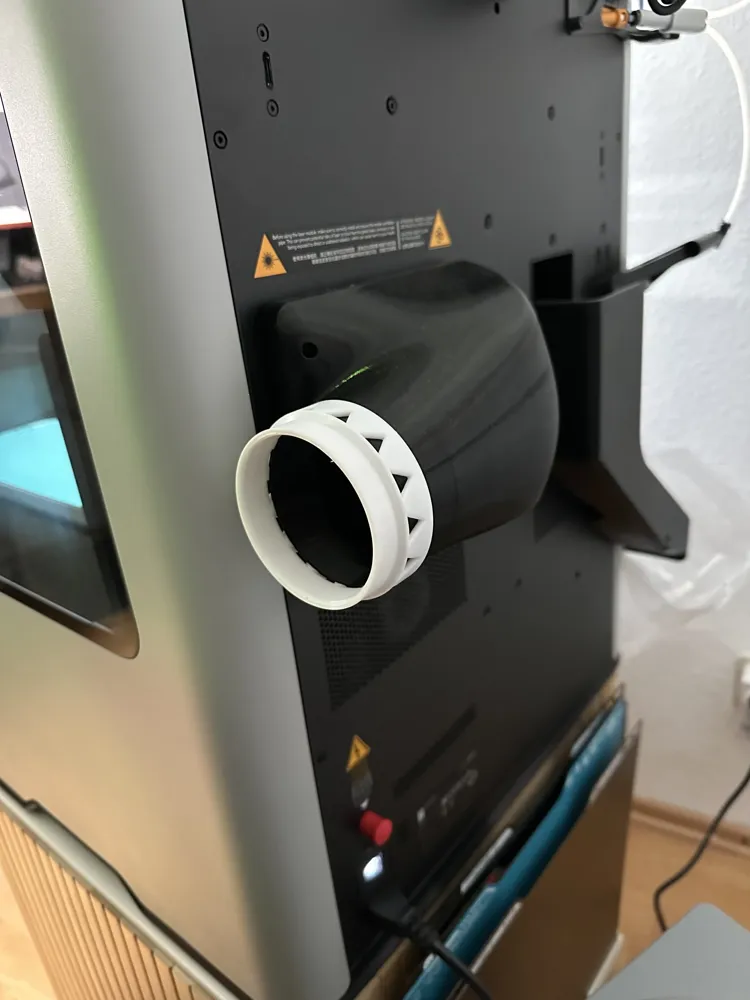

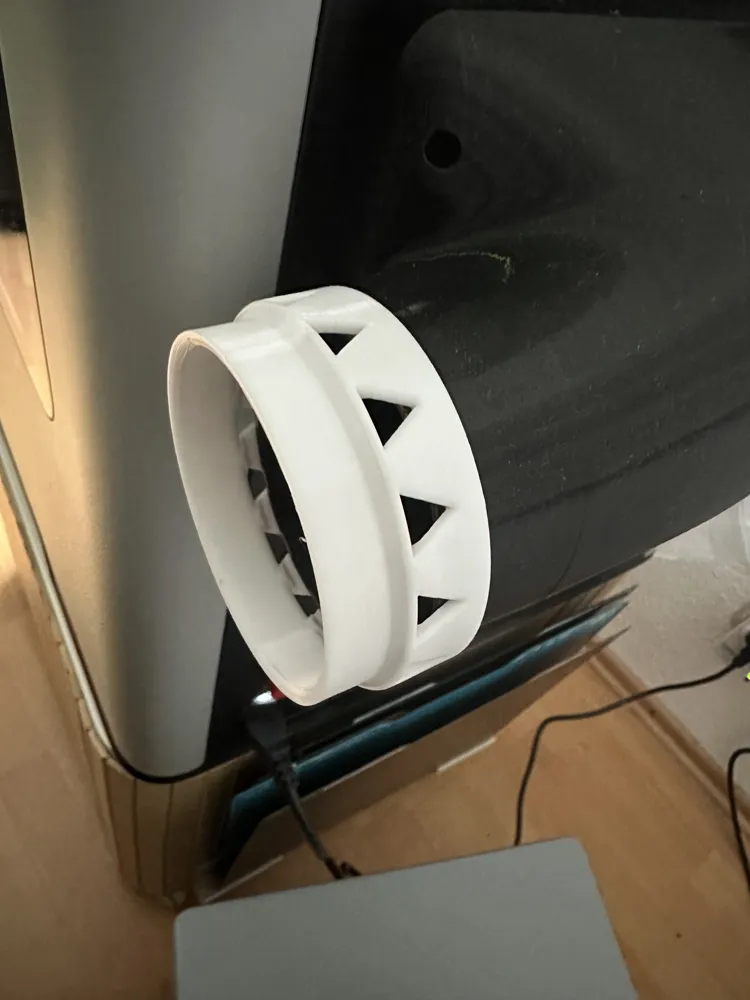

• Simple drop-in adapter - variable in fresh air mixture by pushing it more or less on the funnel piece.

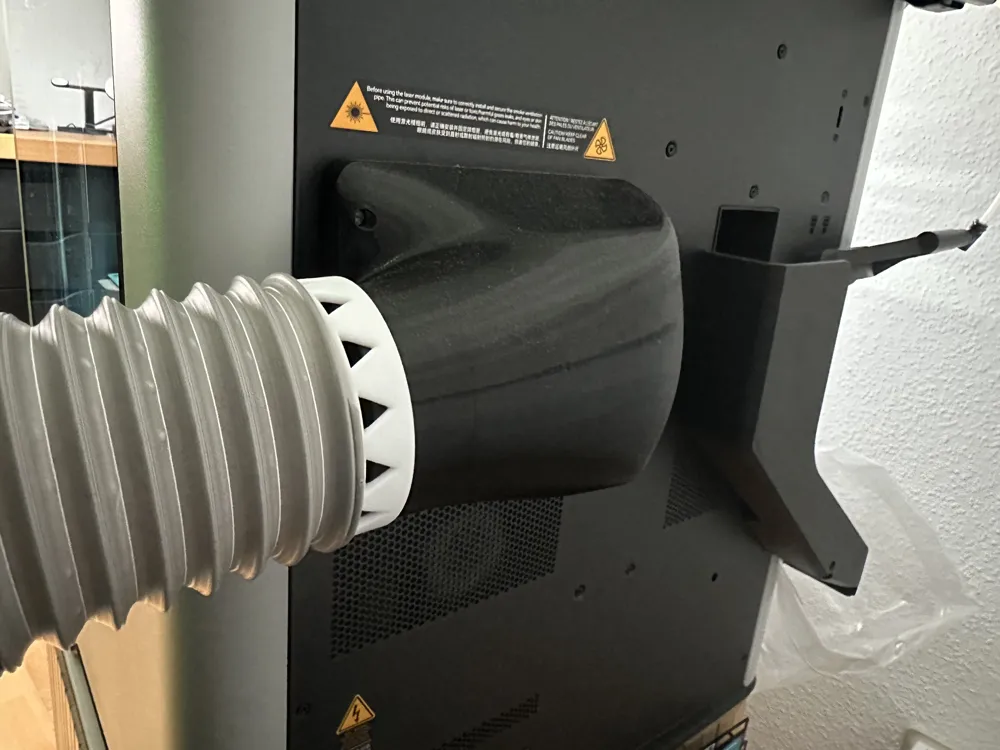

I used https://makerworld.com/de/models/1362718-h2d-h2s-right-angle-exhaust-vent-3in-4in-75-100mm#profileId-1407770 for the exhaustfan to hose adapter in the 75 mm hose version.

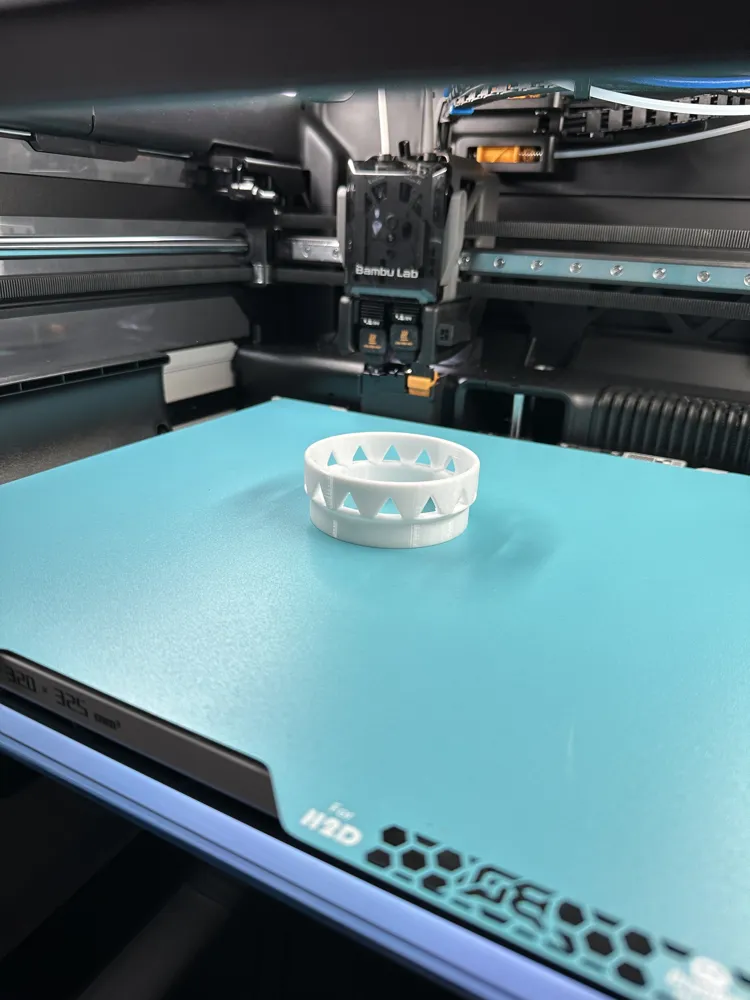

Maybe youve to scale the model for your needs. No supports needed for printing.

PETG is fine in my testes. ABS or ASA if you want to be sure.

Ideal for users printing ABS, ASA, PC or other high-temperature materials with an external ventilation system.

Designed for easy printing and reliable long-term use.
