G37 Motor Model Dummy

Welcome to my MakerWorld page!

Here you will find high-quality, cleanly designed, and everyday 3D models – developed with a focus on function, reliability, and straightforward printing.

⚙️ G37 Geared Motor – Precise 3D Model (Scale True)

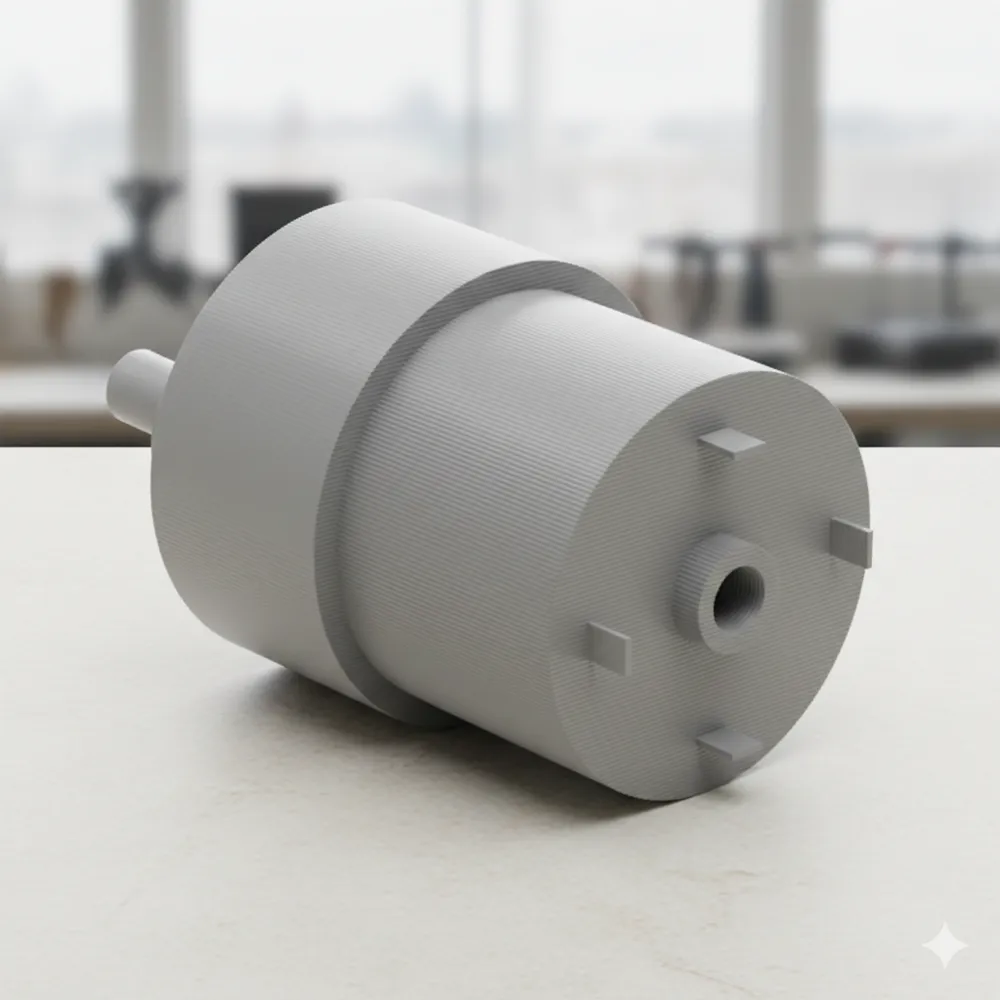

This project provides a highly detailed and scale-true 3D model of a standardized G37 geared motor. It was specifically developed for designers and engineers who want to integrate this component into their designs before the physical hardware arrives, or to create custom-fit mounts and enclosures.

🛠️ Technical Specifications (Based on Datasheet)

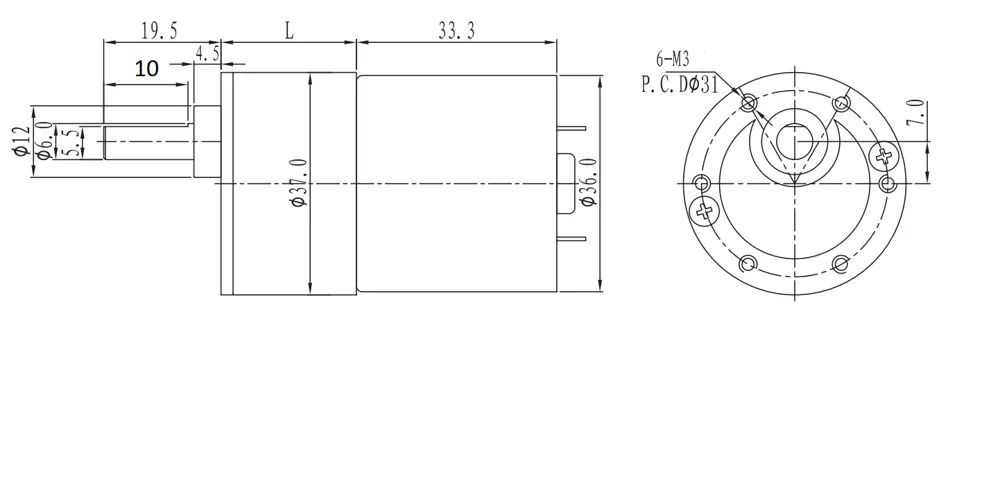

The model precisely matches the following mechanical dimensions:

• Housing Diameter (Gearbox): $37.0$ mm
• Housing Diameter (Motor): $36.0$ mm
• Overall Length (without shaft): $33.3$ mm + Variable $L$ (depending on gear reduction)
• Shaft Details:
  • Diameter: $6.0$ mm (D-Shape shaft for non-slip fit)
  • Length: $19.5$ mm (Total from gearbox plate)
  • Visible shaft length up to D-cut: $10.0$ mm
• Mounting: 6x M3 threaded holes on a bolt circle of $31.0$ mm ($\text{P.C.D. } \varnothing 31$)
• Shaft Axis Offset: $7.0$ mm to the center axis (Eccentric)

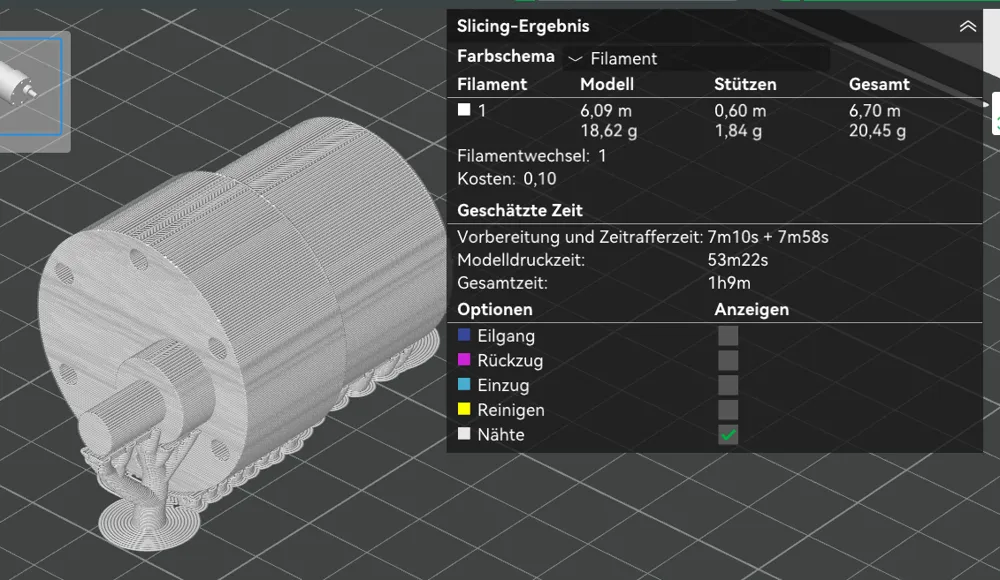

🖨️ Print Recommendations

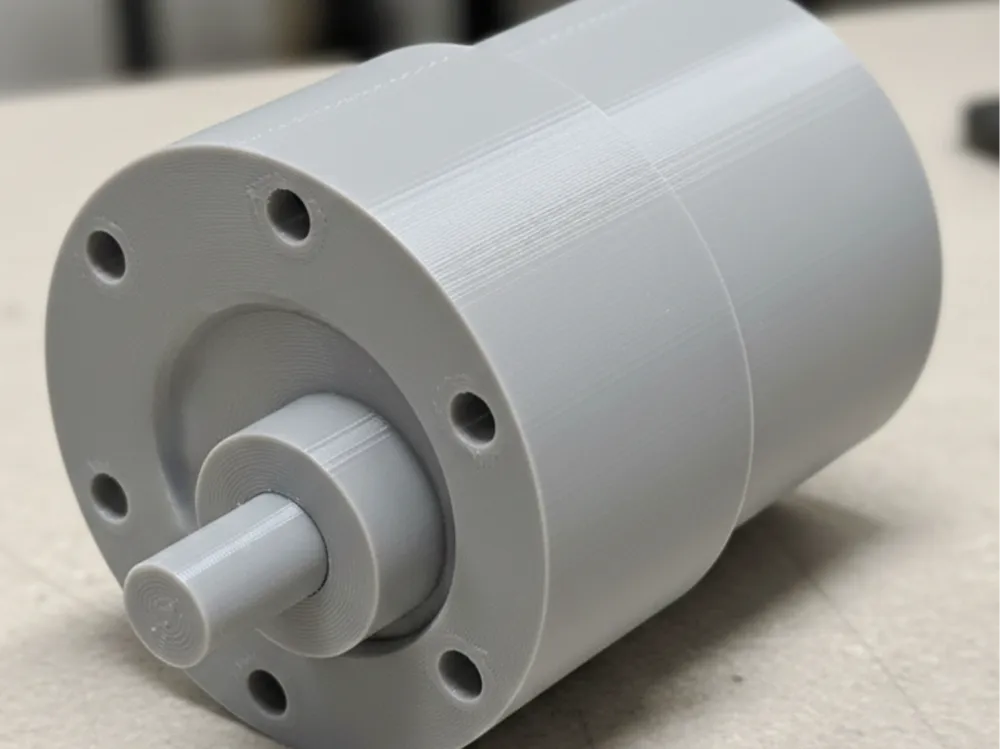

Although this model primarily serves as a placeholder (dummy) for CAD designs, it can be printed for prototypes:

• Material: PLA, PETG, or ABS (for better heat resistance near actual motors).
• Layer Height: $0.12$ mm to $0.2$ mm for precise shaft and hole dimensions.
• Walls: At least 3 wall lines to ensure shaft stability.
• Support: Only minimal support needed on the underside of the housing if printed horizontally.

💡 Application Notes

Use this model to:

1. Design mounts without constantly measuring the real motor.
2. Perform space checks in complex robotics projects.
3. Create animations and renderings of your finished assemblies.

Danke fürs Vorbeischauen!

Wenn dir meine Modelle gefallen, freue ich mich über Likes, Downloads, Makes oder Feedback.
Gemeinsam verbessern wir die MakerWorld‑Community Schritt für Schritt.

– Viel Spaß beim Drucken :)
