Simplecore redux z for 200mm belt and mgn9 rail

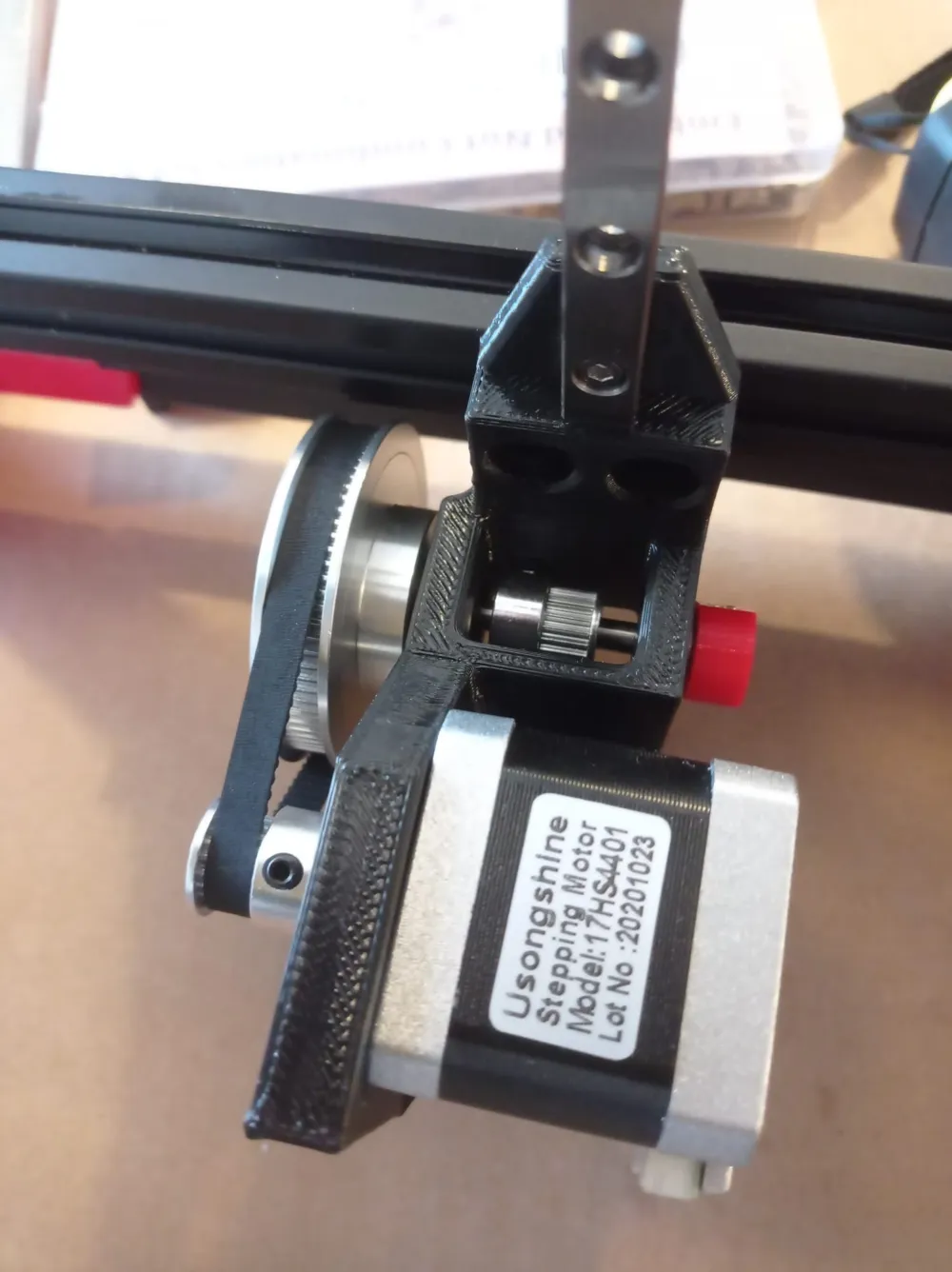

Modified Z Motor Mount – 200 mm Belt & Geared Pulley Clearance

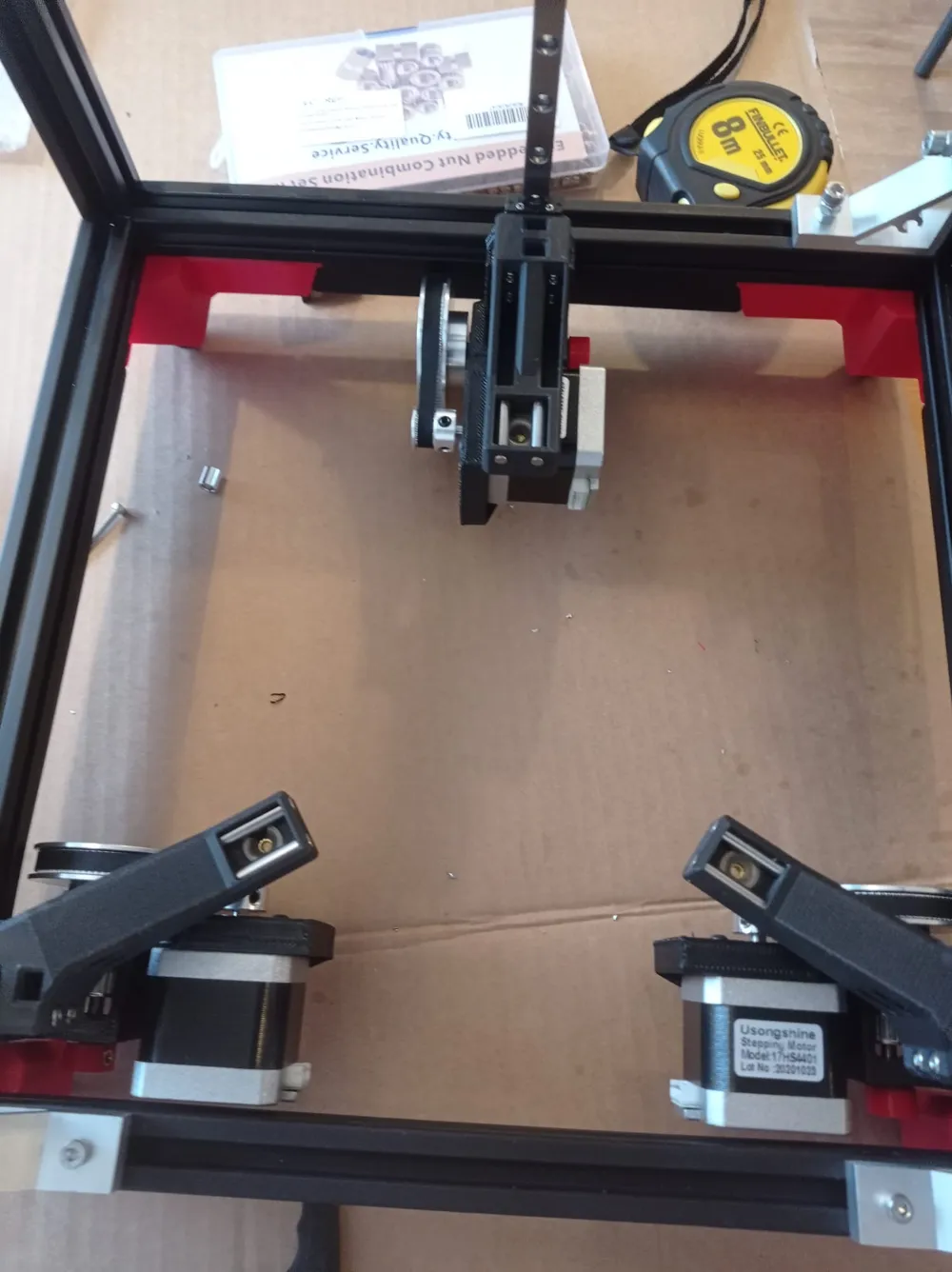

This is a modified Z motor mount for the SimpleCore Redux, designed to support a 200 mm Z belt and provide additional clearance for a geared Z pulley compared to the stock mount.

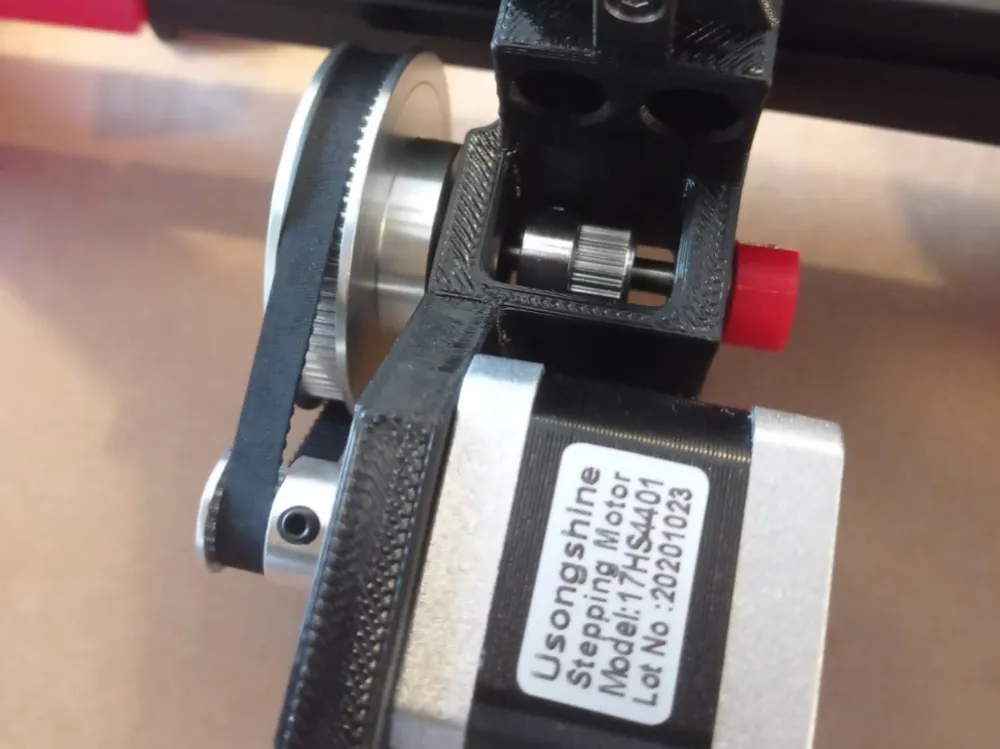

The design includes integrated locating features for an MGN9 linear rail, intended to be mounted using M3 heat-set inserts (M3 ×4 × 5) for accurate and repeatable alignment. To improve reliability, the mount also includes a dedicated nut for constraining the pulley axle, preventing axial movement during operation.

A STEP file is included, making the part easy to modify for different Z rail sizes or custom SimpleCore Redux configurations. This allows quick adaptation to other linear rails without needing to redesign the entire mount.

Features

• Designed for SimpleCore Redux
• Supports 200 mm Z belt setups
• Extra clearance for geared Z pulleys
• MGN9 rail locating features
• Compatible with M3 × 4 × 5 heat-set inserts
• Pulley axle retaining nut included
• STEP file included for easy customization
• Simple to adapt for different Z rail types

Printing Notes

• Print in a stiff, dimensionally stable material (PETG, ABS, ASA, or Nylon recommended)
• Use heat-set inserts for best strength and long-term durability

Assembly

• Use m3 heatset inserts on the nut and m3 grupscrews to tighten it against the washer
• Mount the f695 bearings on the outside of the mount with washer between bearing and nut.
