220mm Losmandy Style Universal Mounting Plate

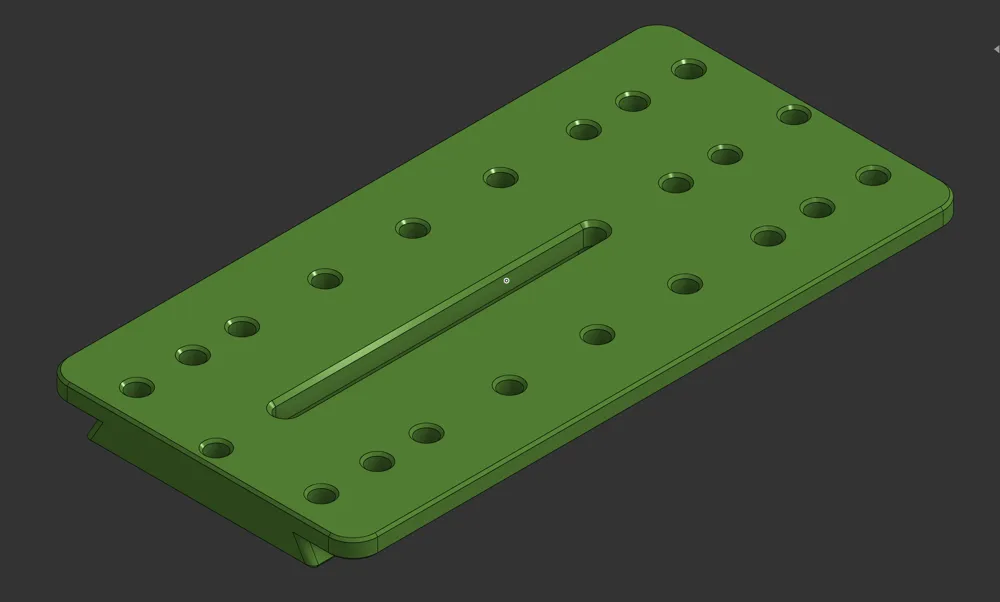

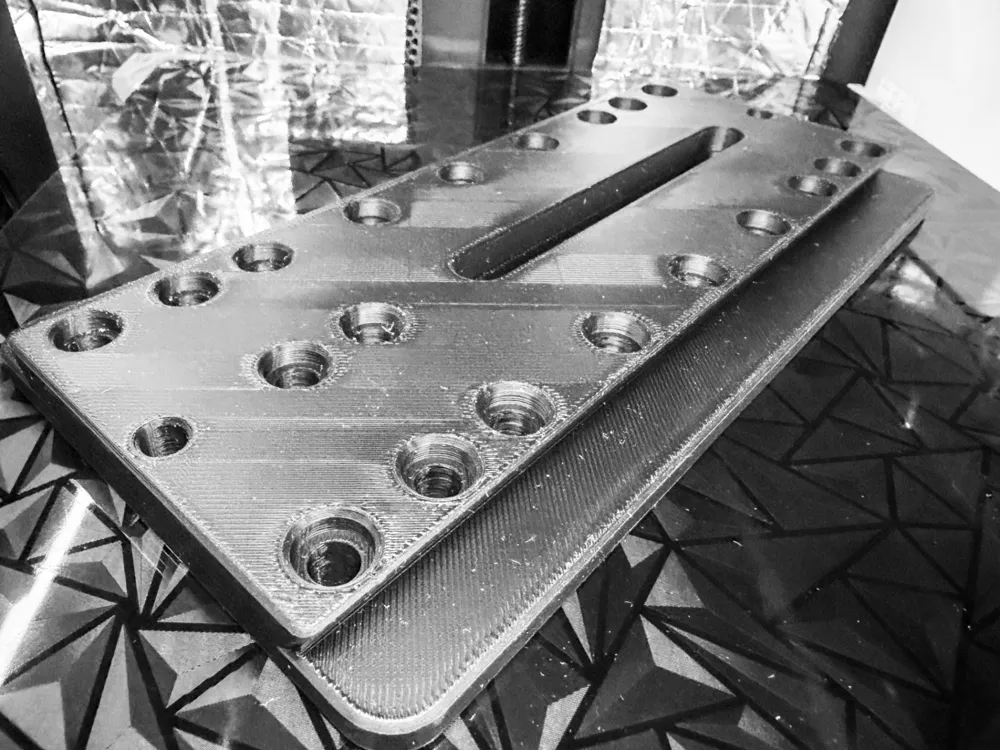

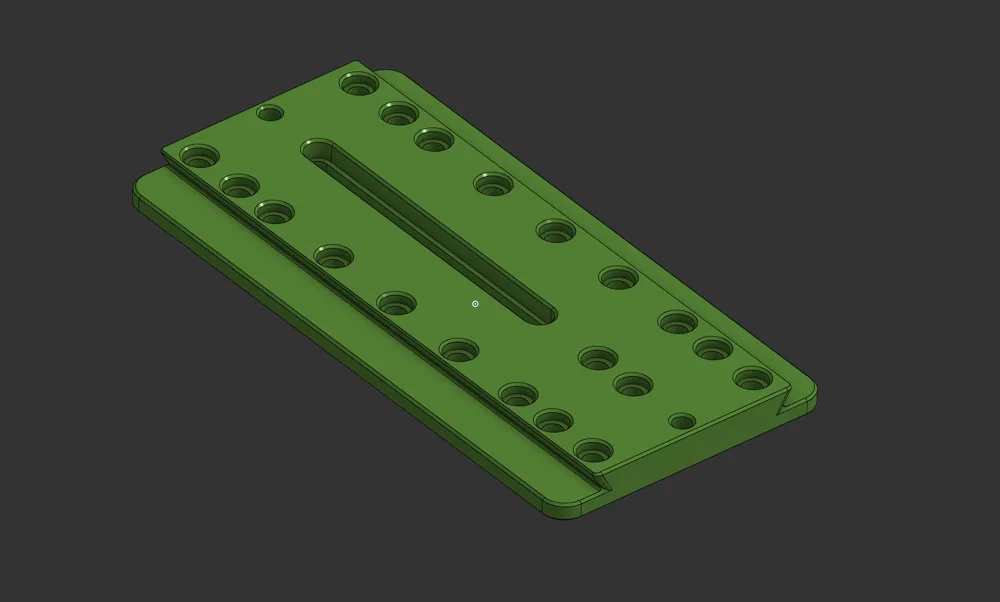

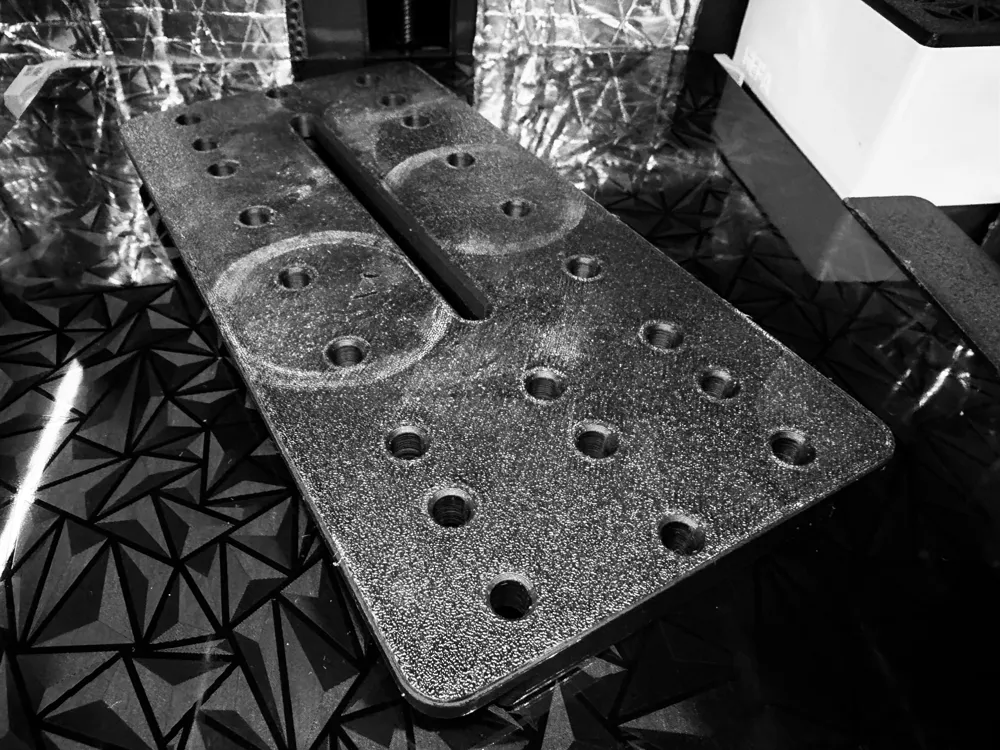

This is a 220mm Losmandy-style dovetail mounting plate designed for astrophotography and telescope mounting. The plate features a central slotted channel for flexible positioning and a wide array of countersunk mounting holes to accommodate various tube rings, guide scopes, or custom hardware.

Design Features

• Dimensions: 220mm length with a standard Losmandy-width dovetail profile.
• Versatility: Multiple M6/1/4-20 compatible countersunk holes and a central sliding slot.
• Lightweight & Rigid: Optimized for FDM printing to provide a balance of weight savings and structural integrity for equipment mounting.

Print Settings

• Printer: Bambu Lab P1S
• Filament: ABS (Recommended for UV resistance and thermal stability during outdoor sessions)
• Nozzle: 0.4mm
• Wall Loops: 4–6 (Recommended for structural strength)
• Infill: 40% or higher (Gyroid or Cubic recommended for compression strength)
