Sawstop Arbor alignment tool with Mitutoyo 2046A

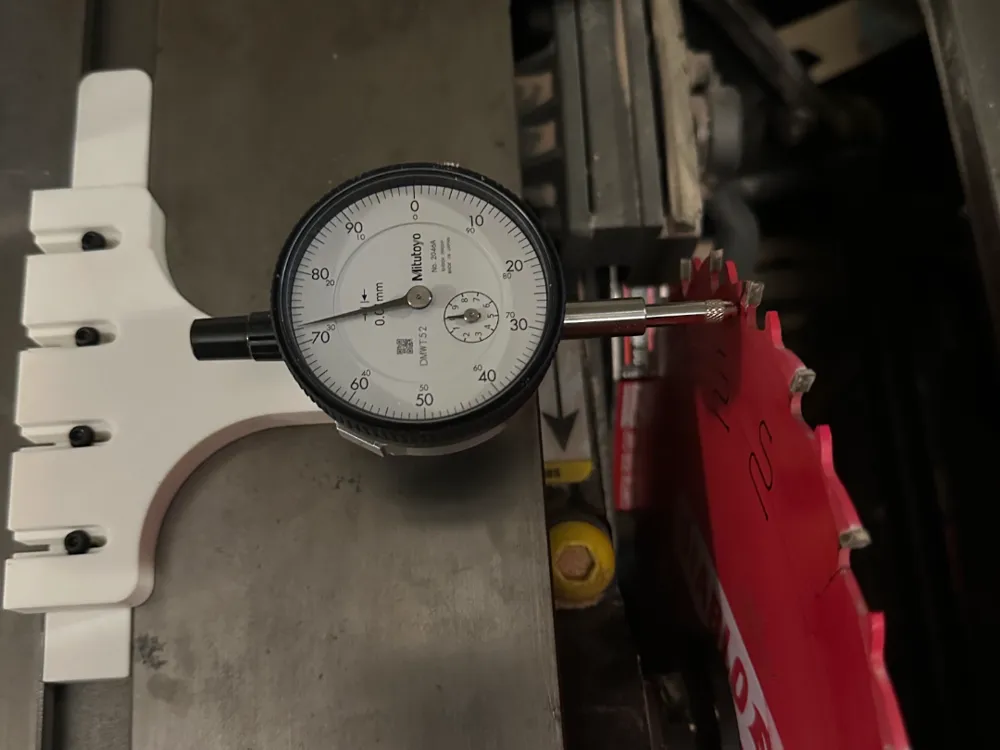

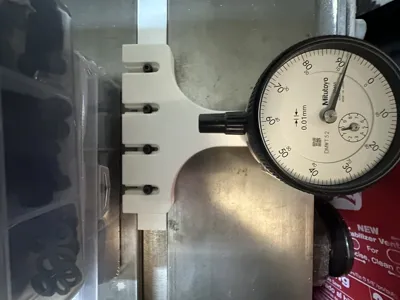

Another miter bar, or in this case arbor, alignment tool specifically for the Sawstop contractor saw. I used M2.5 bolts to secure the dial indicator arm to the miter bar slide and heated inserts in the slide itself. there are rounded indexing bars to keep the arm perpendicular to the miter slot. I also used a M6 bolt and nut to secure the dial indicator to the arm. There is about .05mm slop in the slider against the miter slot. Any les and it would not have moved freely. I fixed that by applying slight pressure against the back of the arm. I was able to get the blade to within 0.03 mm when referencing the same spot on the same tooth.
