BabyDan Gate Height Extension
Print Profile(1)
Bill of Materials
- Super Glue x 1: Gluing parts together
- Cable ties x 36: 18 for each extension
Description

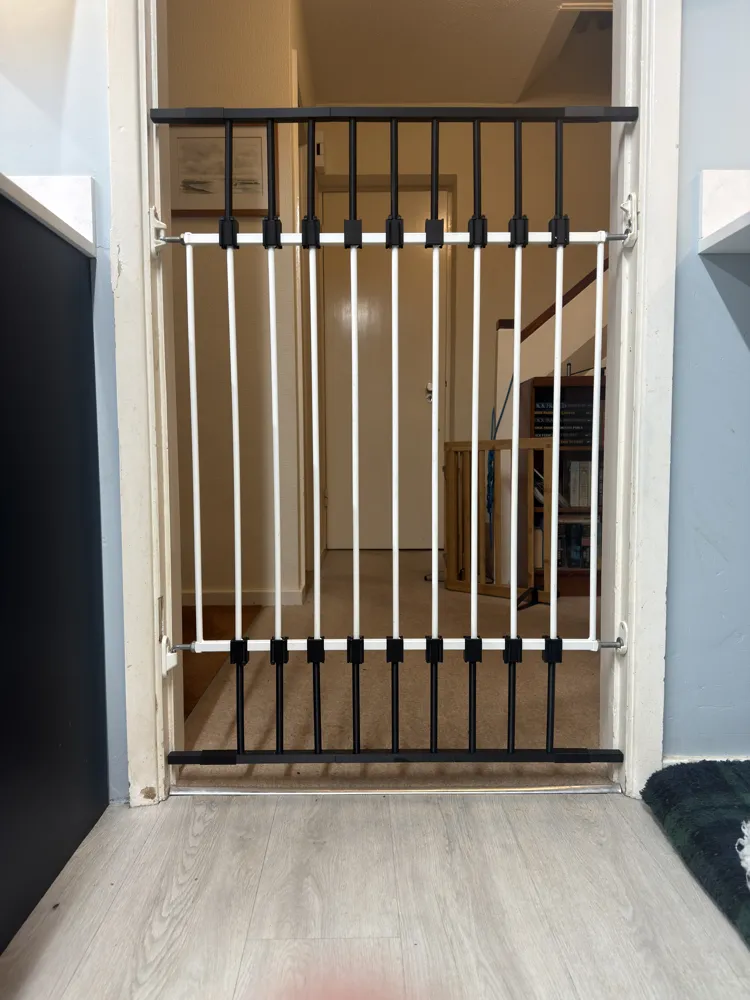

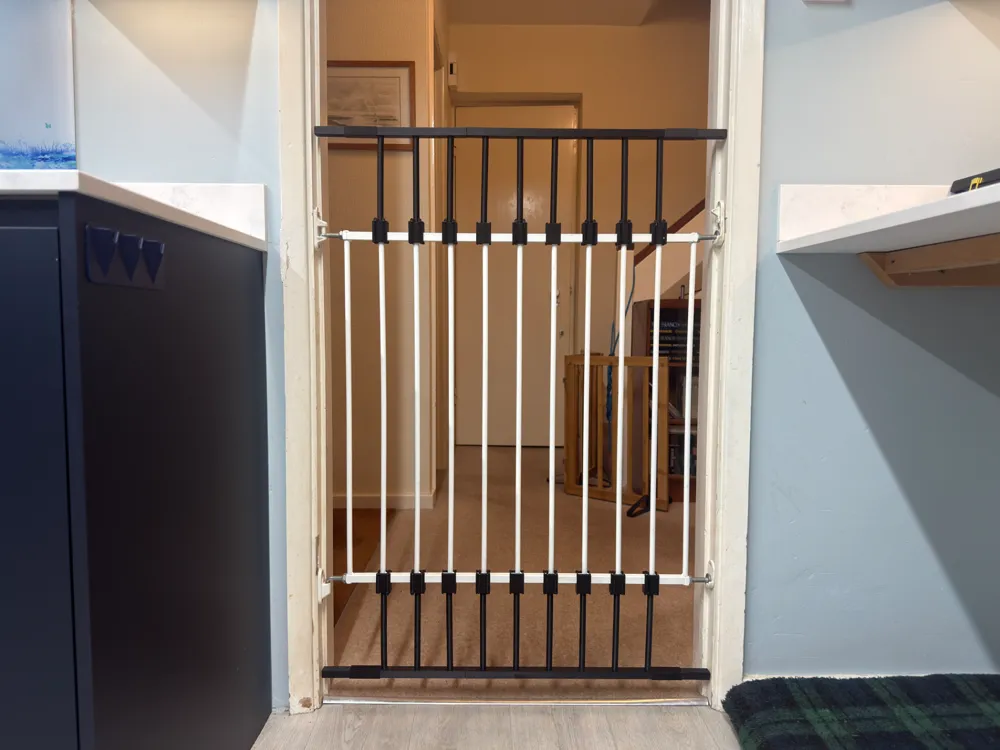

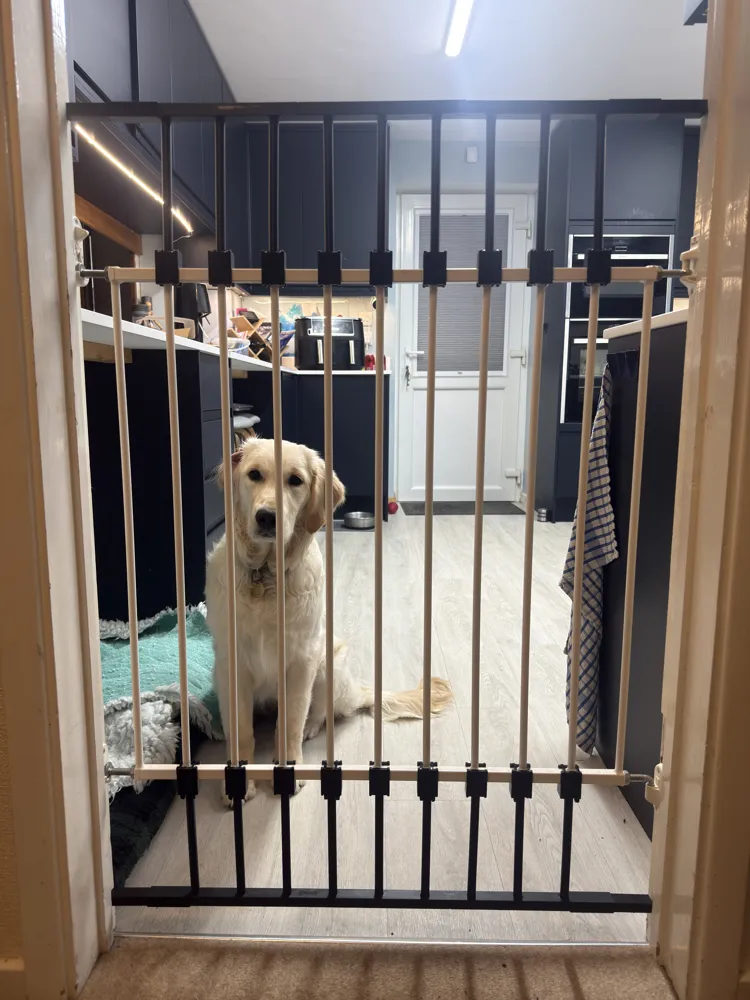

Extension for BabyDan gate to stop dog jumping over.
Extends the height of gate to 1.1m
rises the gate up by 205mm and then adds 205mm to the top.

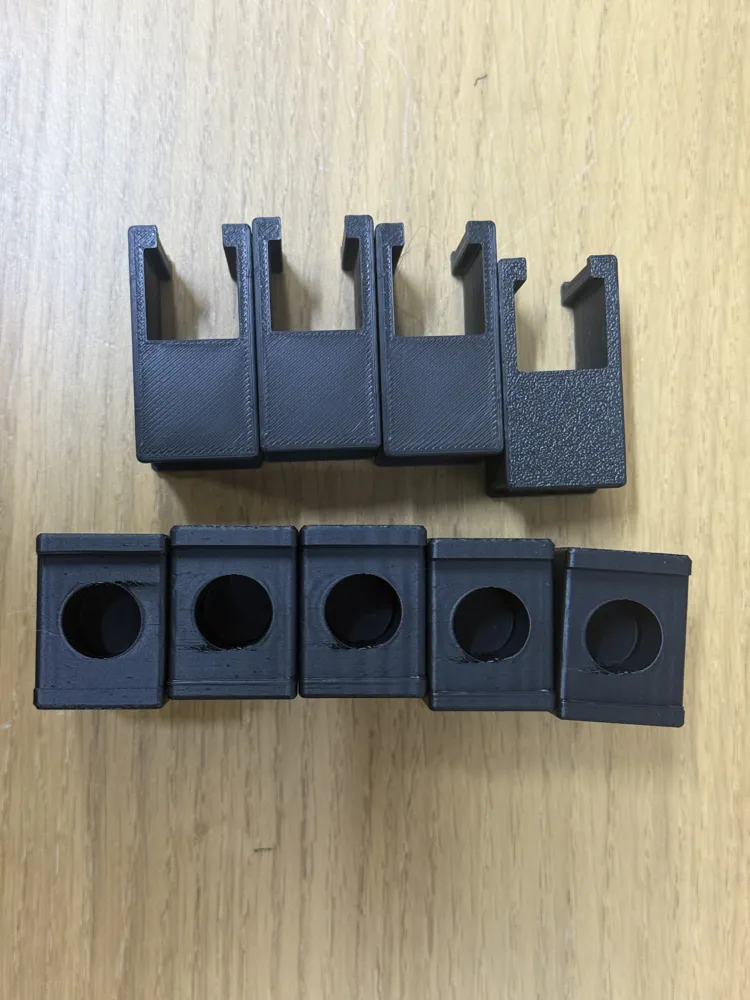

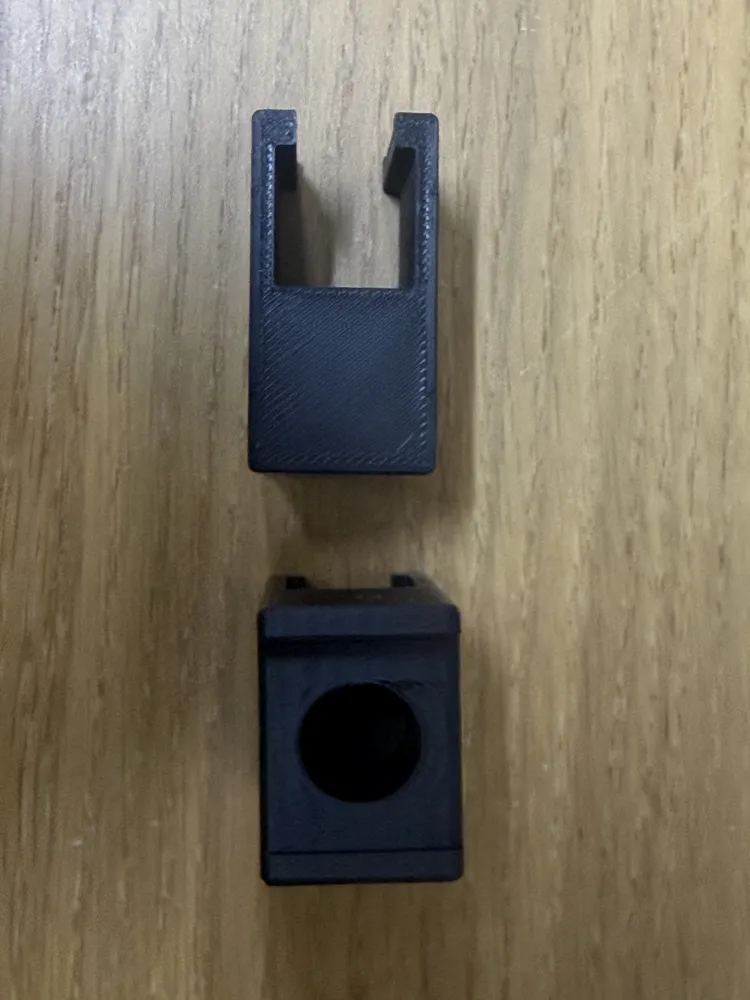

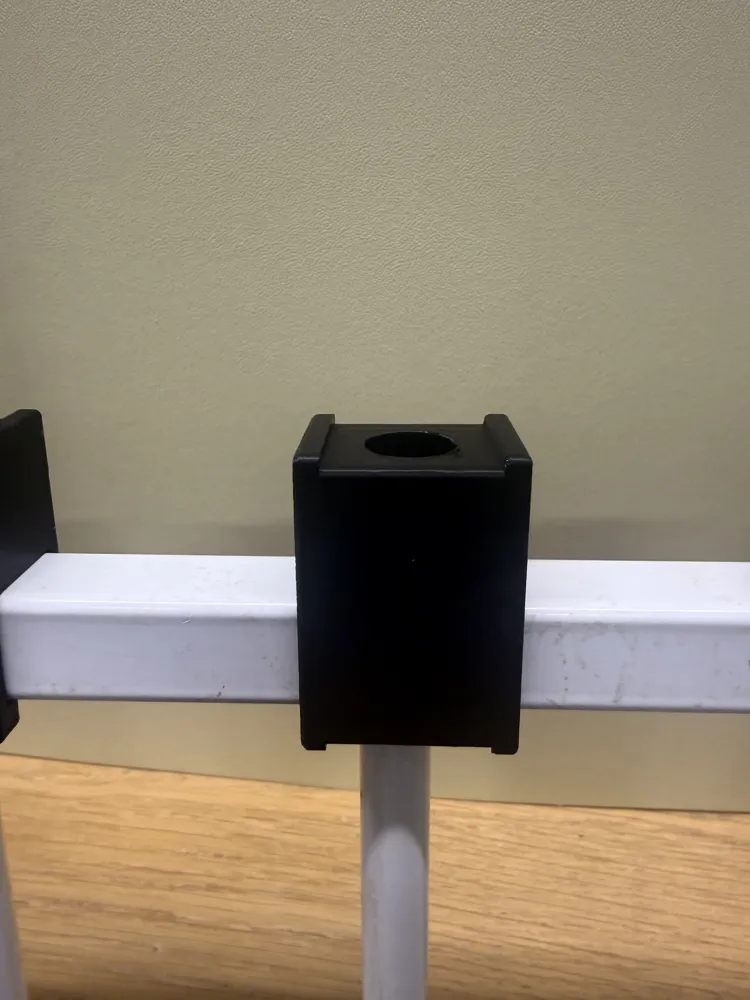

The clips are tight to get over the square bar but will go. Line these up with the poles.
They are then cable tied both sides. There is a lip top and bottom of the clip to stop the tie from slipping off.

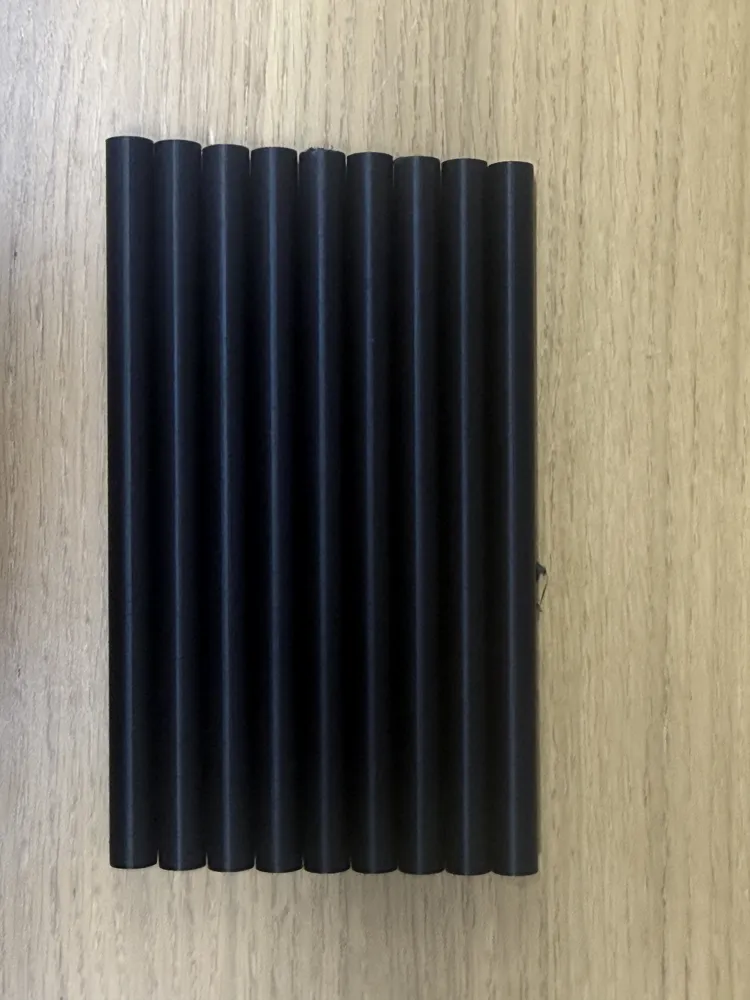

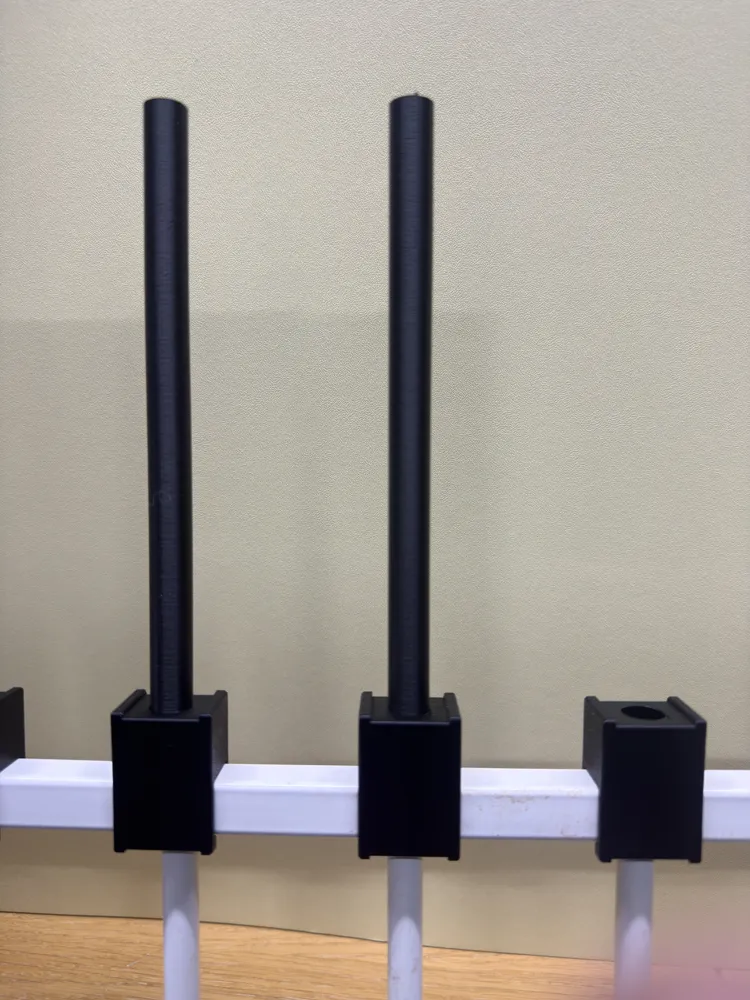

next glue the pole in to the clips.

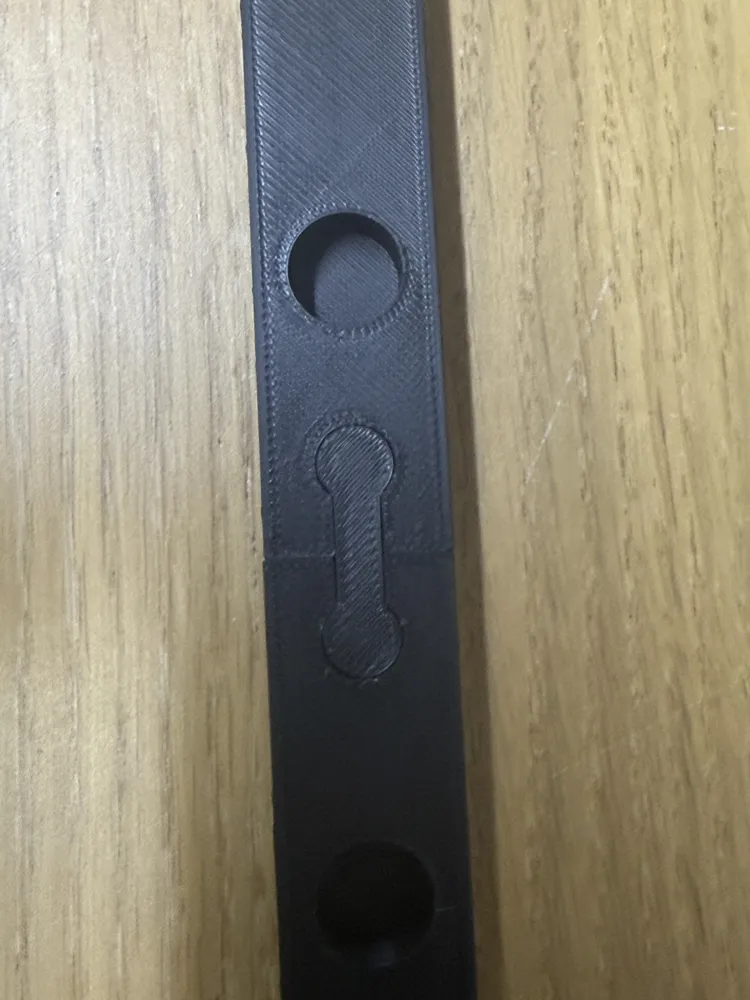

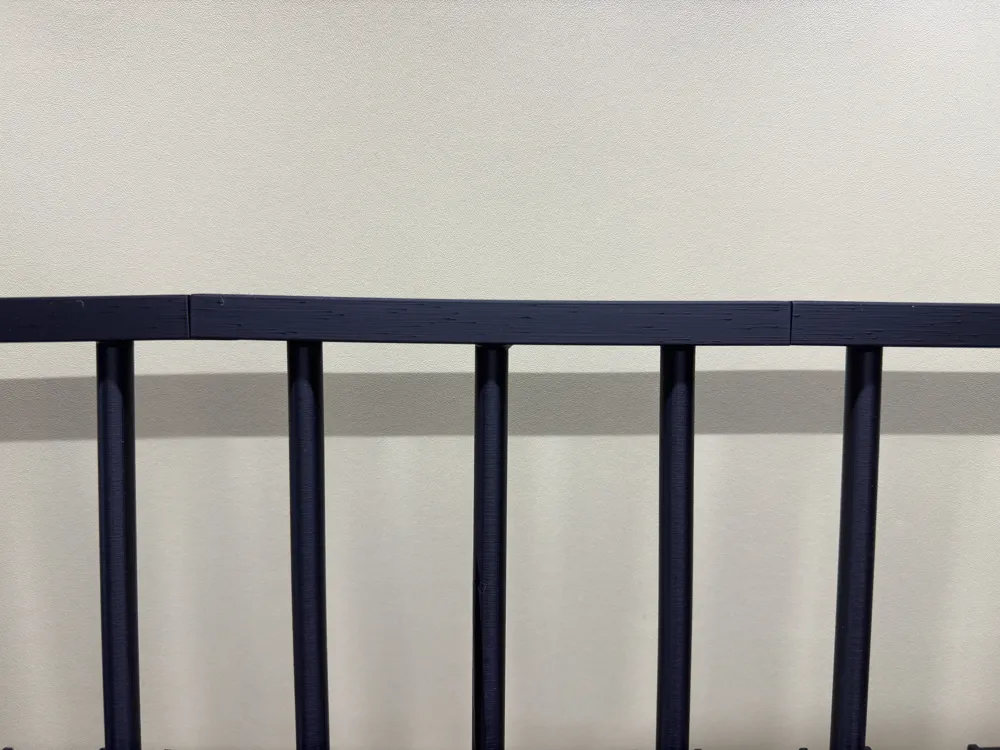

Make up the bar to with the key joints. This will be 600mm. Dry fit to the poles to make sure alinement is correct then glue in place.

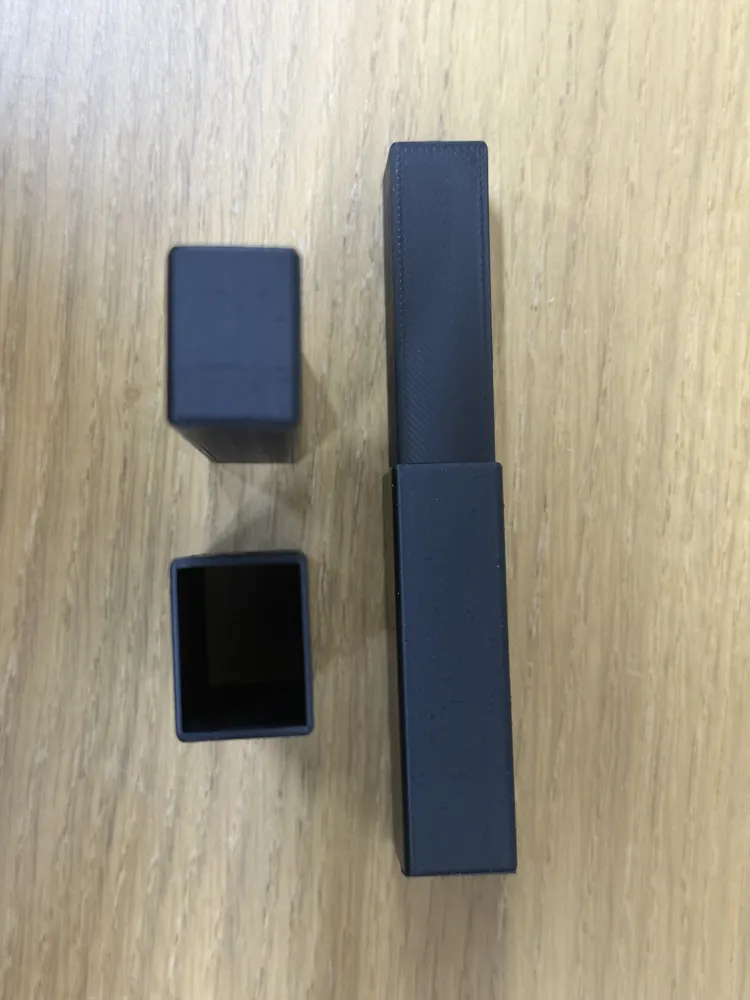

There is an extension for the bar. This is made up of a hollow tube glued to the bar. The extension bar can be adjusted in length to fit
the gap you have in the door way.
