BuBBLe Modular Phone Arm Stand

IP Report

Print Profile(1)

All
P1S
P2S
X1
H2D
H2C
A1
H2S
H2D Pro
X1 Carbon
P1P
X1E
X2D
A2L

0.2mm layer, 2 walls, 8% infill
0.2mm layer, 2 walls, 8% infill
Designer
25.3 h
7 plates

Open in Bambu Studio
Boost
6
22
0
0
9
0
Released

Description

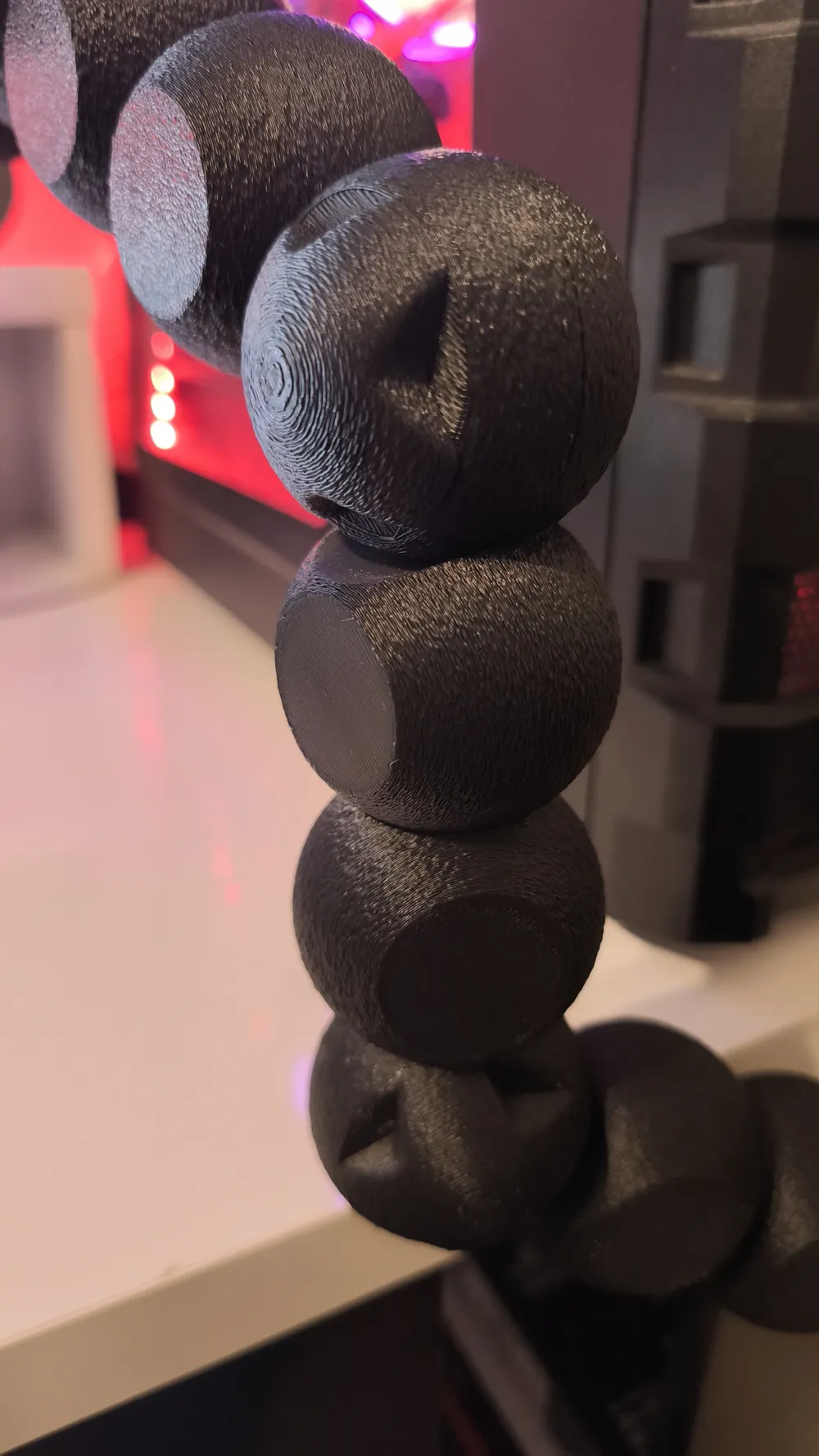

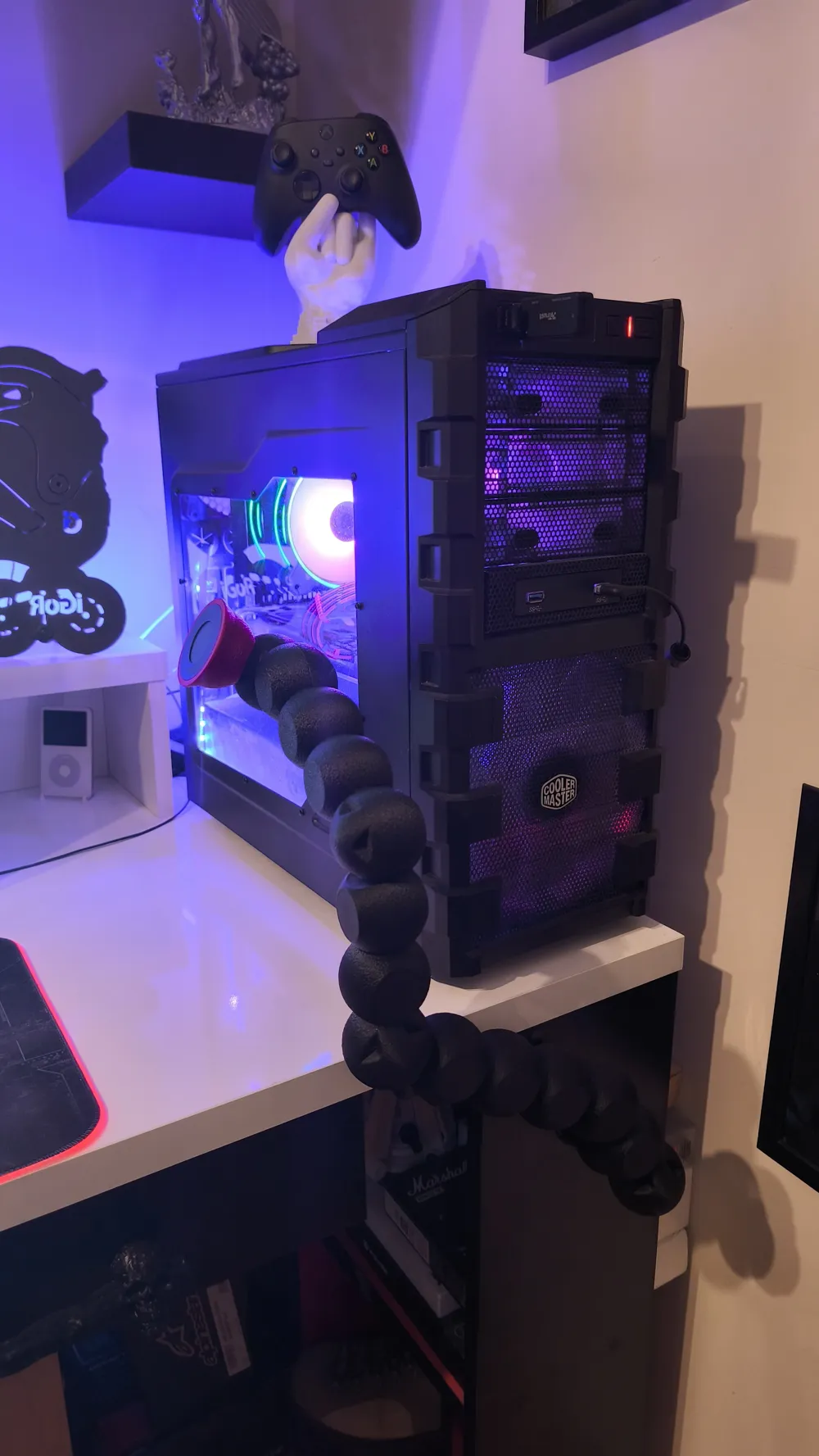

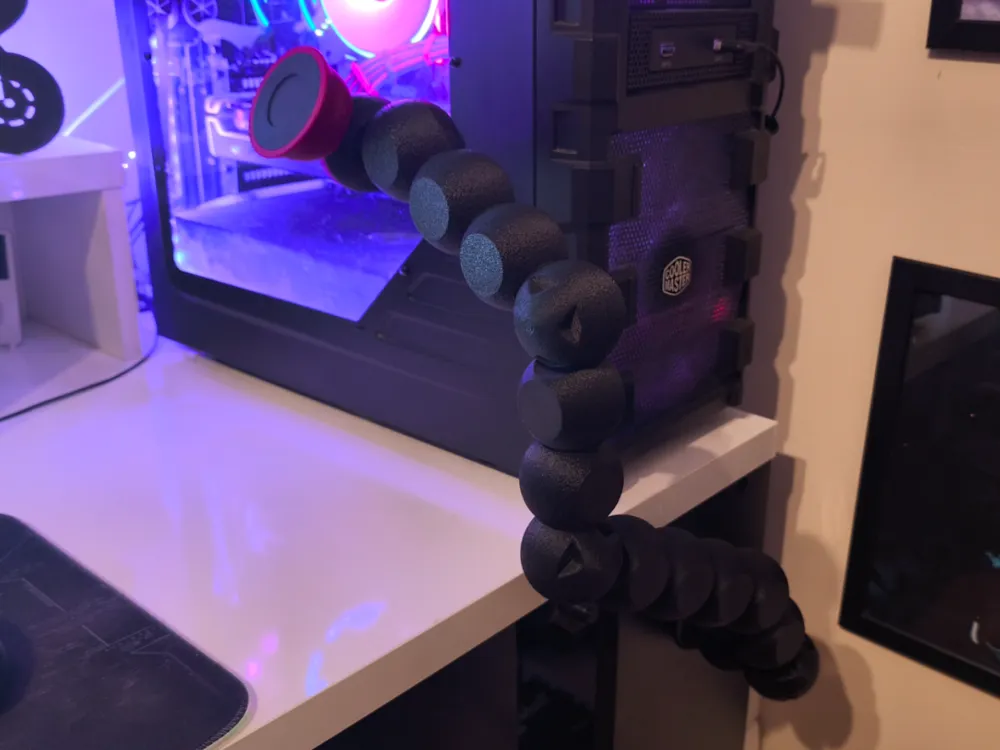

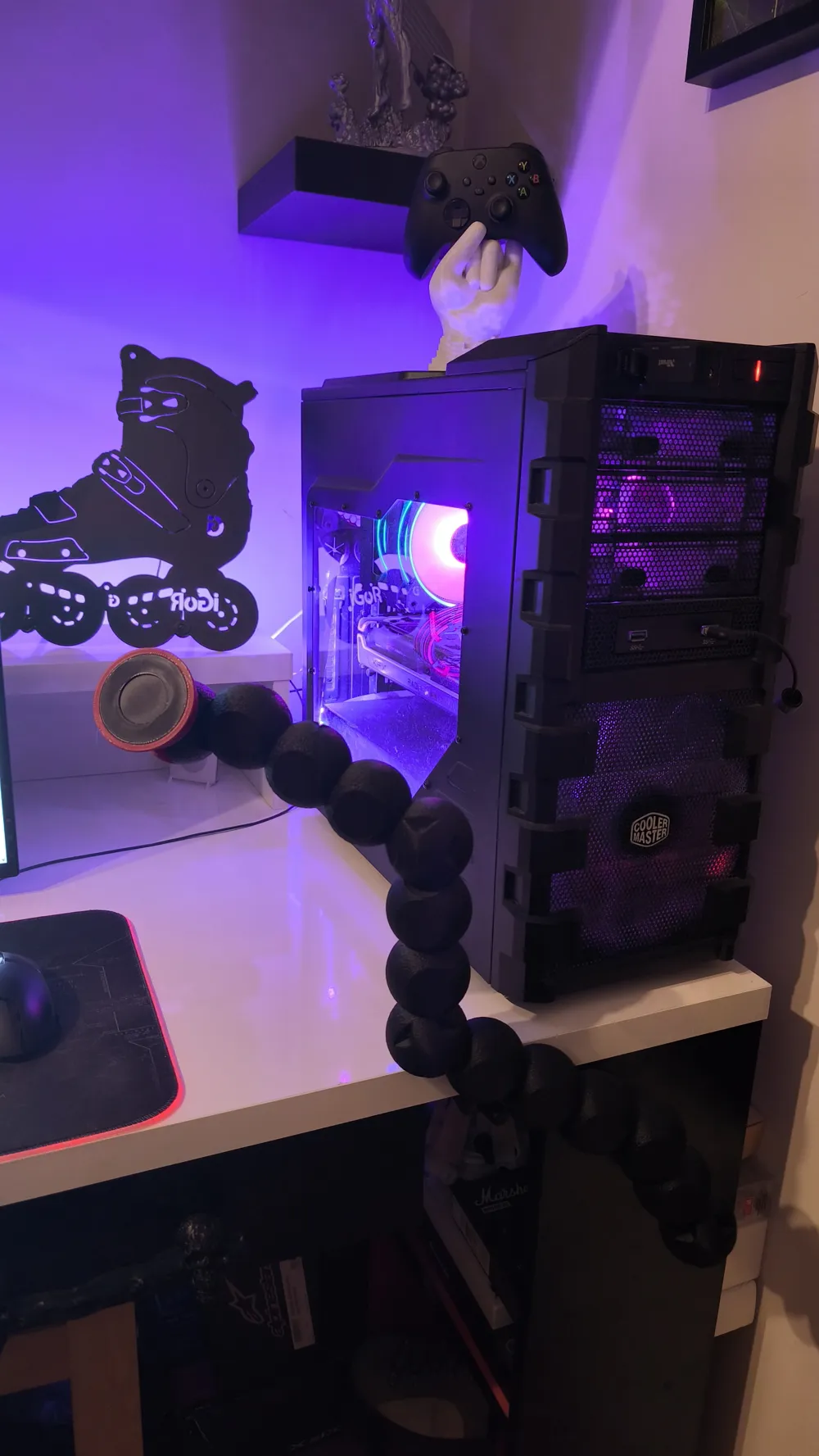

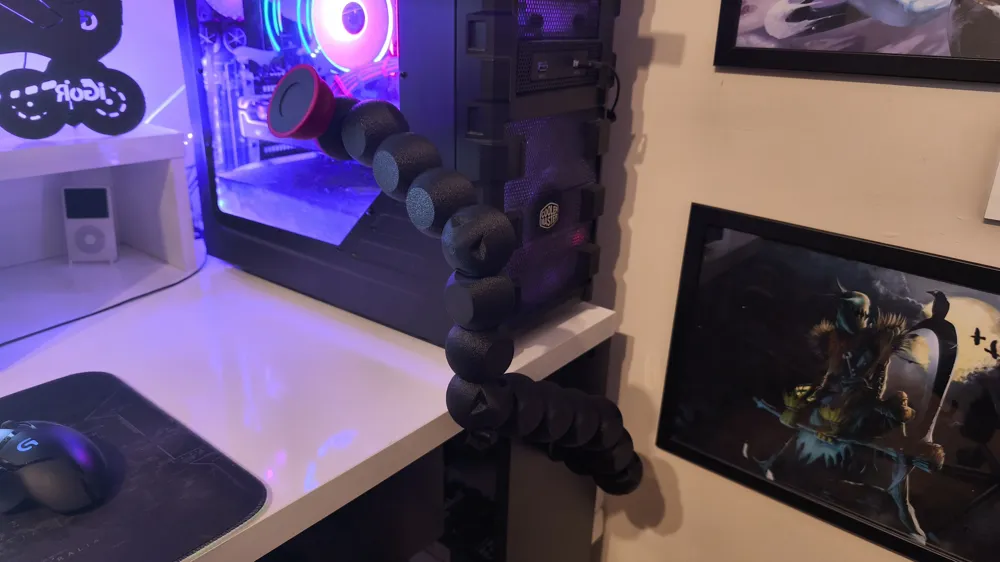

I researched arm designs so I could easily see my phone while using my computer, but I couldn't find anything with the visual appeal I wanted.
I decided to design myself.

You can remove fuzzy skins to shorten production times.

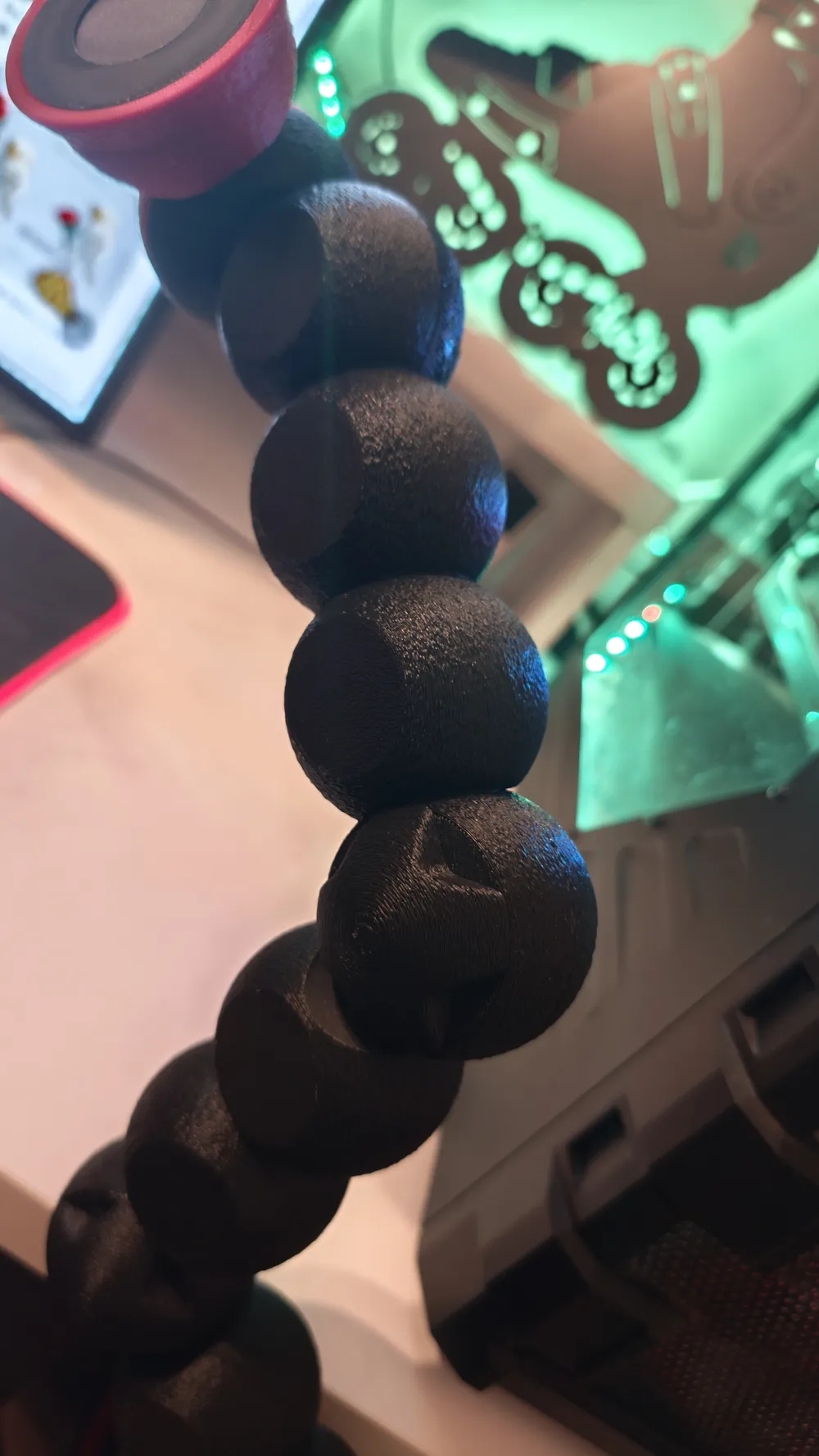

I designed a magnetic version for Magsafe cases. It stops during printing; you place the magnets and continue. Be sure to test the magnet orientation beforehand.

Also you can use standart version for without magsafe phones.

Magnet dimensions: 8x3 mm - 8 pieces.
After printing the magnetic part, attach it to the stick with glue.

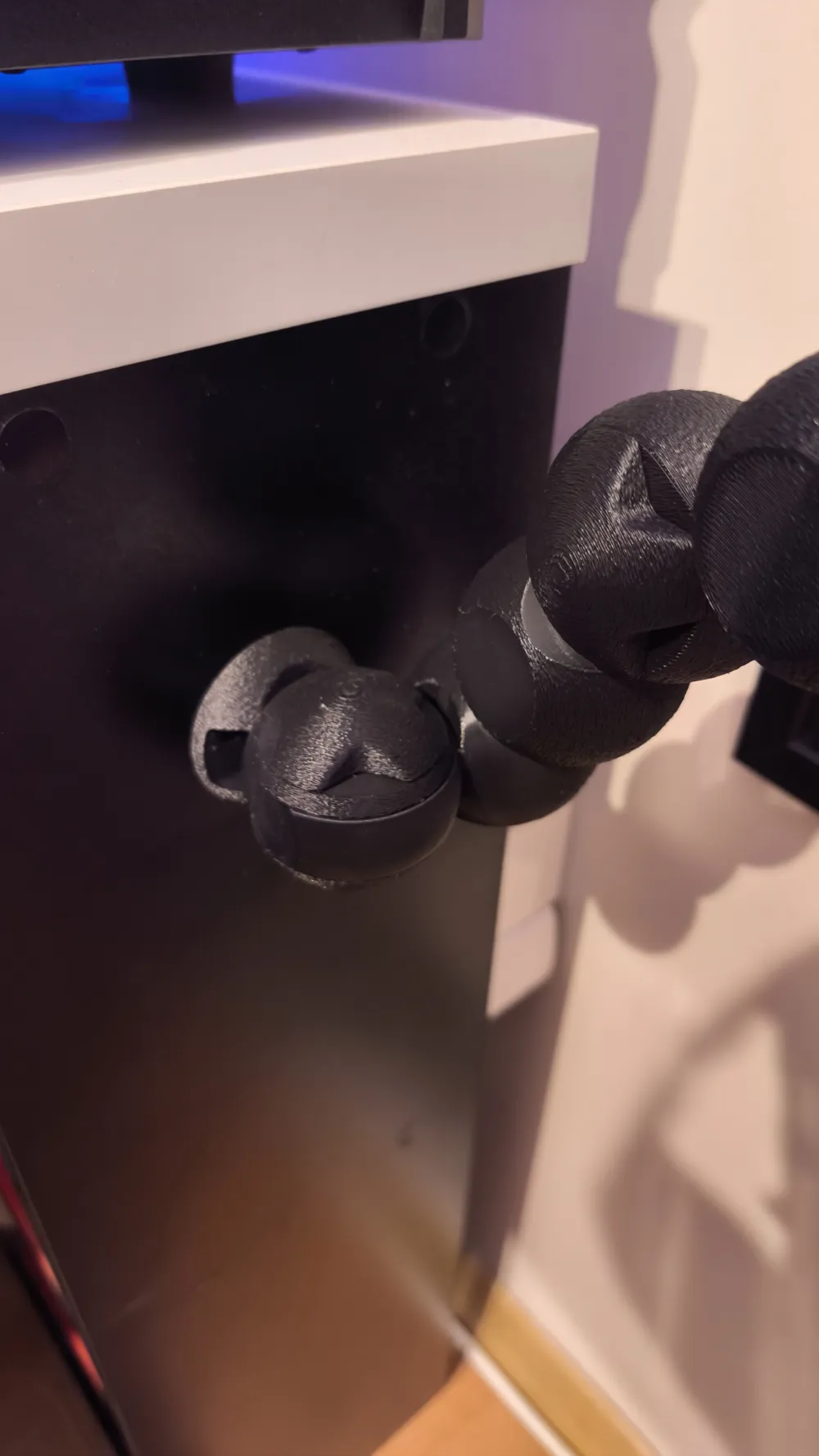

If you want to fix it to table, you need 3,9 x 12 screws 3 pcs.

I also added a piece to hang your headphones.

Don't forget to print one nut onto each arm.

The nuts might not turn easily the first time you make them. Hold them with a soft cloth and open and close them. Let the threat get used to each other. Then you can use them comfortably.

If I have some free time soon, I will also work on a table clamp and tripod legs. Keep follow.

If you like it, you can boost me.

Boost Me (for free)

Boost me for more designs :)

Don't forget to share your prints so that people can get different color and design ideas.
