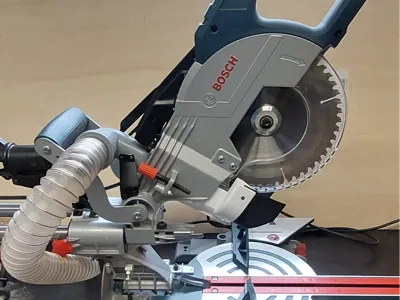

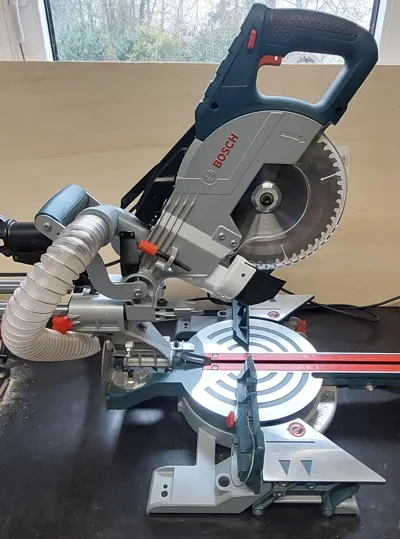

Bosch Kappsäge.jpg

Absaugung 6.jpg

Absaugung 2.jpg

Absaugung 4.jpg

Absaugung 8.jpg



<ul><li>0.12mm layer height will reduce support need drasticly</li><li>3 walls for better air tightness</li><li>PLA or PETG</li></ul>

0.12mm layer, 3 walls, 15% infill

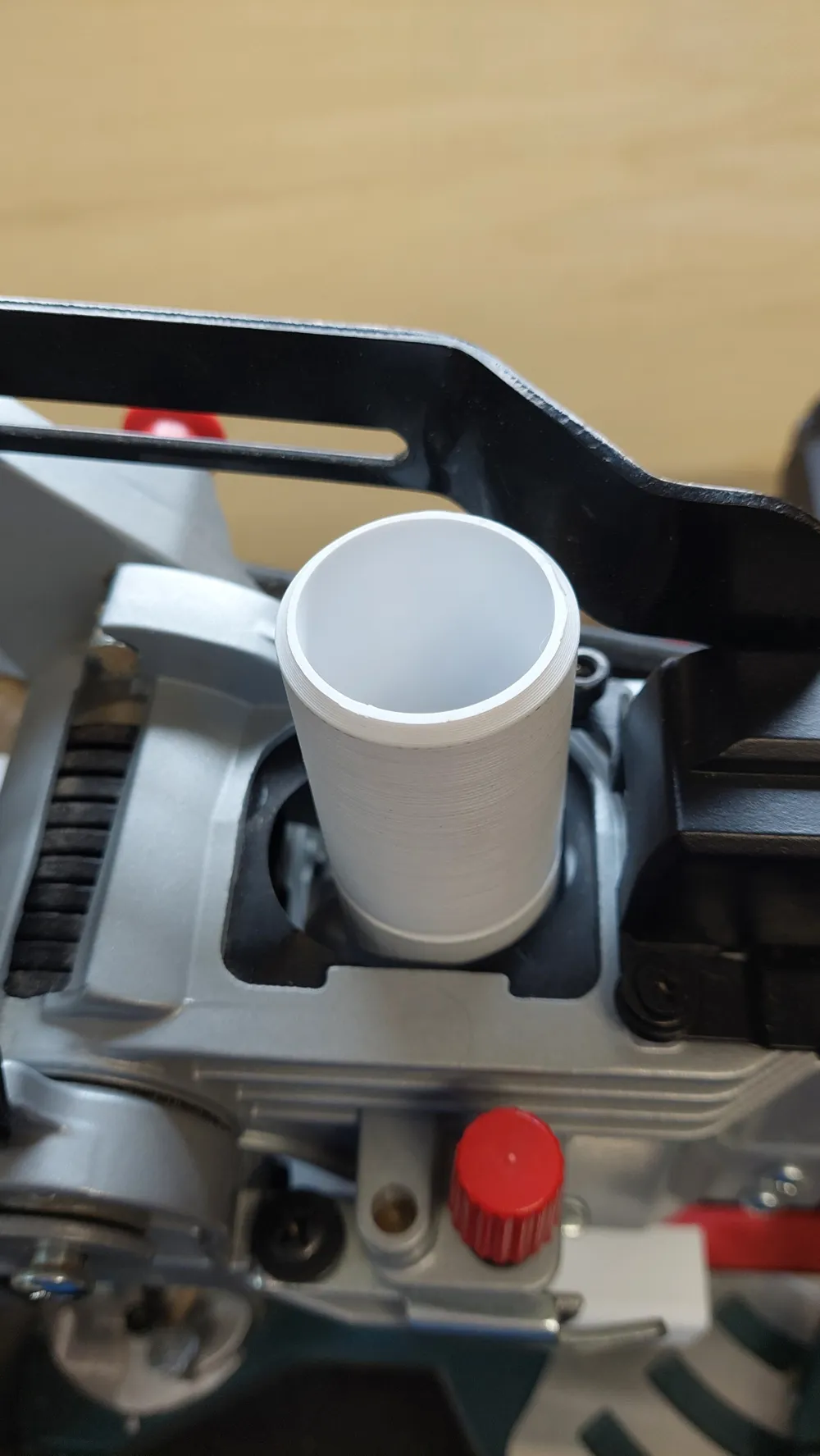

Die Staubentwicklung war bei meiner Kappsäge “Bosch GCM 8 SJL Professional”  sehr hoch. Auf Basis unterschiedlicher Idee aus dem Internet habe ich deshalb ein 3 D Druck Teil entwickelt und es statt der werksseitig installierten, leider kaum wirksamen Staubabsaugung eingebaut. Trotz der relativ geringen Leistung der Absauganlage ist das Teil erstaunlich effizient. &nbsp;It is well known that crosscut saws generate a lot of dust. Based on various ideas found on the Internet, I developed a suitable 3D-printed part for my Bosch GCM 8 SJL Professional crosscut saw. Despite the relatively low power of the extraction system, it is surprisingly efficient.

The dust generation from my Bosch GCM 8 SJL Professional miter saw was very high. Based on various ideas found online, I developed a 3D-printed part and installed it to replace the factory-installed dust extraction system, which was unfortunately quite ineffective. Despite the relatively low power of the extraction setup, this component proves to be surprisingly efficient

Dust Extraction for Bosch GCM 8 SJL Professional Miter Saw
