Archery Fletcher tool
Print Profile(8)
Description

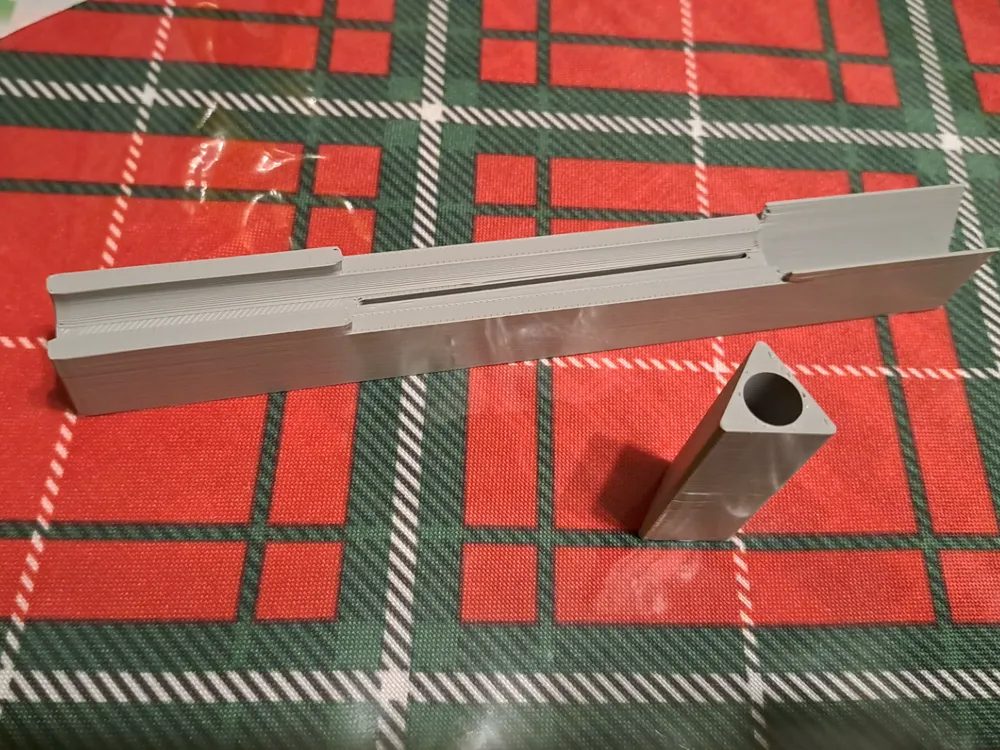

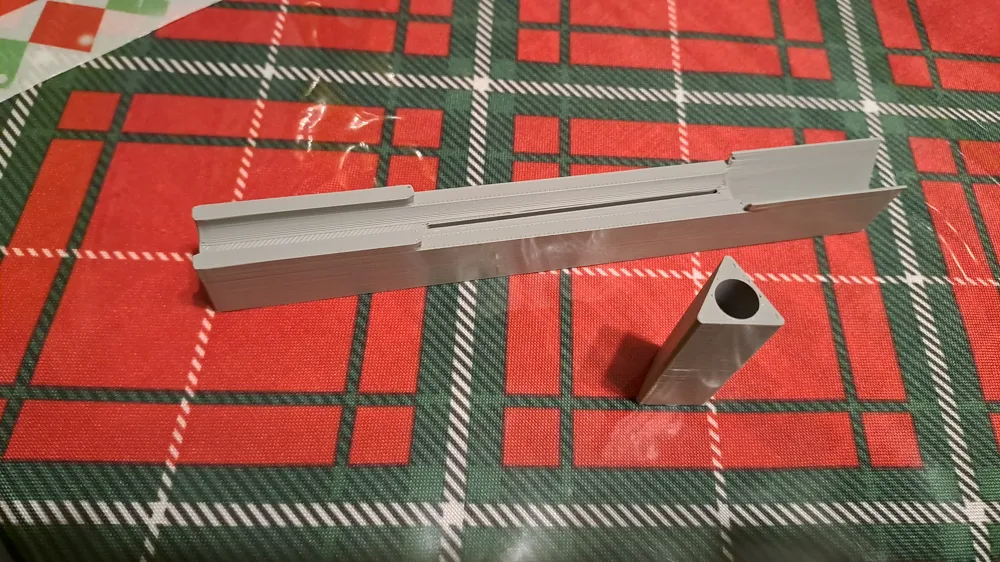

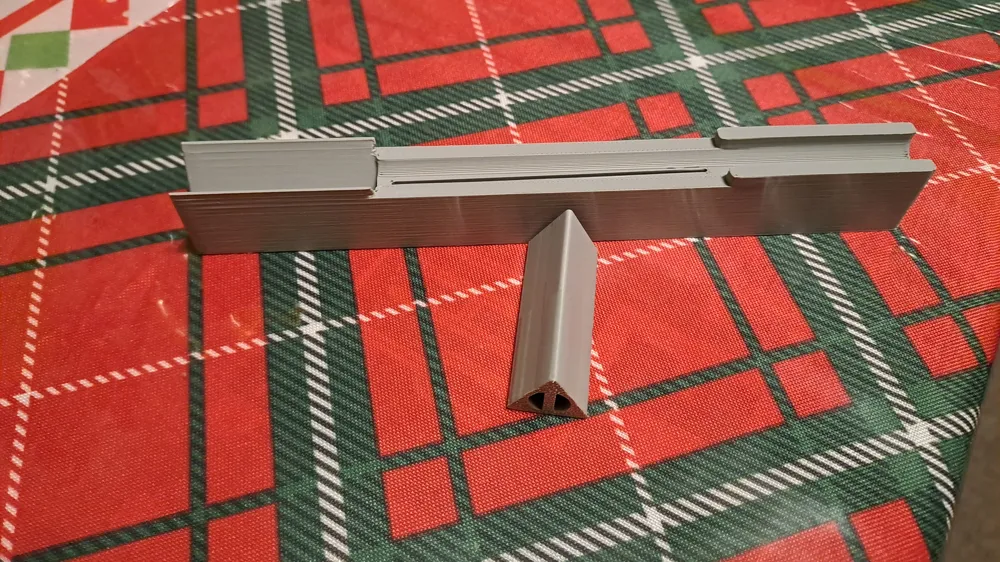

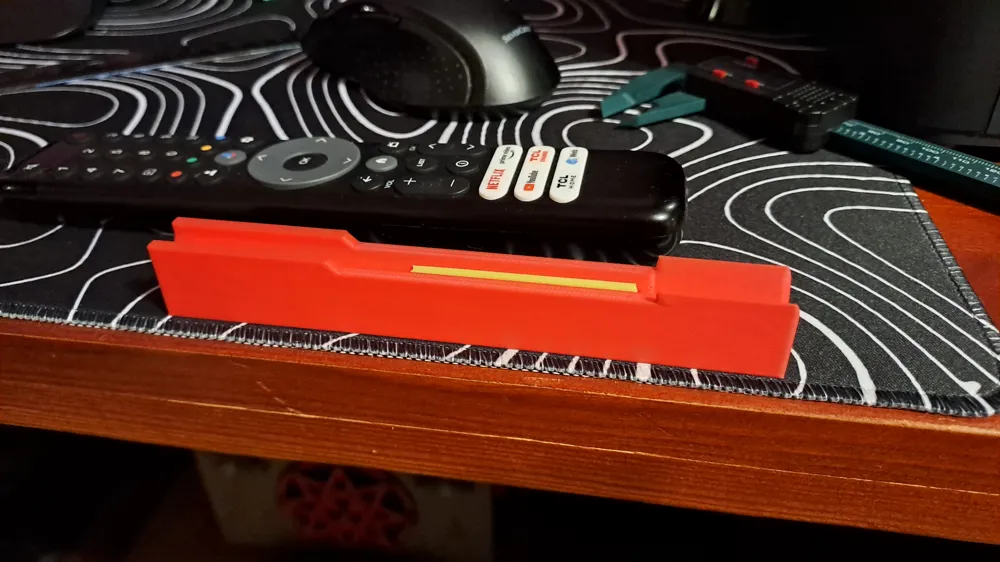

Arrow fletching template, 6.2mm shaft diameter, 120 degree spacing, 1mm offset from the shaft front to back.
Usage:

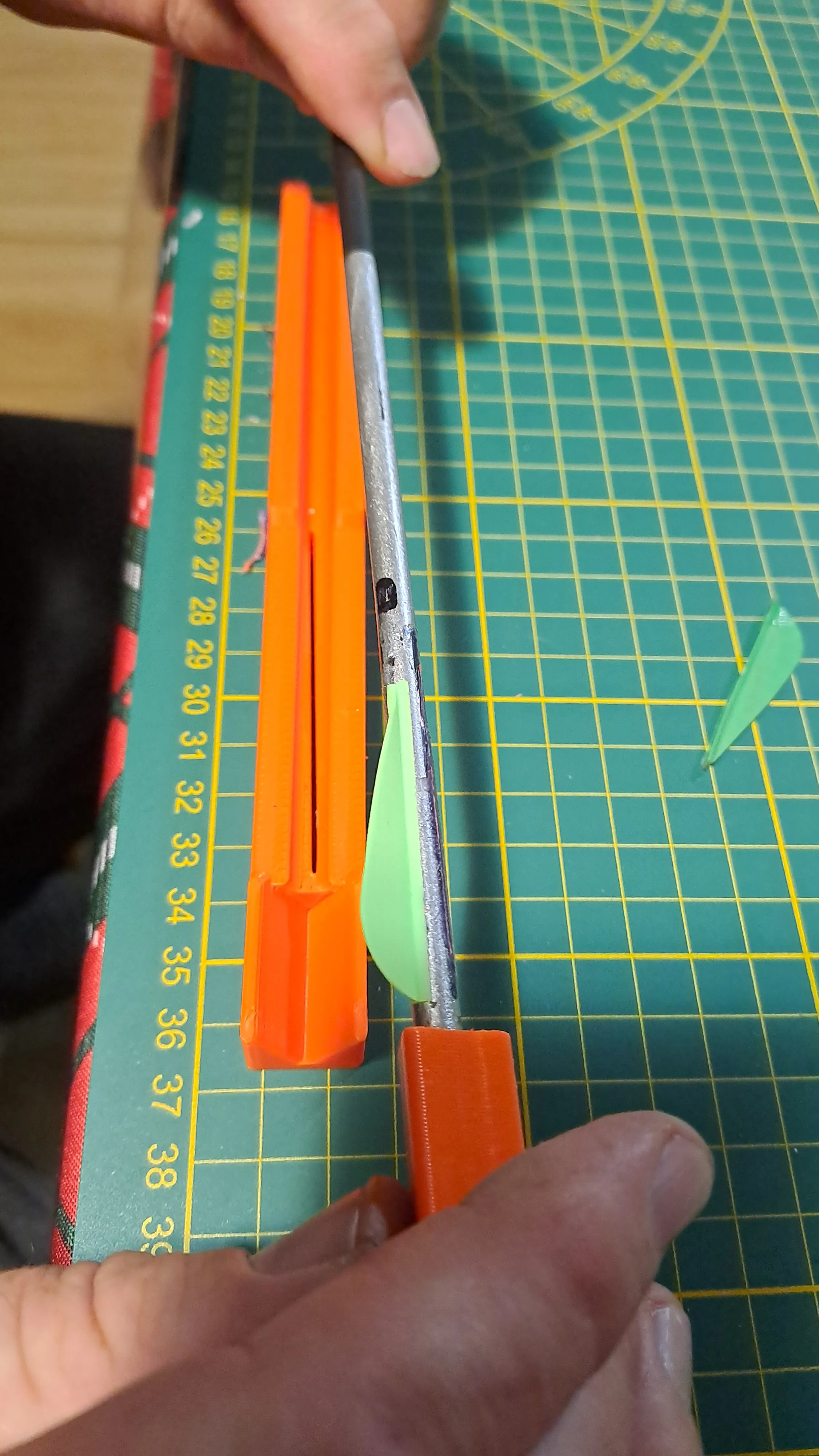

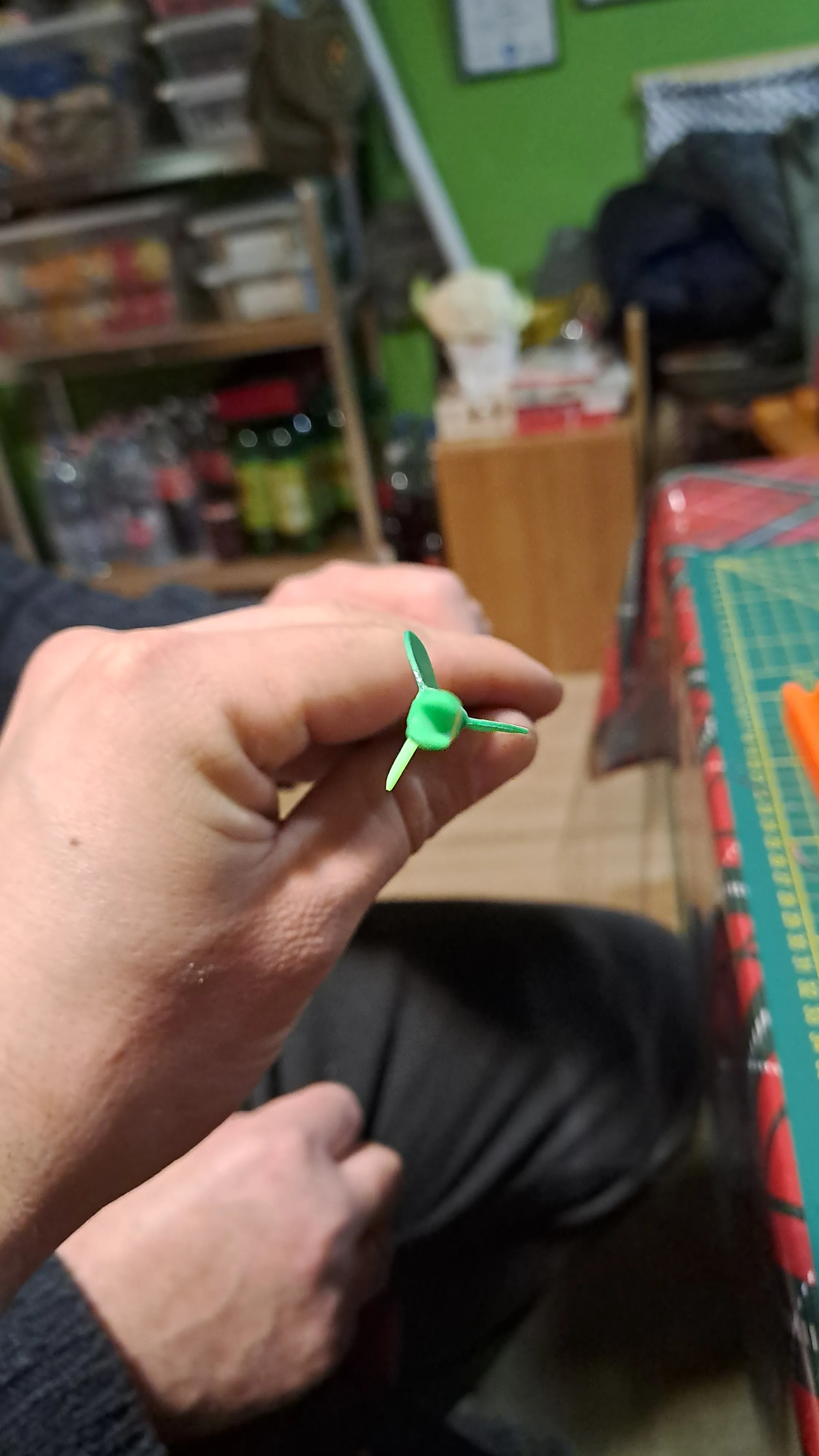

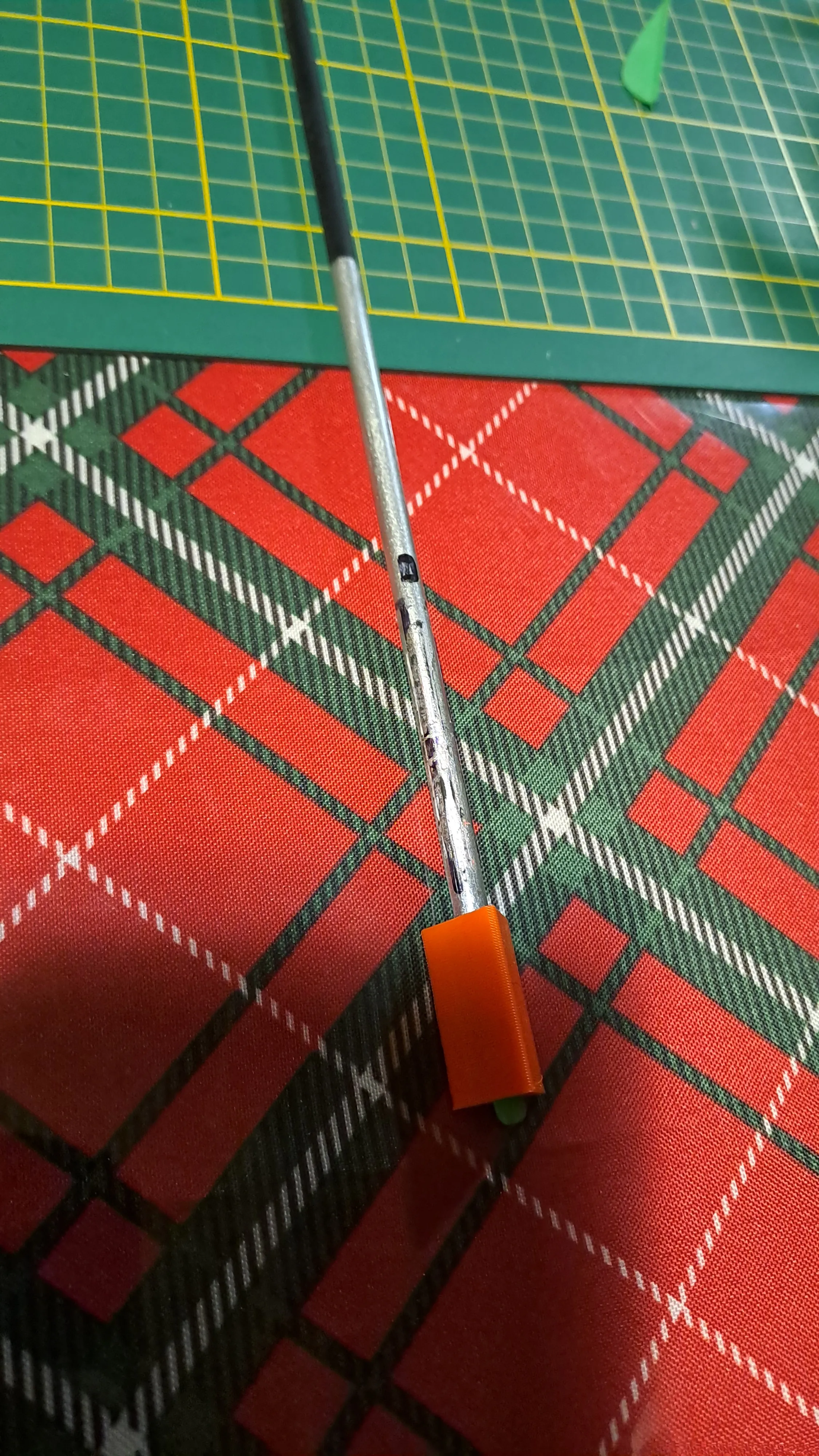

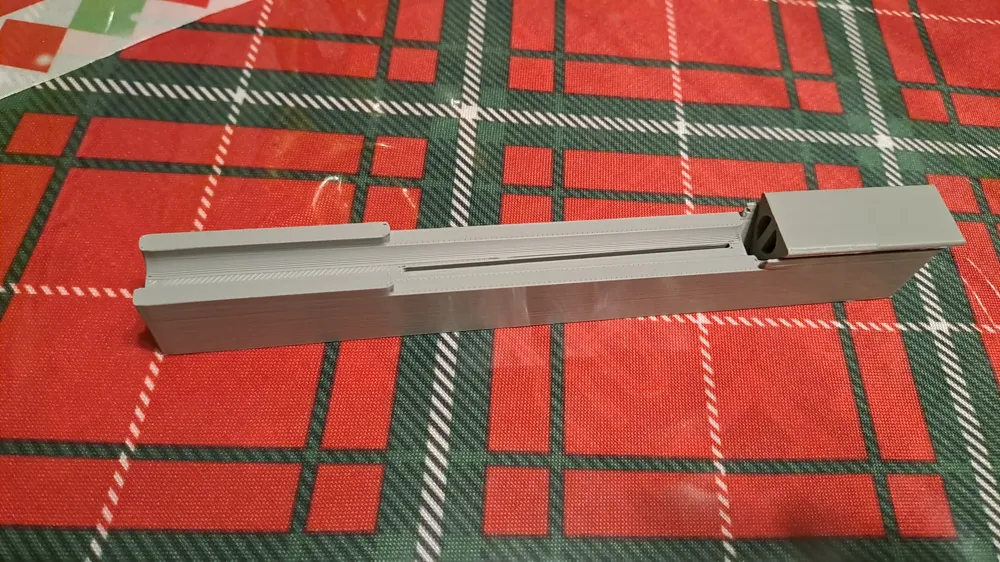

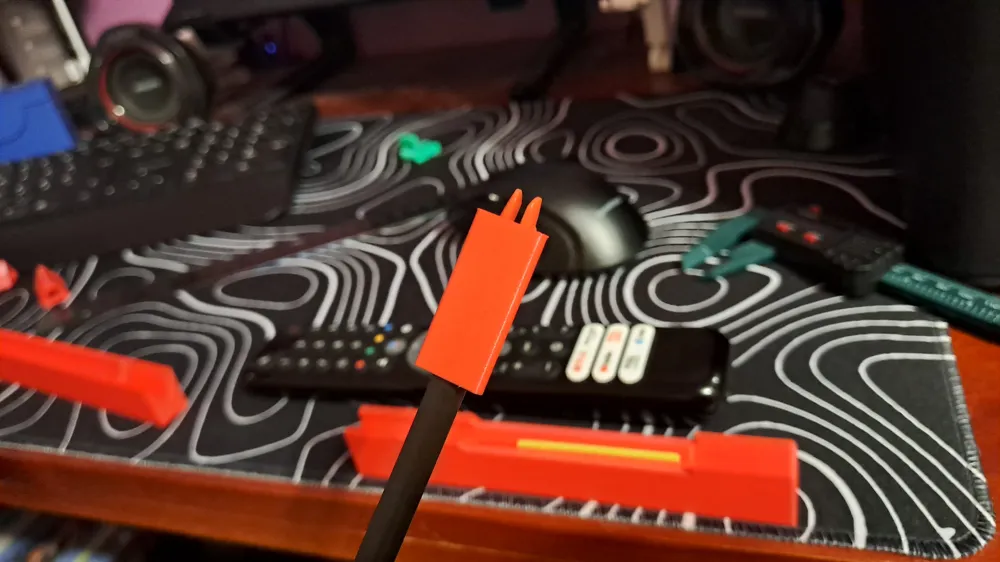

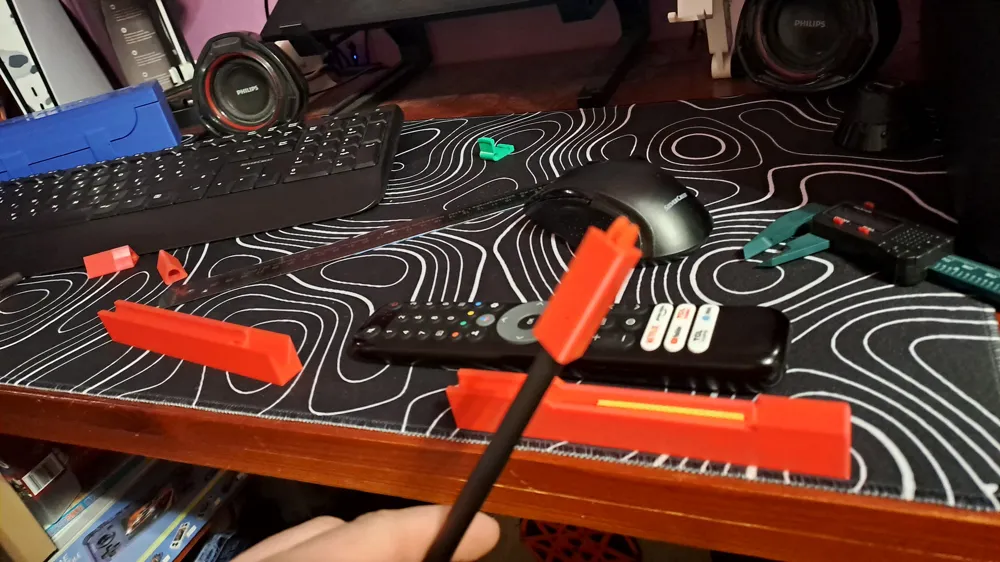

Slide the triangle to the end of the nock.

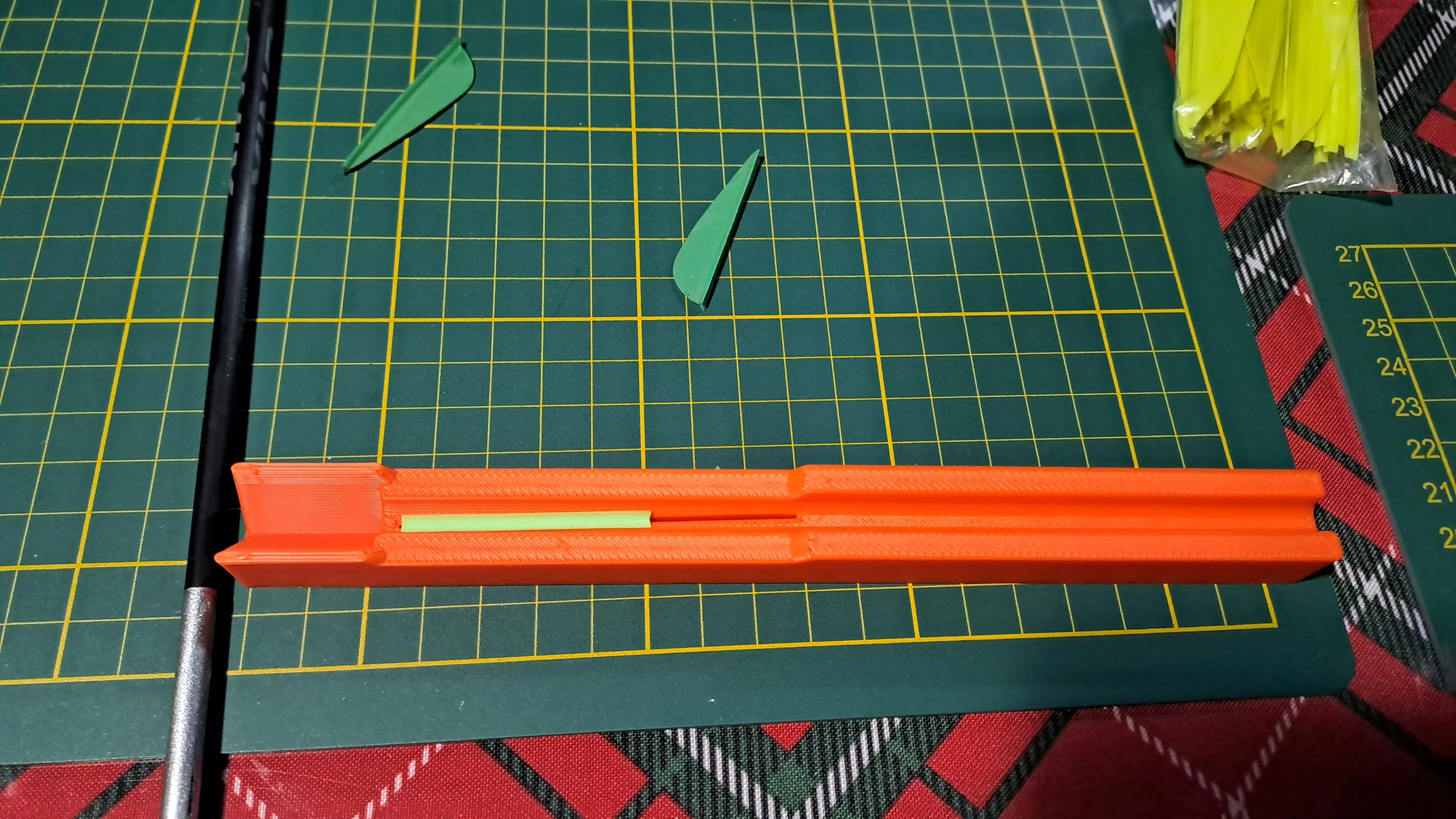

Insert a fletch into the slot.

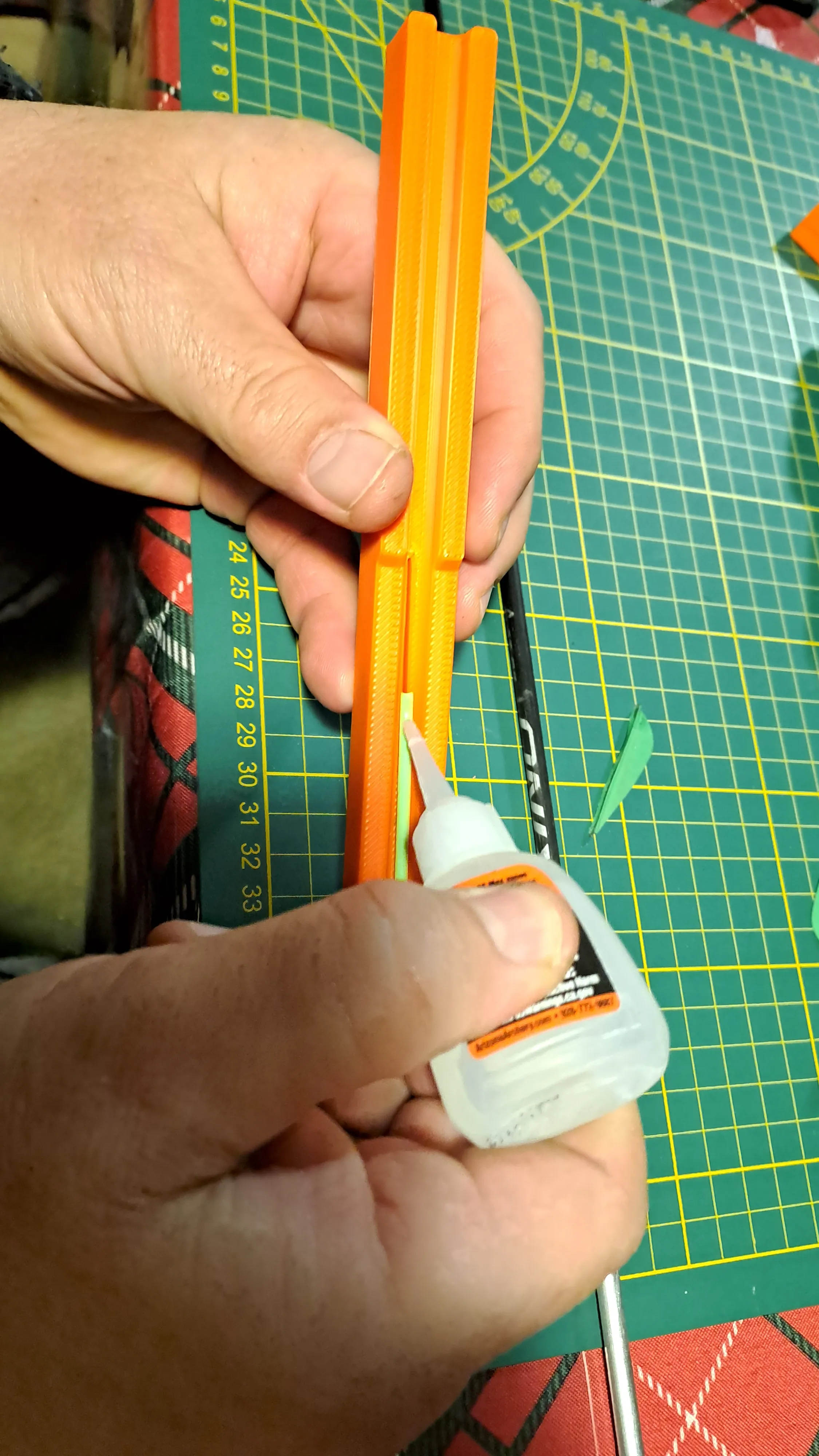

Apply glue.

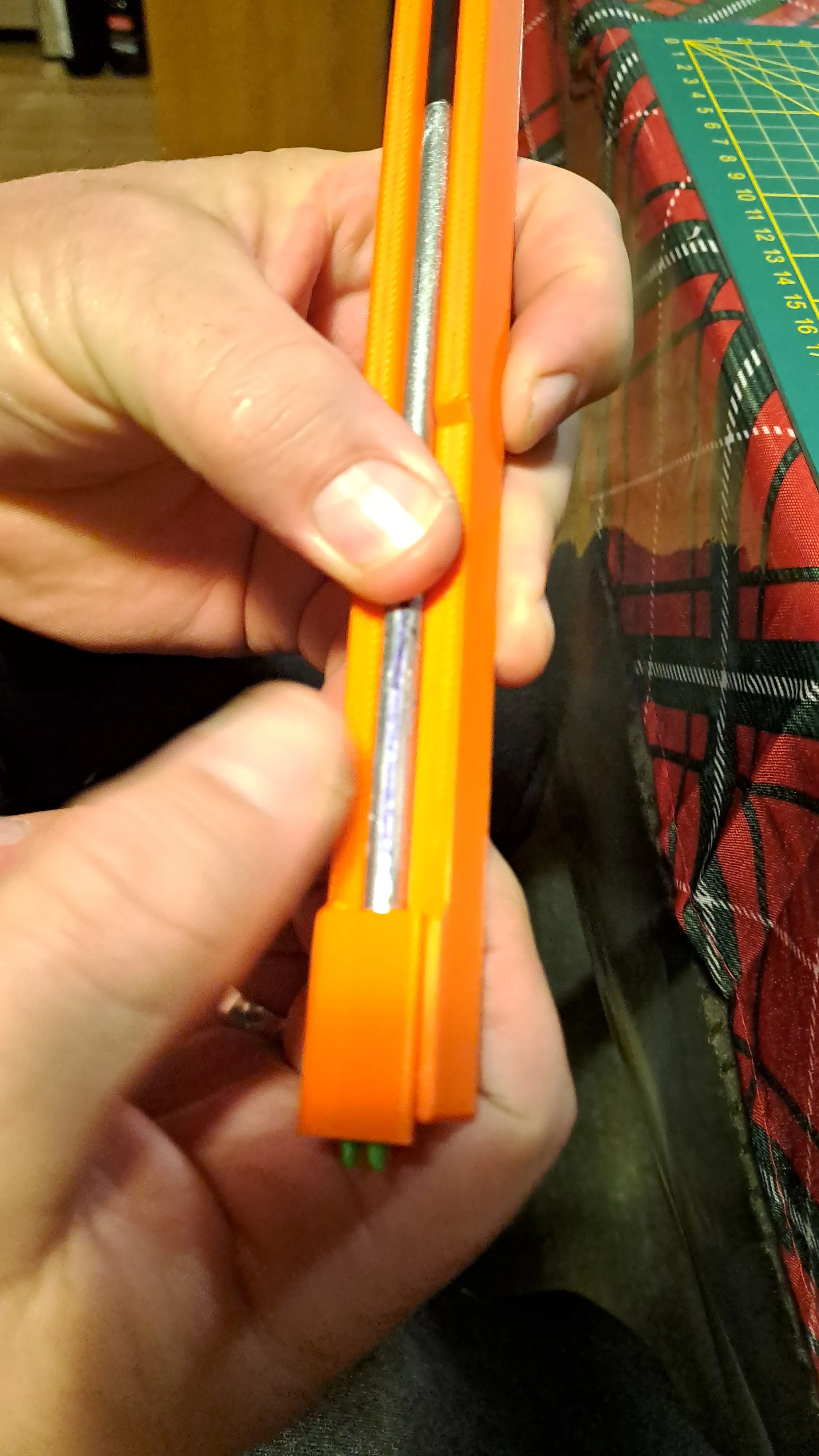

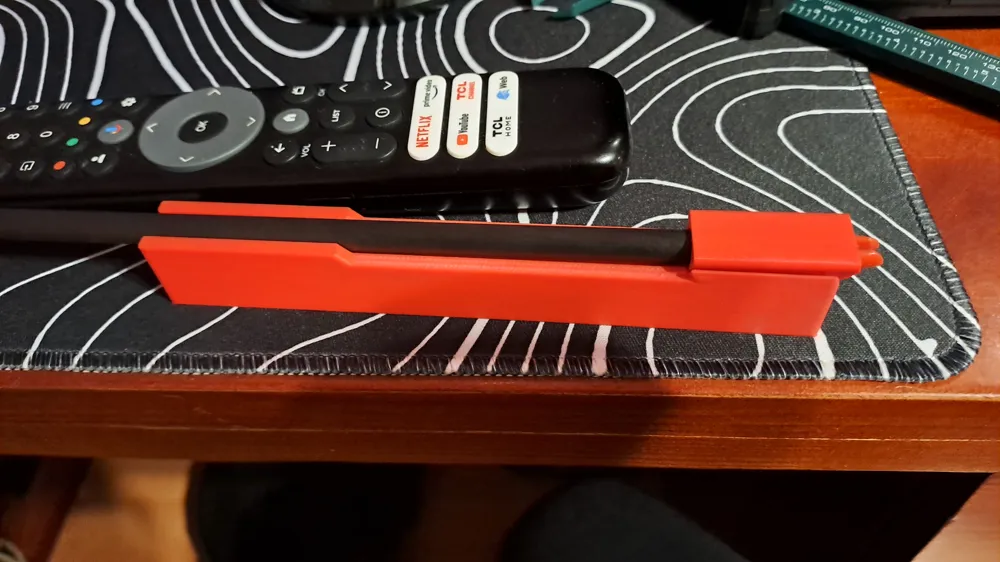

Press the fletch onto the shaft.
Rotate the arrow once and insert the second fletch.
Glue and press.

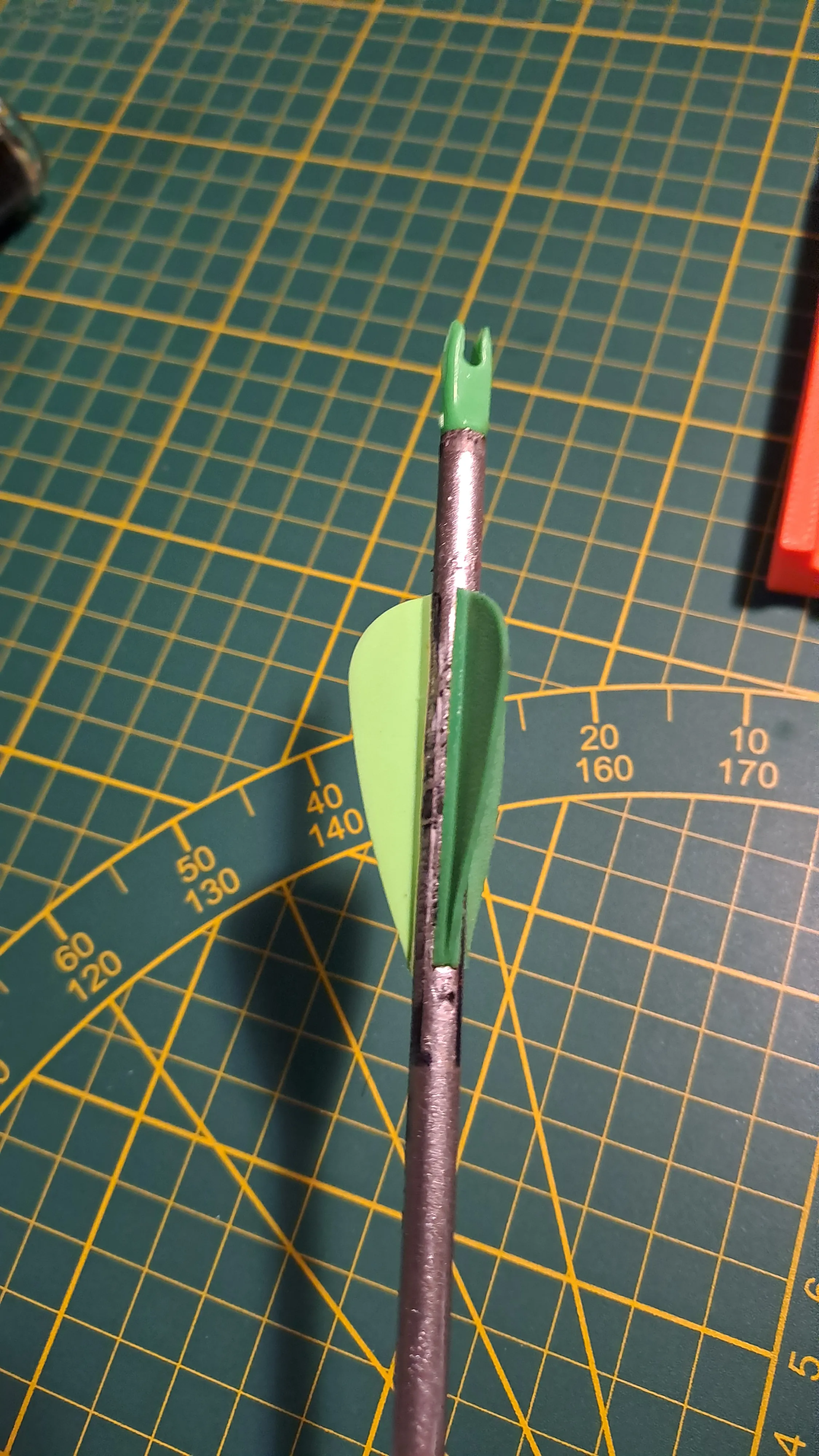

- Repeat for the the third fletch.
Important!
Do not rotate the triangle on the arrow.
Rotate the entire arrow assembly together!
Update!

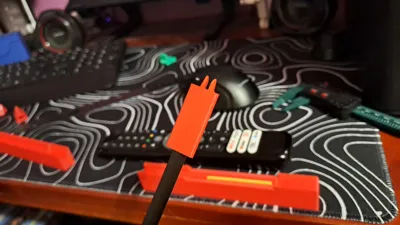

I've uploaded the straight versions of all three modell types - you'll find them under the print profiles labeled “straight.”
