DAP 2 HE MP-1 Mount for TOPTON N200 Firewall

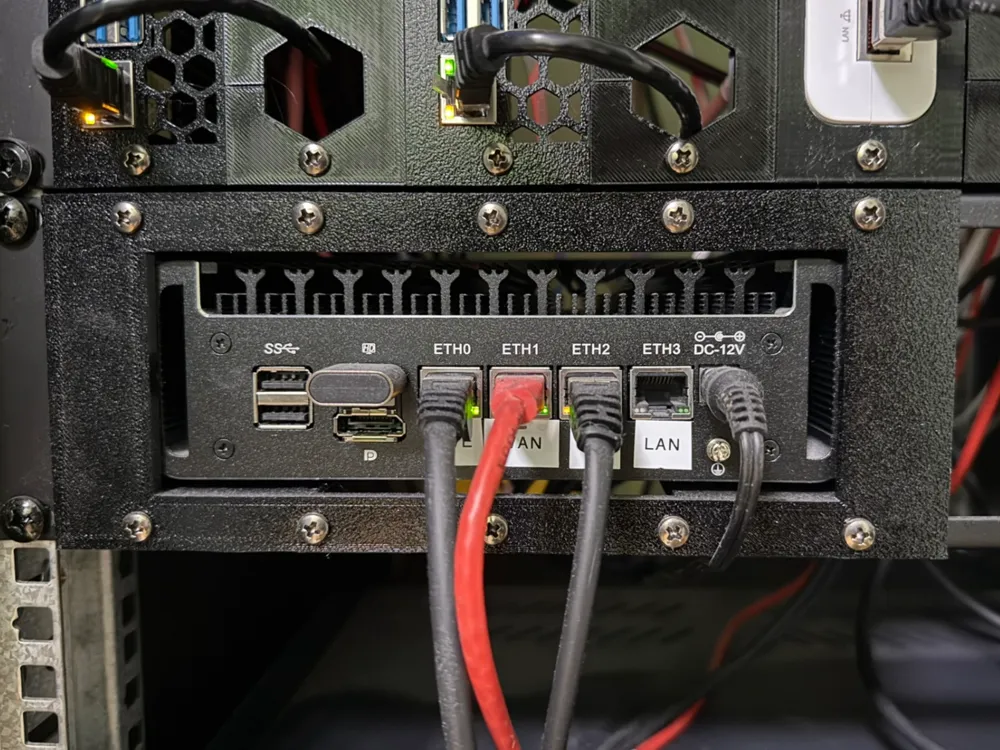

Bracket for mounting a Topton N200 passively cooled firewall in the DAP MP-1 2U rack panel.

I designed holes in the “cover” to mount two 60 mm fans. However, I have not used them yet. The CPU has not yet exceeded 60 degrees Celsius. I use Proxmox as a hypervisor and have virtualized opnsense. Unifi OS is also running. The CPU load is around 15%.

So far, I have printed the mount in PETG and even after almost a year, it has not deformed. I can't say anything about PLA.

I used 4 M3x12 screws to mount the cover.
