Dual ELRS+GPS + O3 antenna mount: Speedybee M5 V2

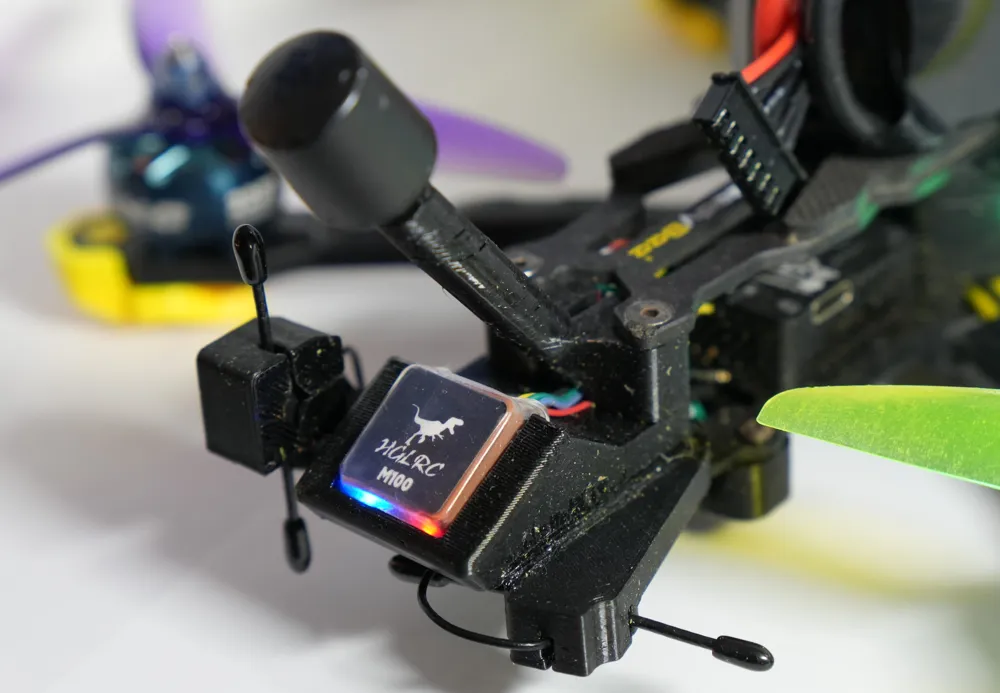

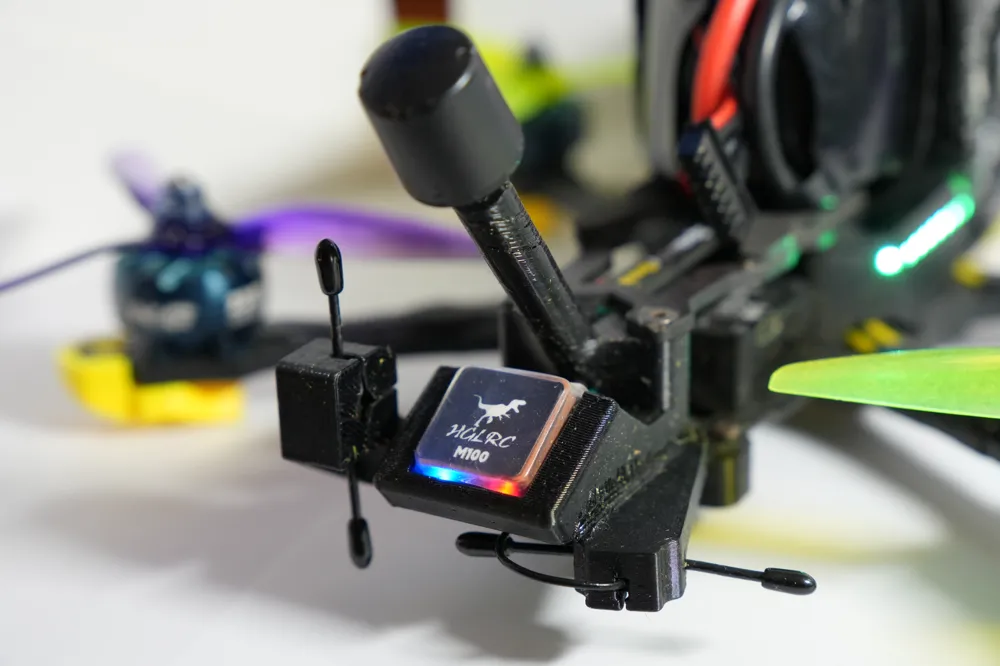

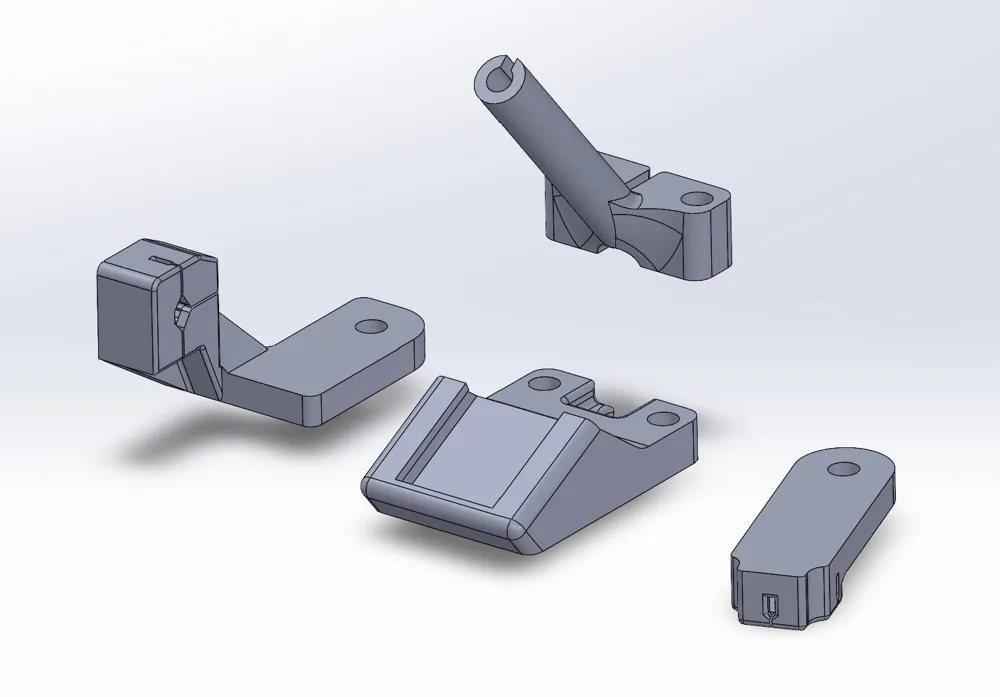

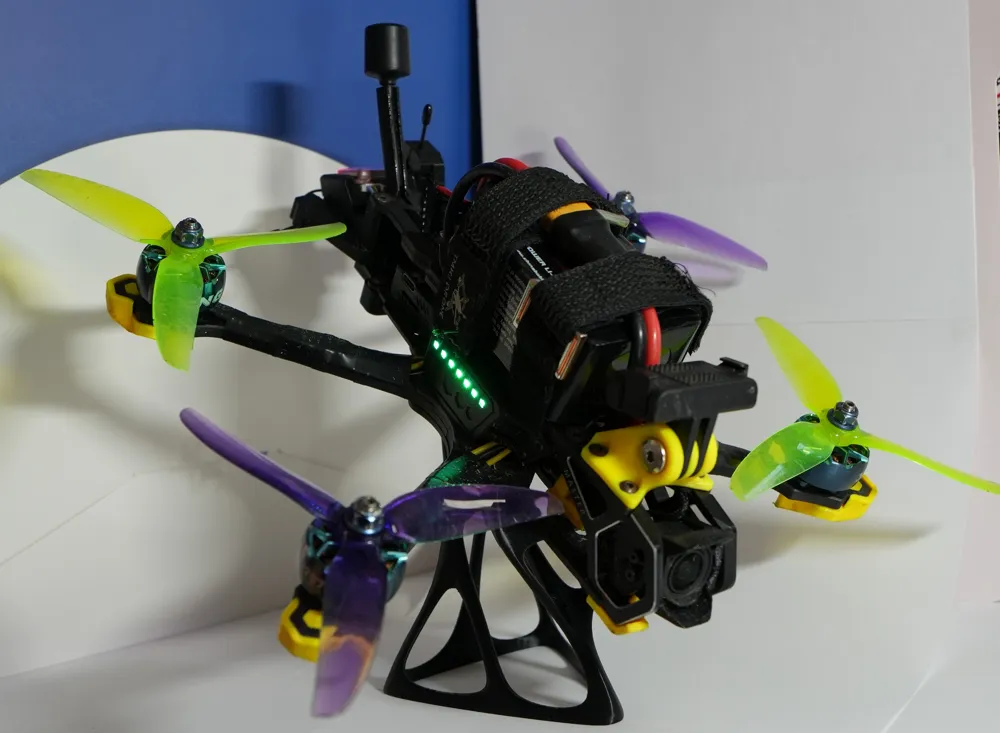

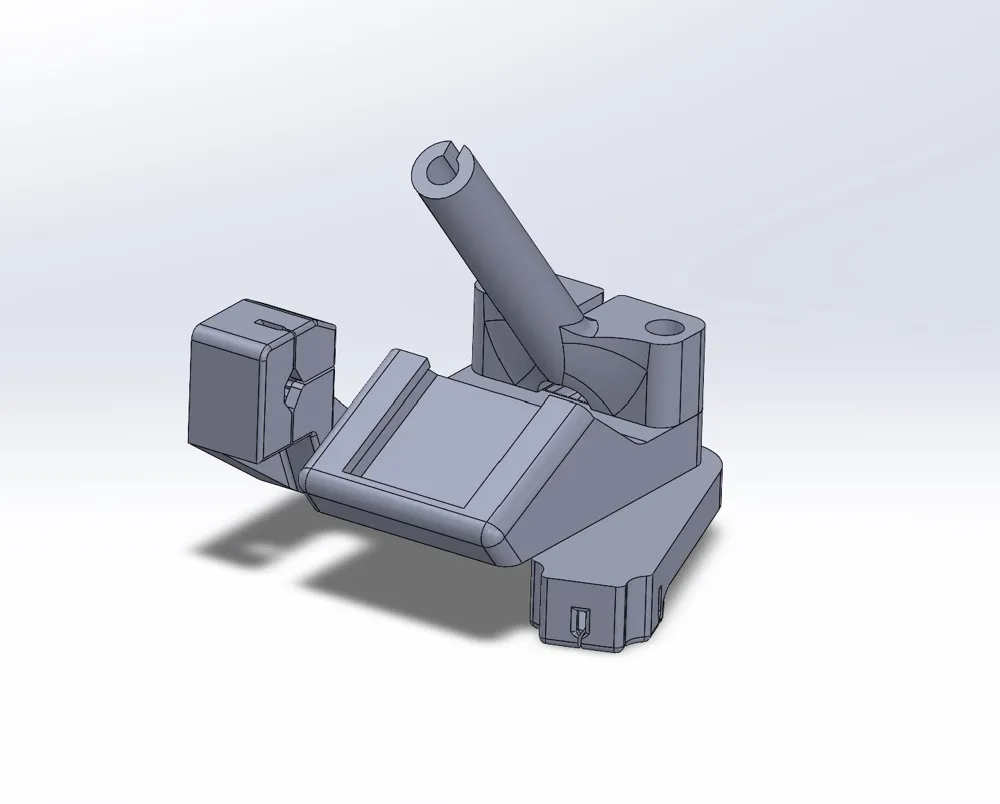

This mount design consists of 5 different individual pieces. I made it for my Speedybee Master 5 V2 frame but I'm sure it can be used for pretty much any frame. This is like my 3rd iteration of antenna mounts and this one is close to perfect imo. Read below for the full breakdown!

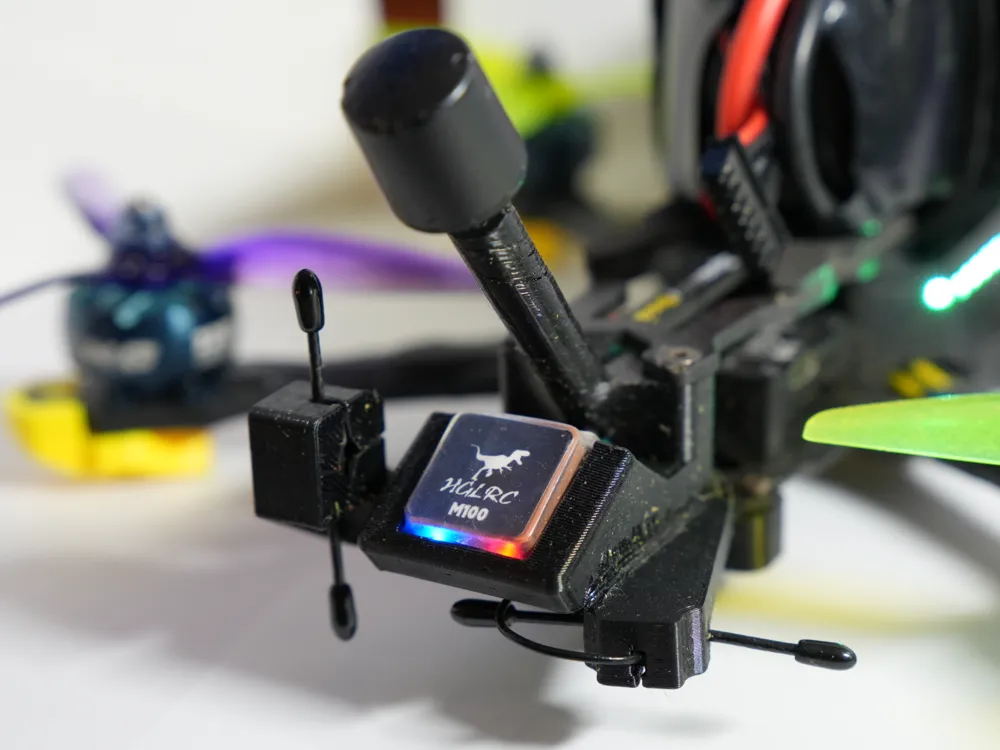

Duel ELRS antennas, one mounted vertical and one horizontal for best performance. The “T” center of the ELRS antennas fits perfectly into the little boxy housing and protects it super well. (getting them in there is a little annoying ngl but its the best once its in there!)

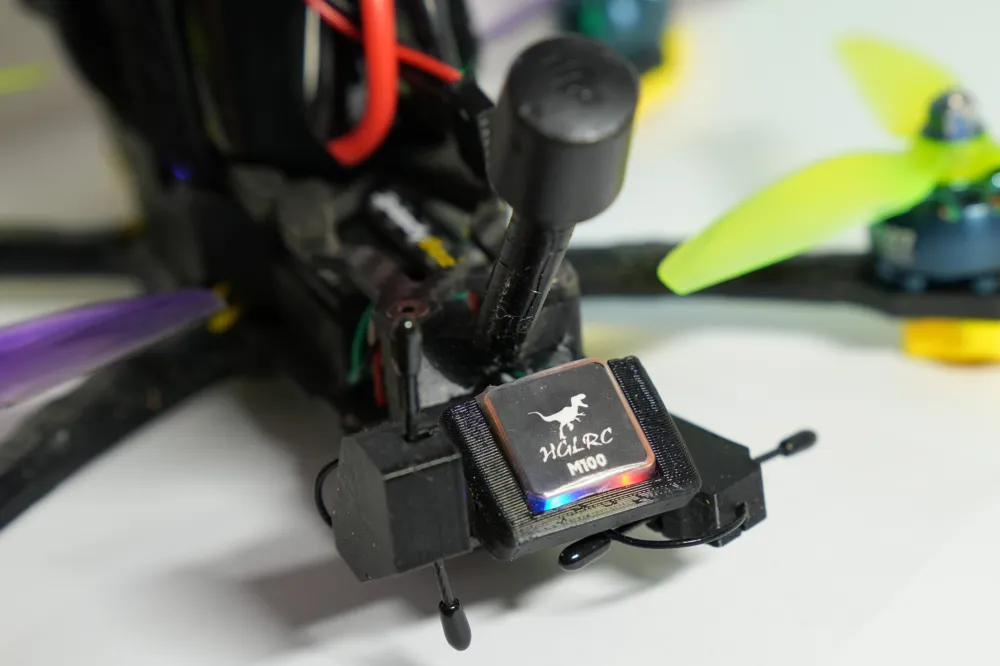

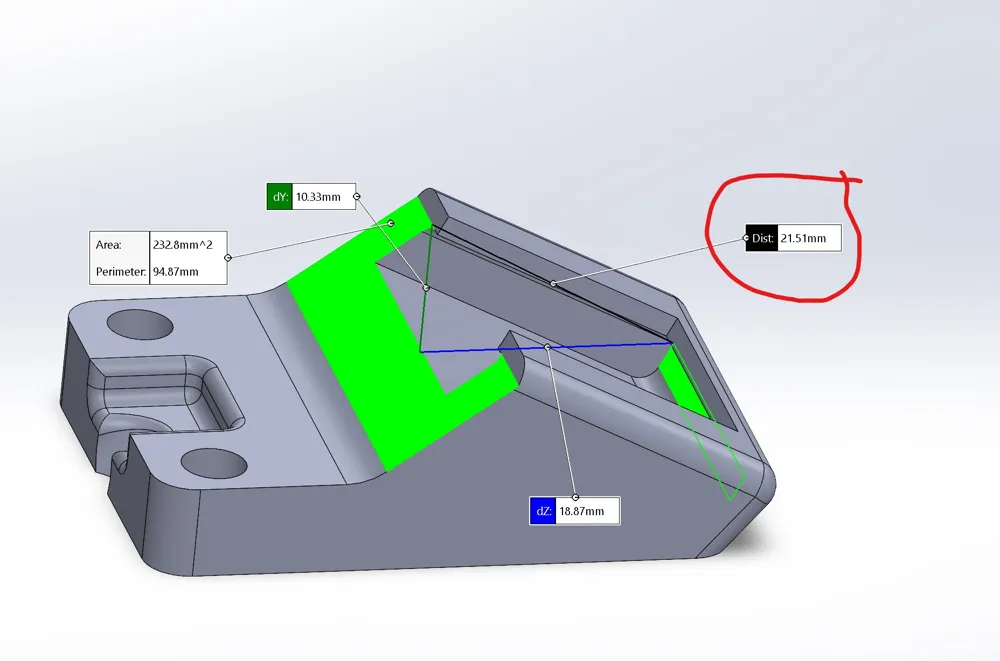

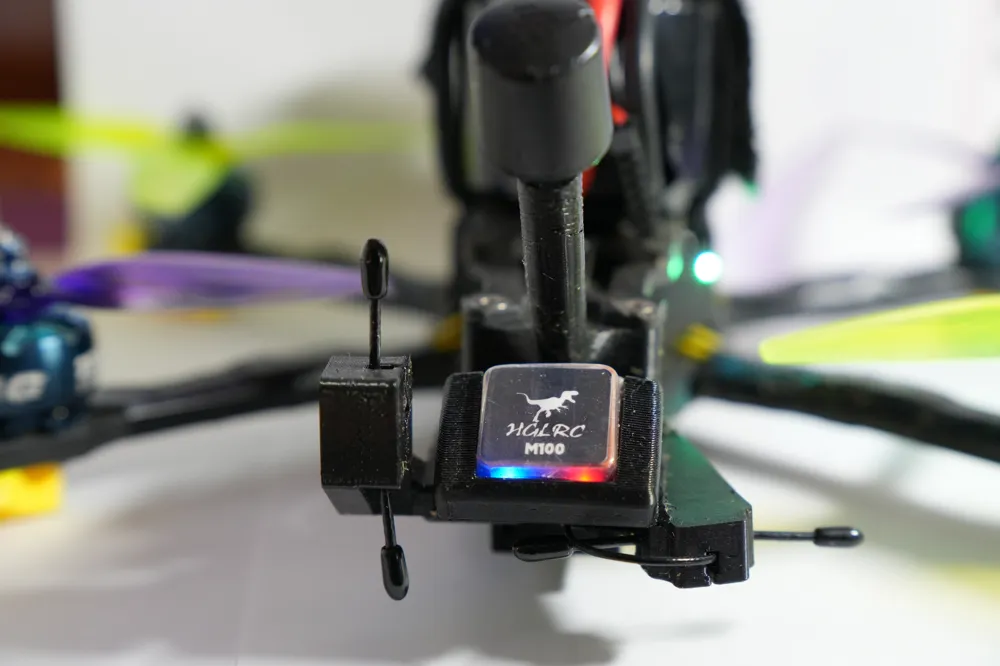

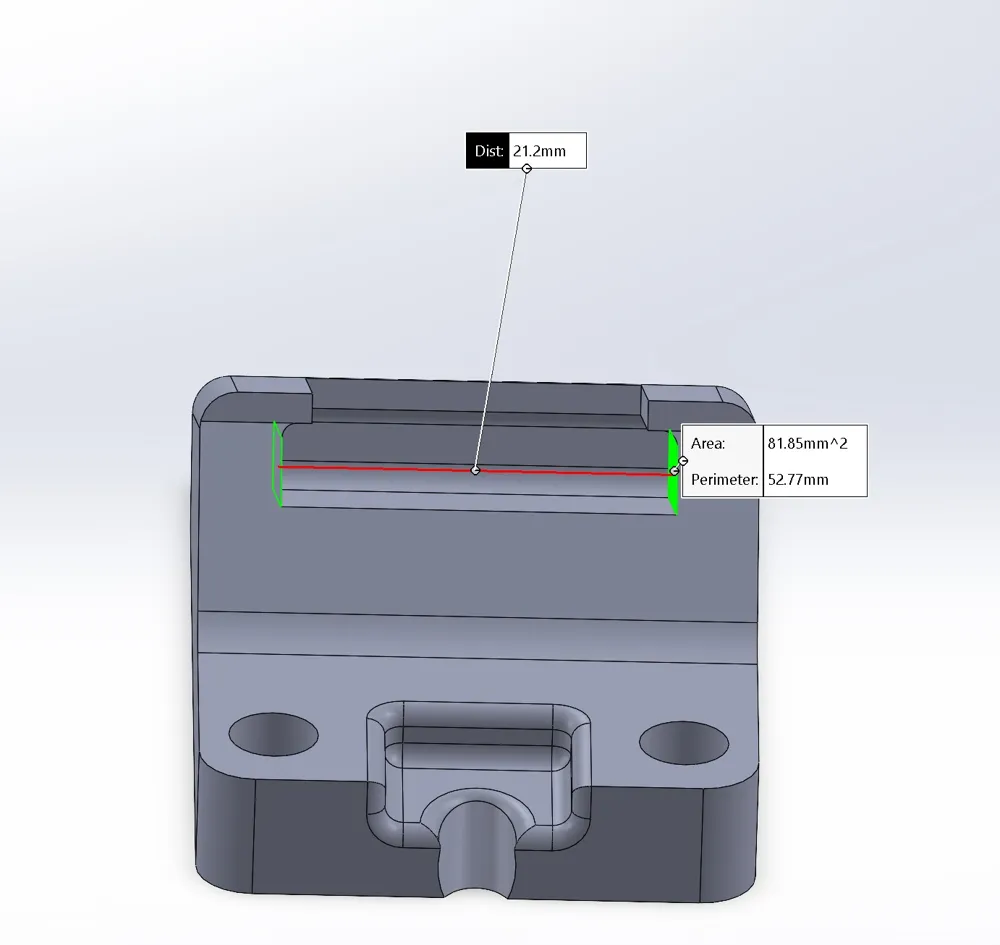

Then comes the GPS mount while slides super snug into the housing nothing crazy there. I put the dimentions of the cut out in the screenshots, thats the side of the gps i am using but could adjust as needed to fit yours. (could just add lil tape around edges if your gps is smaller than the cut out, or split the part in the slicer and scale up slightly if you need it larger)

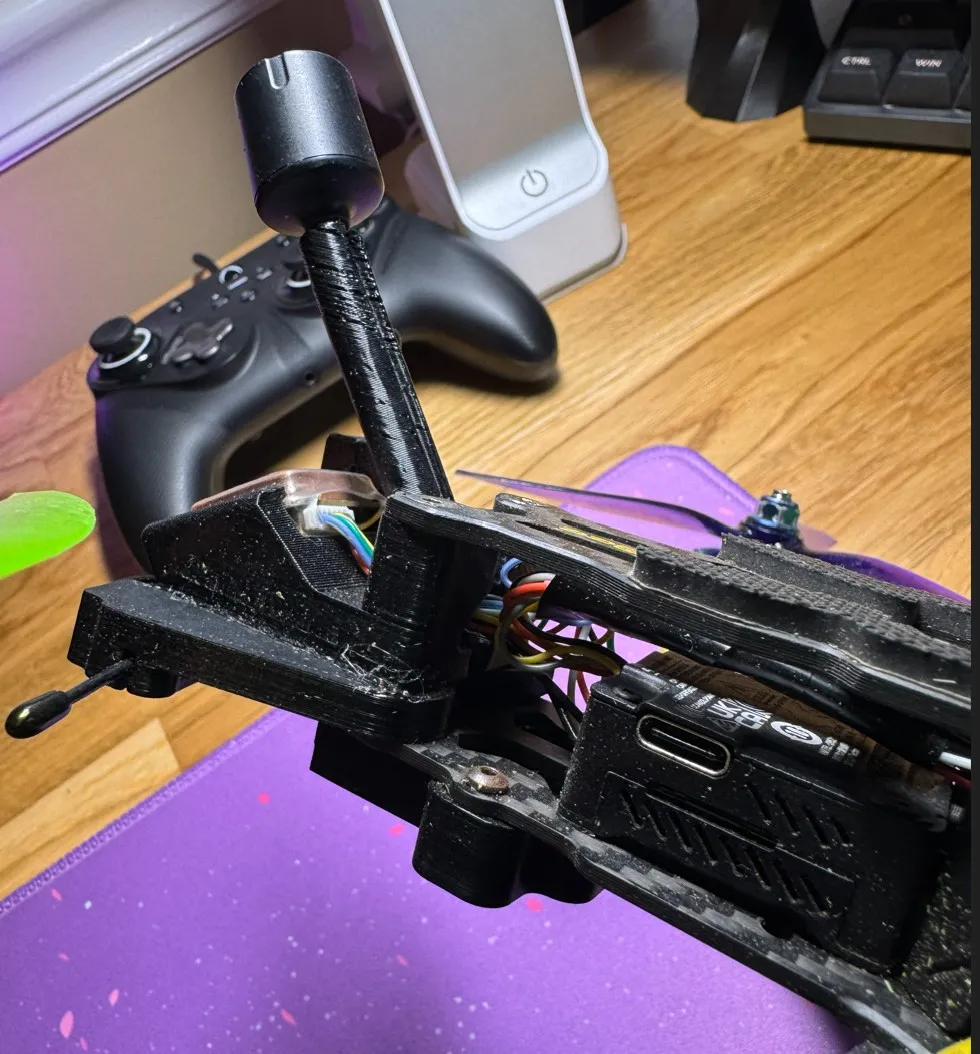

Then at the top of the parts stack is the O3 antenna mount. This fits super snug and very good protection for the antenna.

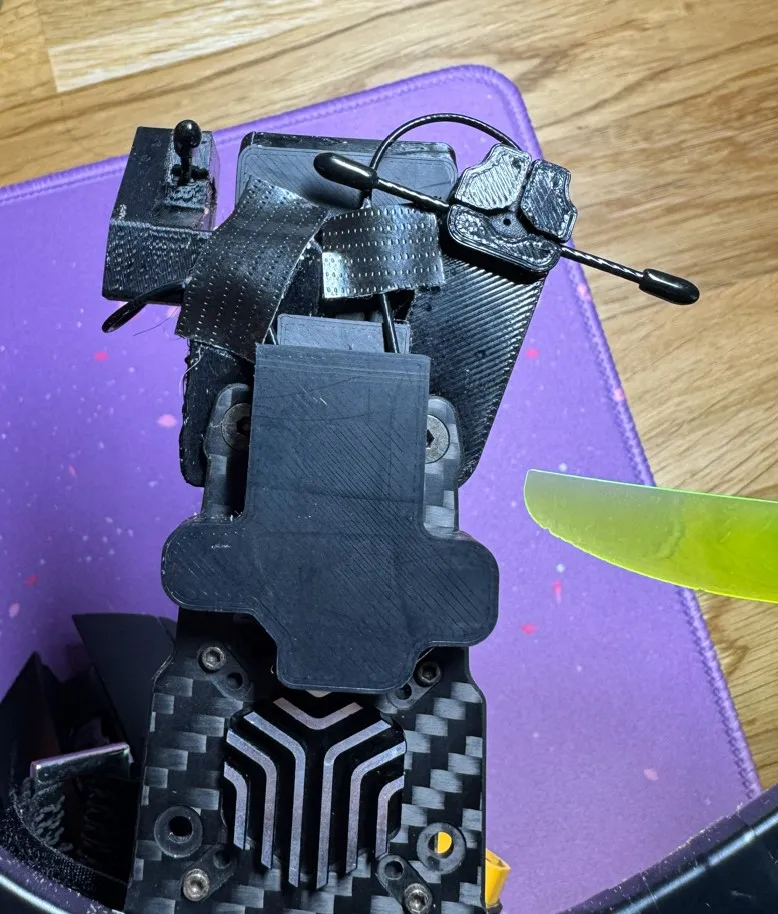

Then finally i have underneath the frame, where i mount my reciever. I'm using the radiomaster RP4. This is just a lil simple housing to hold it and uses two lil self tapping screws that came with my frame kit.

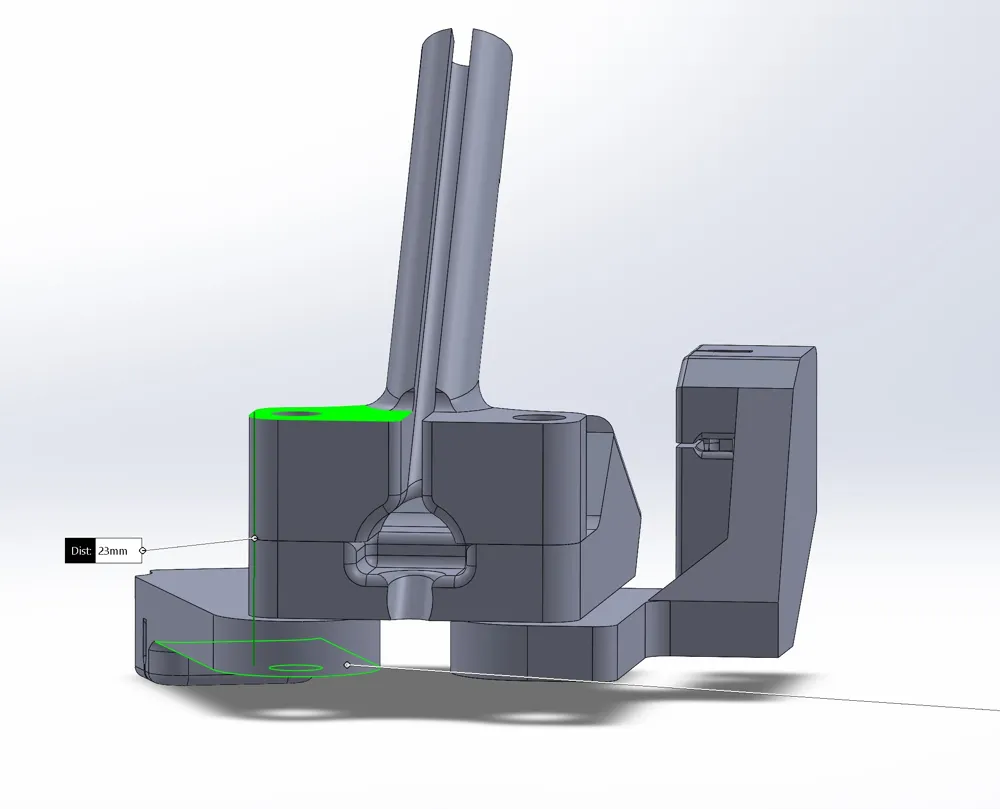

Now, to mount them, they all just slide onto the frame standoffs and stack on top of eachother. To keep the ELRS mounts in place though I used my soldering iron and just lightly melted the GPS and ELRS parts together at the seam. This creates a perfect bond. Needed to seperate the peices to make them easy to print properly.

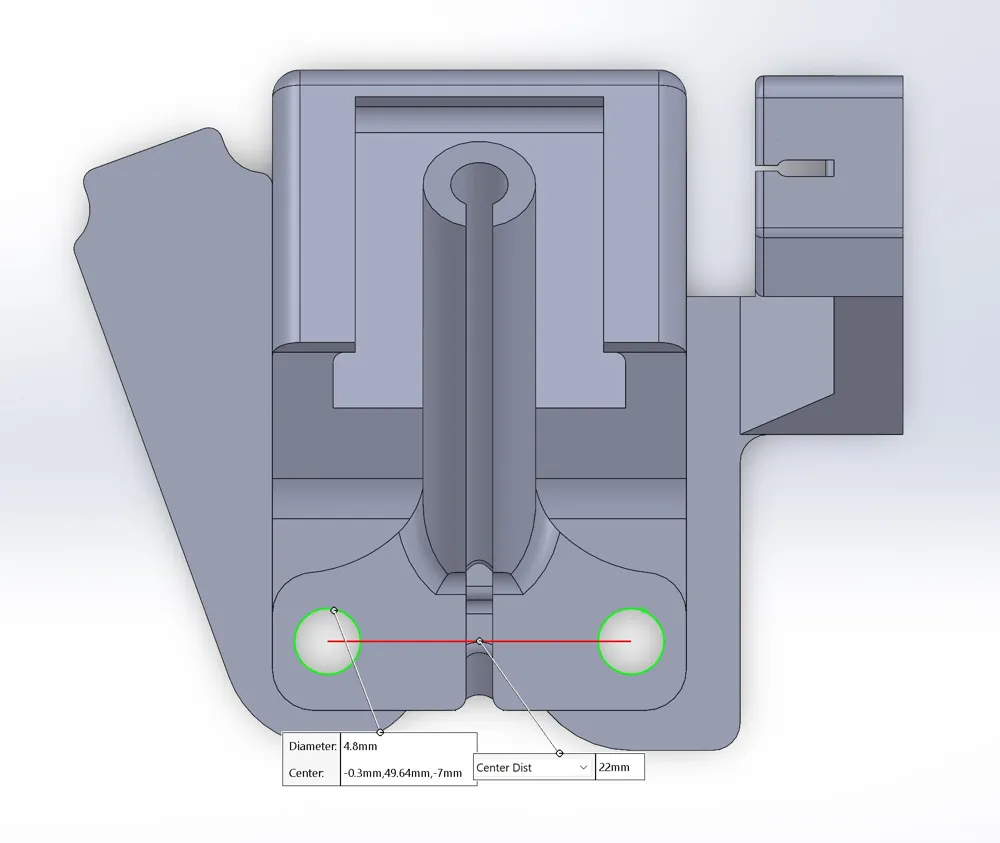

The holes for each part are 22mm apart, thats what my Speedybee Frame needed but could adjust in slicer if needed.
