Description

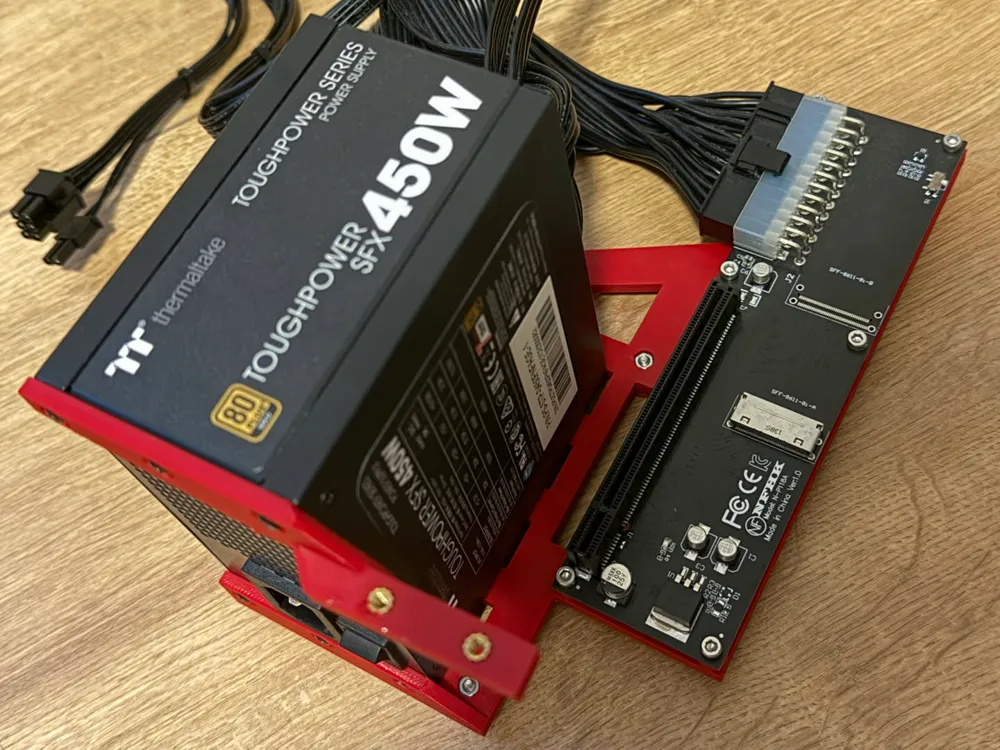

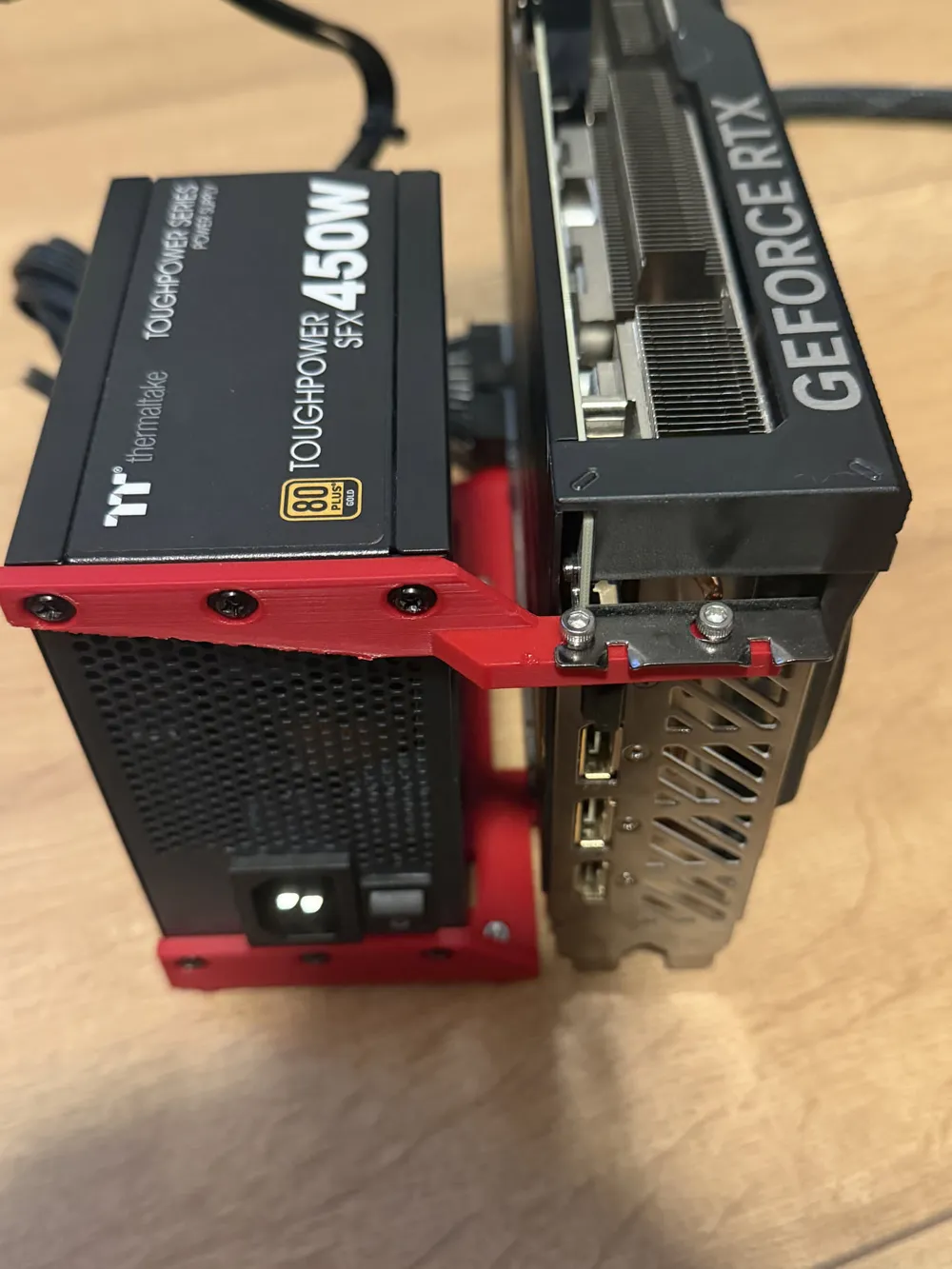

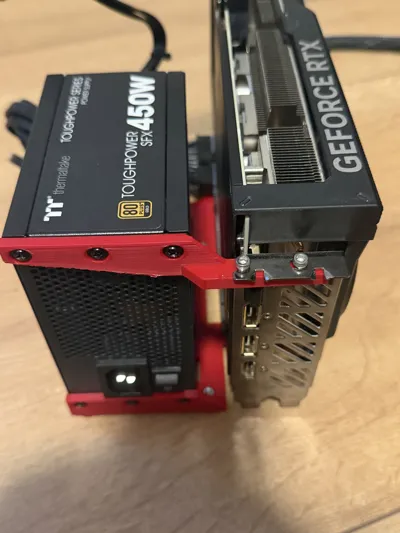

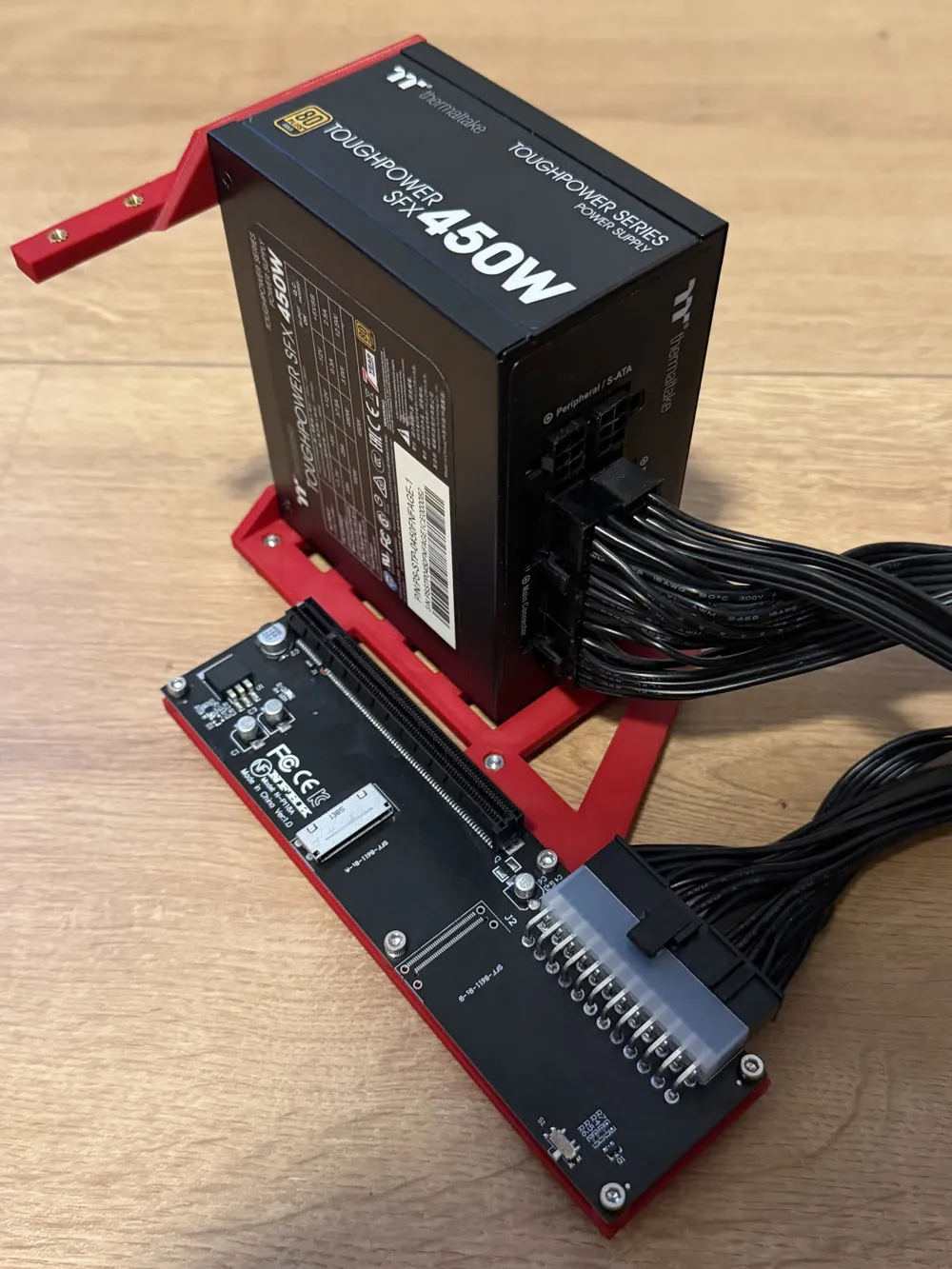

This is a mount for a SFX power supply and the generic OCuLink 8i adapter found on different sites. Please make sure that your device supports OCuLink 8i as this is not the same as the widely used OCuLink 4i.
Parts required:
- 14 M3x6 screws
- 8 M3x5.7 threaded inserts
- 6 M3 nuts
- at least 4 flat head M3 screws for the power supply
There are photos available with all the part locations.

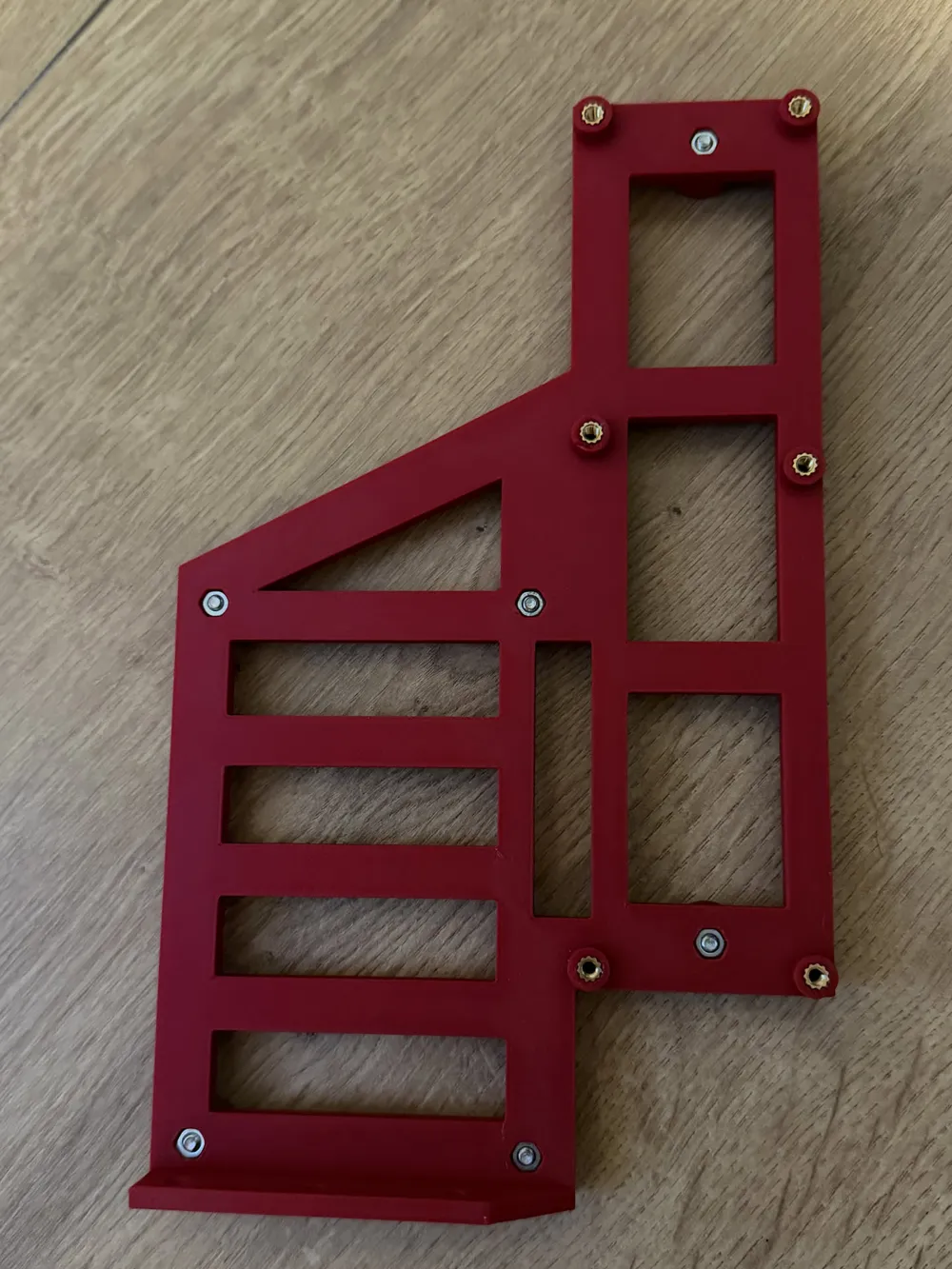

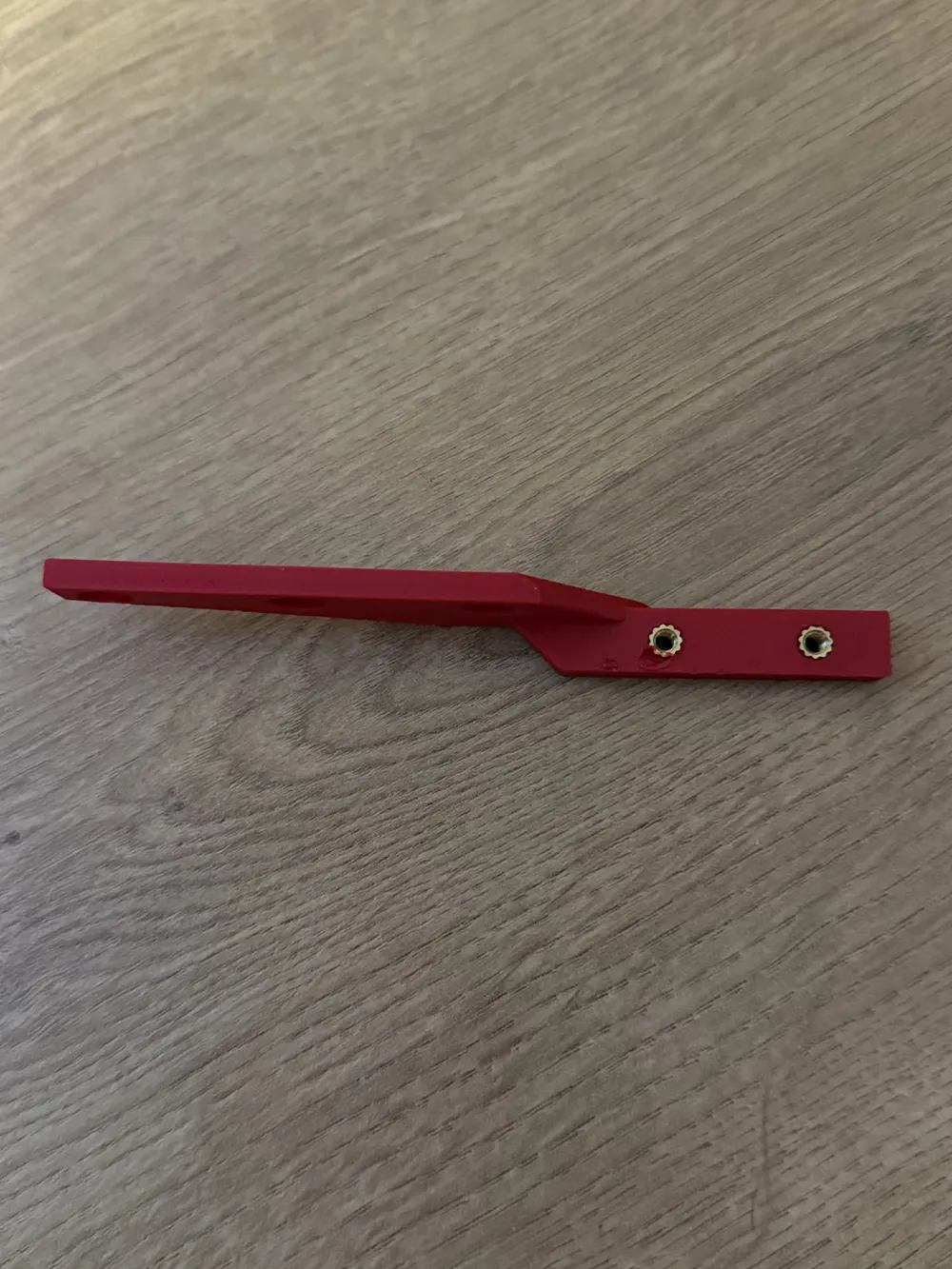

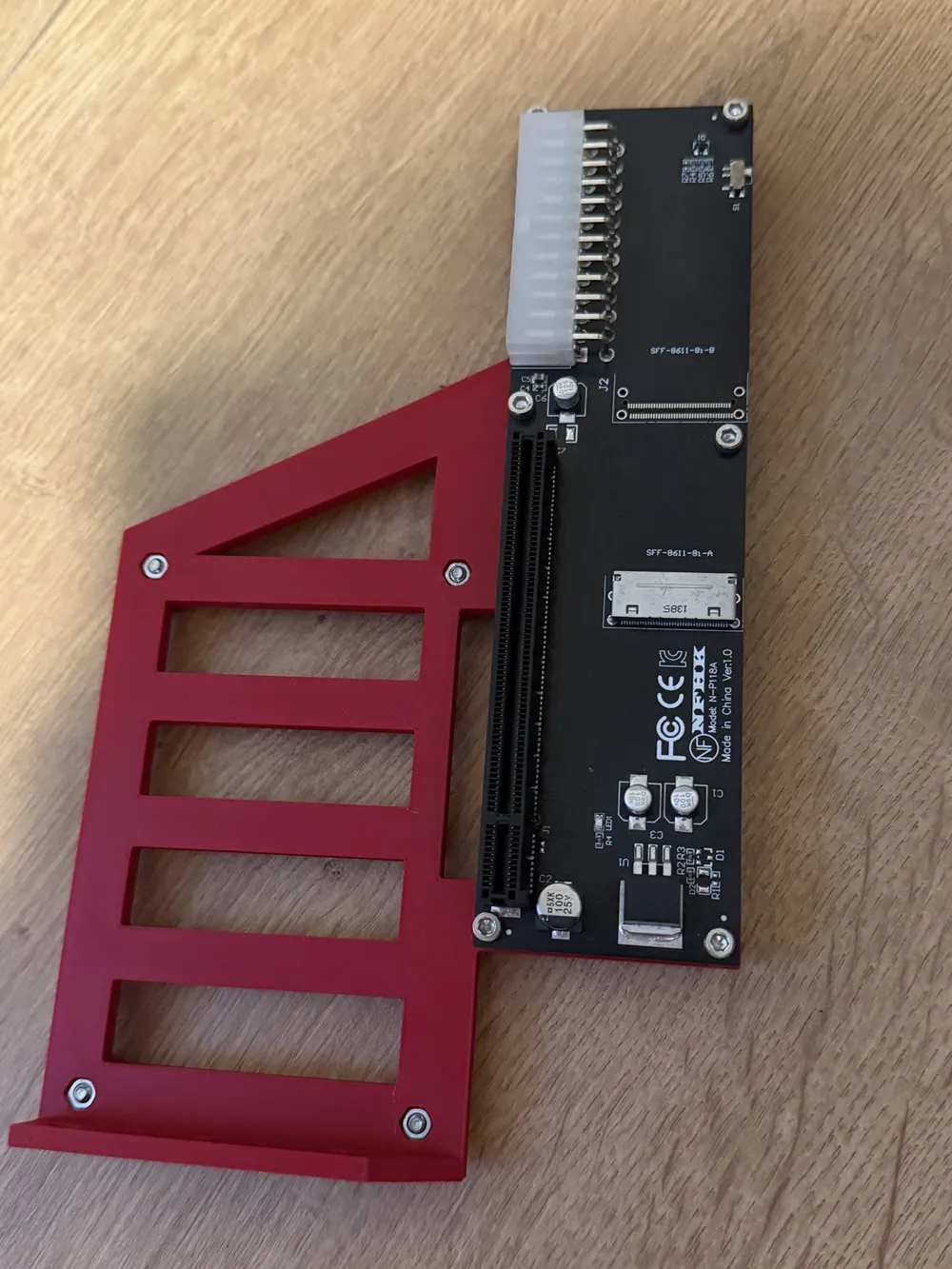

The threaded inserts go into the 6 slots for the adapter itself and the 2 slots in the PCIe device holder that screws into the top of power supply.

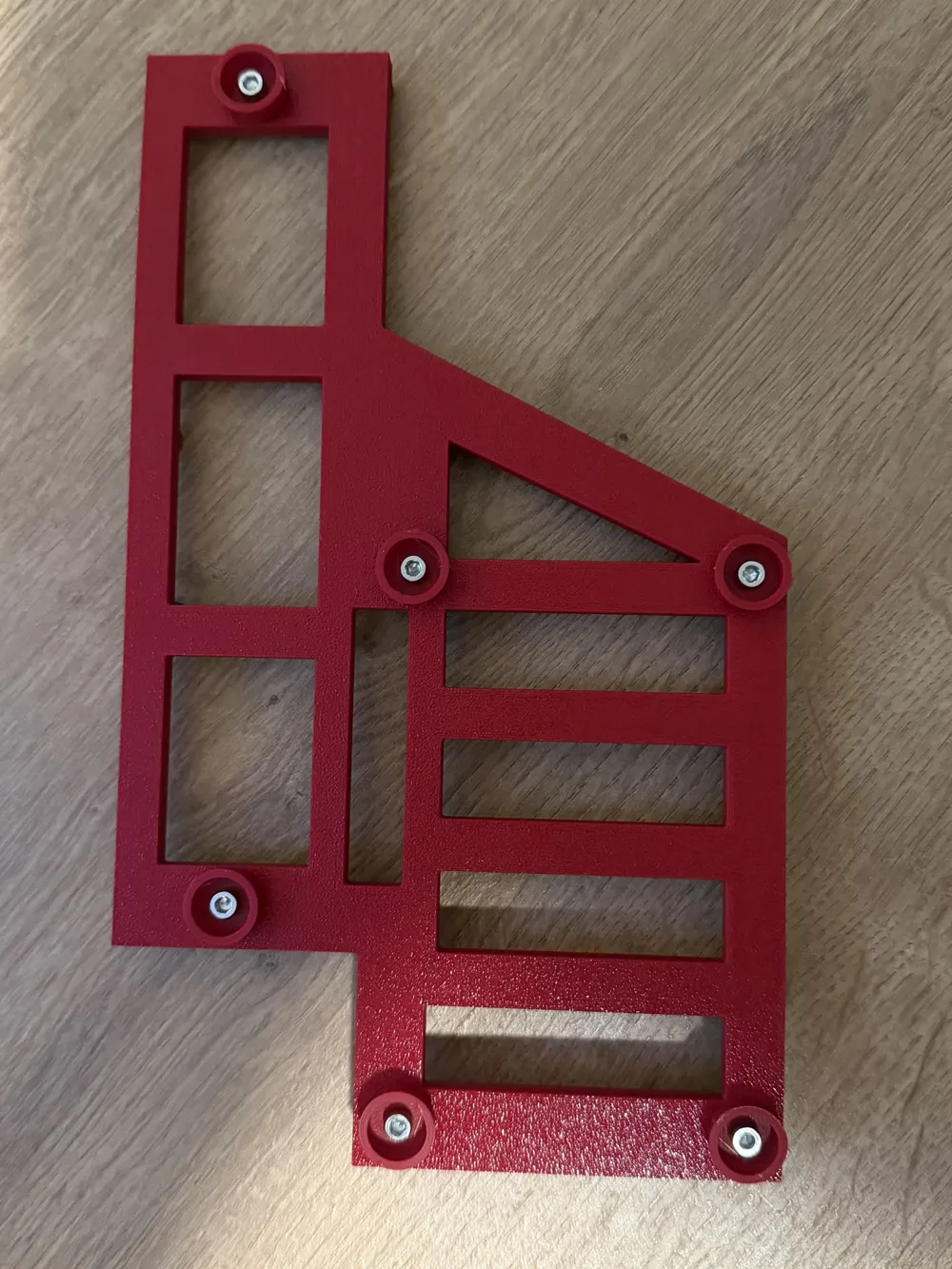

The legs are mounted by pushing the M3 nuts into their slots and screwing the legs into them from the bottom.
