Case for Oclean Base and FireTV Power Adapter
Print Profile(1)
Description

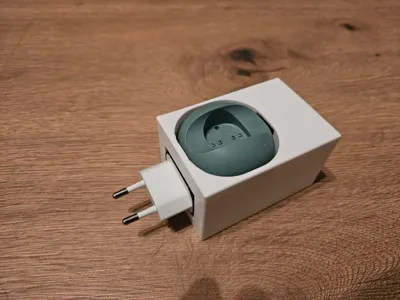

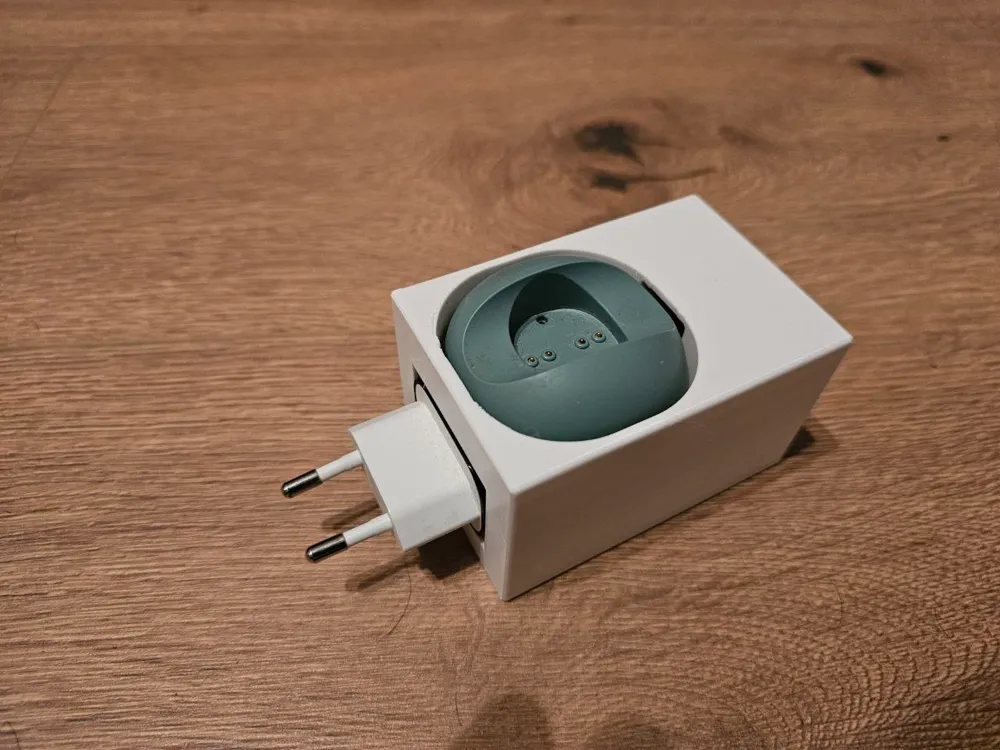

The case accommodates an old FireTV power adapter, including a Micro-USB cable. At the top, there's a precisely fitting recess for the Oclean charging station, and the cable can be routed through a “tunnel”. Since I use a relatively long cable and the model is quite deep as a result, all parameters can be adjusted via OpenSCAD (e.g., the extra space for the cable with the parameter “extra_depth”). This allows you to create a significantly slimmer version without much effort. Additionally, the cavity can be adapted for other power adapters.
The clearance for the power adapter in the base model is relatively large and can also be changed via the “clearance” variable of the PSU parameters. Alternatively, you can wrap tape around the power adapter to make it fit more snugly (which is what I did to avoid having to print the model again).

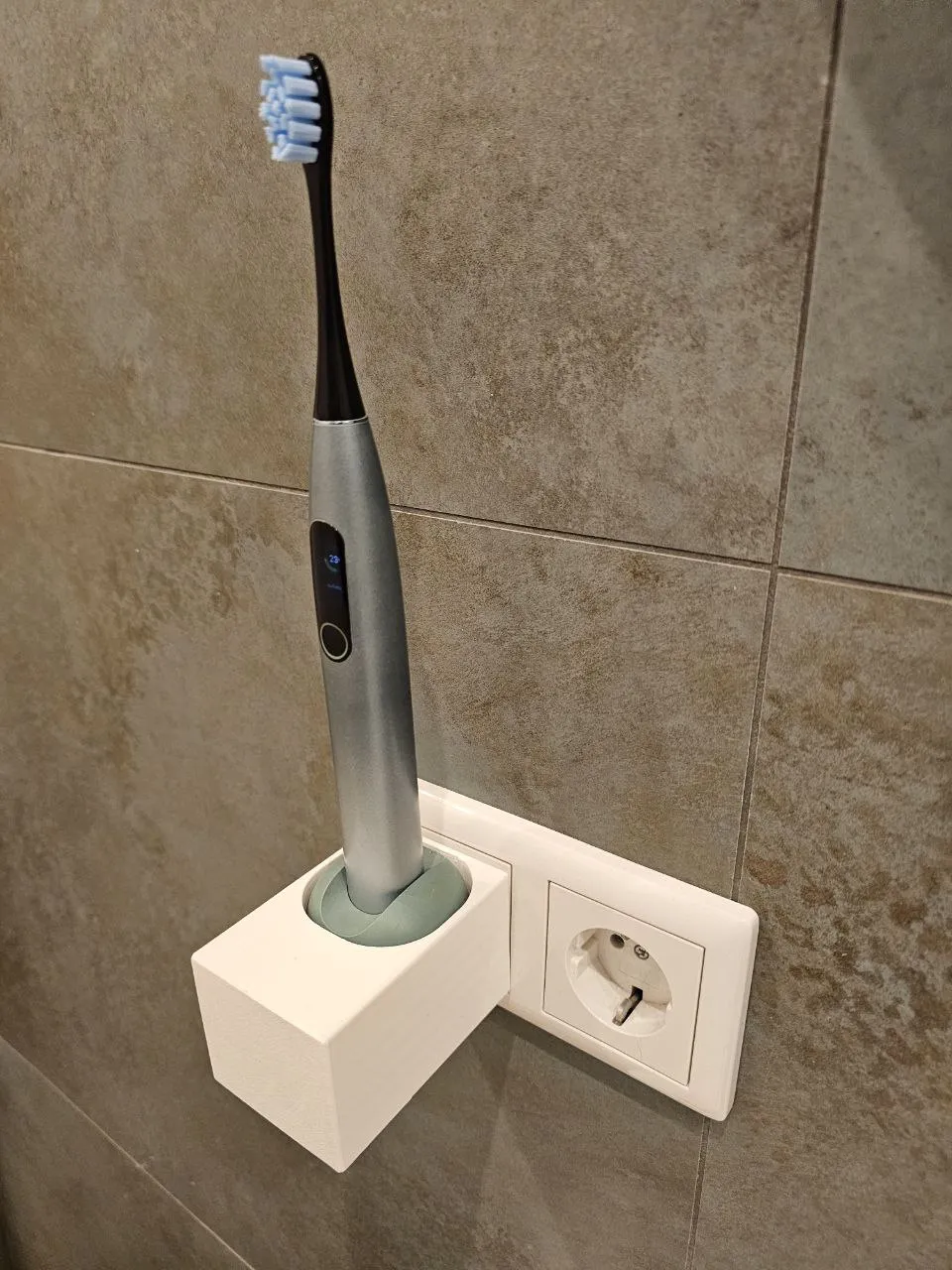

The model is certainly not perfect and quite large, but since I lost the magnetic adhesive pad and wanted to charge the toothbrush upright without wasting space, it serves its purpose.
IMPORTANT: Even if there is no opening in the case towards the power outlet, the toothbrush should be thoroughly dried before being placed in it. Otherwise, you risk a short circuit!
