AMS Drawer for X1C, X2D, P1S, P2S
Print Profile(6)
Description
Boost Me (for free)
Thank You :)

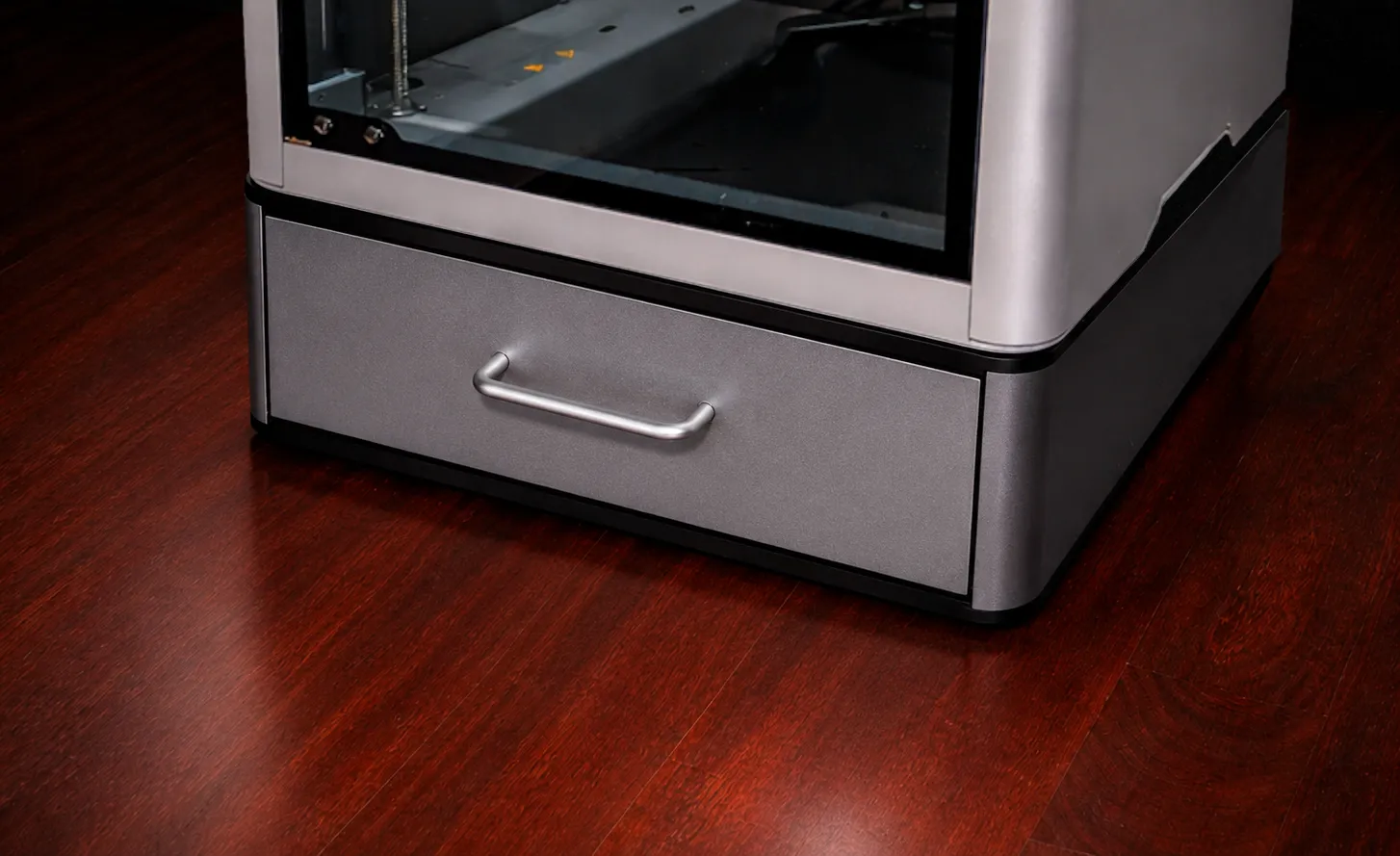

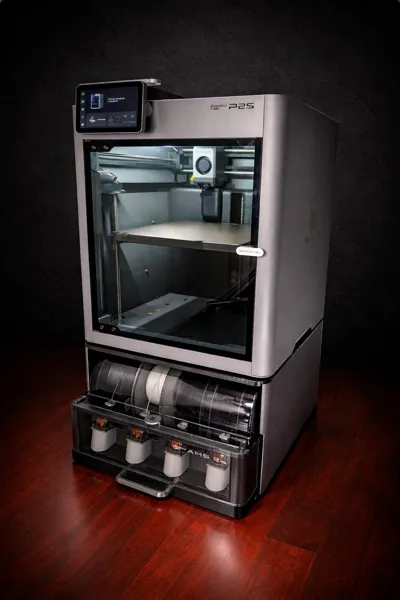

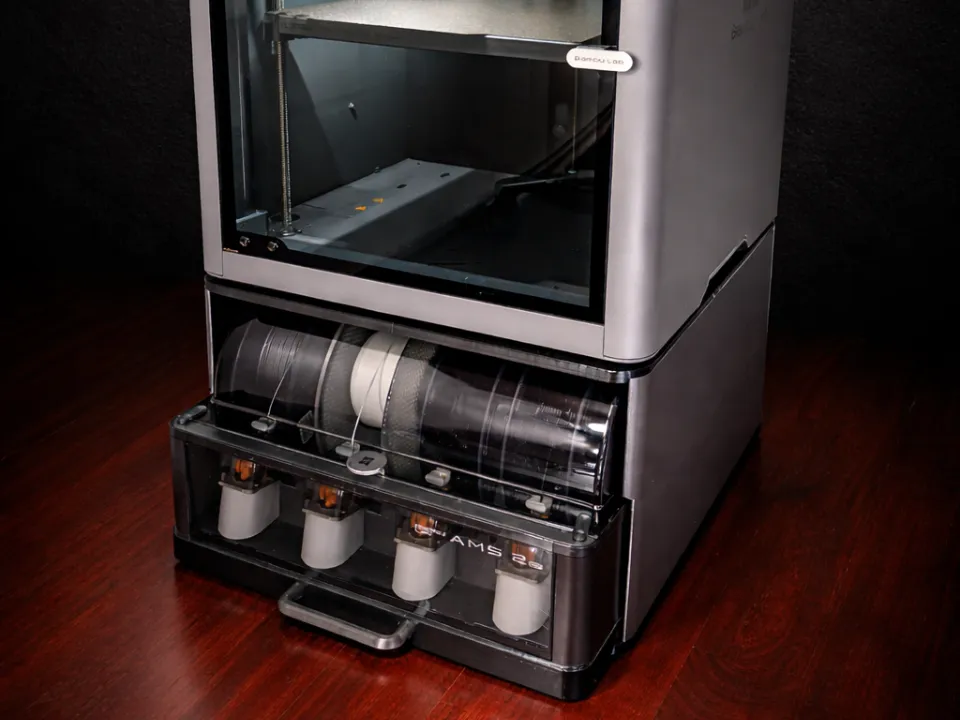

AMS Drawer – suitable for X1C, P1S & P2S
This specially designed AMS drawer allows for comfortable pulling out of the AMS system in the size of the X1C, P1S or P2S
Thanks to the pull-out design, the AMS lid can be fully opened – for maximum access to filaments and maintenance without restrictions
Advantages at a glance:
- ✔ Perfectly fitted for X1C, P1S and P2S
- ✔ Fully extendable for optimal operation
- ✔ Comfortable access to the AMS
- ✔ Stable and durable construction
- ✔ Height only 26cm

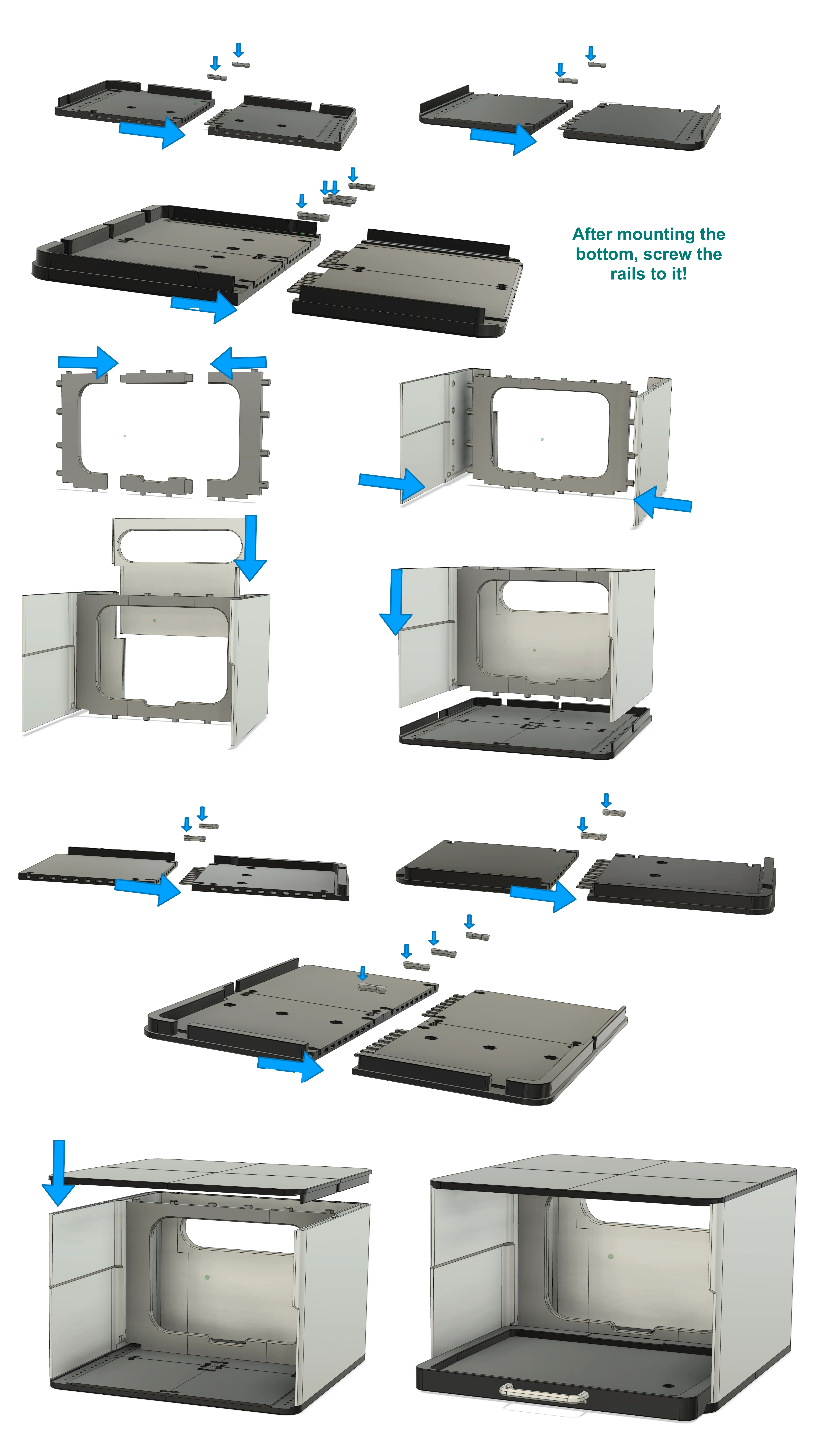

Assembly:

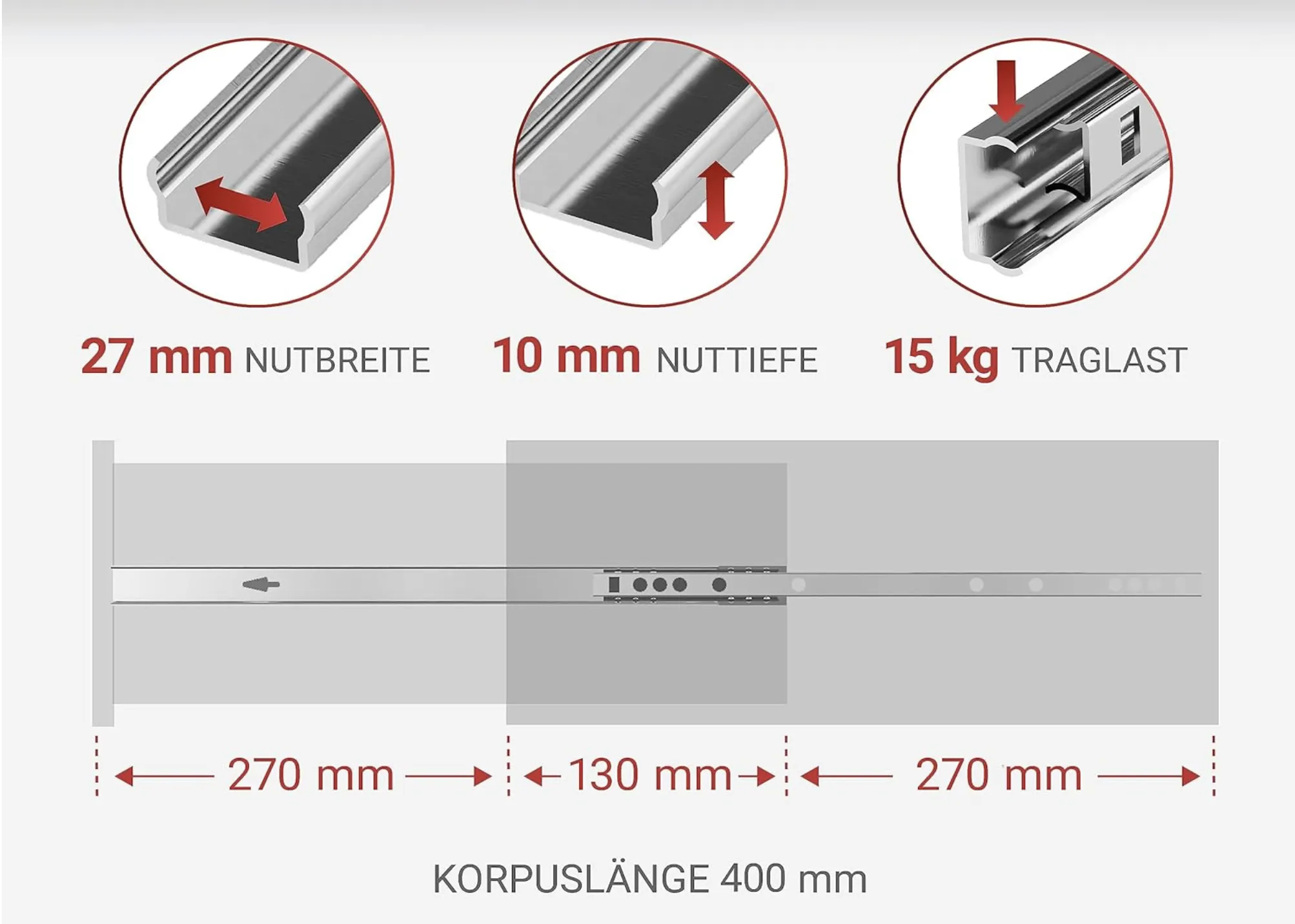

For installation, only a drawer slide with dimensions 400 × 27 × 10 mm is required
Here is an example of the slide:

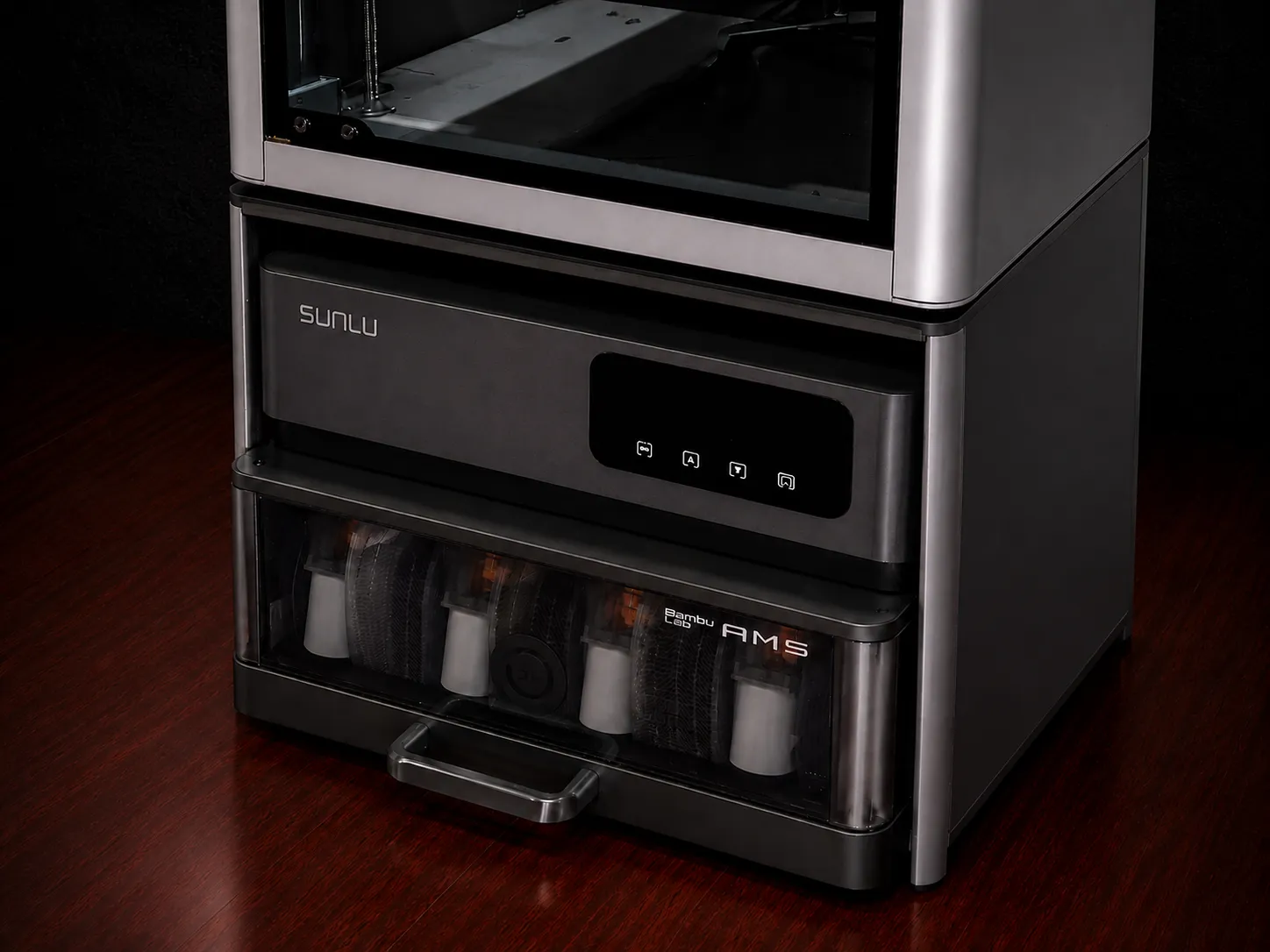

For a drawer riser (for example, for a SUNLU dryer), Sebastian.Stahlf has developed a model. Download it if you need more space :) => Many thanks to Sebastian
Bambu Lab X1/X2/P1/P2 Drawer
