Wera Toolcheck ULTIMATE PRO (Zyklop Speed 1/4")

UPDATE 28.02.2026

Added a print profile for a more loose fit for the bits.

____________________________________________________

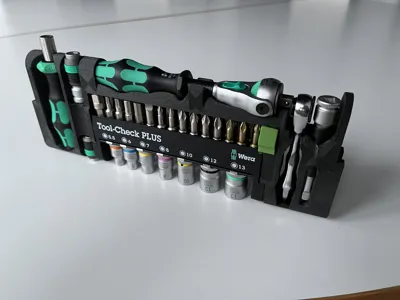

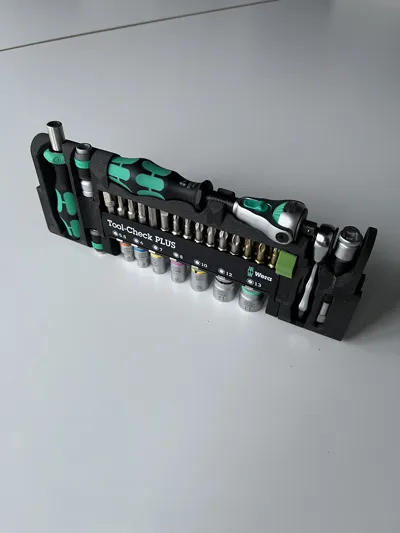

The Wera Tool-Check Ultimate PRO is a fully redesigned, 3D-printing–optimized upgrade of the original Wera Tool-Check Plus, created for users who want maximum functionality, modularity, and customization in a compact tool system.

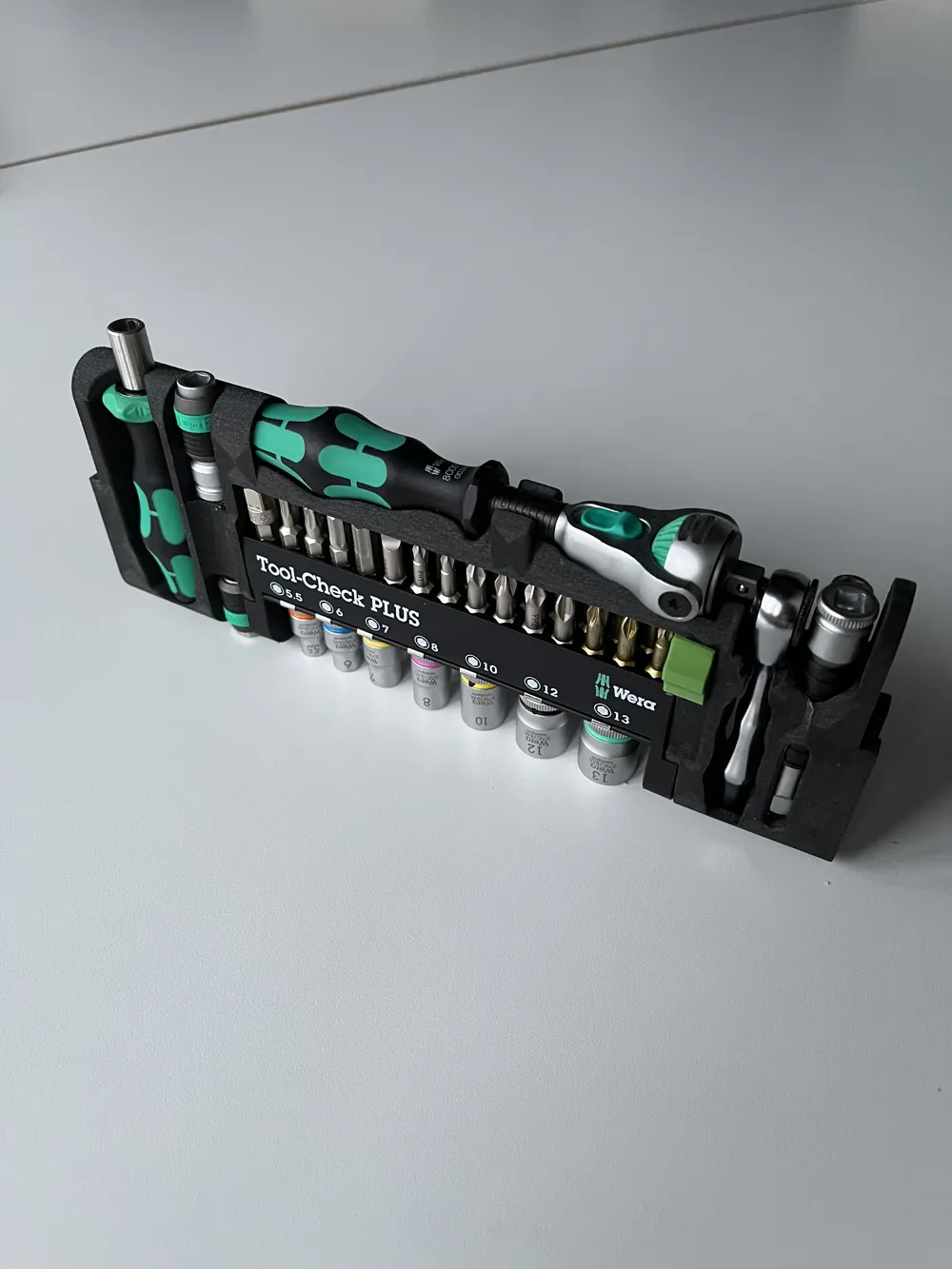

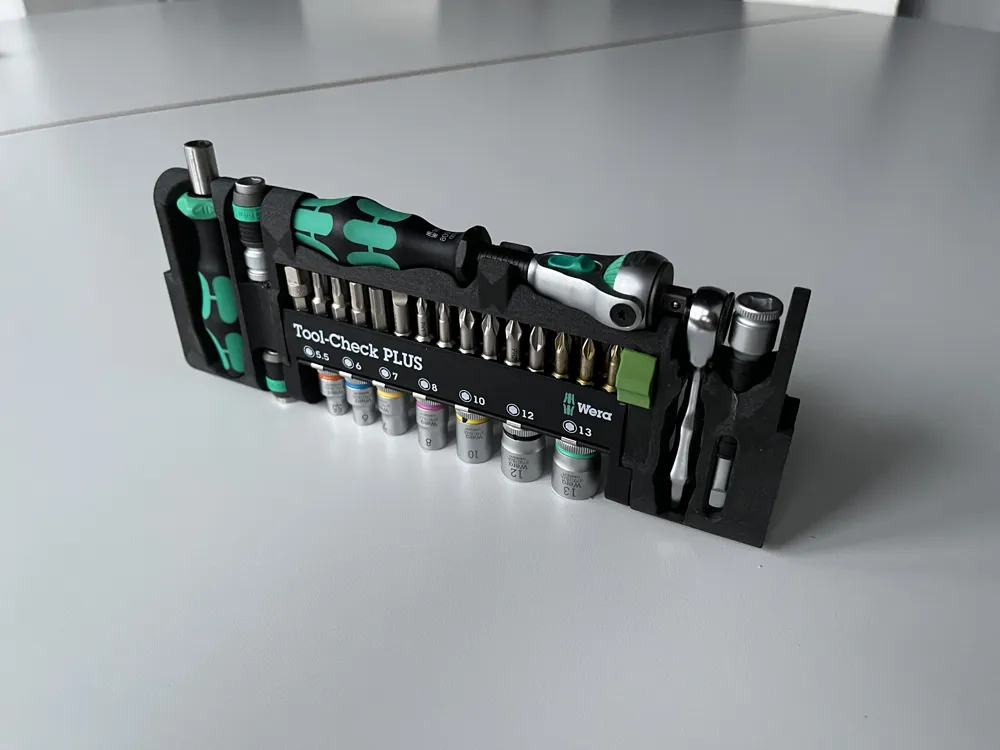

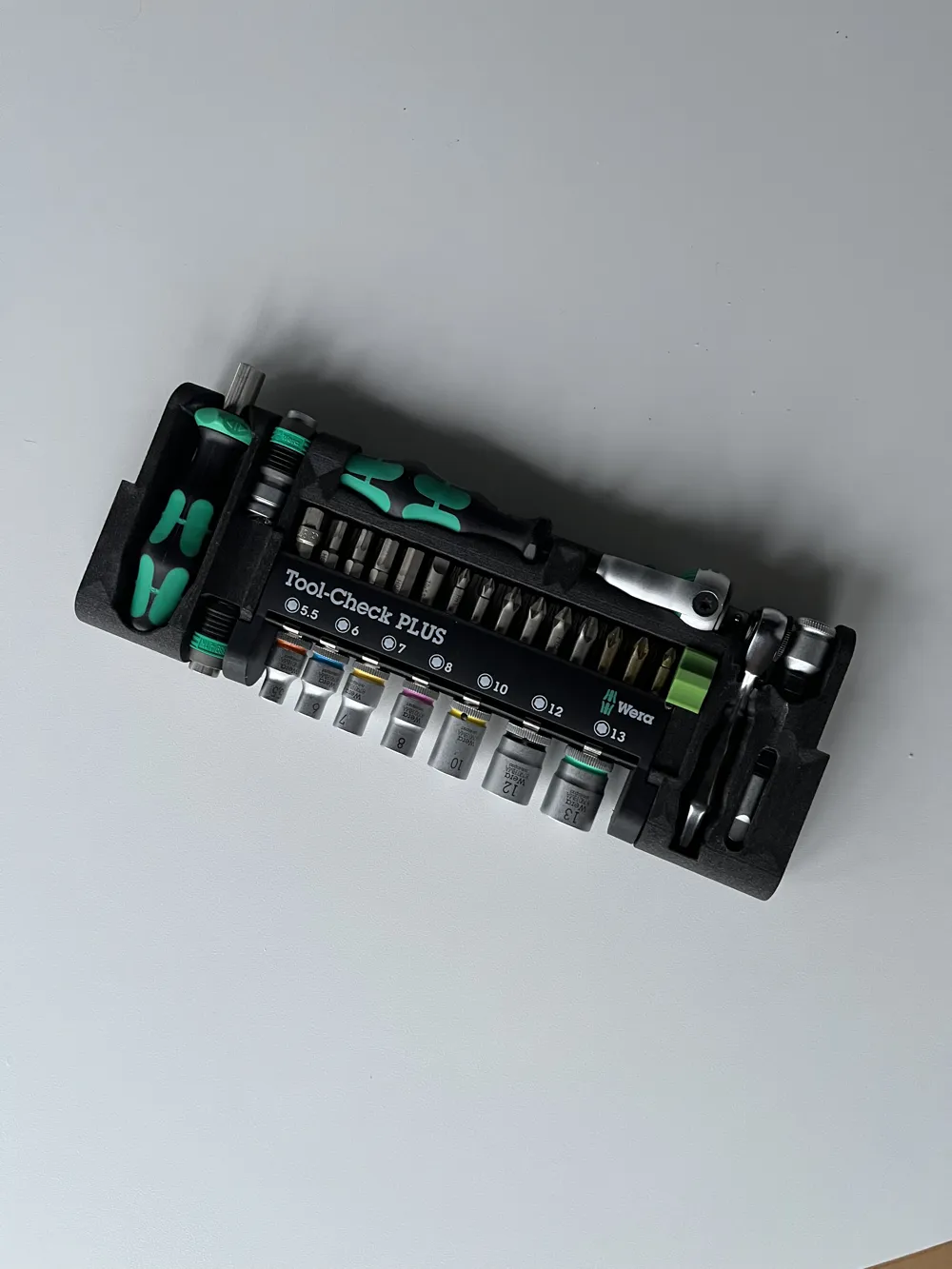

This model replaces the standard mini ratchet with a full-size Wera Zyklop Speed 1/4" ratchet, significantly improving ergonomics, torque handling, and usability, while maintaining the iconic Tool-Check layout. In the PRO version you still have a place to put the Mini-Ratchet of the original toolkit as well as an extension 75mm for the Zyklop Ratchet.

The left side of the Tool-Check Ultimate is fully accessible for all modules, as it uses the negative slide-in connector geometry. This allows modules to be inserted from either side and enables the use of the Wera modular hinge on the left side as well.

With this update, the Tool-Check Ultimate can now be folded on both sides, matching the flexibility of the Wera modular system while retaining full compatibility with custom and OEM modules.

I'd like to shout out @SimonLeib for new ideas and testing out different fits. Some tolerances in this version are a little tighter and some a little looser.

Key Features

• Designed for 3D Printing
  • Optimized geometry for FDM printing
  • Snap-fit and slide-in modules tuned for common print tolerances
  • No proprietary hardware required
• Zyklop Speed Integration
  • Integrates a Wera Zyklop Speed 1/4"
  • Dedicated holder for the Wera 8784 A1 Zyklop adapter, allowing direct use of standard Tool-Check bits with the Zyklop ratchet

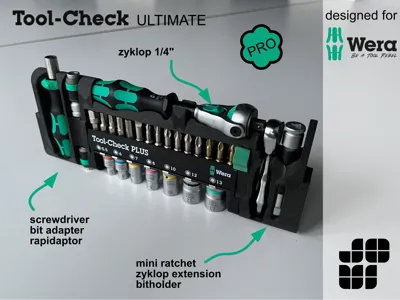

• Full Version – Screwdriver Handle Support
  • Accommodates the Wera 838 screwdriver handle
  • Secure snap-fit holder keeps the handle firmly in place while remaining easy to remove

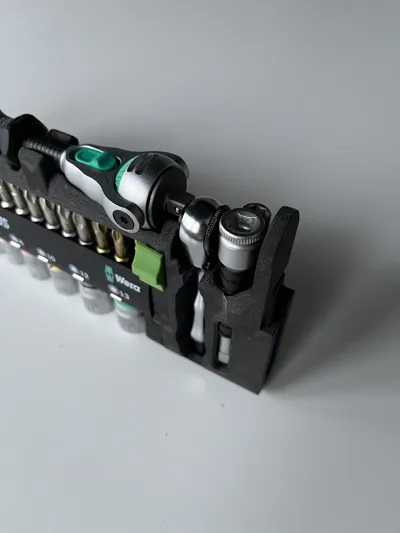

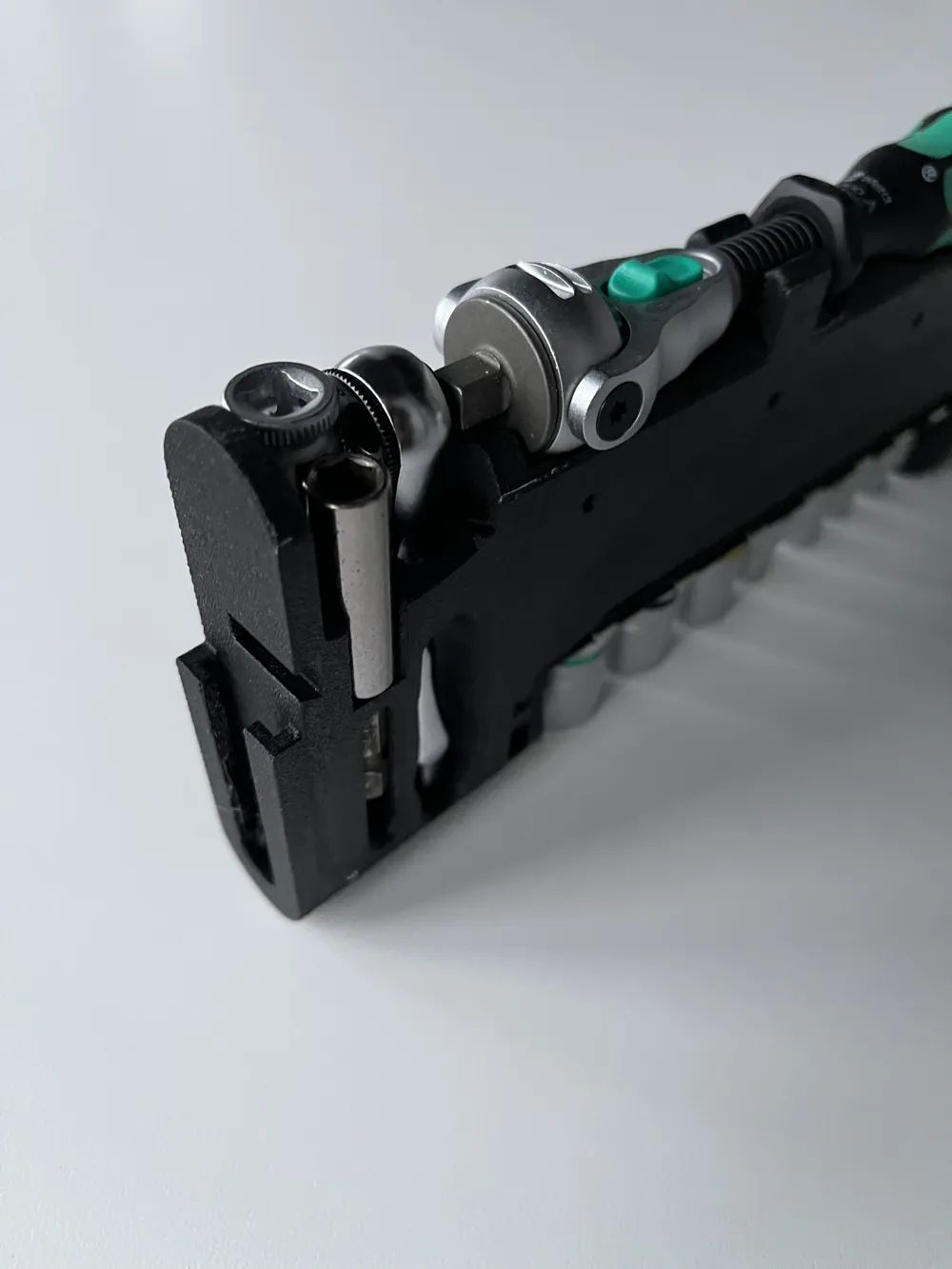

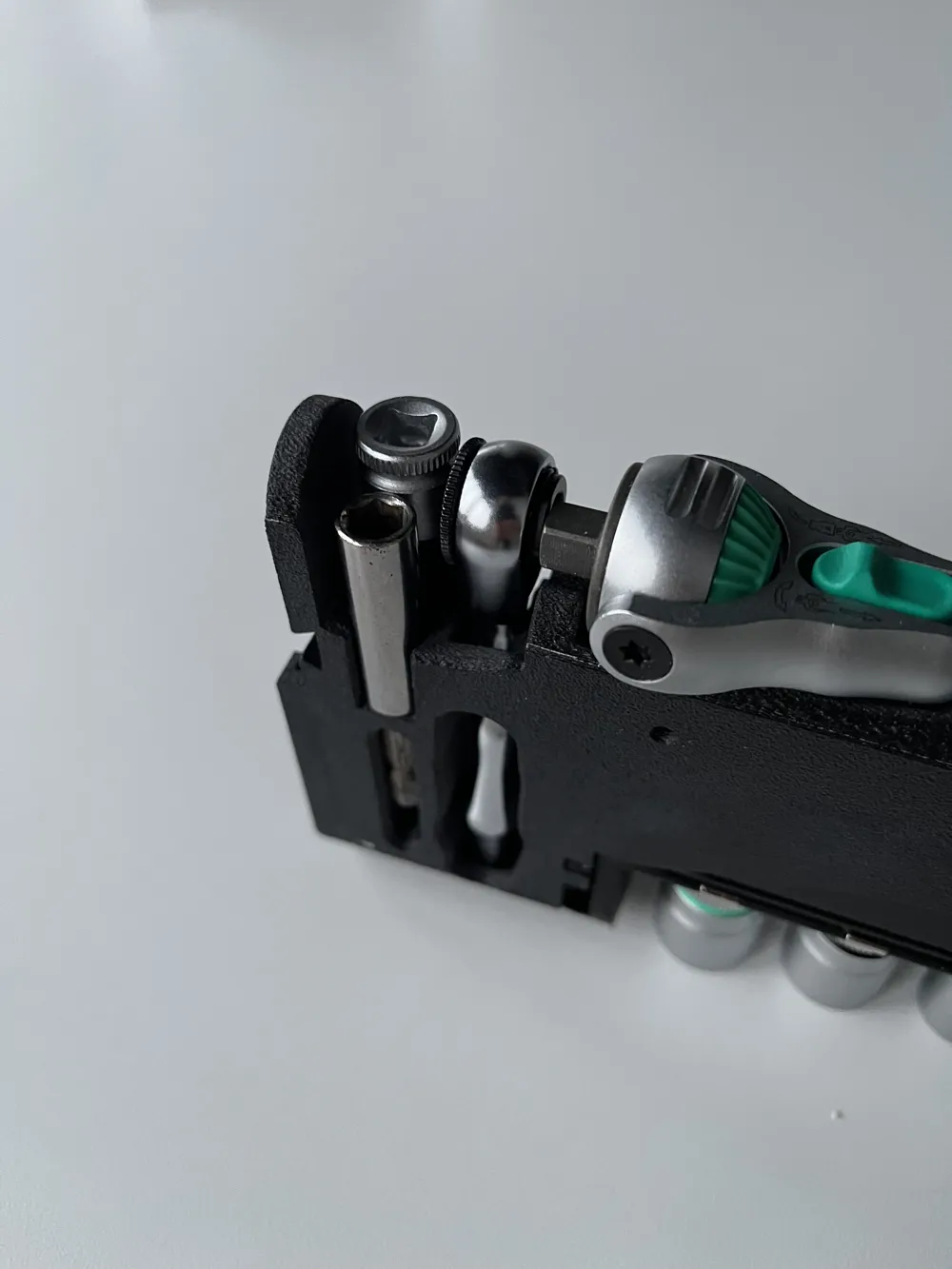

  • dedicated place for the Mini Ratchet, 75mm Zyklop extension and a 50mm standard bitholder
• Wera Tool-Check Modular Compatible
  • Fully compatible with the Wera Tool-Check Modular system
  • Slide in and swap modules to configure the toolset to your needs
  • Designed to work seamlessly with existing Wera modular components
• Custom Expansion Modules
  • a custom-designed module for a HOTO tape measure
  • Demonstrates the flexibility of the modular system for non-Wera accessories

Why “Ultimate PRO”?

This design turns the Tool-Check into a true all-in-one EDC and workshop solution, combining:

• Bit storage
• Socket storage
• Full-size ratcheting performance
• Screwdriver functionality
• Modular expandability
• all Tool-Check PLUS items

All while staying portable, and fully 3D printable.

Notes

• The Top part is compatible with the original bottom part where the bits sit. I recommend using the original part here for the best performance.

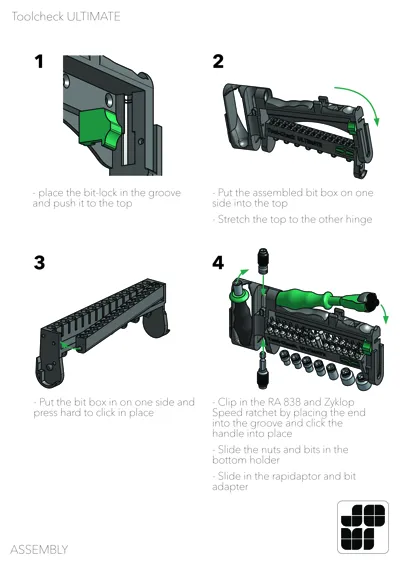

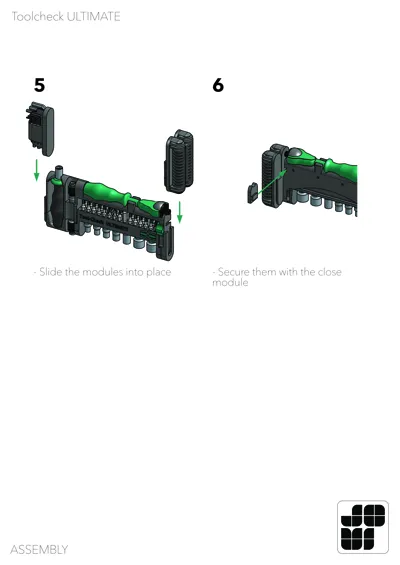

• The Assembly Guide is the same as for the non PRO version.
• This is a third-party, custom-designed model intended for use with genuine Wera tools.
