Link Monsoon MX5 Bracket
Print Profile(1)
Description
This adapter allows for a clean installation of a Link Monsoon ECU in a Mazda Miata MX-5 NB/NBFL (Mk2/2.5). It is designed to reuse the original OEM metal brackets and screws.

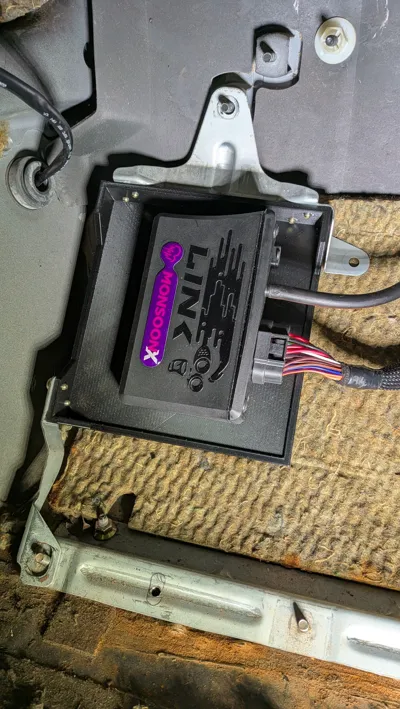

The OEM brackets are screwed directly into this printed block (self-tapping), ensuring a stock-like fitment under the dashboard using the original mounting points.
⚙️ Print Settings
Successfully printed and tested on a Bambu Lab P1S using the "0.20mm Strength" profile.
- Profile: 0.20mm Strength (Bambu Studio).
- Walls/Perimeters: 6 Walls (Crucial! Ensures the screws bite into solid plastic, not infill).
- Infill: 25% (or higher).
- Material:
- Tested with: PETG (Works well).
- Recommended: ASA or ABS (Preferred for higher heat resistance in summer).
- ⚠️ Do not use PLA! (It will warp inside a hot car).
🔧 Assembly
- Remove the stock ECU and unscrew the side metal brackets.

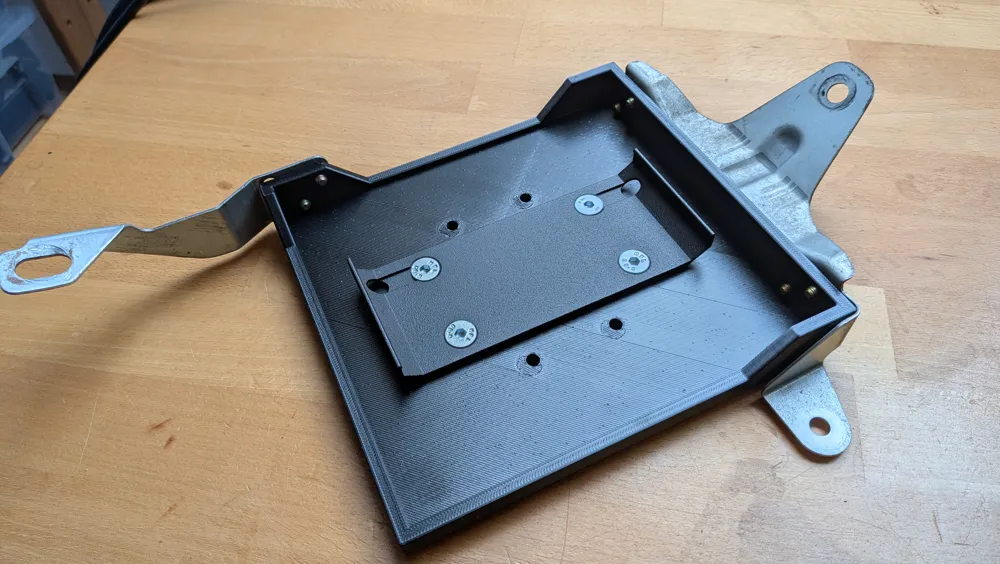

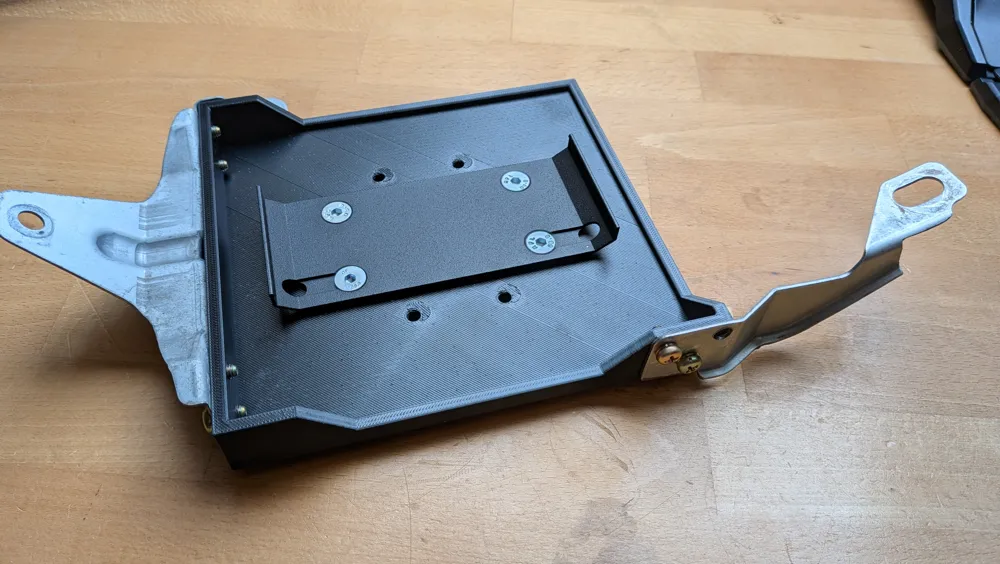

- Use the original OEM screws to attach the brackets to the printed mount.
- Note: The screws will self-tap into the plastic. Tighten them hand-tight only to avoid stripping the plastic threads.

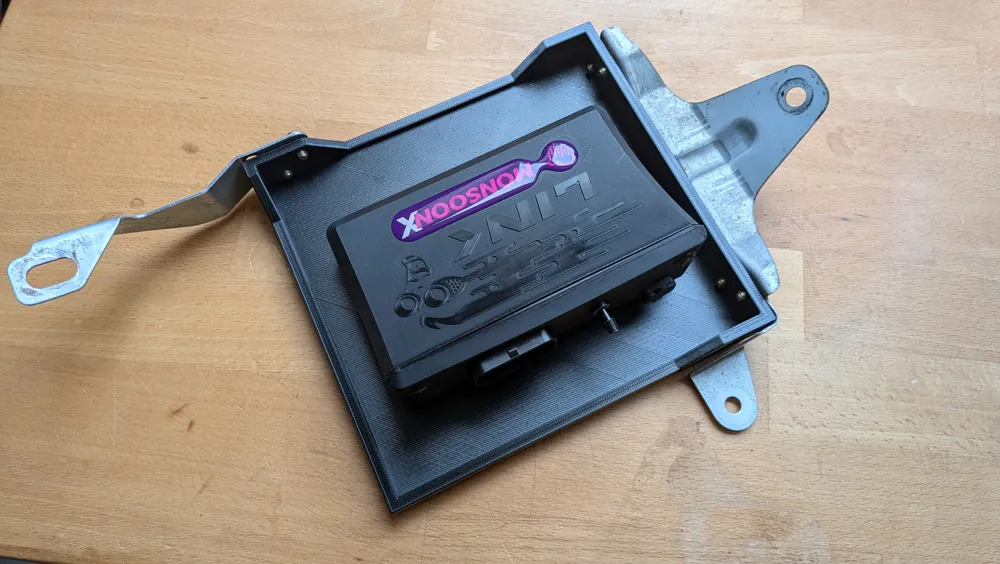

- Mount the Link Monsoon to the printed holder.

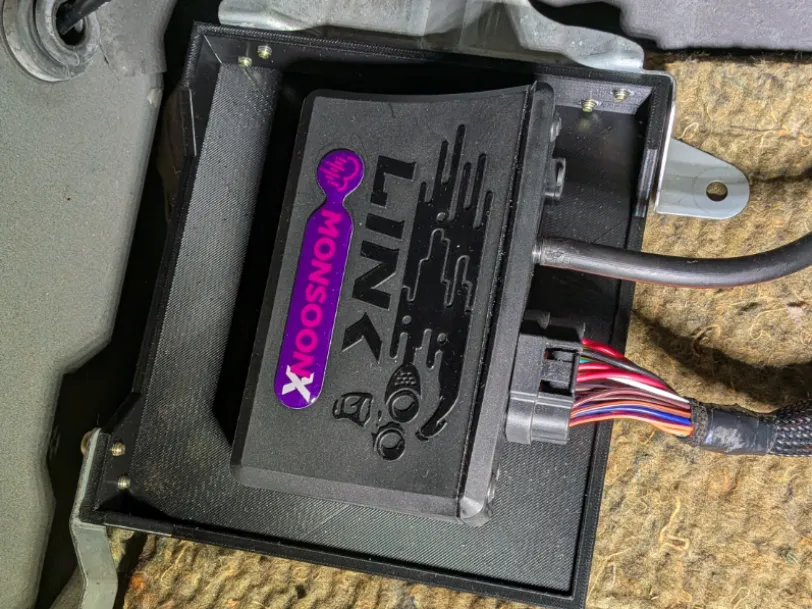

- Install the assembly back into the car.
