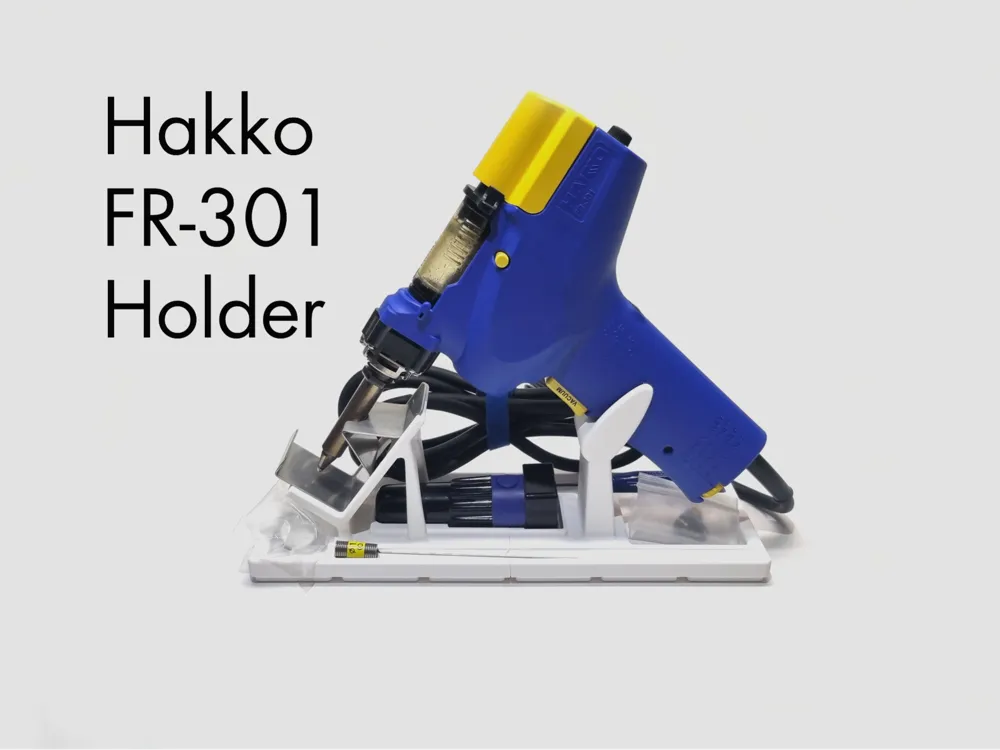

Stand for Hakko FR-301 desoldering gun.

I spent too much money on this fancy gadget. I thought the proper stand sold separately was expensive and poorly designed.

This stand:

Reuses the existing metal stand in the box. Nothing else needed.
Has some trays for knick-knacks.
Won't damage the cord out of the bottom of the handle.
Is Gridfinity compatible.
Option to be printed on the A1 mini.
Has hooks for the cord when wrapped up.

Model pictured is printed in PLA, has been in use for about a year now with no warping issues.

After a 20 minute test at 450c, the metal plate gets toasty and uncomfortable to hold barehanded but still no warping issues.

I cannot test 500c due to using a 110v transformer on a 100v gun.

If you are worried about heat creep, I suggest using PETG or PC for greater heat resistance.

V2:

Changed the way print profiles are organised
Made the cradle for the tool changer longer
Changed feet sizing
