Description

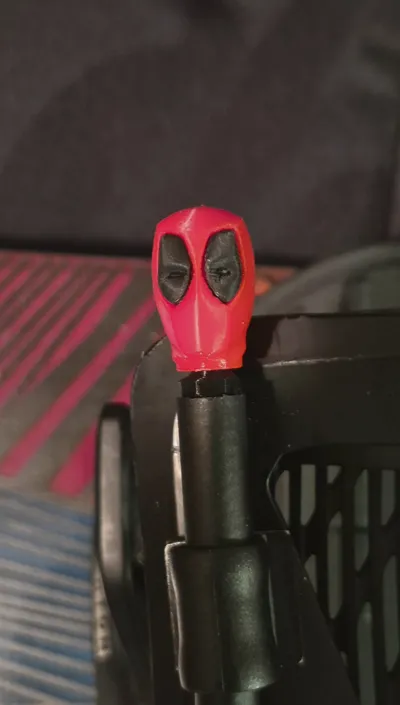

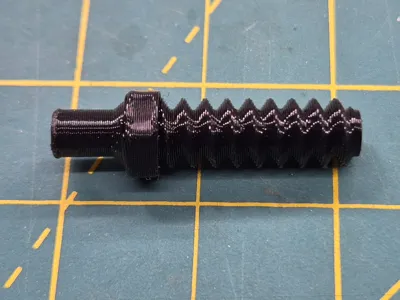

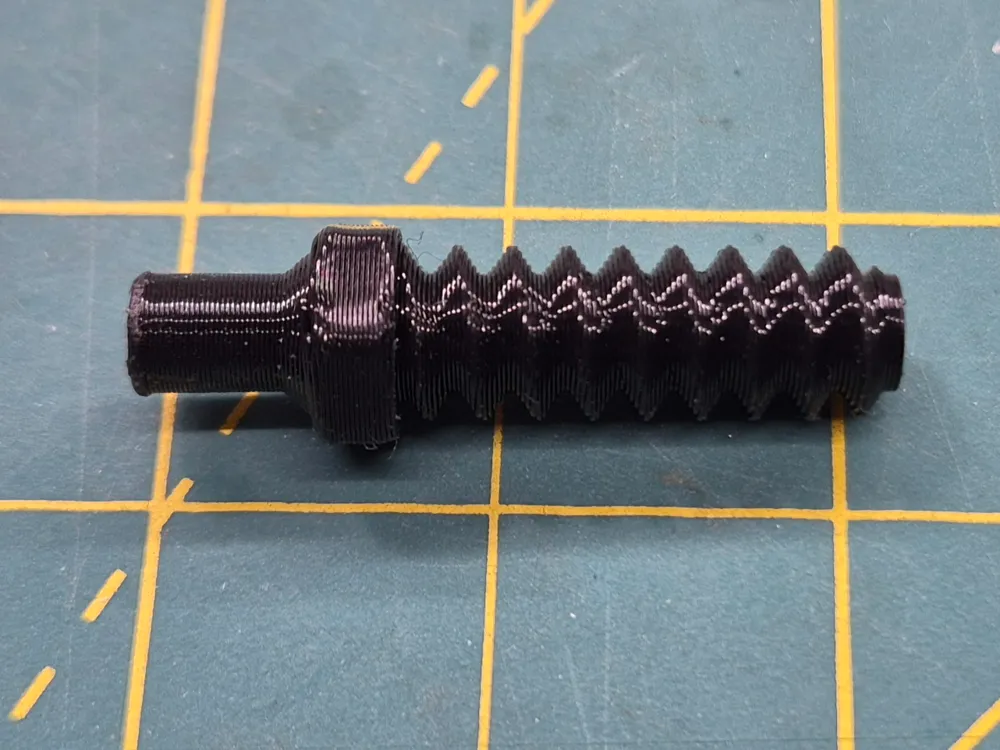

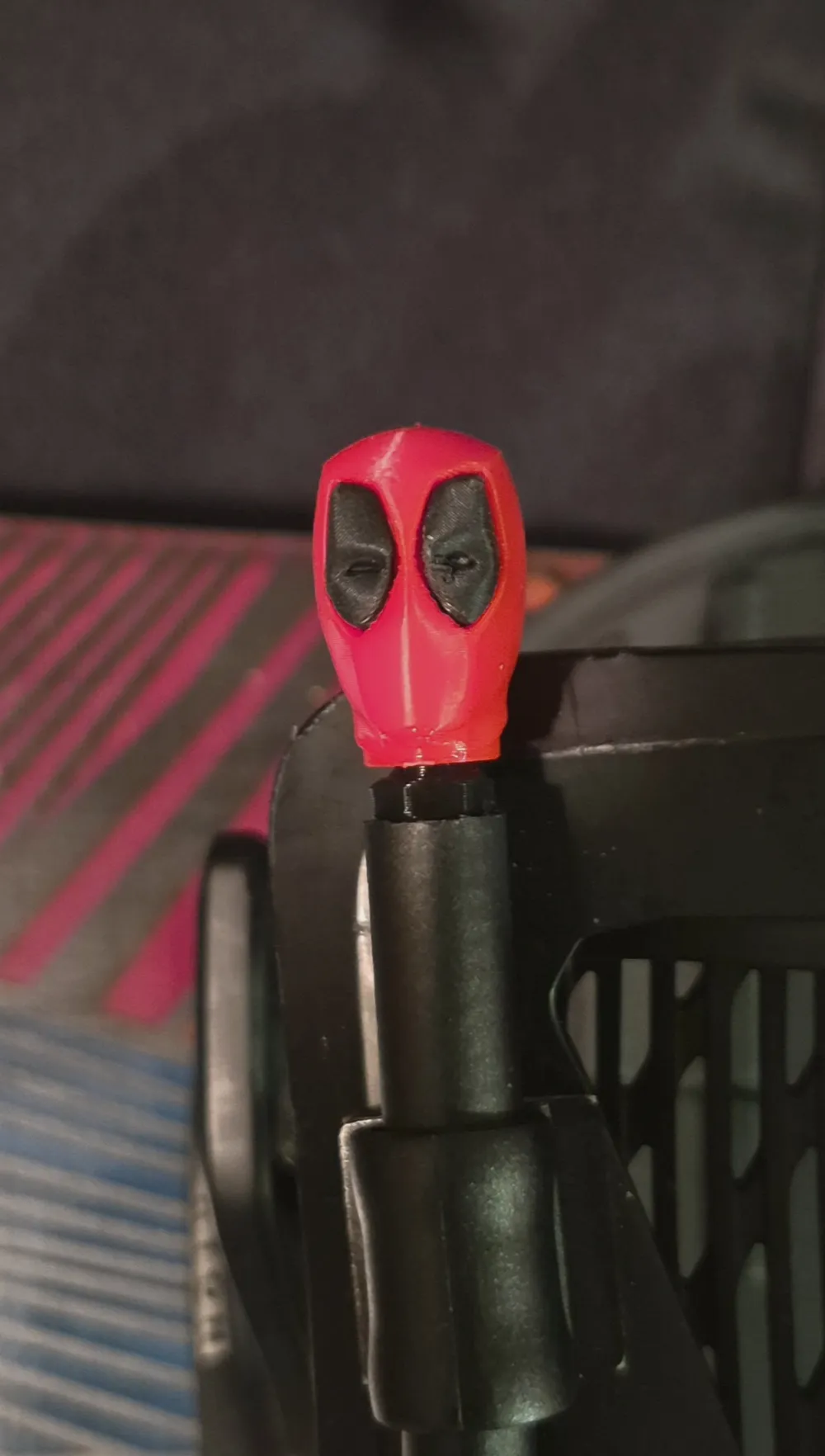

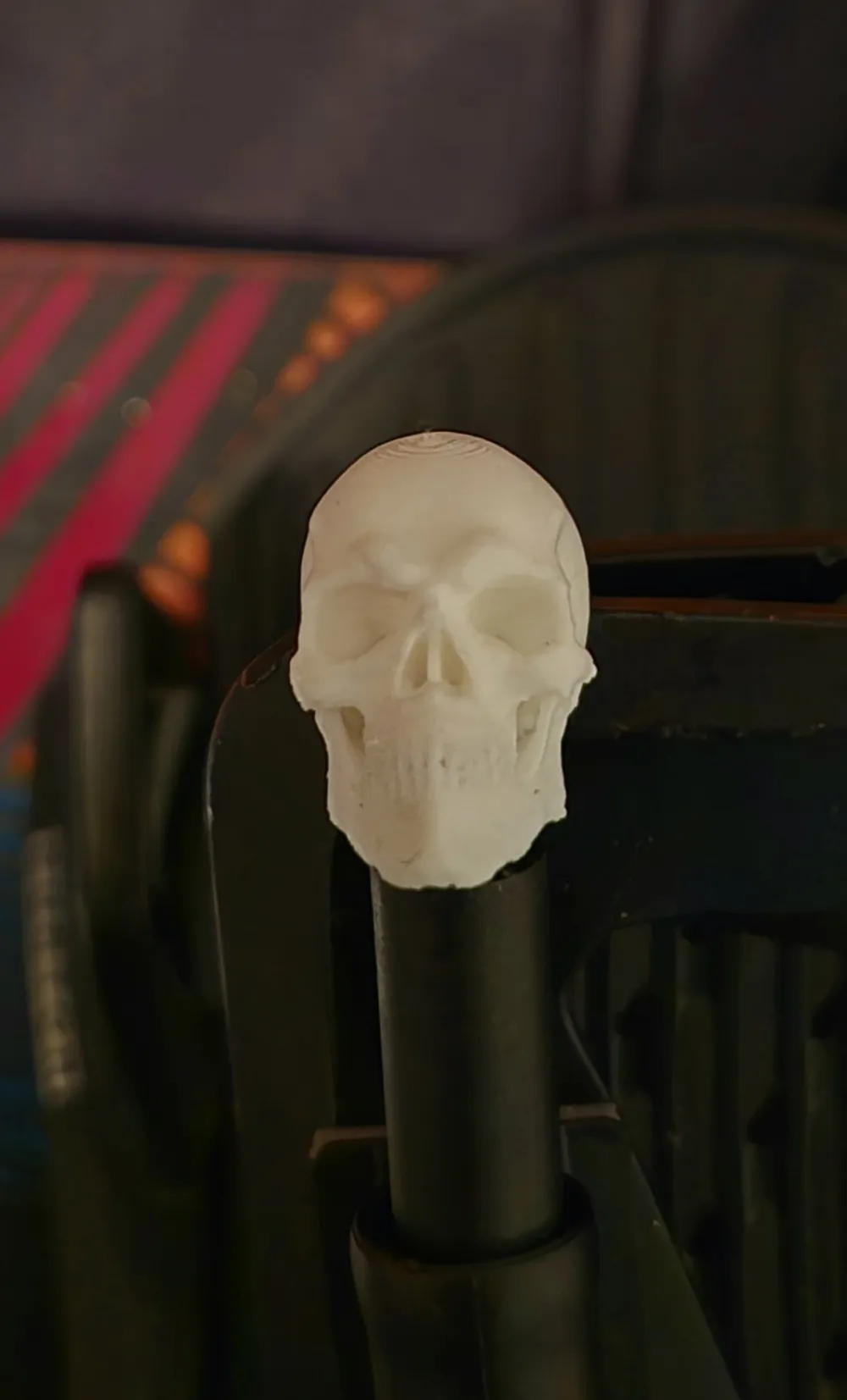

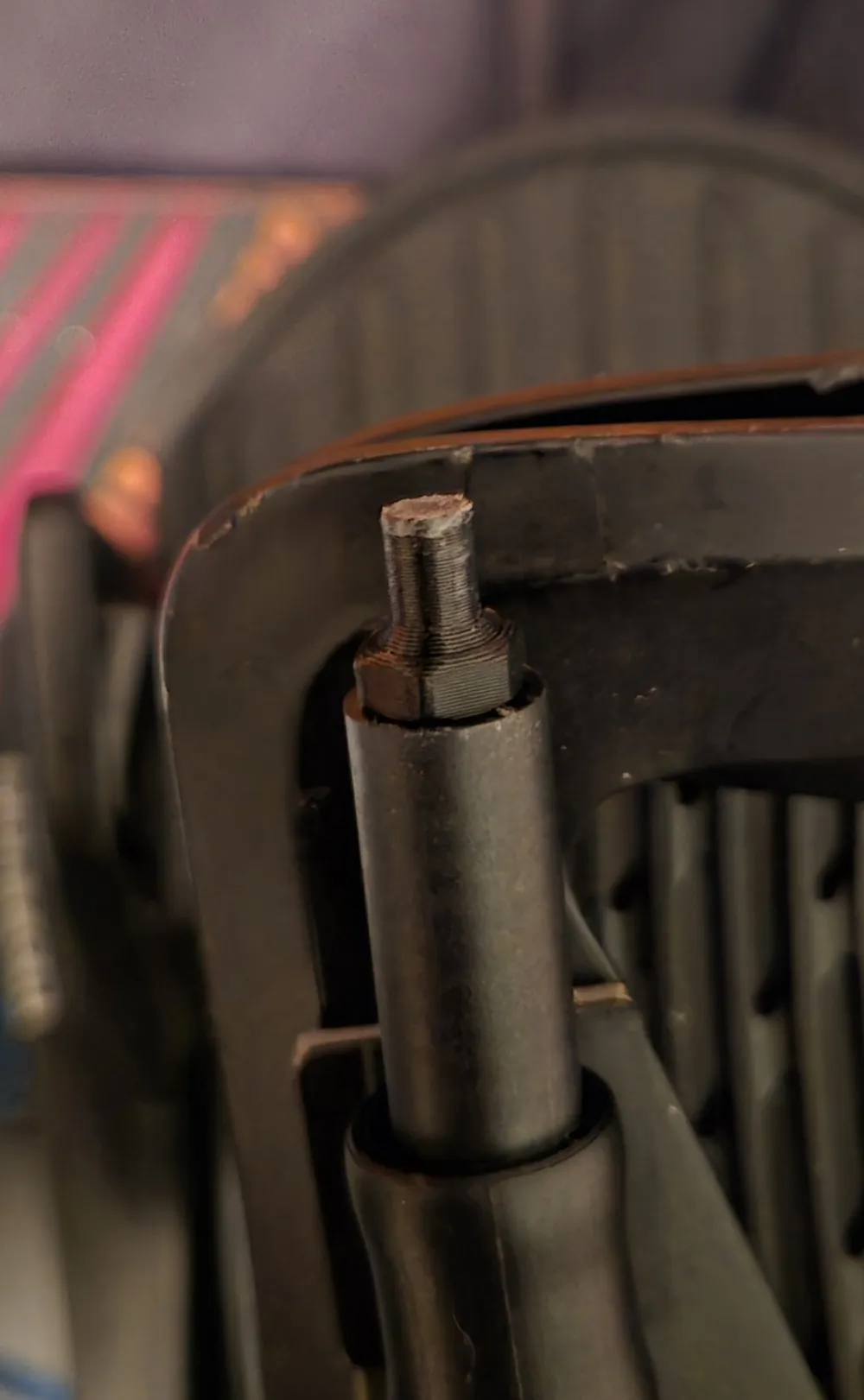

Add some style to your Pro Standard button for Step On Bindings.  This is just the bolt with a 4.5 mm cylinder sticking up. I printed the different heads be scaling to desired size then adding a 4.65mm diameter negative cylinder in the middle in Bambu Studio.  The 4.5 mm rod is designed to break off above the bolt head so you can still remove the threaded part from the Pro Standard “stick” in-case of a snag.

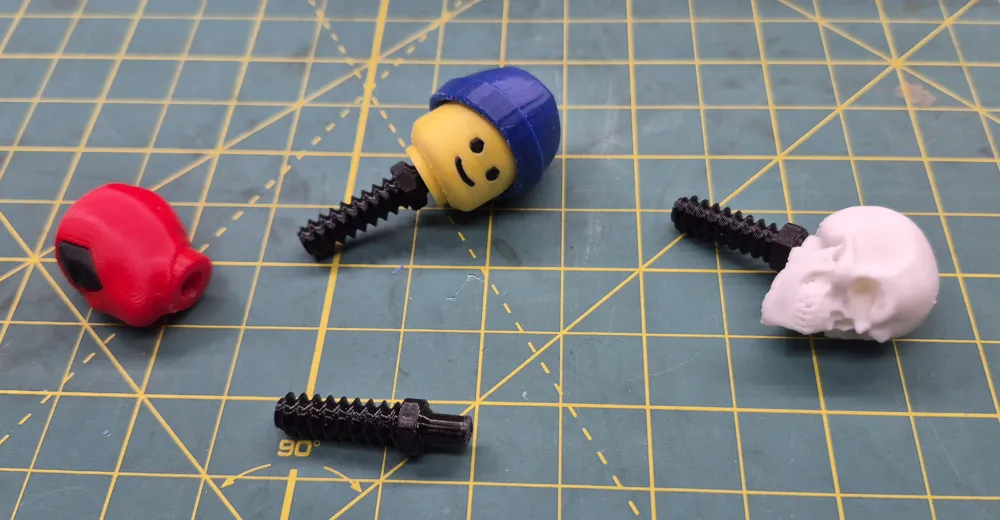

 The different buttons/ heads are not my design, so I did not load them up yet.  More to come.



I used PETG for the bolt for better strength and resistance to cold.



This has not been field tested yet so use at own risk.
